Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb if necessary.
Install the lamp socket to the base plate.

Fig 1: Installing Bulb Into Sliding Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the side rail lamp.
If necessary, install the service loop to the glue using foam tape.

Fig 2: Connecting Electrical Connector To Side Rail Lamp
Courtesy of GENERAL MOTORS CORP.
Align the lamp base plate to the plastic retainers.

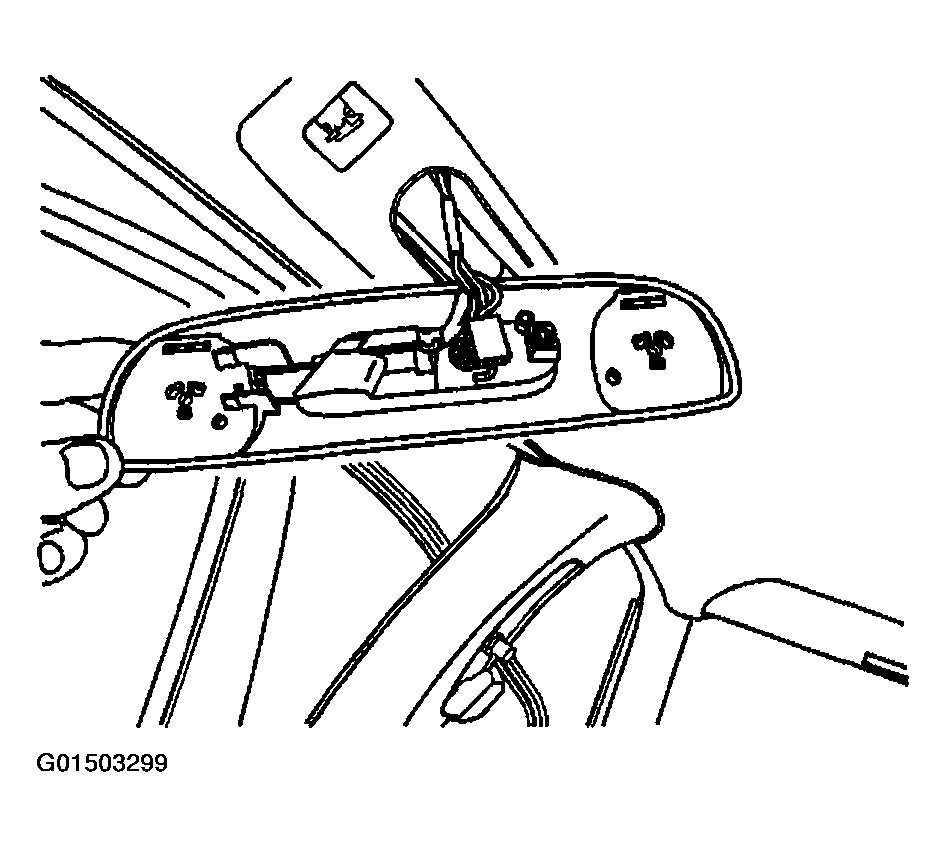

Fig 3: Aligning Lamp Base Plate To Plastic Retainers
Courtesy of GENERAL MOTORS CORP.
Position the assist handle to the base plate and the plastic retainers.

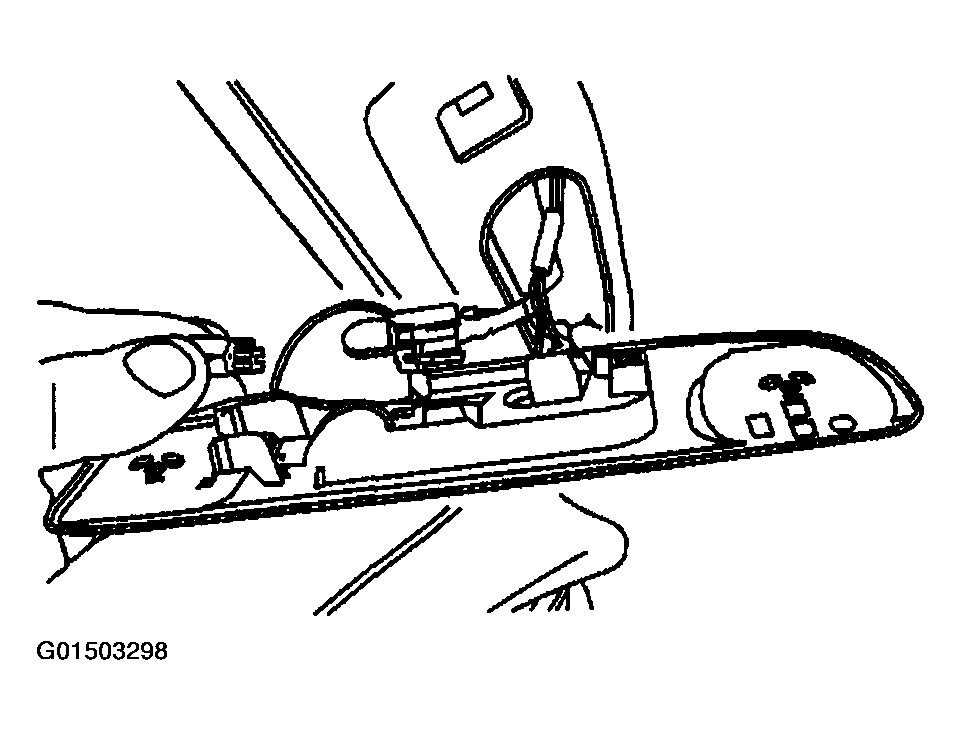

Fig 4: Positioning Assist Handle To Base Plate And Plastic Retainers
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the assist handle.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Close the assist handle covers by pressing the covers into place until fully seated.

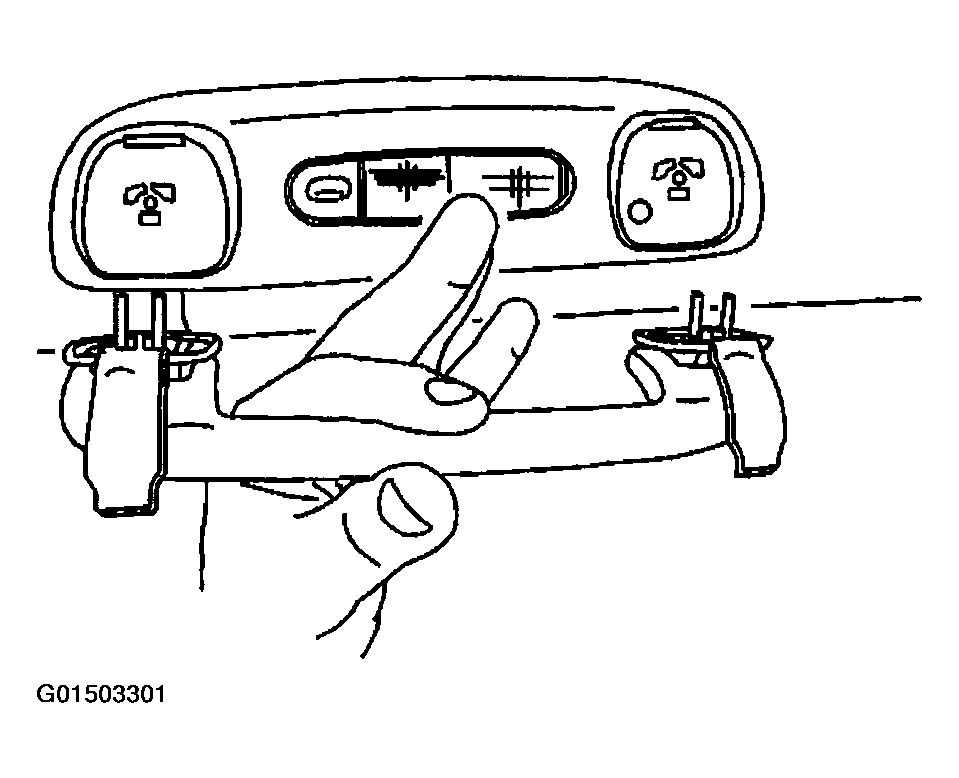

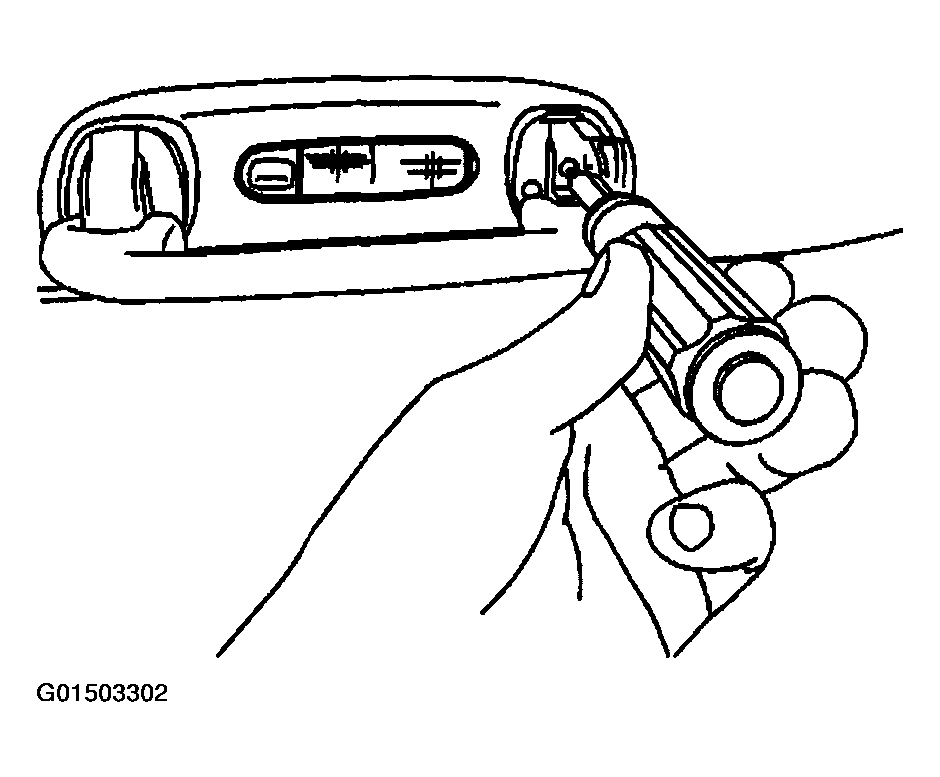

Fig 5: Installing Screws To Assist Handle
Courtesy of GENERAL MOTORS CORP.
