Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb.

Fig 1: Installing Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Align the upper lens tab to the opening. Insert the upper edge of the lens.
Insert a small flat-bladed tool at the lower edge of the lamp lens. Carefully press up to install the lens.
Close the illuminated mirror door and raise the sunshade.

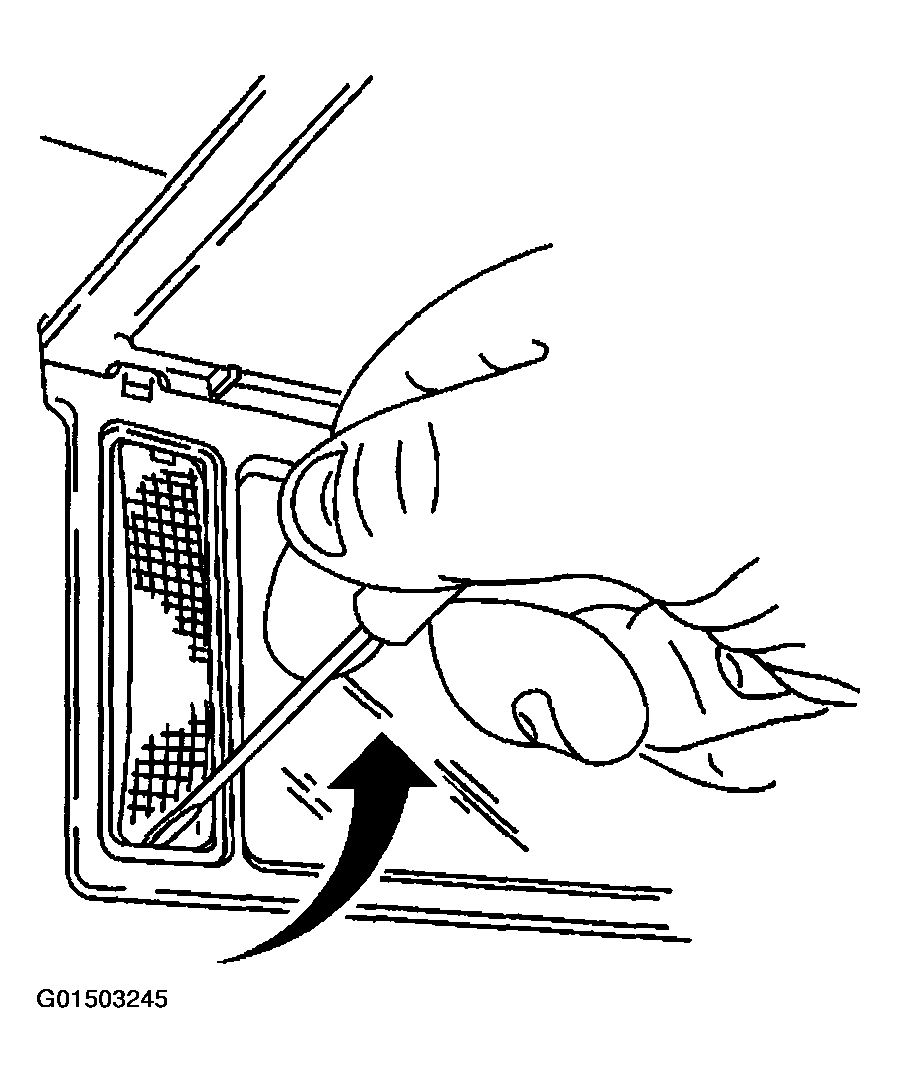

Fig 2: Installing Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
