Vanity Mirror Lamp Replacement: Notes

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Lower the sunshade and open the illuminated mirror door.
Insert a small flat-bladed tool at the lower edge of the lamp lens. Carefully press down to remove the lens.

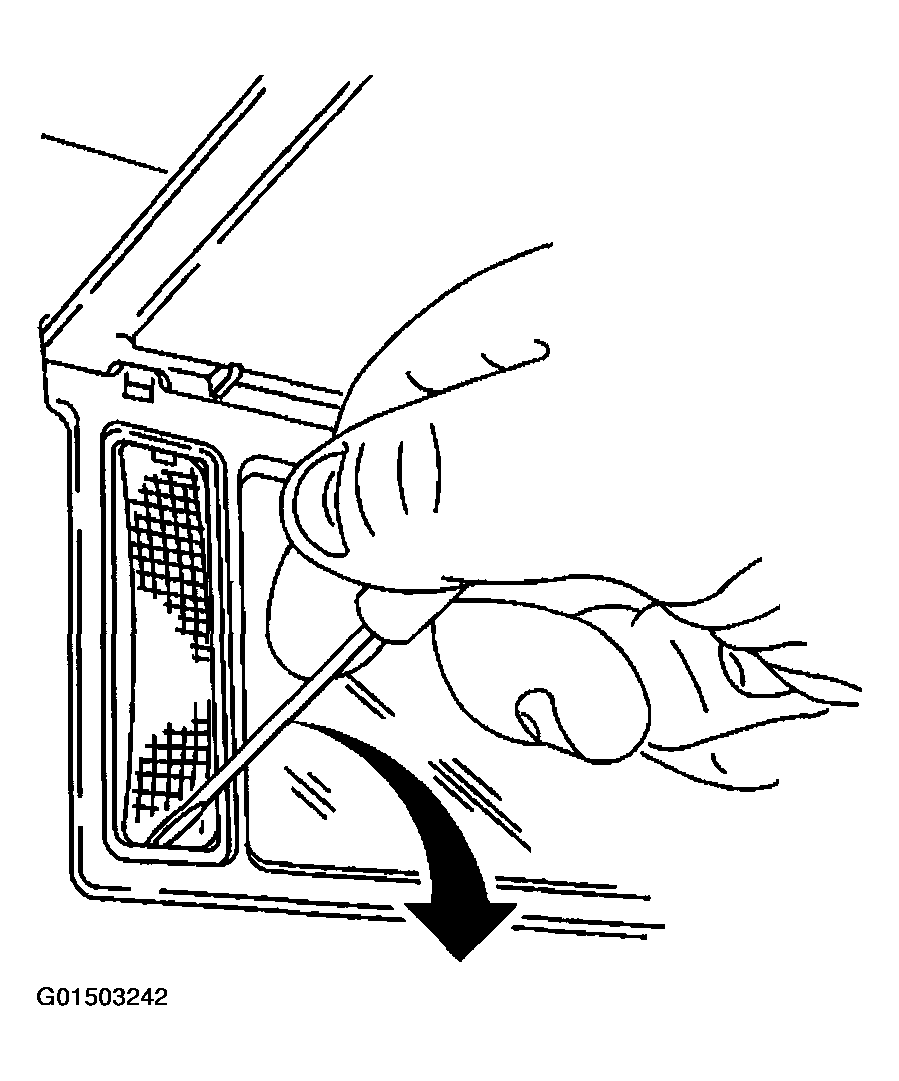

Fig 1: Removing Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
Remove the bulb.

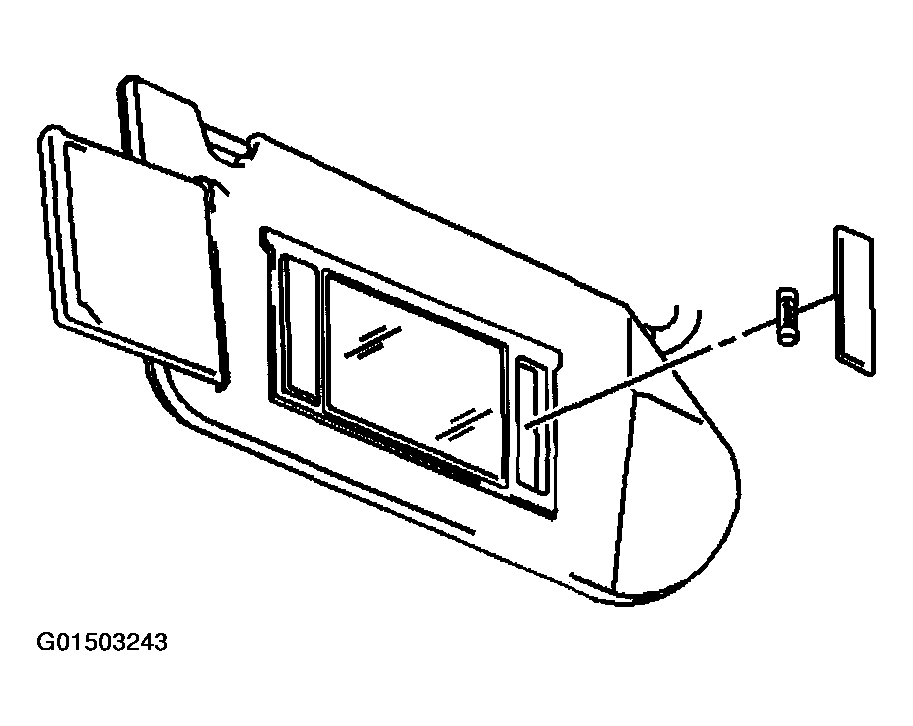

Fig 2: Removing Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
