Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper motor water deflector. Refer to WIPER MOTOR WATER DEFLECTOR REPLACEMENT  .
  3. Using the J 39232  , disconnect the wiper transmission from the wiper motor crank arm to aid in the removal of the wiper drive system module.

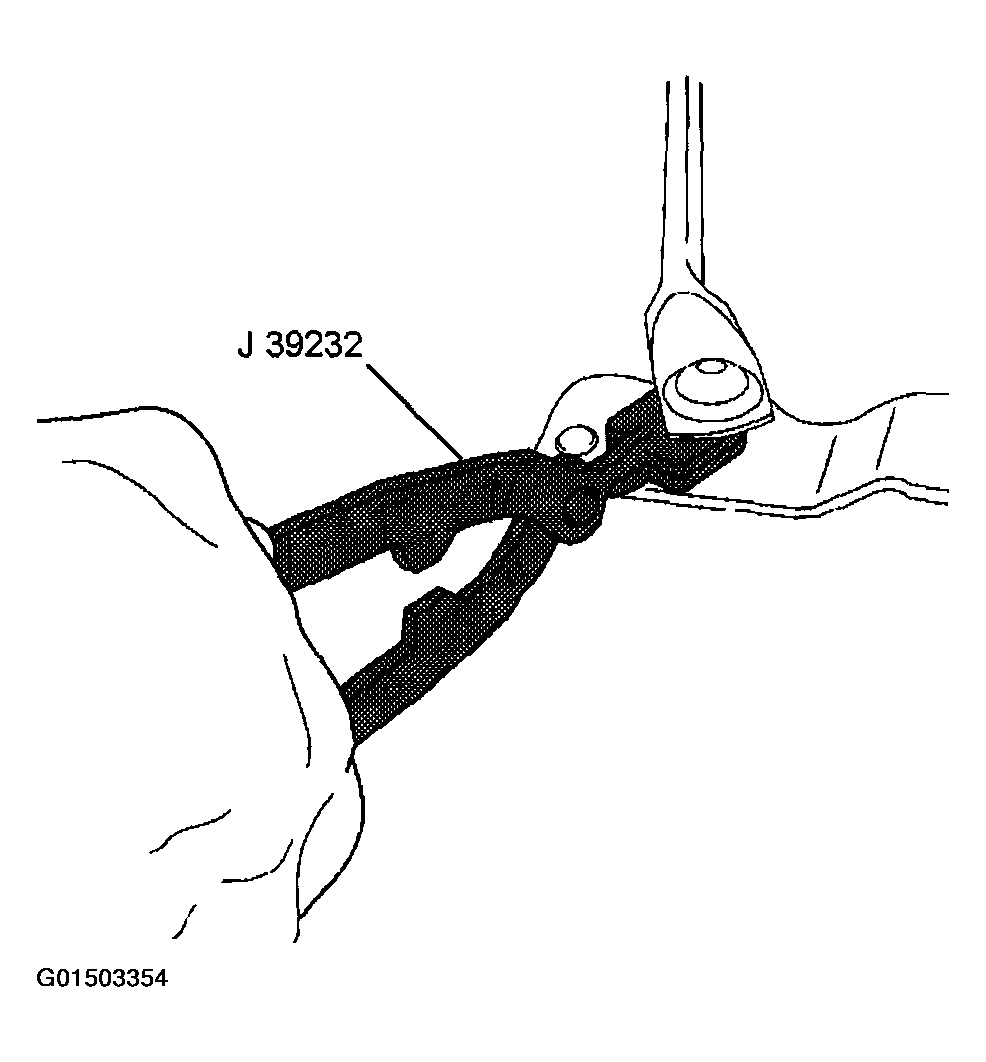

    Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm
    G01503354Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper drive system module screws.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.

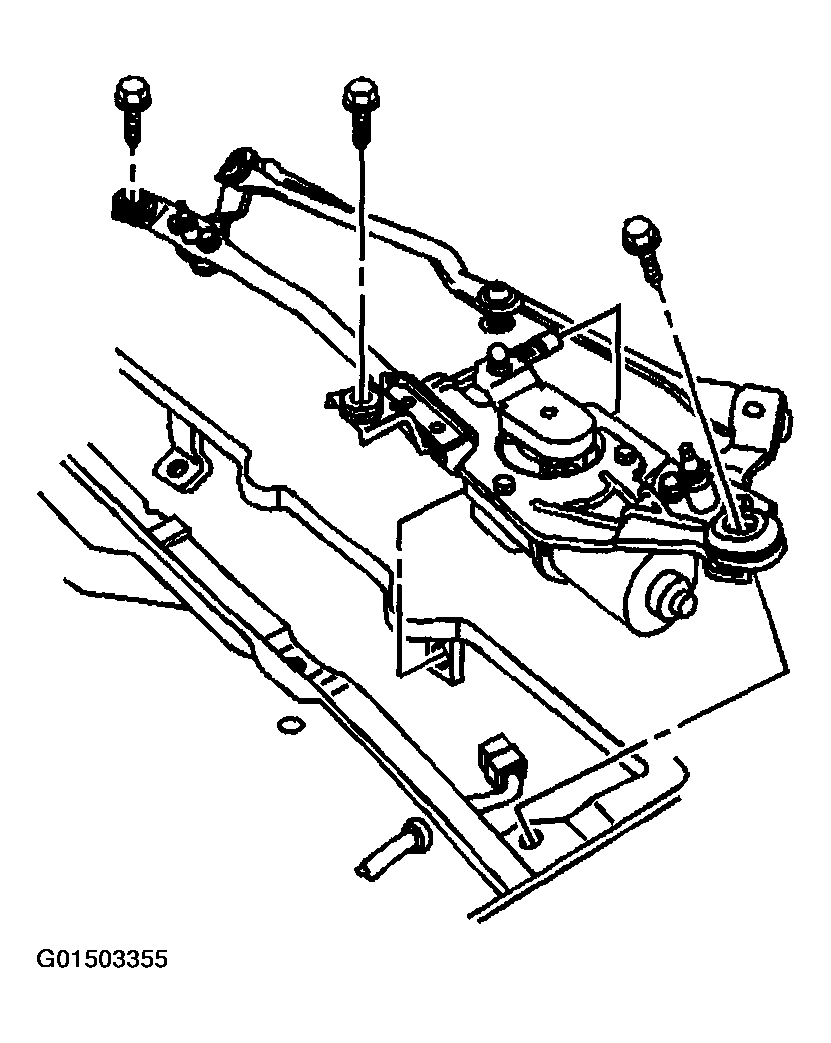

    Fig 2: Removing Wiper Drive System Module From Vehicle
    G01503355Courtesy of GENERAL MOTORS CORP.
