Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the antenna cable to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt to the antenna extension cable bracket.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  3. Connect the antenna cable to the rear window.
  4. Connect the antenna cable to the roof side rail using tape.

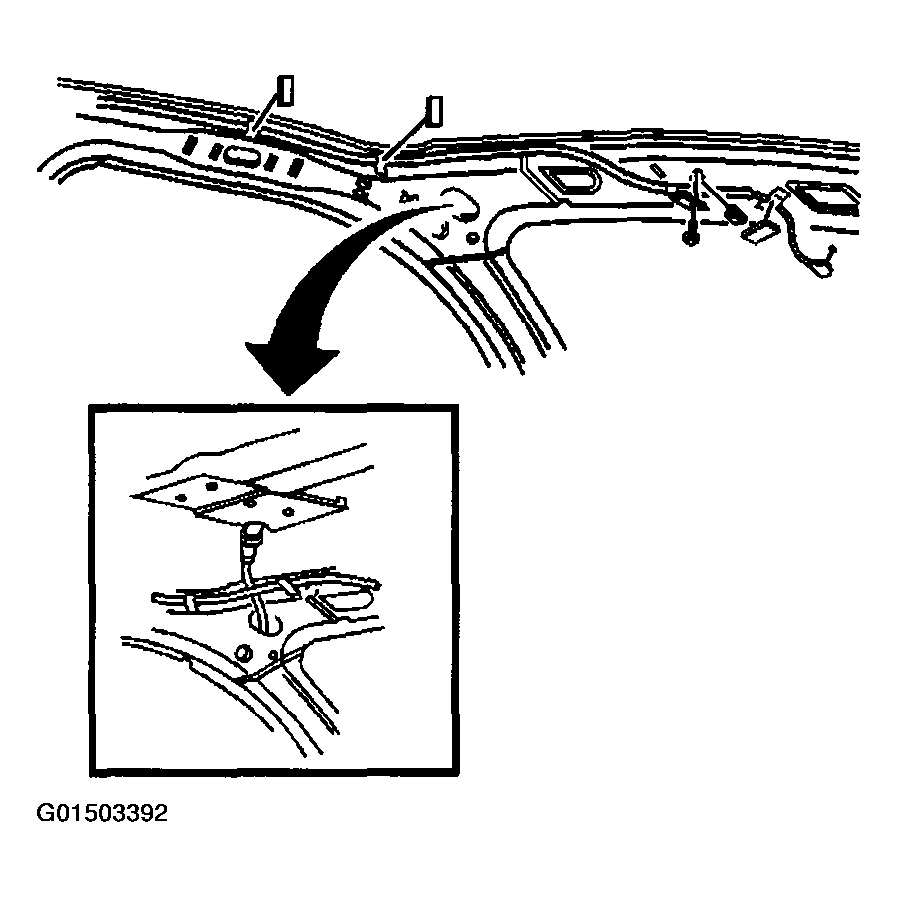

    Fig 1: Installing Bolt To Antenna Extension Cable Bracket
    G01503392Courtesy of GENERAL MOTORS CORP.
  5. Connect the I/P antenna extension cable to the antenna cable.
  6. Reposition the front carpet.
  7. Install the right front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT in Interior Trim.
  8. Install the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  9. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim

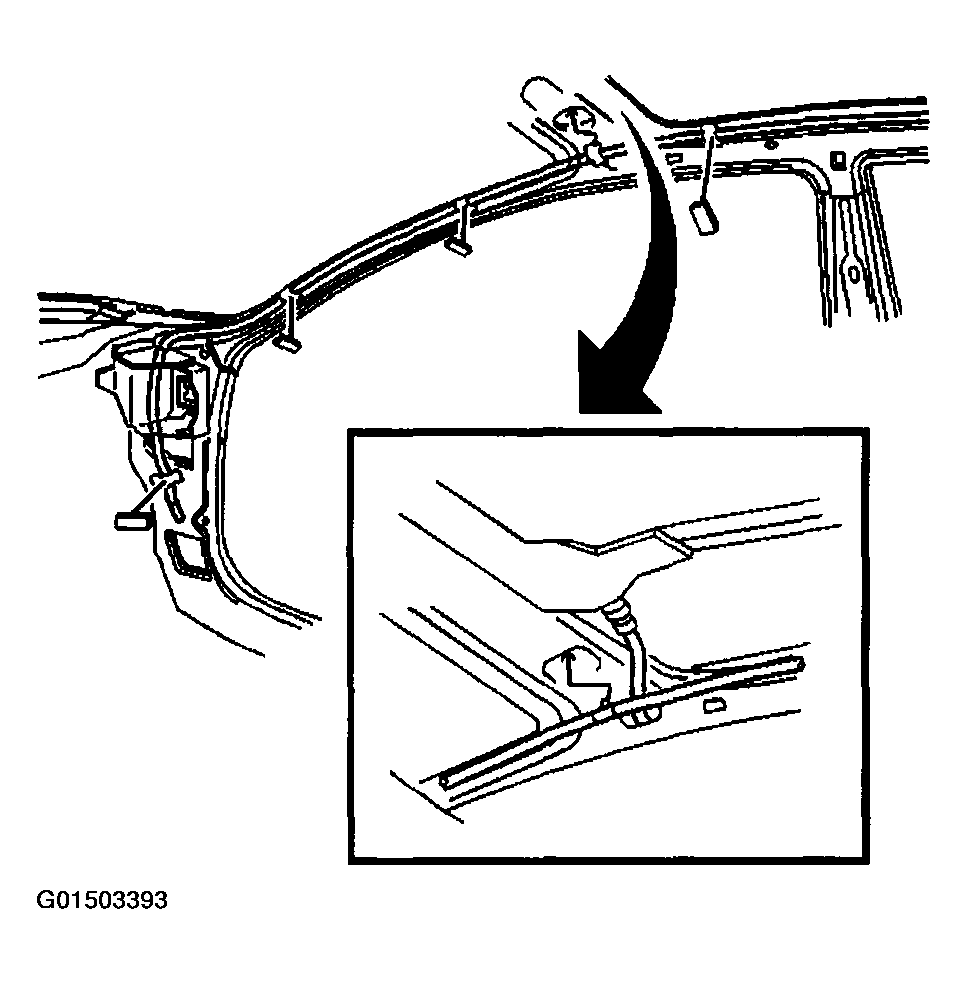

    Fig 2: Connecting Instrument Panel Antenna Extension Cable To Antenna Cable
    G01503393Courtesy of GENERAL MOTORS CORP.
