Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the DIC electrical connectors.

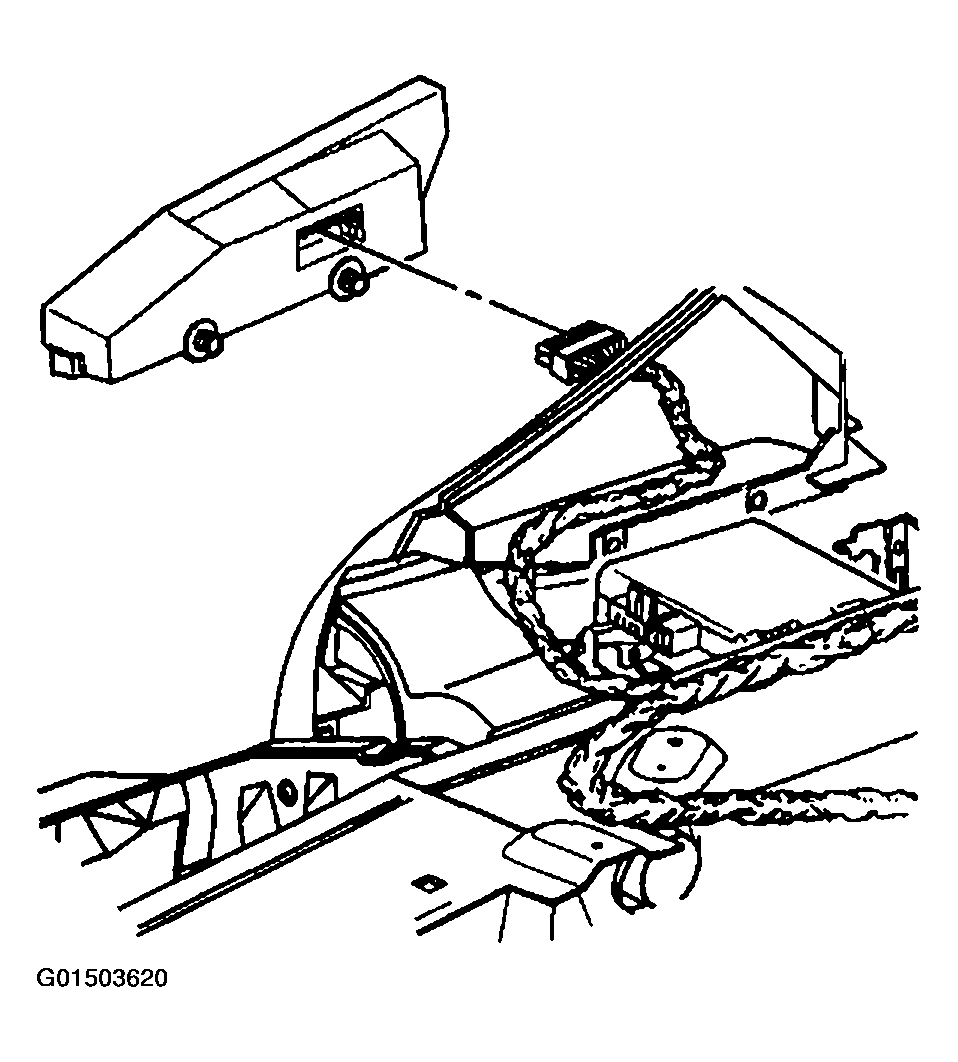

    Fig 1: Connecting Driver Information Center Electrical Connectors
    G01503620Courtesy of GENERAL MOTORS CORP.
  2. Snap the DIC (1) into the IP.
  3. Install the IPC trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

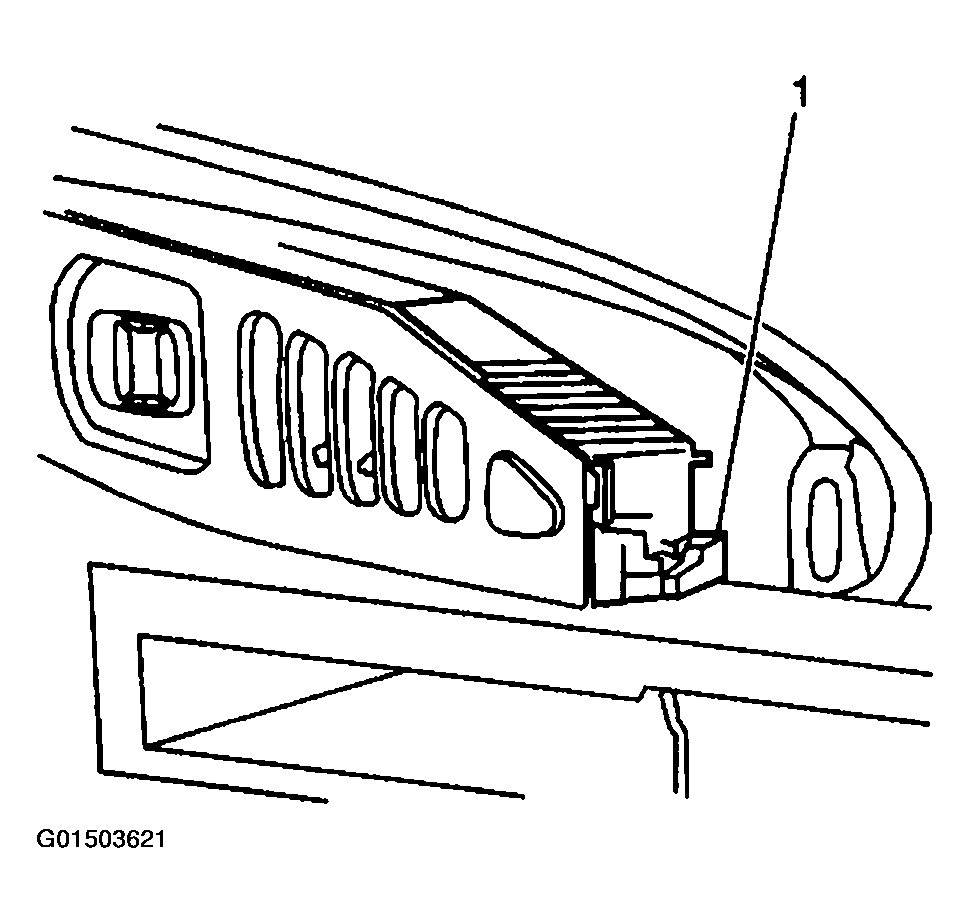

    Fig 2: Snapping Driver Information Center Into Instrument Panel
    G01503621Courtesy of GENERAL MOTORS CORP.
