WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

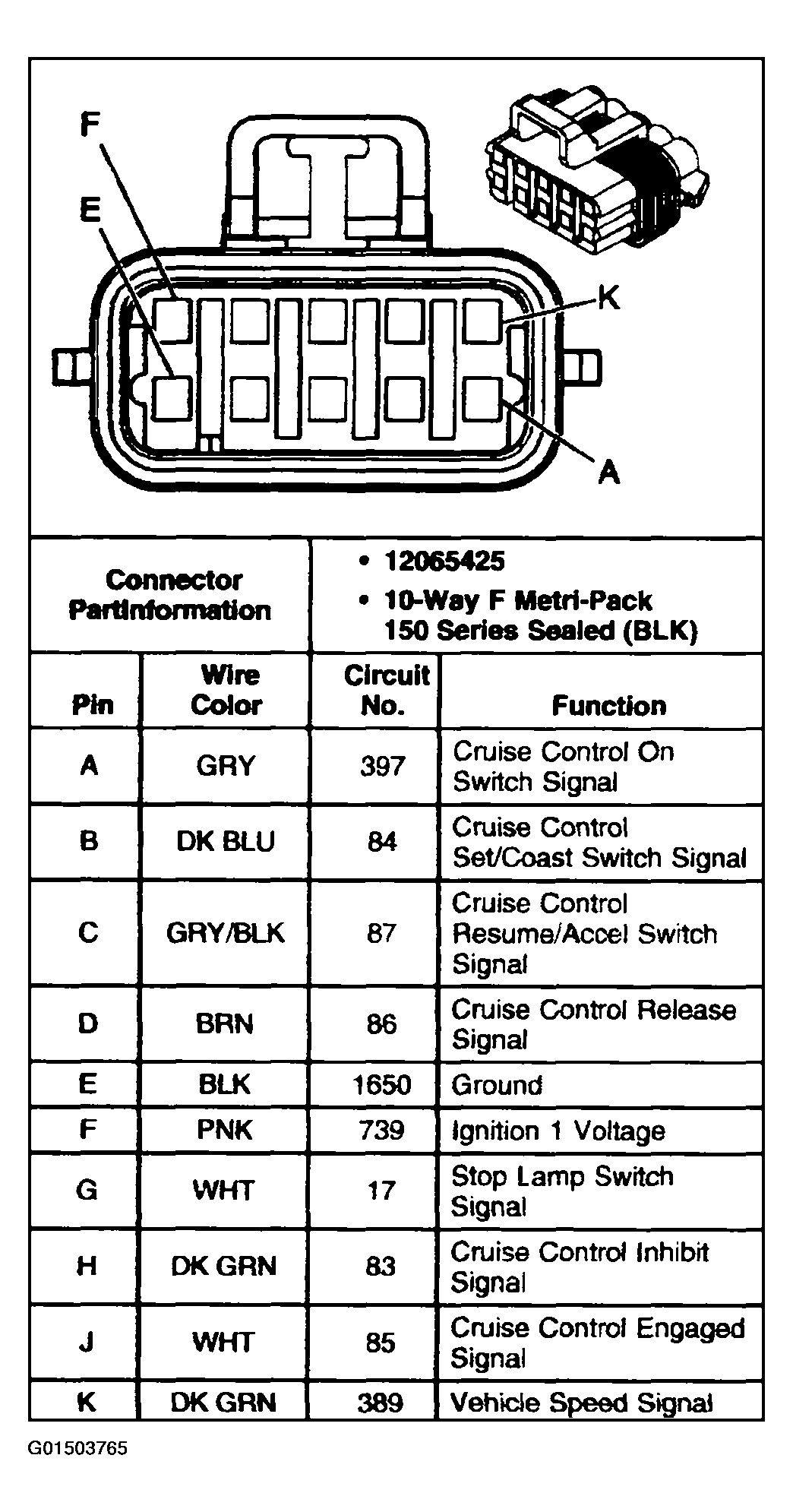

Fig 1: Cruise Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.

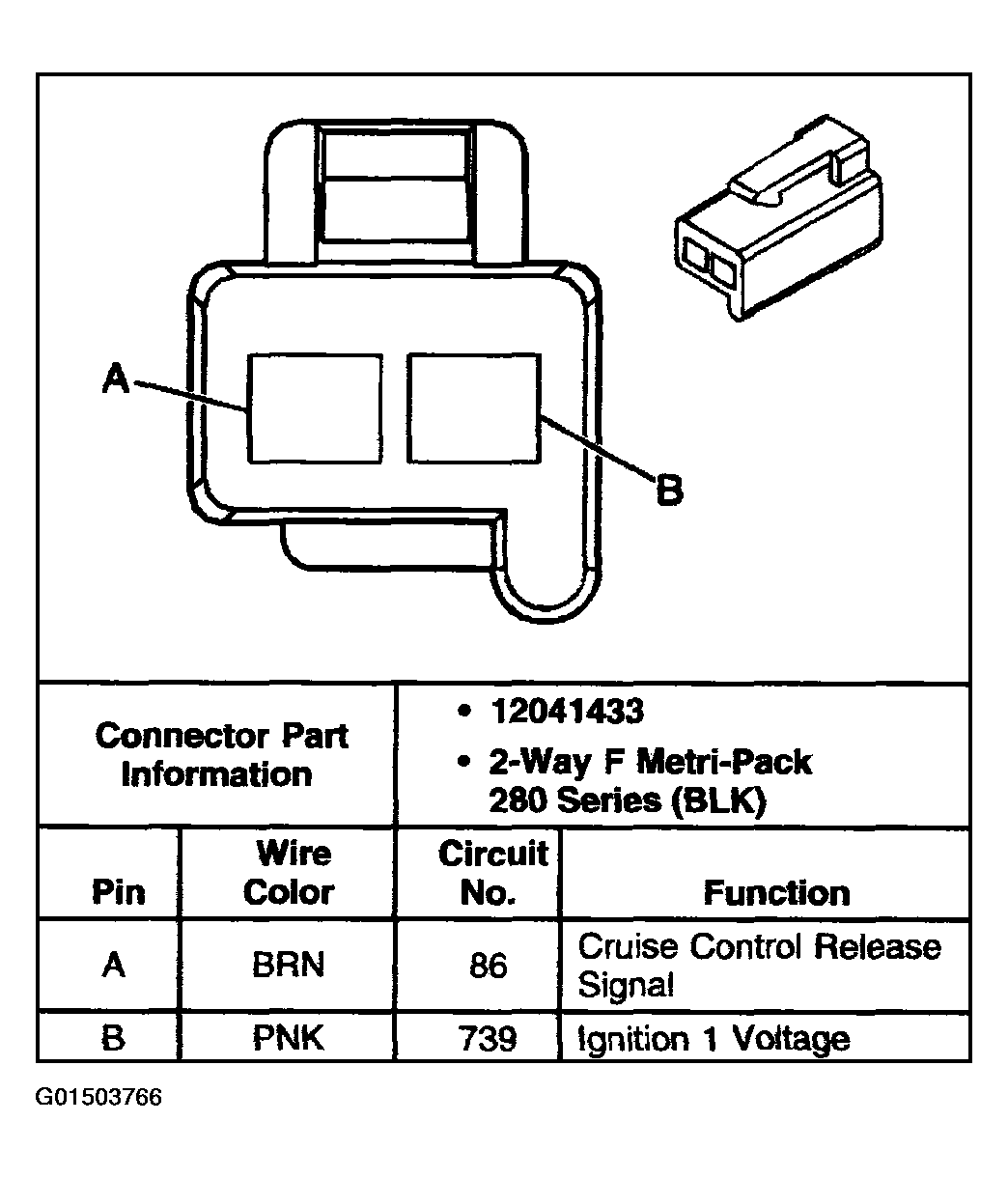

Fig 2: Cruise Control Release Switch Connector End View
