Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control cable to the engine.
  2. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.
  3. Install the cruise control cable to the cruise control retainers.
    Fig 1: Installing Cruise Control Cable To Throttle Lever And Accelerator Control Cable Bracket
    G01503790Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable to the cruise control module strap.

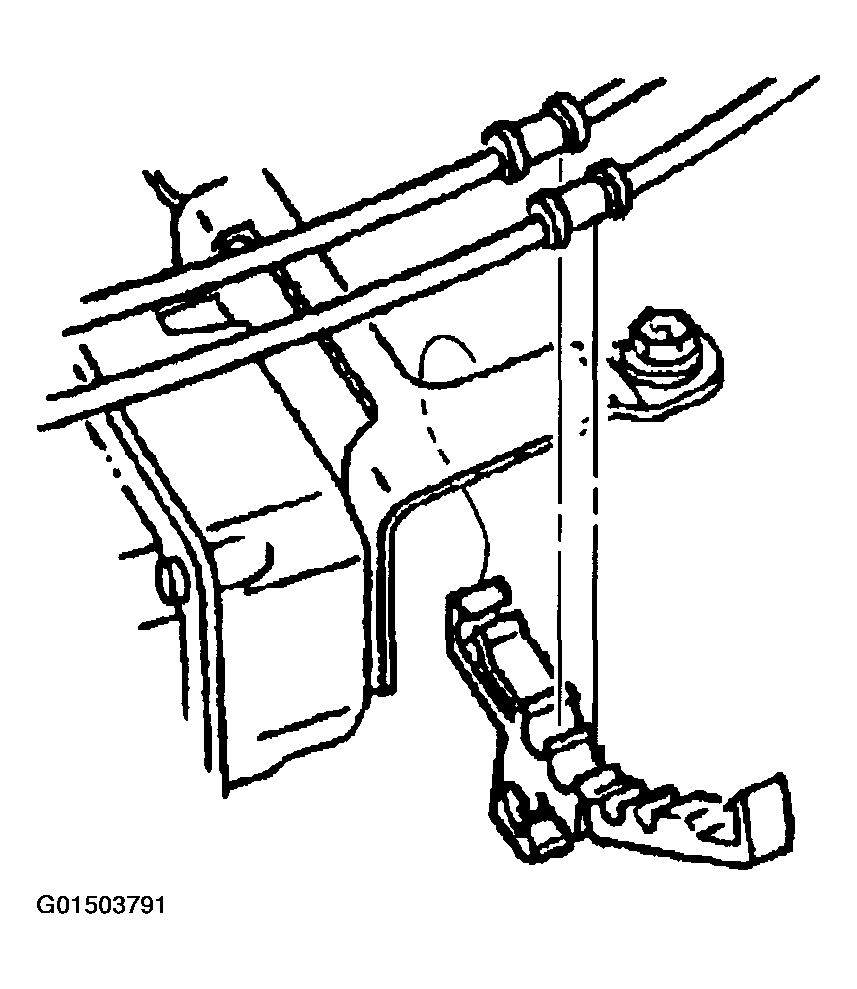

    Fig 2: Installing Cruise Control Cable To Cruise Control Module Strap
    G01503791Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure the cruise control module strap is not twisted during installation of the cruise control cable.

  5. Rotate the cruise control cable clockwise.

    Install the cruise control cable to the cruise control module.

    Fig 3: Installing Cruise Control Cable To Cruise Control Module
    G01503792Courtesy of GENERAL MOTORS CORP.
