Cruise Control Schematics

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

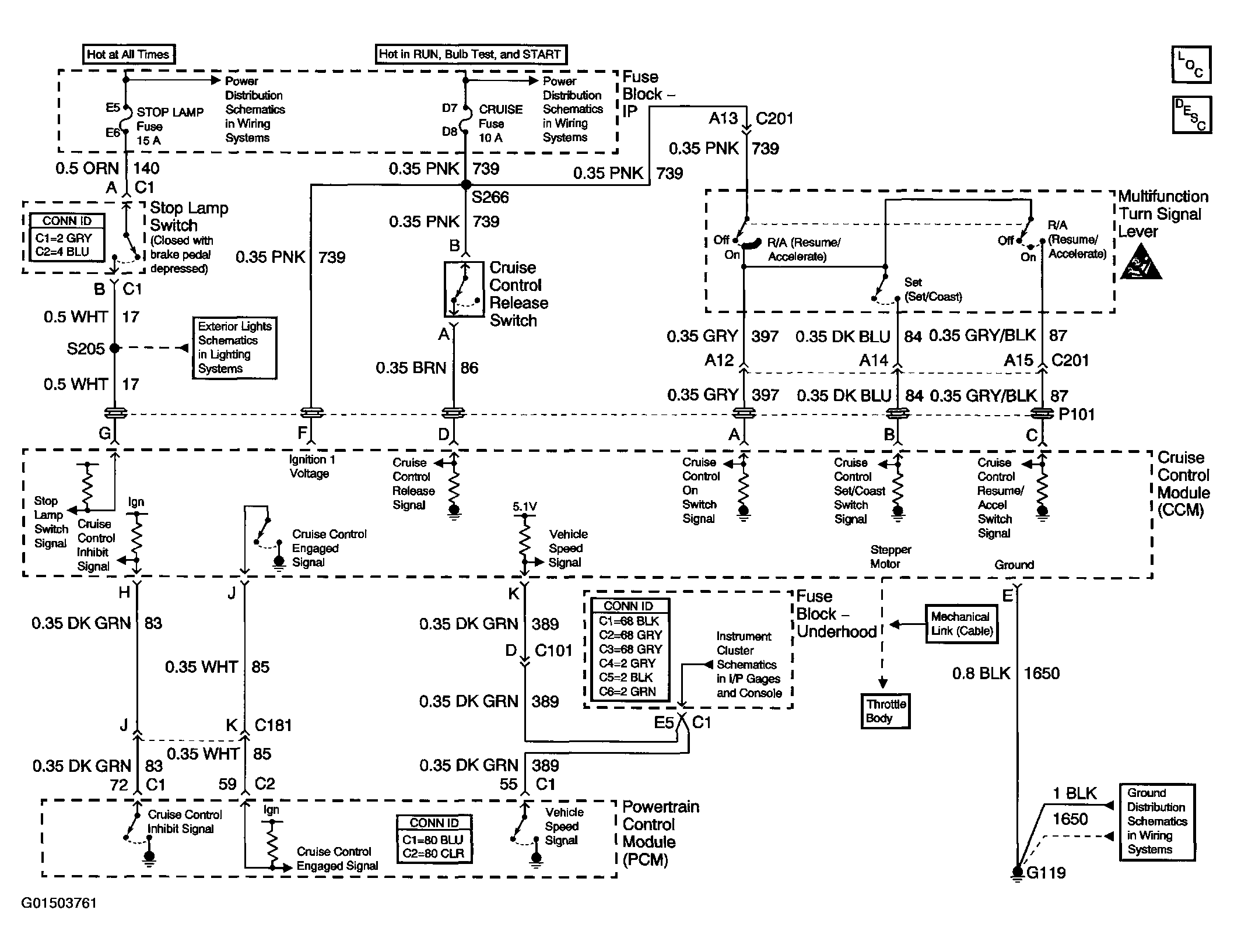

Fig 1: Cruise Control Schematics
G01503761Courtesy of GENERAL MOTORS CORP.
