Retained Accessory Power (RAP) Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

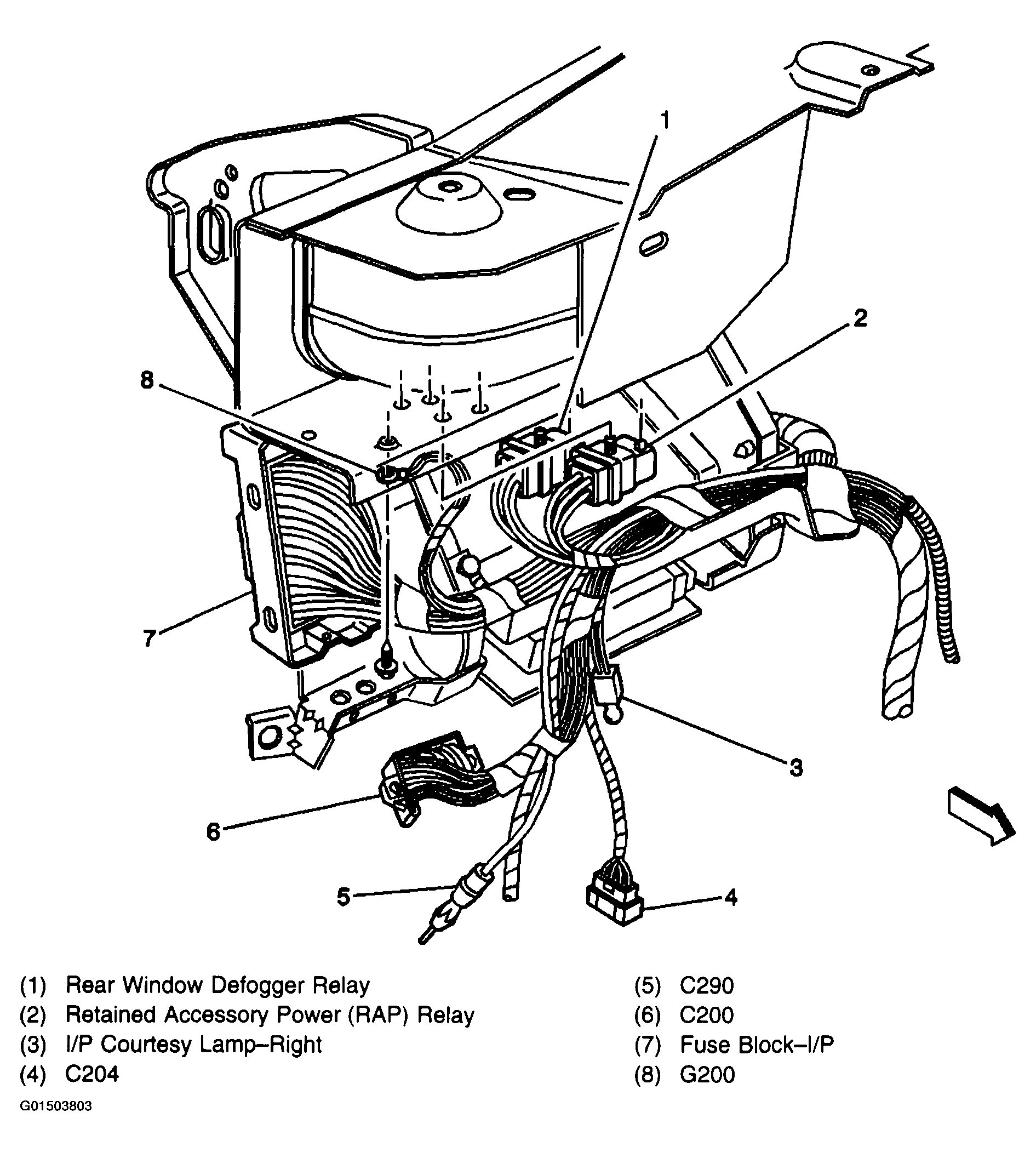

Fig 1: Retained Accessory Power Component View (Behind Instrument Panel-Right Side)
G01503803Courtesy of GENERAL MOTORS CORP.
