Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  2. Install the push-in retainers to the engine splash shield.
  3. Lower the vehicle. Refer to JACKING AND LIFTING in General Information.

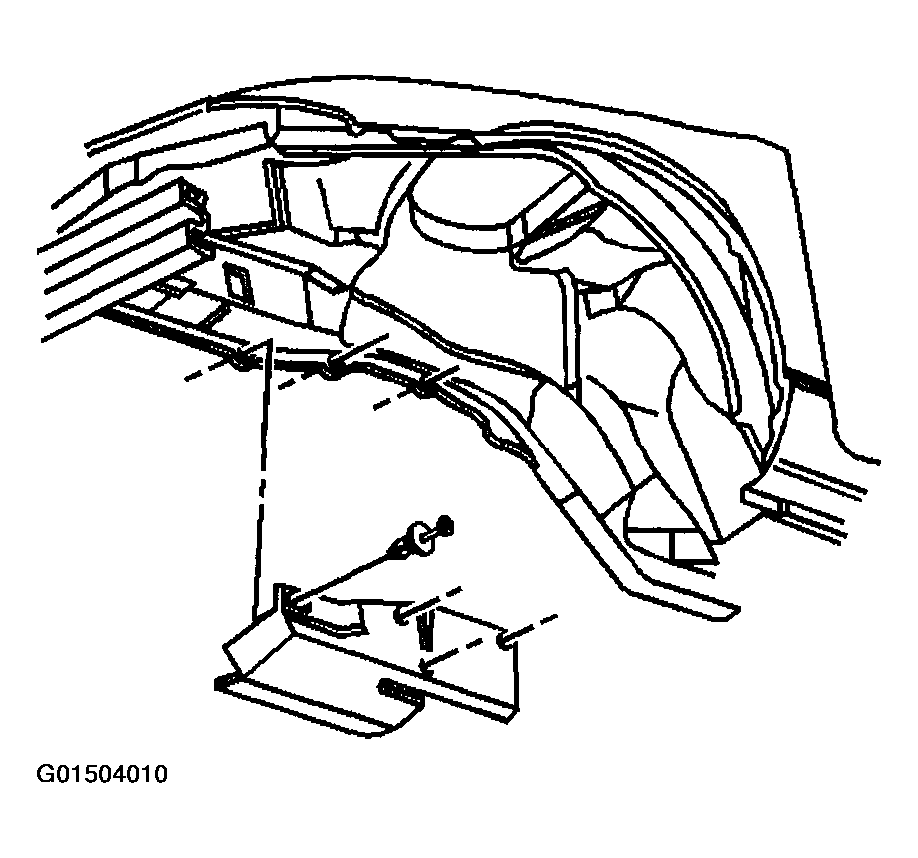

    Fig 1: Installing Engine Splash Shield To Lower Flange Of Engine Compartment Side Rail
    G01504010Courtesy of GENERAL MOTORS CORP.
