Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the push-in retainers from the engine splash shield.
  3. Remove the engine splash shield from the lower flange of the engine compartment side rail.

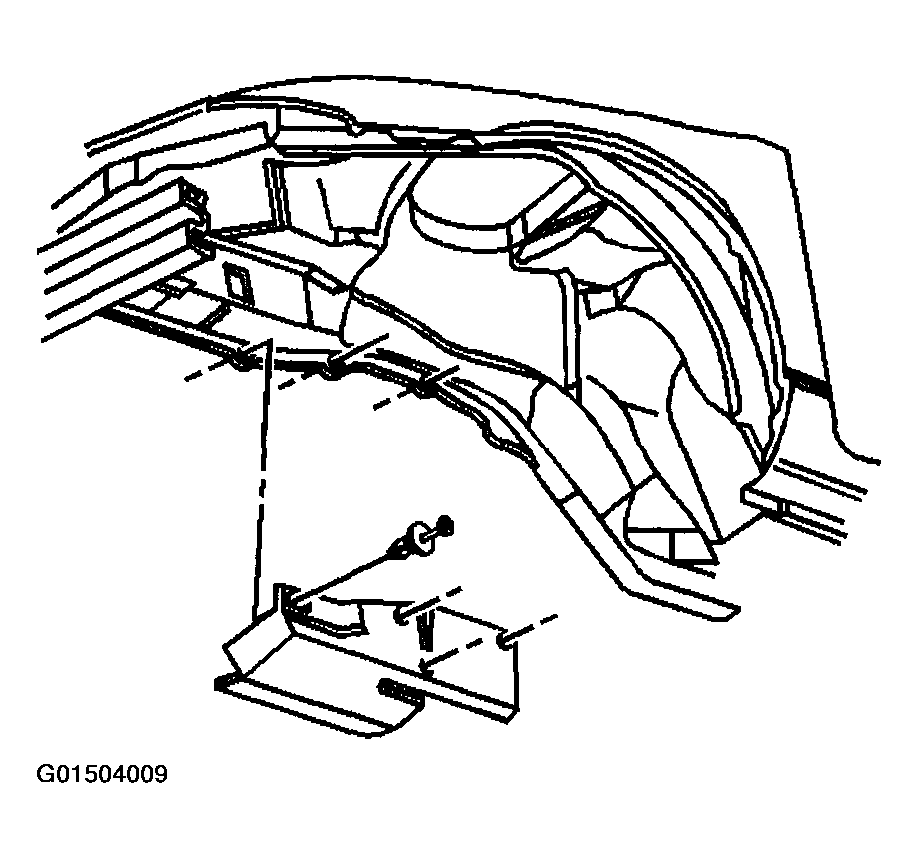

    Fig 1: Removing Engine Splash Shield From Lower Flange Of Engine Compartment Side Rail
    G01504009Courtesy of GENERAL MOTORS CORP.
