Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the assist handle to the center pillar.

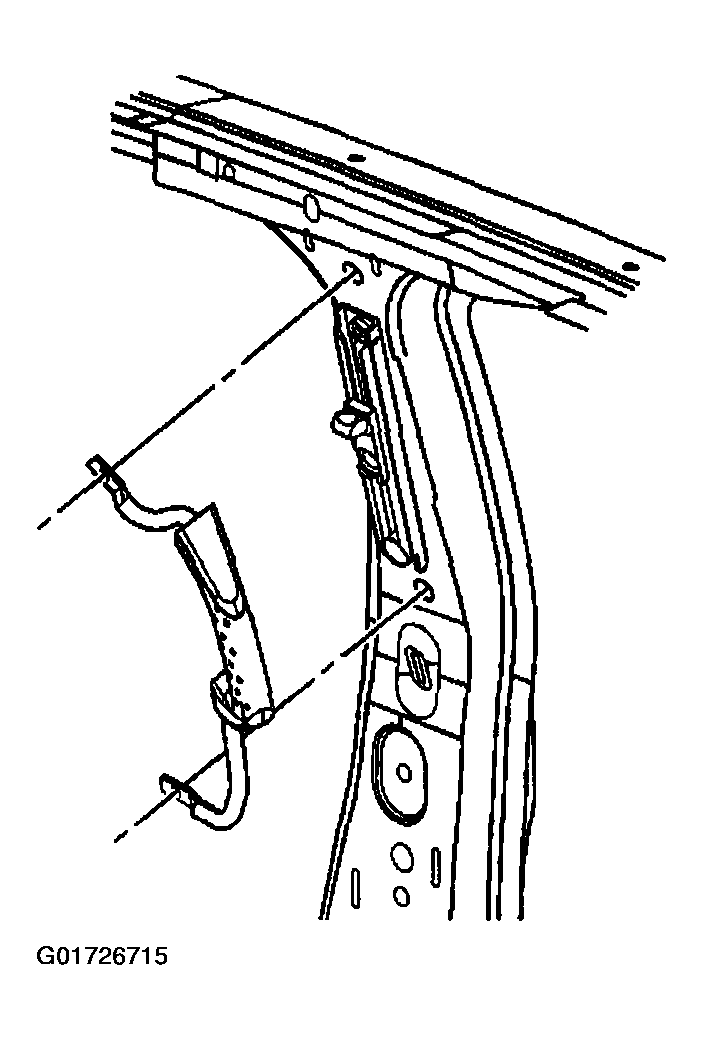

Fig 1: Positioning Assist Handle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts to the assist handle.
Tighten

Tighten the assist handle bolts to 10 N.m (89 lb in).
Install the upper center trim panel. Refer to Trim Panel Replacement - Upper Center Pillar .

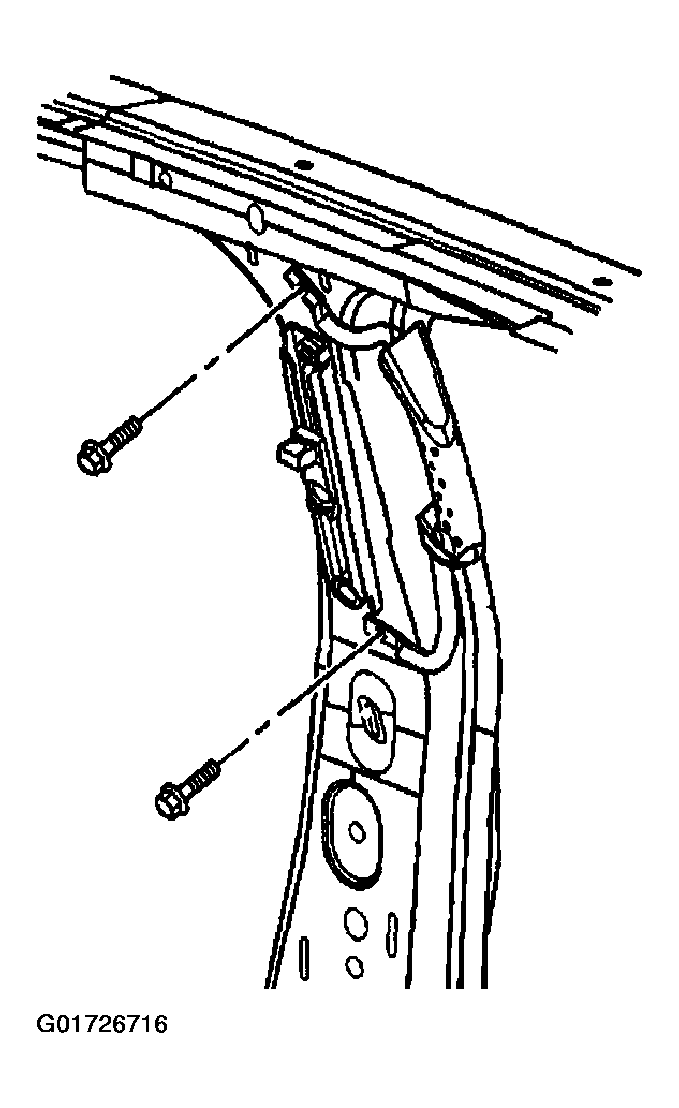

Fig 2: Installing Assist Handle Bolts
Courtesy of GENERAL MOTORS CORP.
