Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the overhead storage compartments.
  2. Remove the screws.
  3. Remove the second seat audio control from the overhead console. Refer to AUDIO CONTROL REPLACEMENT - SECOND SEAT (AZTEK) or AUDIO CONTROL REPLACEMENT - SECOND SEAT (RENDEZVOUS) in Entertainment.
  4. Remove the overhead console from the headliner by pulling in a downward position in order to disengage the retaining clips. Remove the overhead console from the vehicle.
  5. Remove the overhead console from the vehicle.

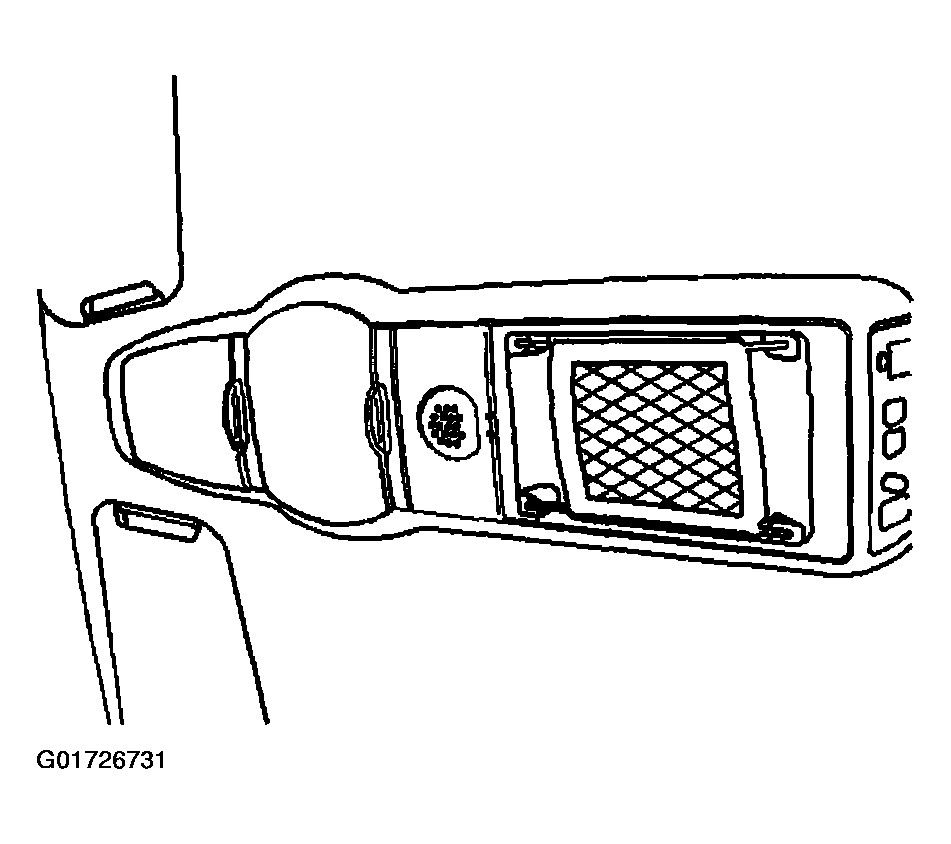

    Fig 1: View Of Overhead Console (Aztek)
    G01726731Courtesy of GENERAL MOTORS CORP.
