Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the fender at the front compartment side rail.

    Tighten

    Tighten the front fender compartment side rail bolts to 10 N.m (89 lb in).

    Fig 1: Installing Bolts To Fender At Front Compartment Side Rail
    G01726646Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the fender at the rocker panel.

    Tighten

    Tighten the fender to rocker panel bolts to 6 N.m (53 lb in).

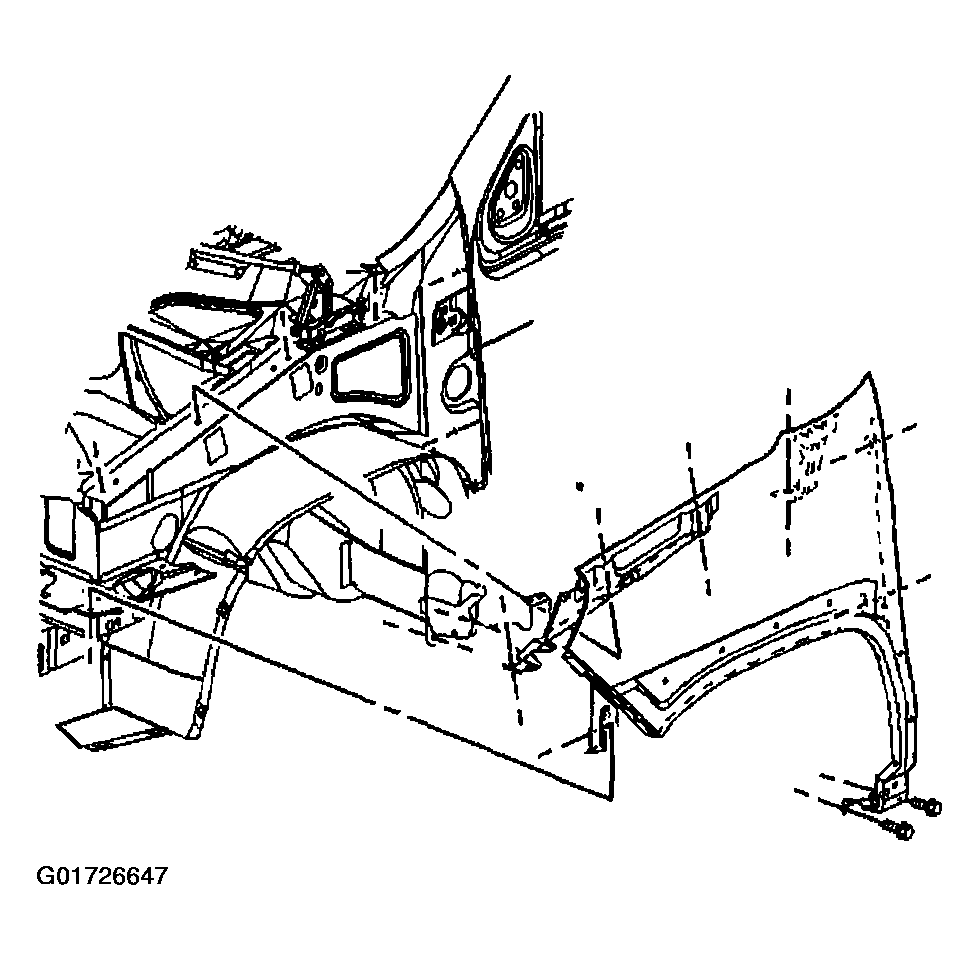

    Fig 2: Installing Bolts To Fender At Rocker Panel
    G01726647Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts to the fender at the door hinge pillar.

    Tighten

    Tighten the fender to door hinge pillar bolts to 6 N.m (53 lb in).

  5. Install the front fender wheel opening molding. Refer to EXTERIOR TRIM .
  6. Install the front fender sound insulator. Refer to Fender Sound Insulator Replacement - Front .
  7. Install the front fender liner. Refer to Front Fender Liner Replacement .
  8. Install the rocker panel molding. Refer to EXTERIOR TRIM .
  9. Remove the protective tape to the front edge of the front door and the rear edge of the front bumper fascia.

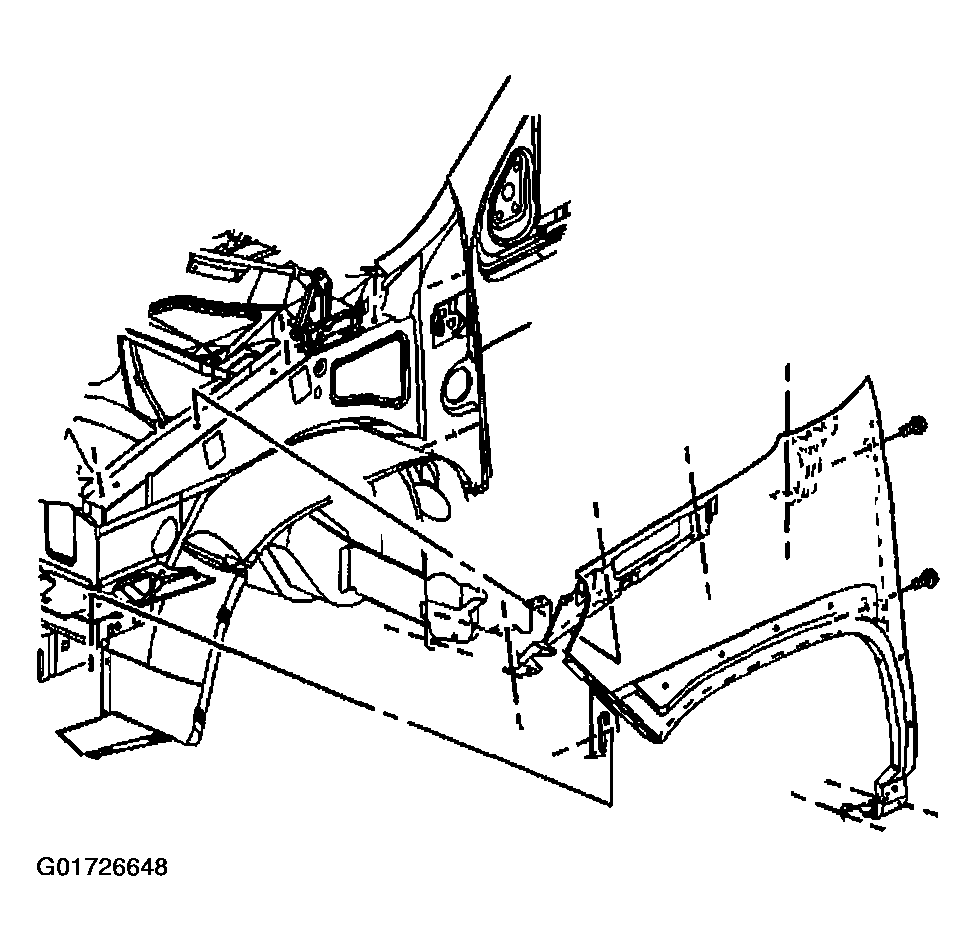

    Fig 3: Installing Bolts To Fender At Door Hinge Pillar
    G01726648Courtesy of GENERAL MOTORS CORP.
