Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine splash shield front tab to the front fender liner.
  2. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  3. Insert the push-in retainers to the engine splash shield.

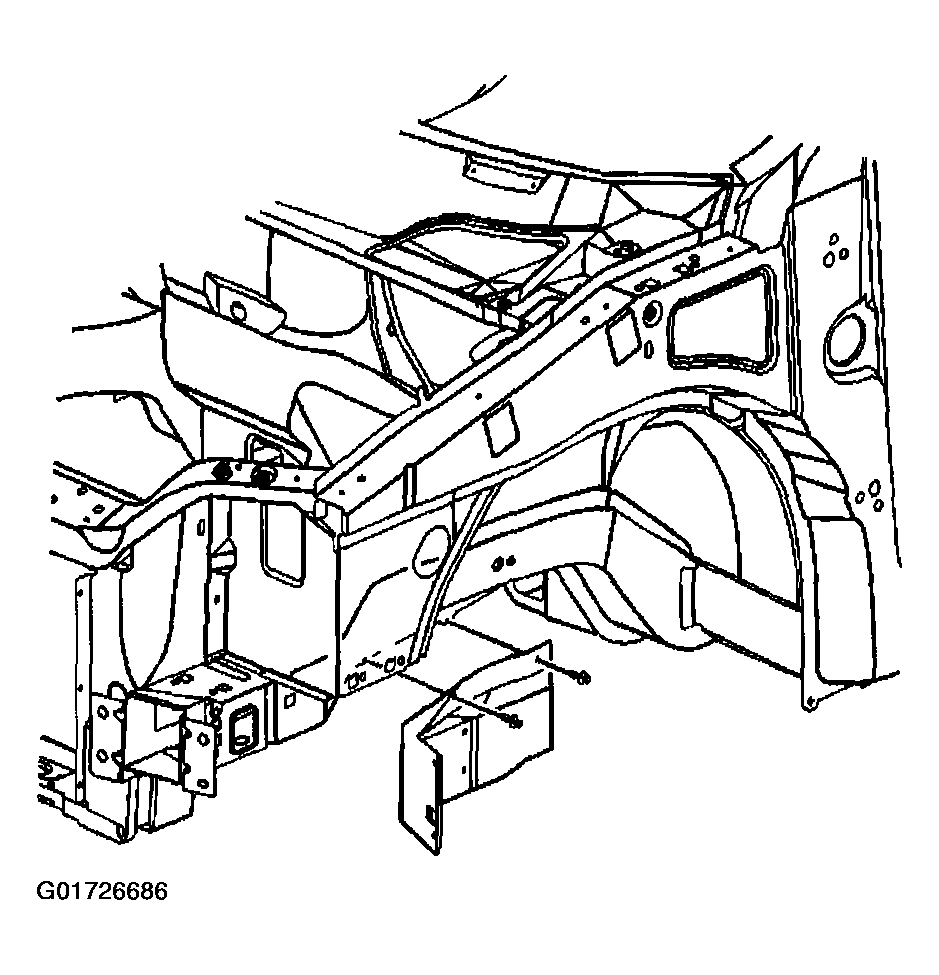

    Fig 1: Installing Engine Splash Shield And Push-In Retainers
    G01726686Courtesy of GENERAL MOTORS CORP.
