Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING .
Unsnap the jounce bumper from the mounting cup. Use the 4WD 15-series and, the 2WD 25/35-series supplies.

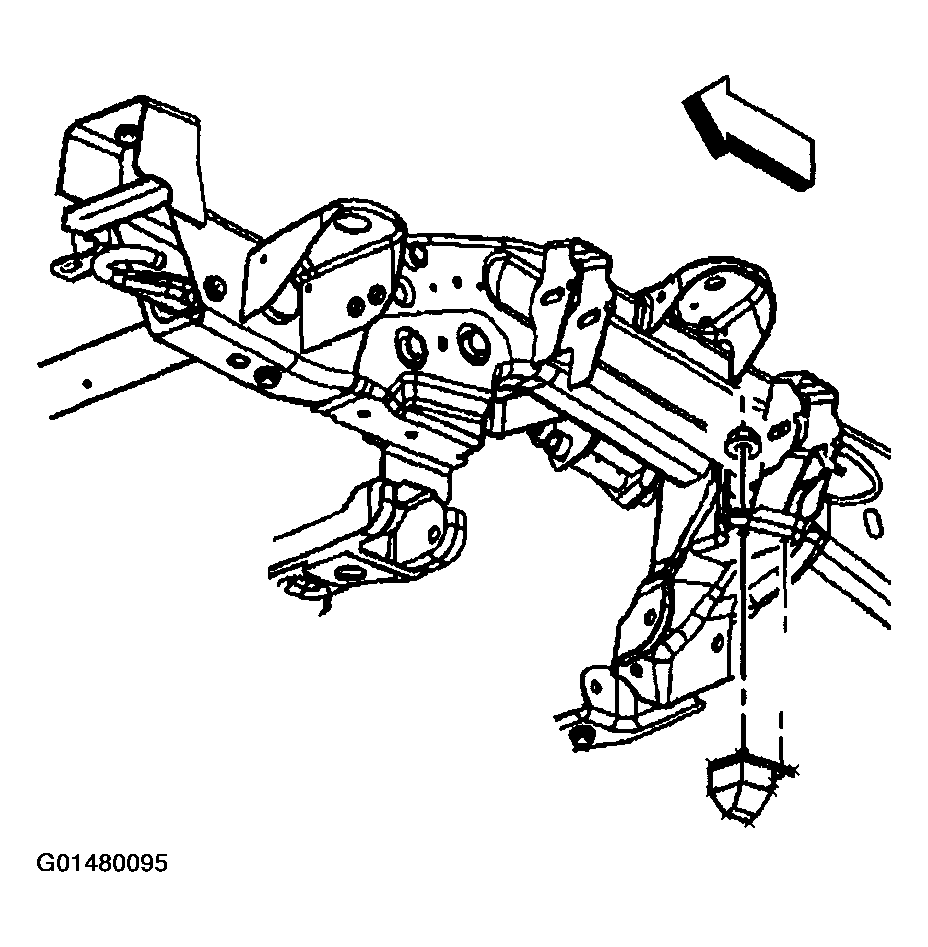

Fig 1: Unsnap Jounce Bumper From Mounting Cup

Courtesy of GENERAL MOTORS CORP.

Remove the nut from the jounce bumper stud. Use the 4WD 15-series and, the 2WD 25/35-series supplies.
Remove the jounce bumper.

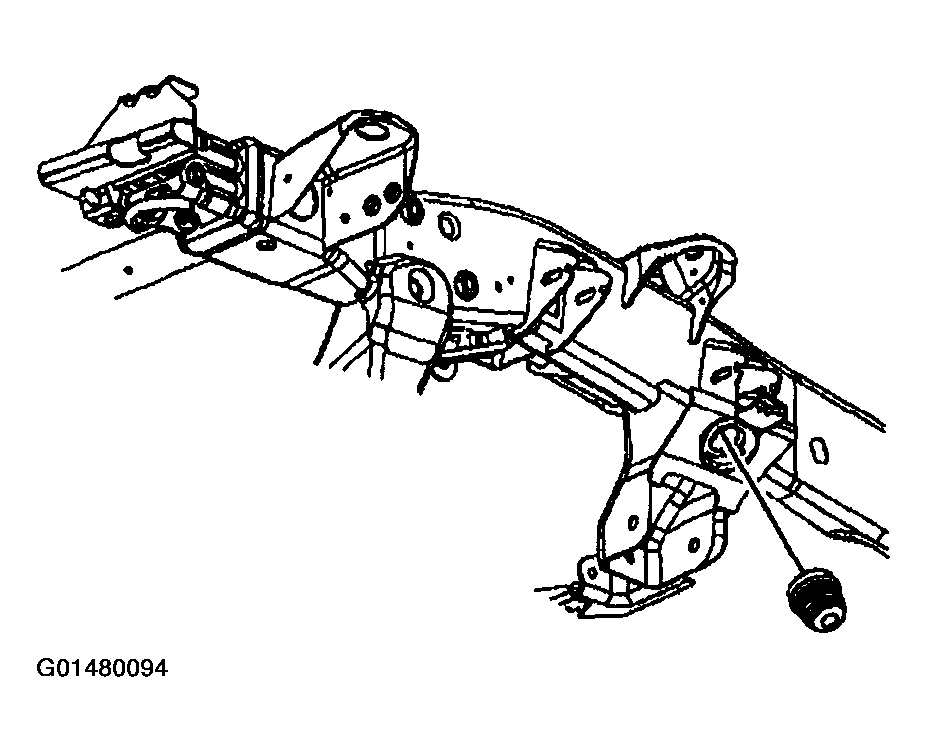

Fig 2: Remove Nut From Jounce Bumper

Courtesy of GENERAL MOTORS CORP.
