Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING .
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Remove the retaining bolt for the brake hose and the wheel speed sensor brackets.

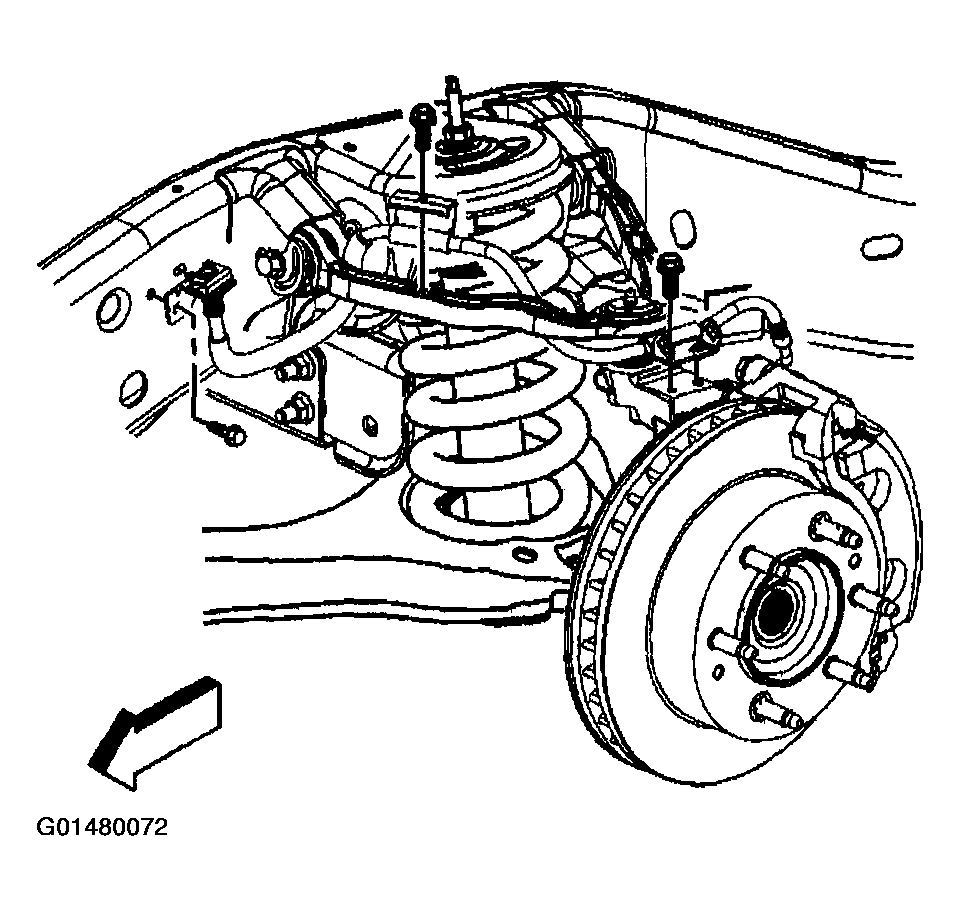

Fig 1: Remove Brake Hose Bolt & Wheel Speed Sensor Brackets

Courtesy of GENERAL MOTORS CORP.

Remove the wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT .
Remove the nut at the upper ball joint. Discard the nut.
Disconnect the upper control arm from the steering knuckle using the J 43631 and J 45851.

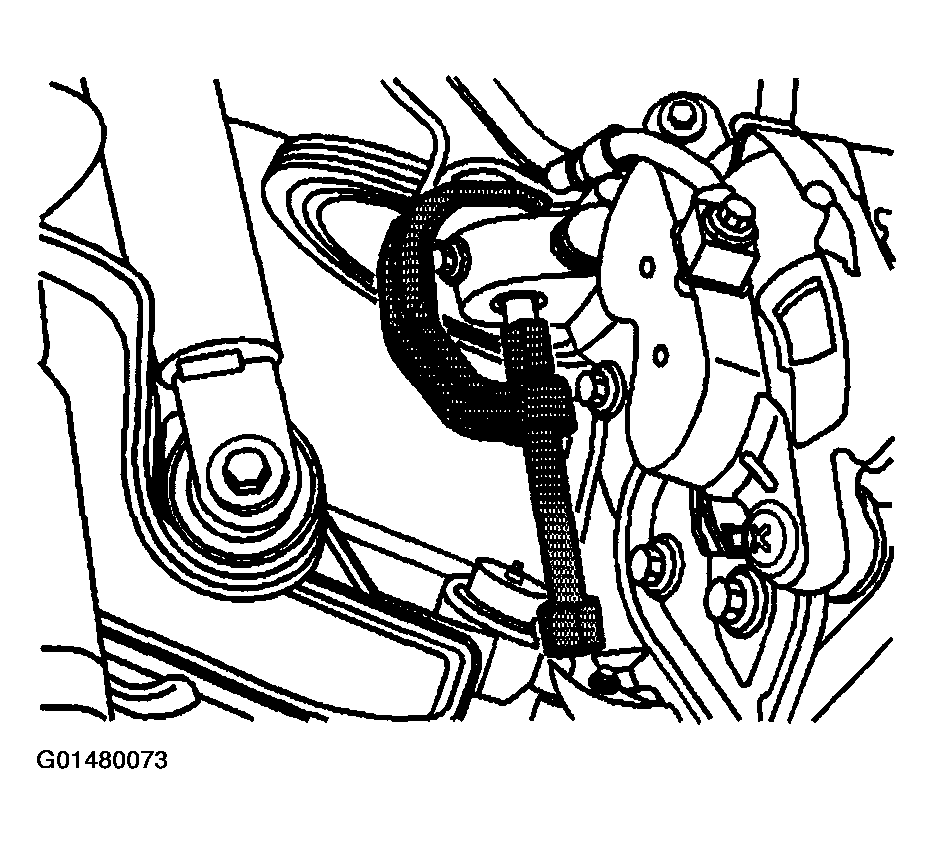

Fig 2: Removing Upper Control Arm
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm nuts and the adjustment cams (2). Use the 15-series 2WD, the 15-series 4WD, and the 25/35-series 2WD where applicable.
Remove the upper control arm bolts (4) Use the 15-series 2WD, the 15-series 4WD, and the 25/35-series 2WD where applicable.

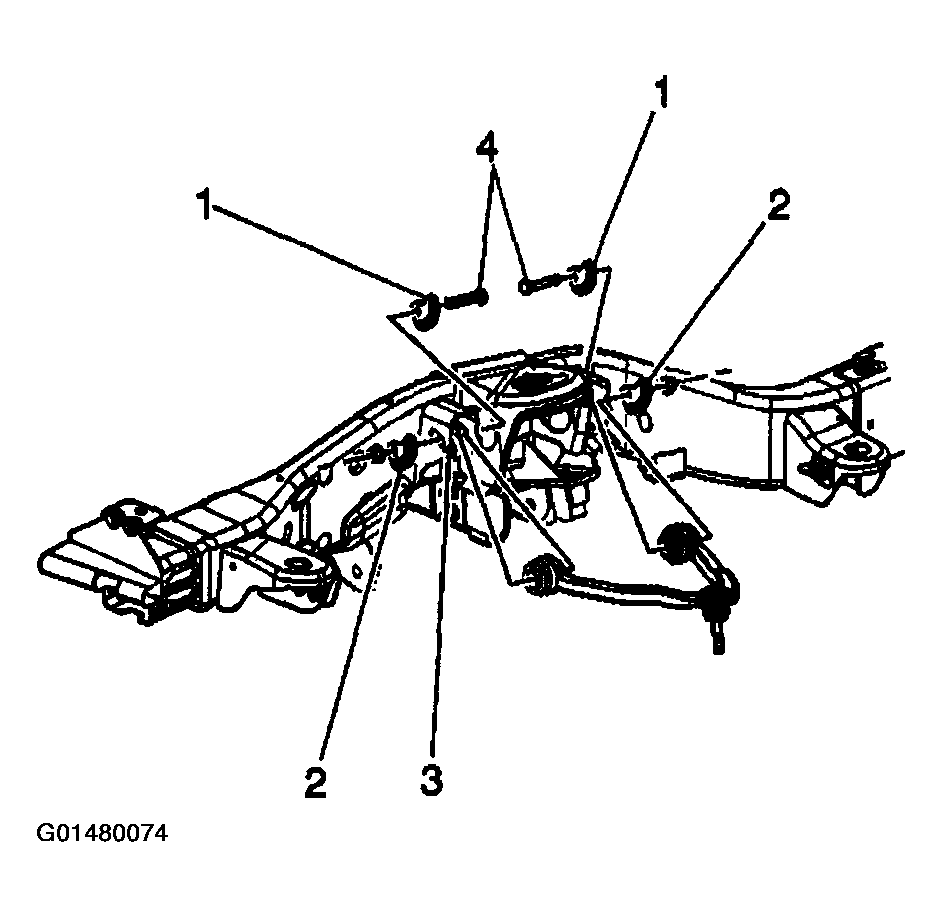

Fig 3: Remove Upper Control Arm Nuts, Bolts & Adjustment Cams (2WD)
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm nuts and the adjustment cams (2), the 25/35 series for the 4WD.
Remove the upper control arm bolts (4), the 25/35 series for the 4WD.
Remove the upper control arm.

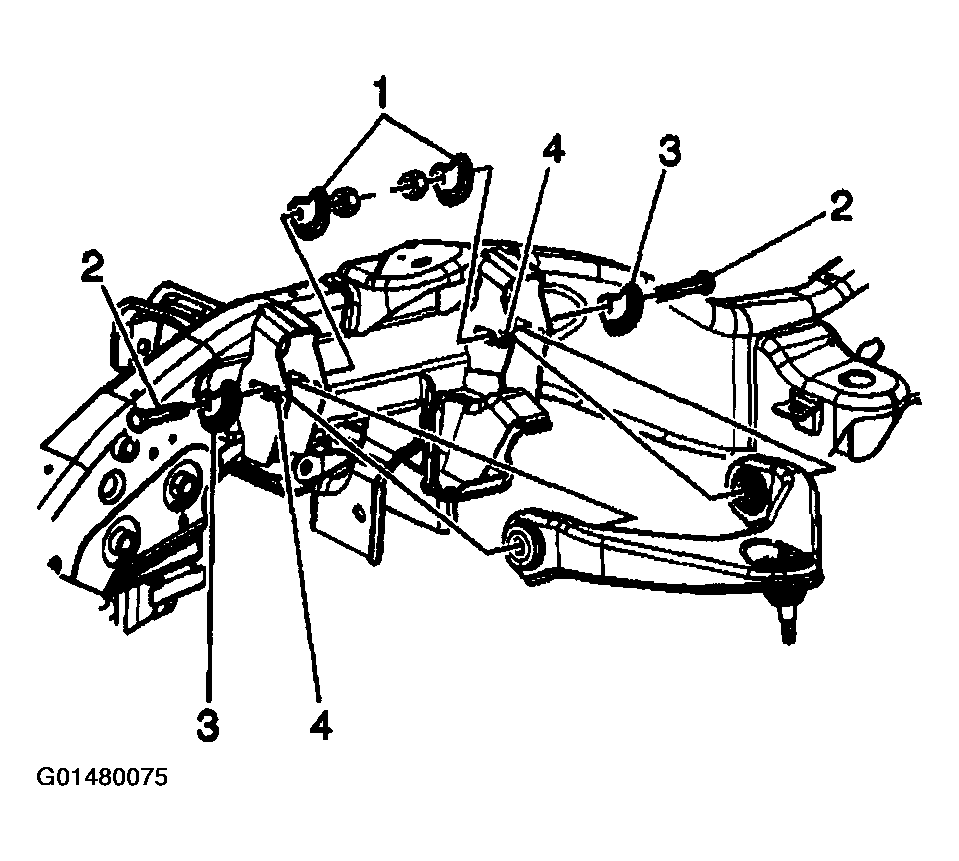

Fig 4: Remove Upper Control Arm Nuts, Bolts & Adjustment Cams (4WD)

Courtesy of GENERAL MOTORS CORP.
