Differential Adjustment Shim Specifications

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

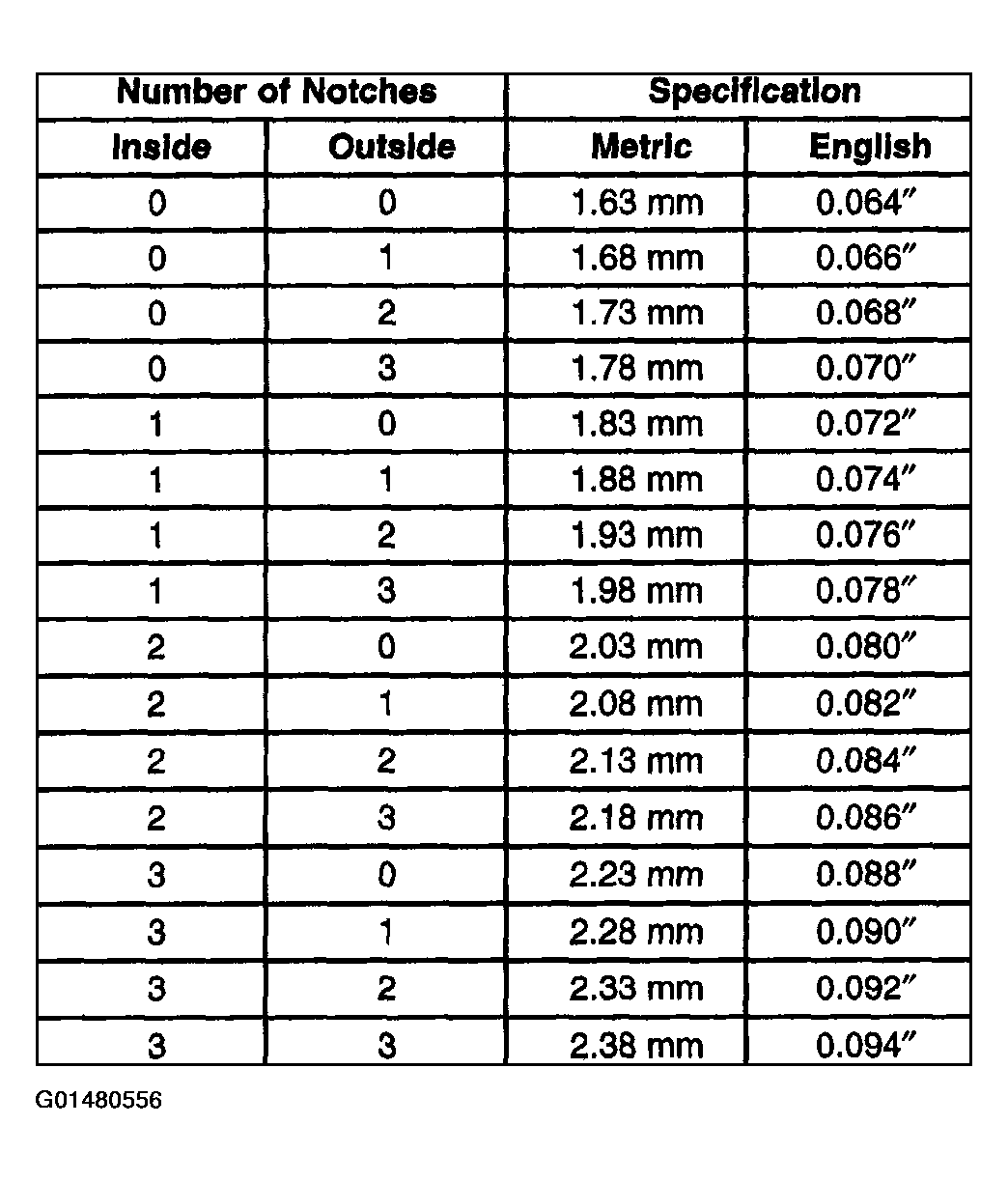

Fig 1: 8.6 Inch Axle Differential Adjustment Shims Specifications

Courtesy of GENERAL MOTORS CORP.

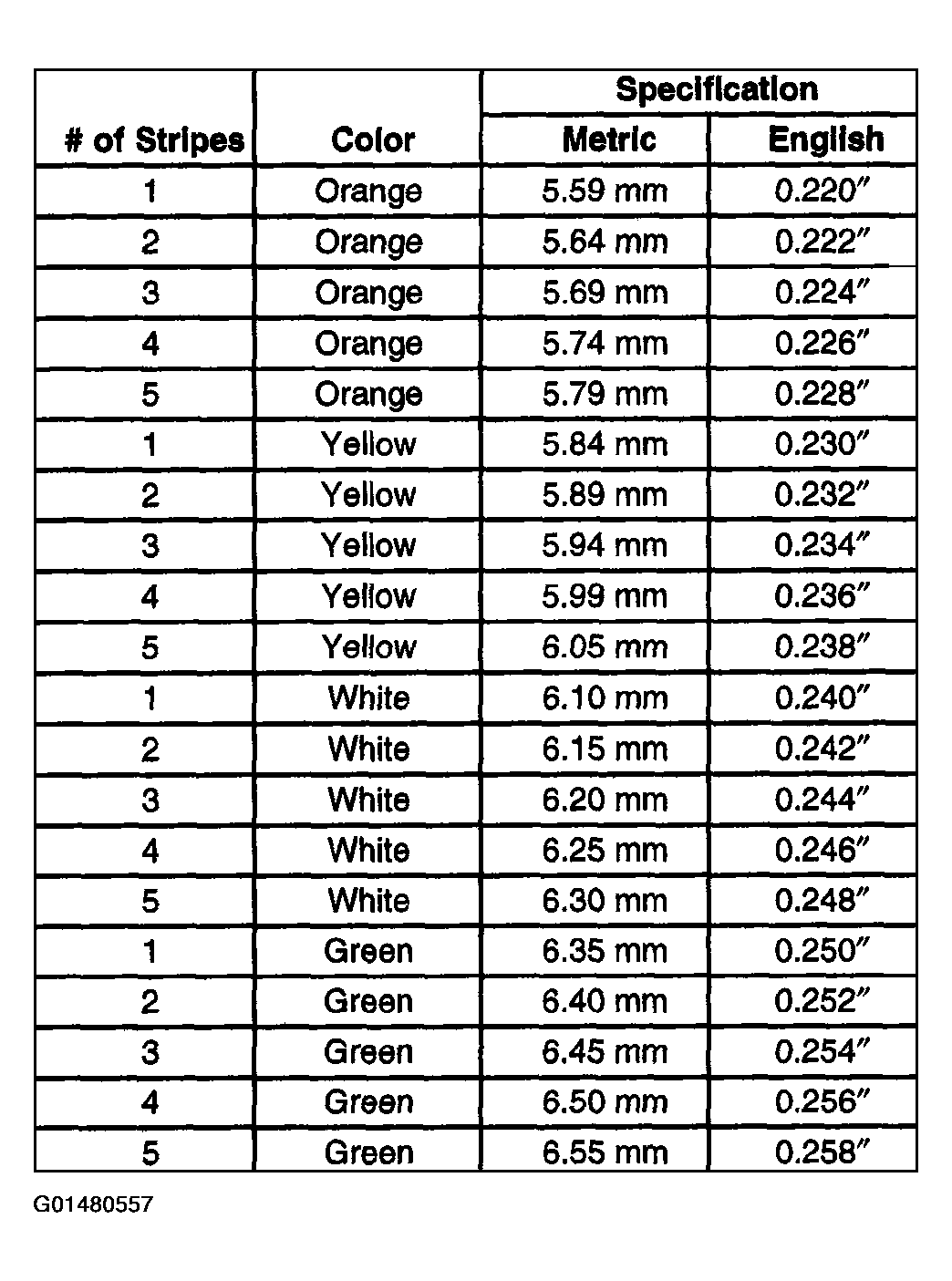

Fig 2: 9.5 Inch Axle Differential Adjustment Shims Specifications

Courtesy of GENERAL MOTORS CORP.
