ABS Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

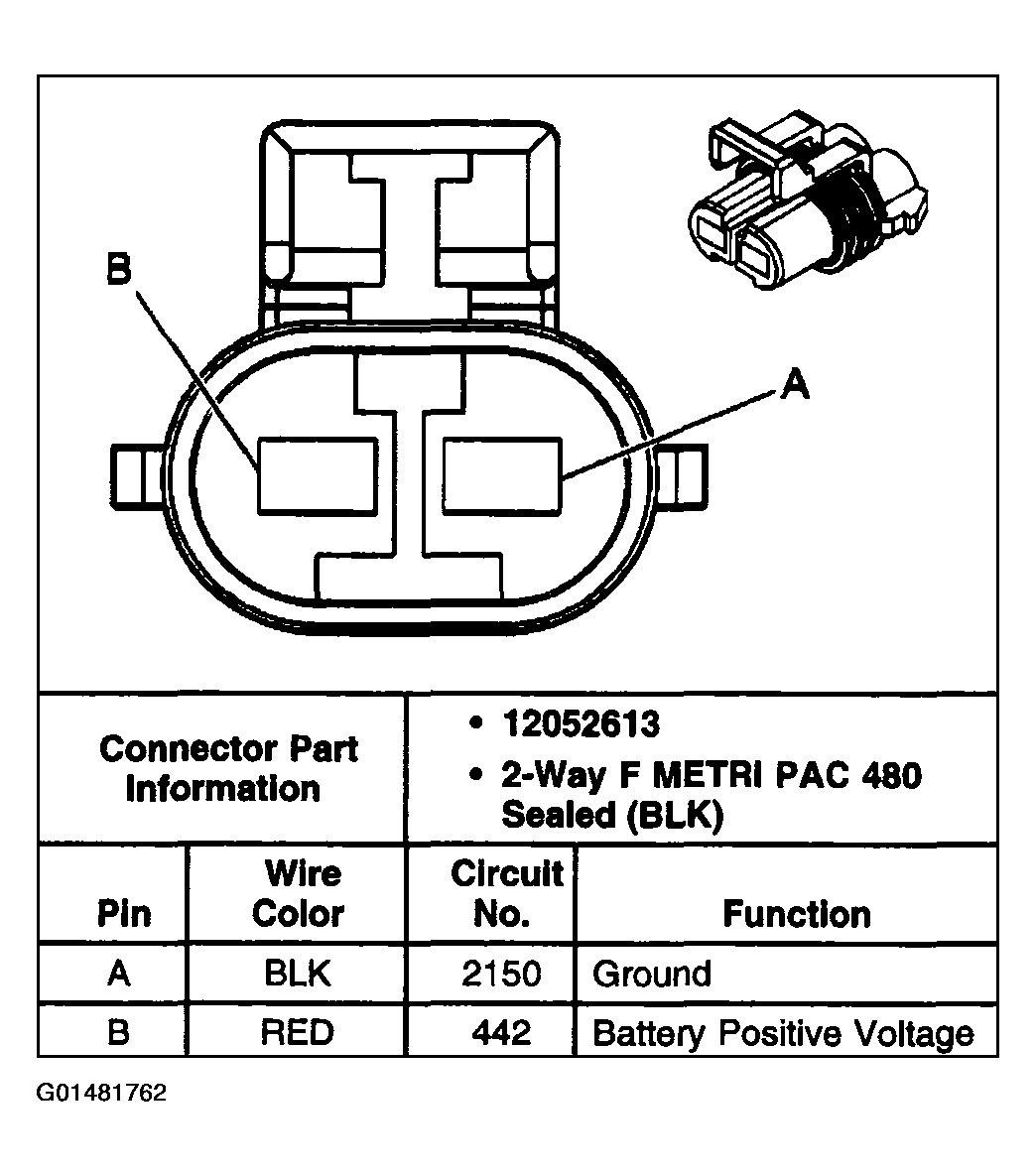

Fig 1: Electronic Brake Control Module (EBCM) - C1 Connector End View
G01481762Courtesy of GENERAL MOTORS CORP.

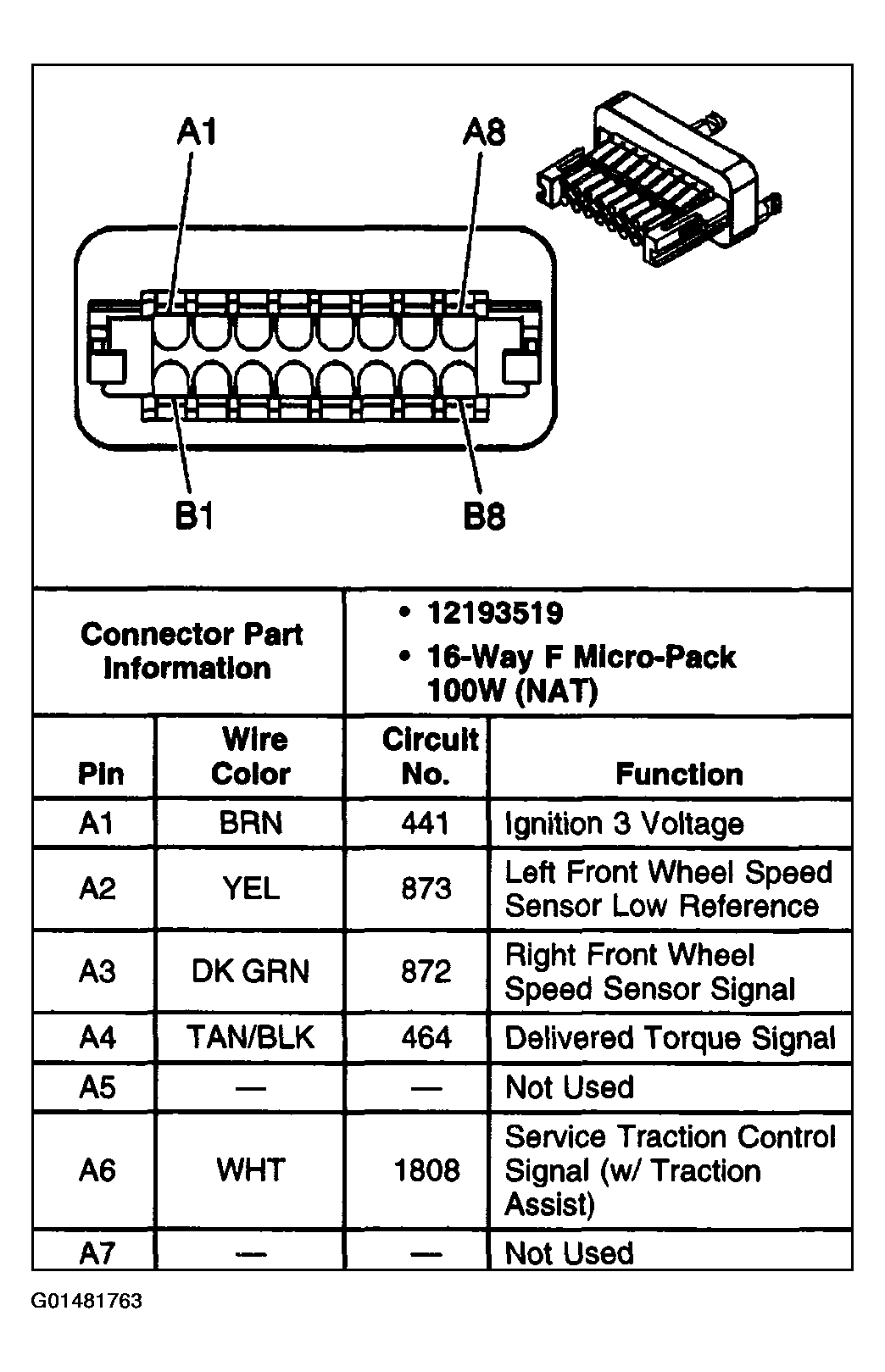

Fig 2: Electronic Brake Control Module (EBCM) - C2 Connector End View (10/20 Series) (1 Of 2)
G01481763Courtesy of GENERAL MOTORS CORP.

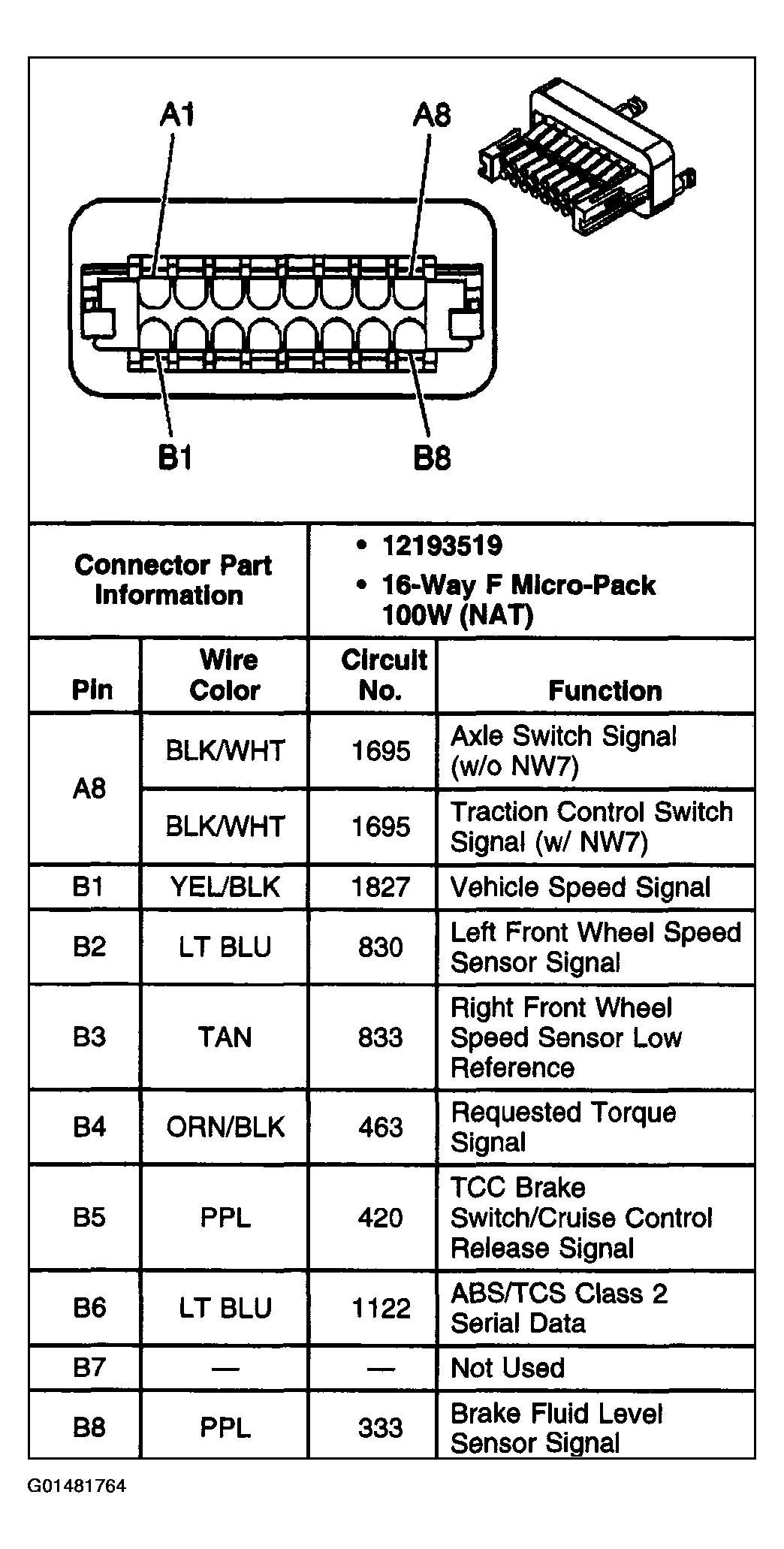

Fig 3: Electronic Brake Control Module (EBCM) - C2 Connector End View (10/20 Series) (2 Of 2)
G01481764Courtesy of GENERAL MOTORS CORP.

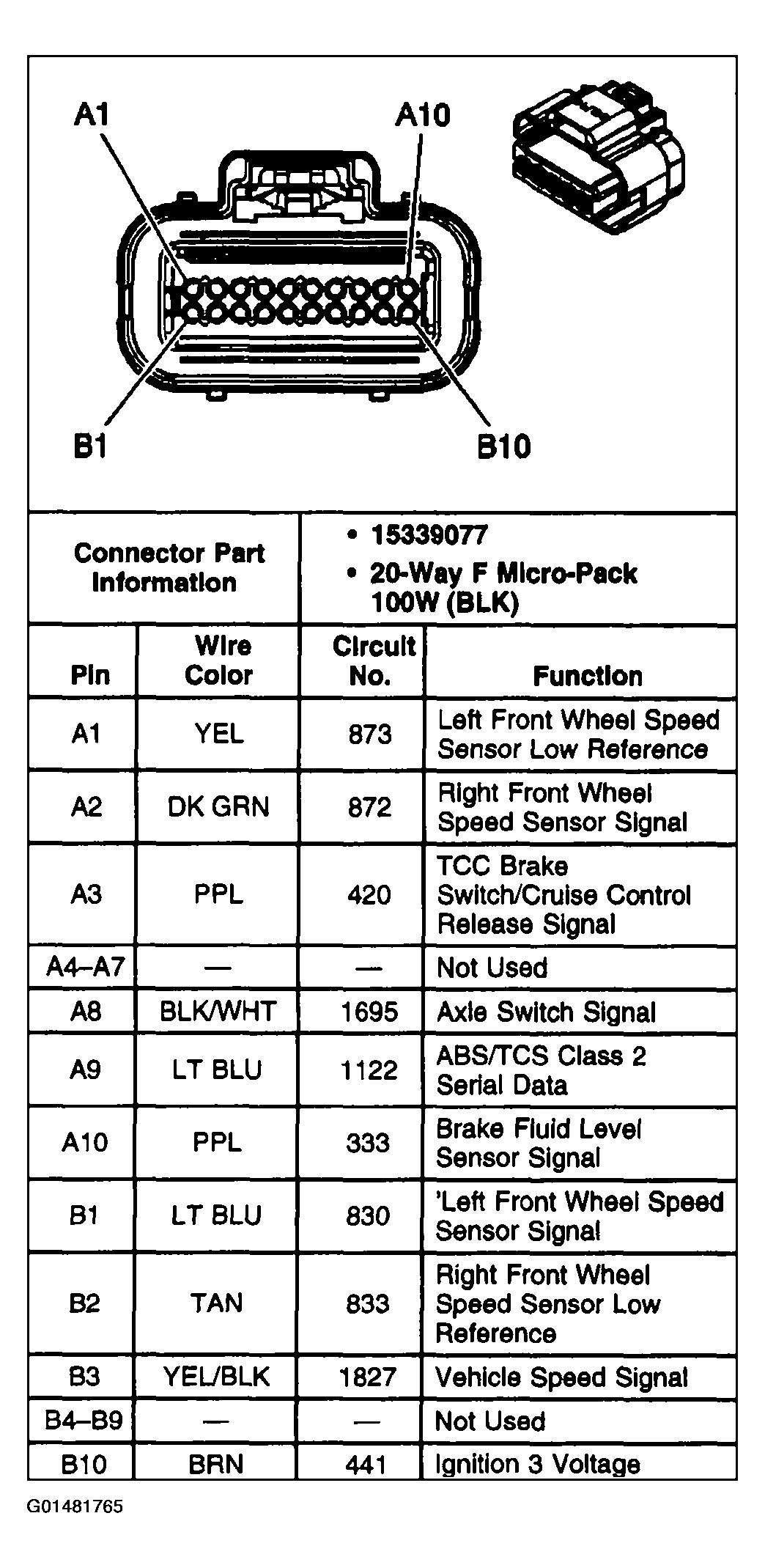

Fig 4: Electronic Brake Control Module (EBCM) - C2 Connector End View (30 Series)
G01481765Courtesy of GENERAL MOTORS CORP.
Fig 5: Traction Control Switch Connector End View
G01481766Courtesy of GENERAL MOTORS CORP.

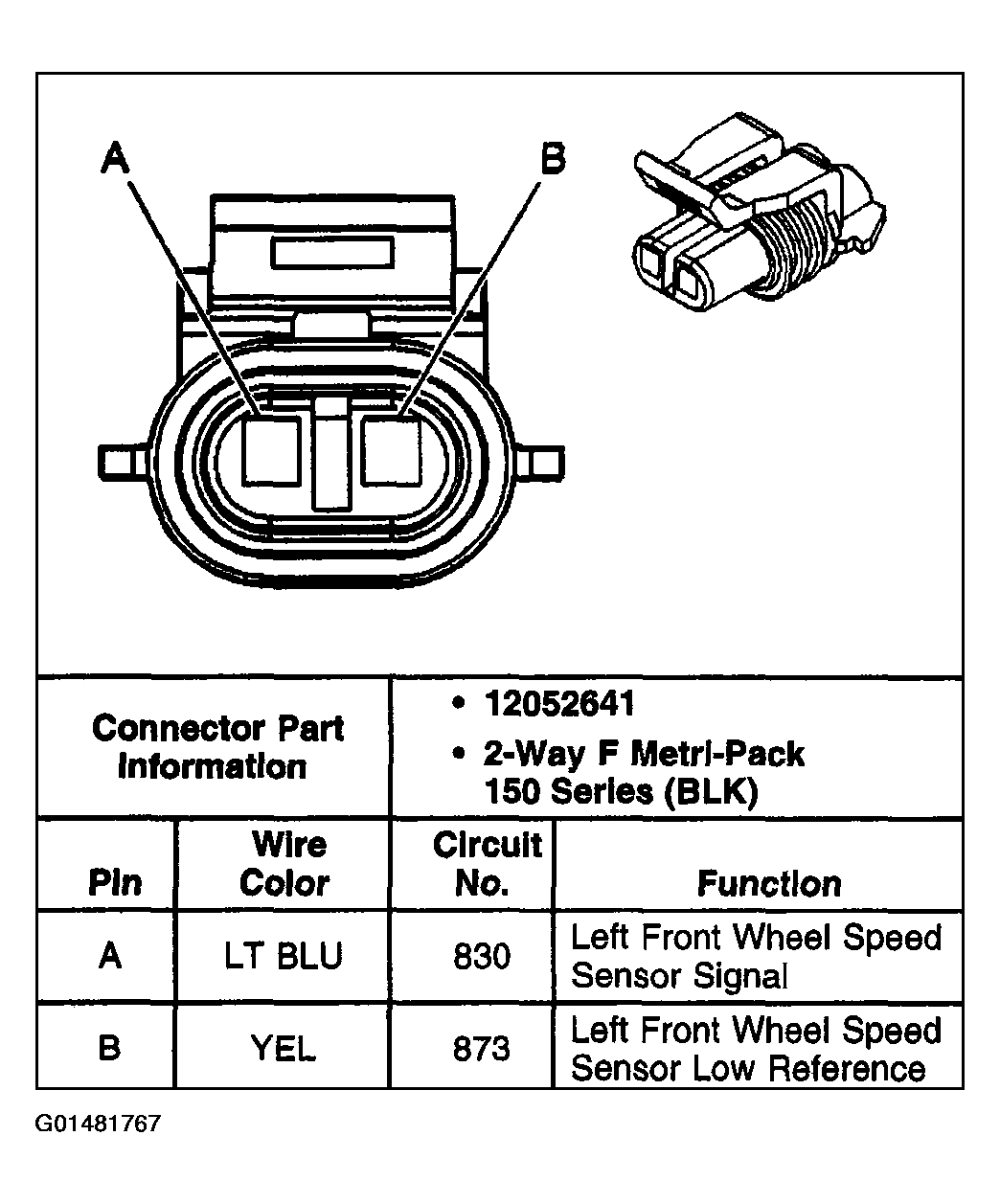

Fig 6: Wheel Speed Sensor (WSS) - LF Connector End View
G01481767Courtesy of GENERAL MOTORS CORP.

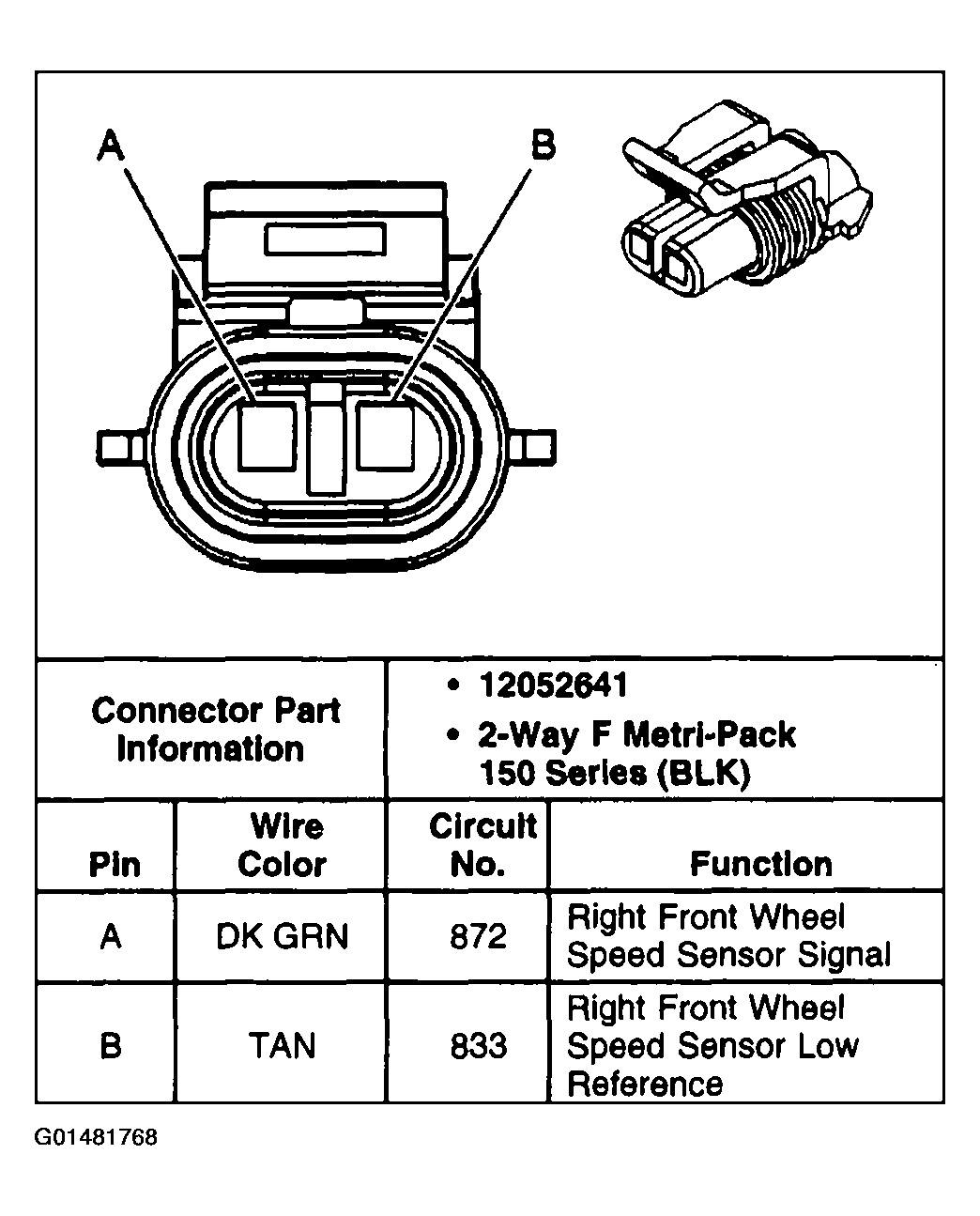

Fig 7: Wheel Speed Sensor (WSS) - RF Connector End View
G01481768Courtesy of GENERAL MOTORS CORP.
