Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel (IP) bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the instrument panel (IP) assembly (3).
  3. Disconnect the harness connector from the traction control switch.

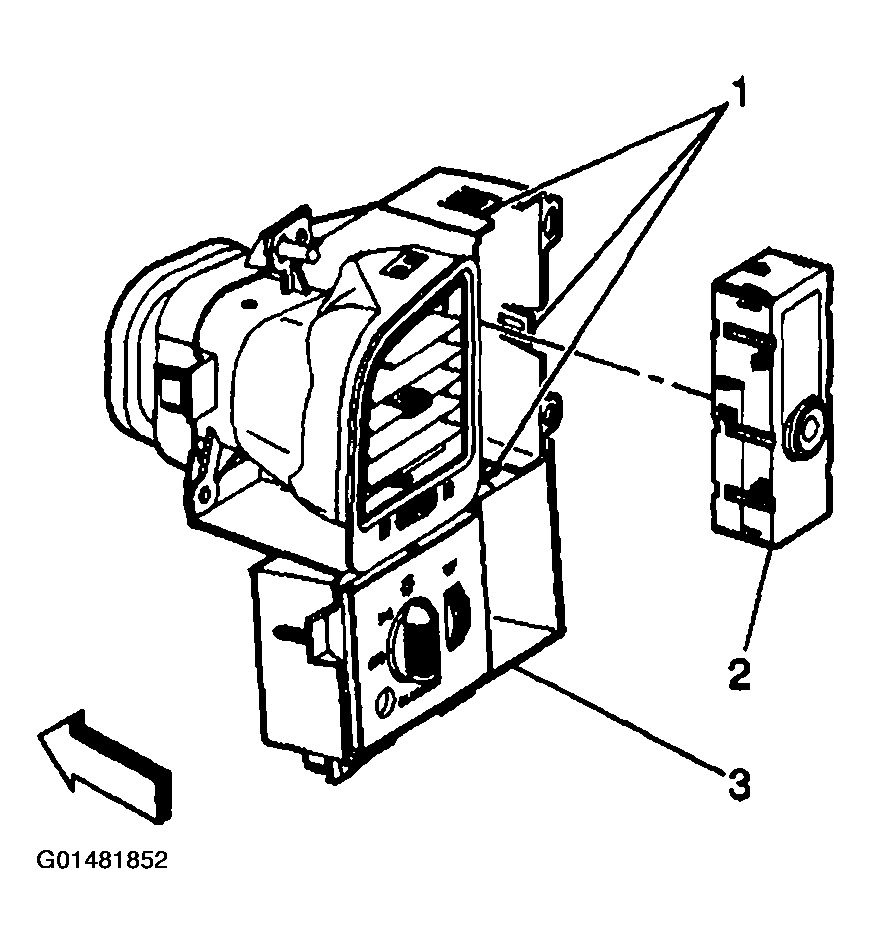

    Fig 1: Removing Traction Control Switch From Instrument Panel (IP) Assembly
    G01481852Courtesy of GENERAL MOTORS CORP.
