Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Install in an environment that is free from dust or dirt. Dust and dirt could come in contact with the adhesive surface and prevent proper adhesive.
- Clean the area where the wheel opening flare is to be mounted.
Use a suitable solvent, such as flash naptha or a mixture of 50 percent isopropyl alcohol and 50 percent water.
- Dry the area thoroughly.
- Warm the body panel with a heat gun J 25070
to a minimum of 21°C (70°C).IMPORTANT: Do not touch the adhesive surface when the tape is removed.
- Remove the adhesive tape from the wheel opening flare.

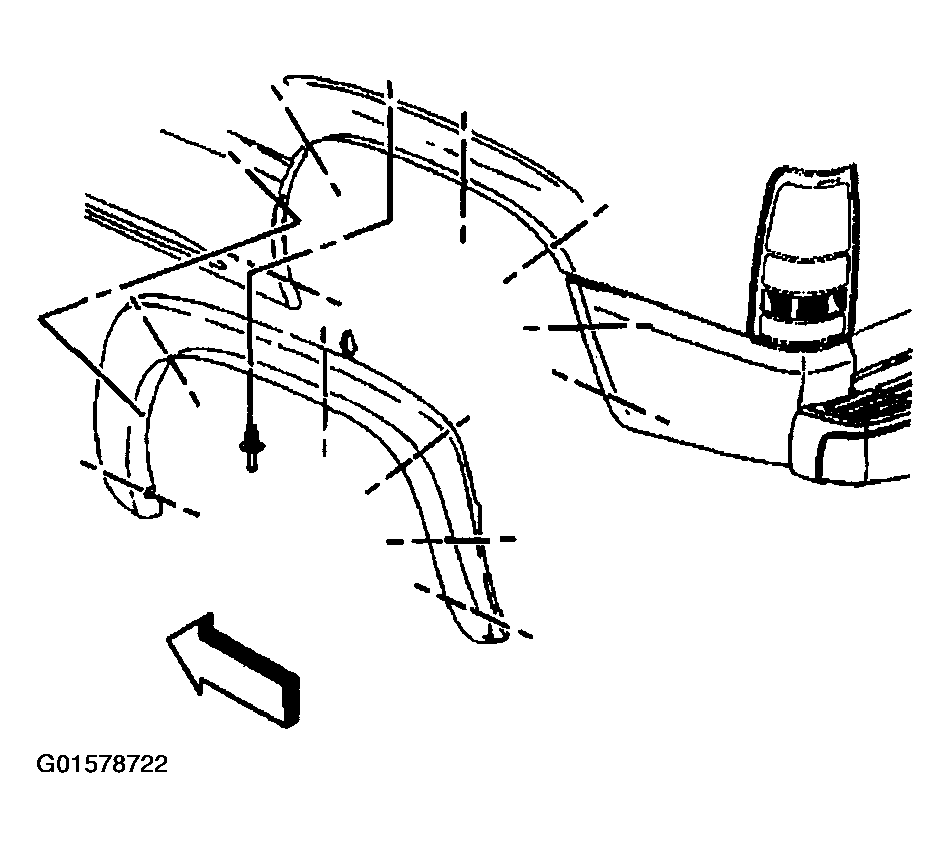

- Install the wheel opening flare to the rear fender.
- Install the push pins to retain the wheel opening flare.
