Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

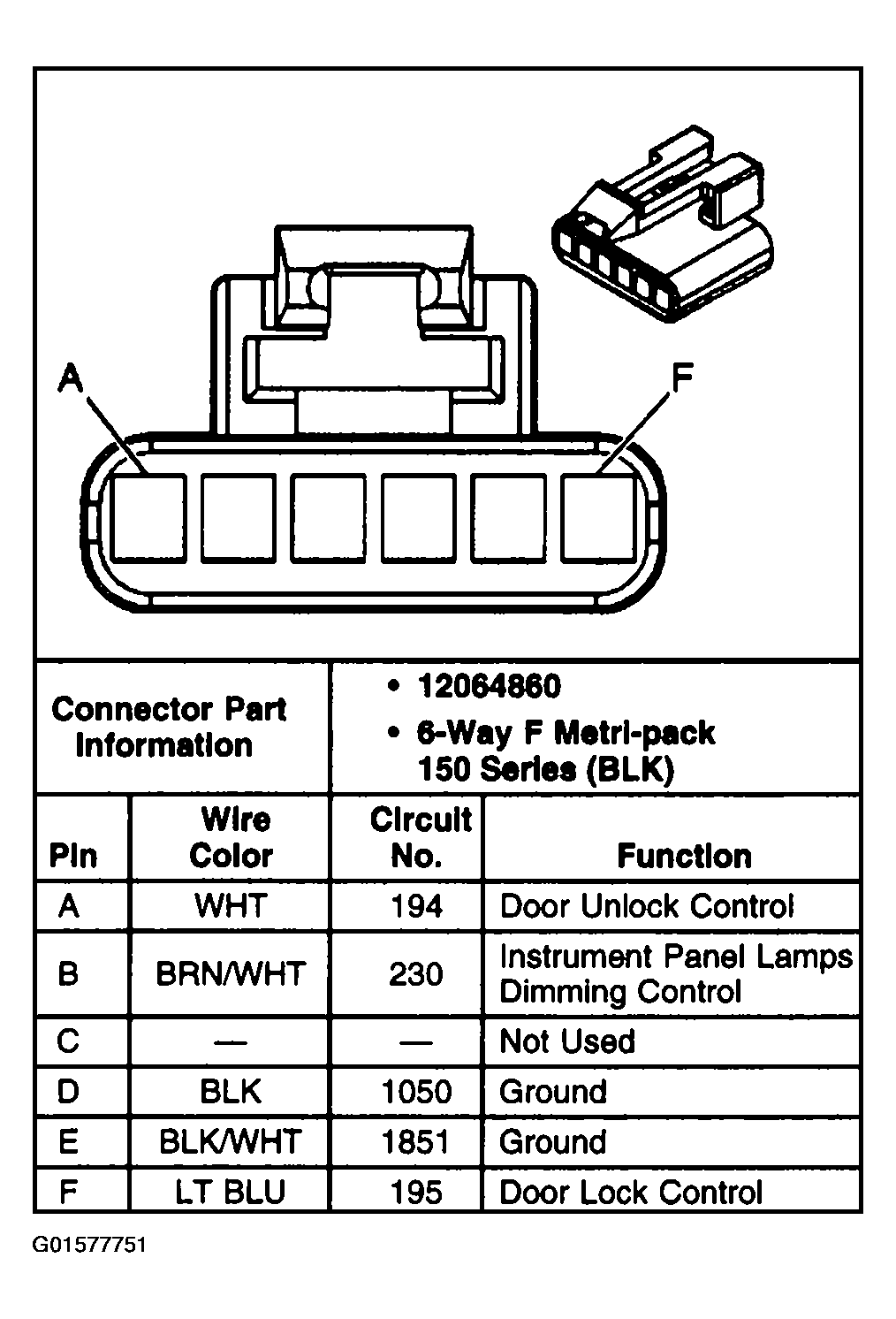

Fig 1: Door Lock Switch - Driver (Base Only)

G01577751

Courtesy of GENERAL MOTORS CORP.

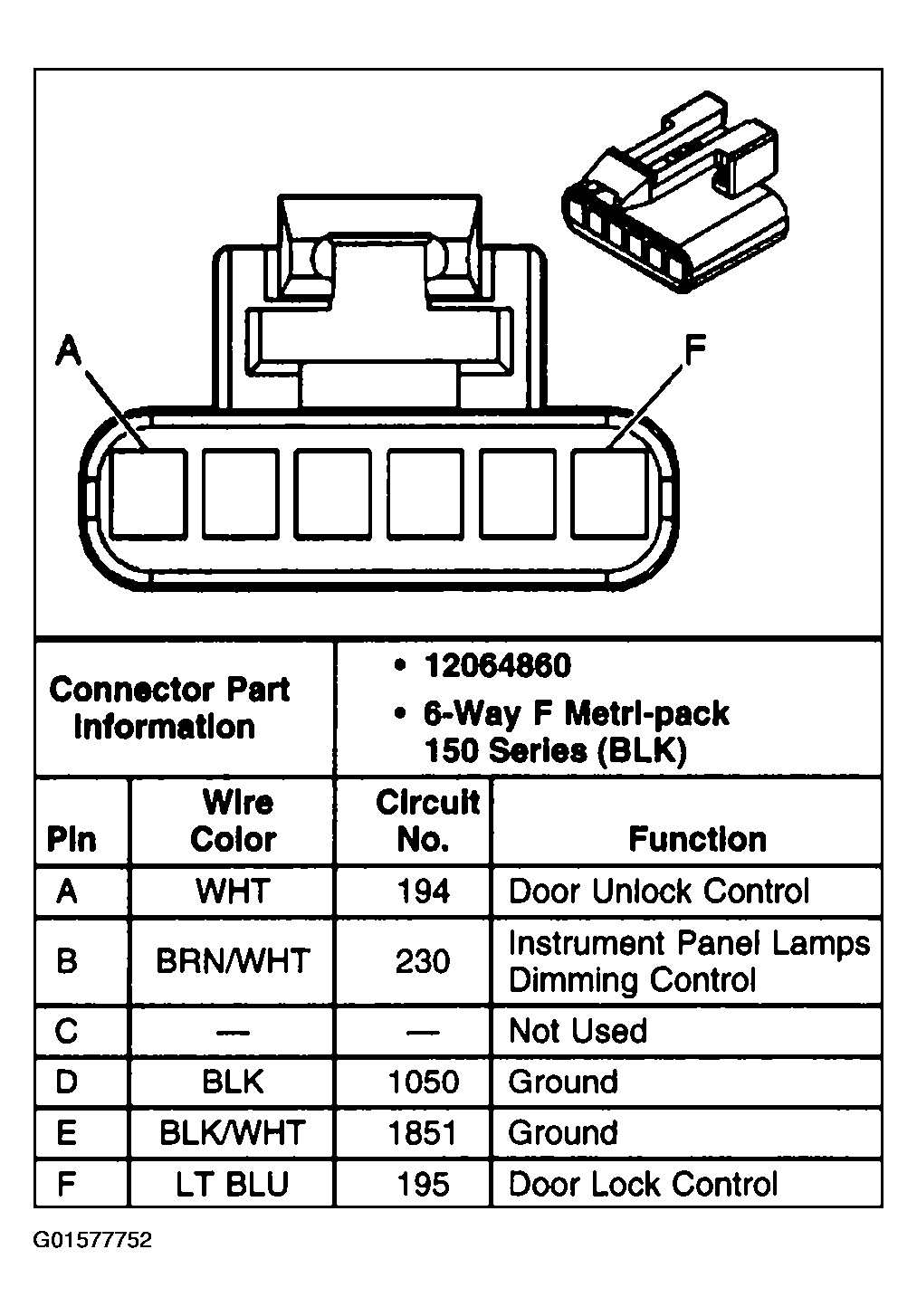

Fig 2: Door Lock Switch - Front Passenger (Base Only)

G01577752

Courtesy of GENERAL MOTORS CORP.

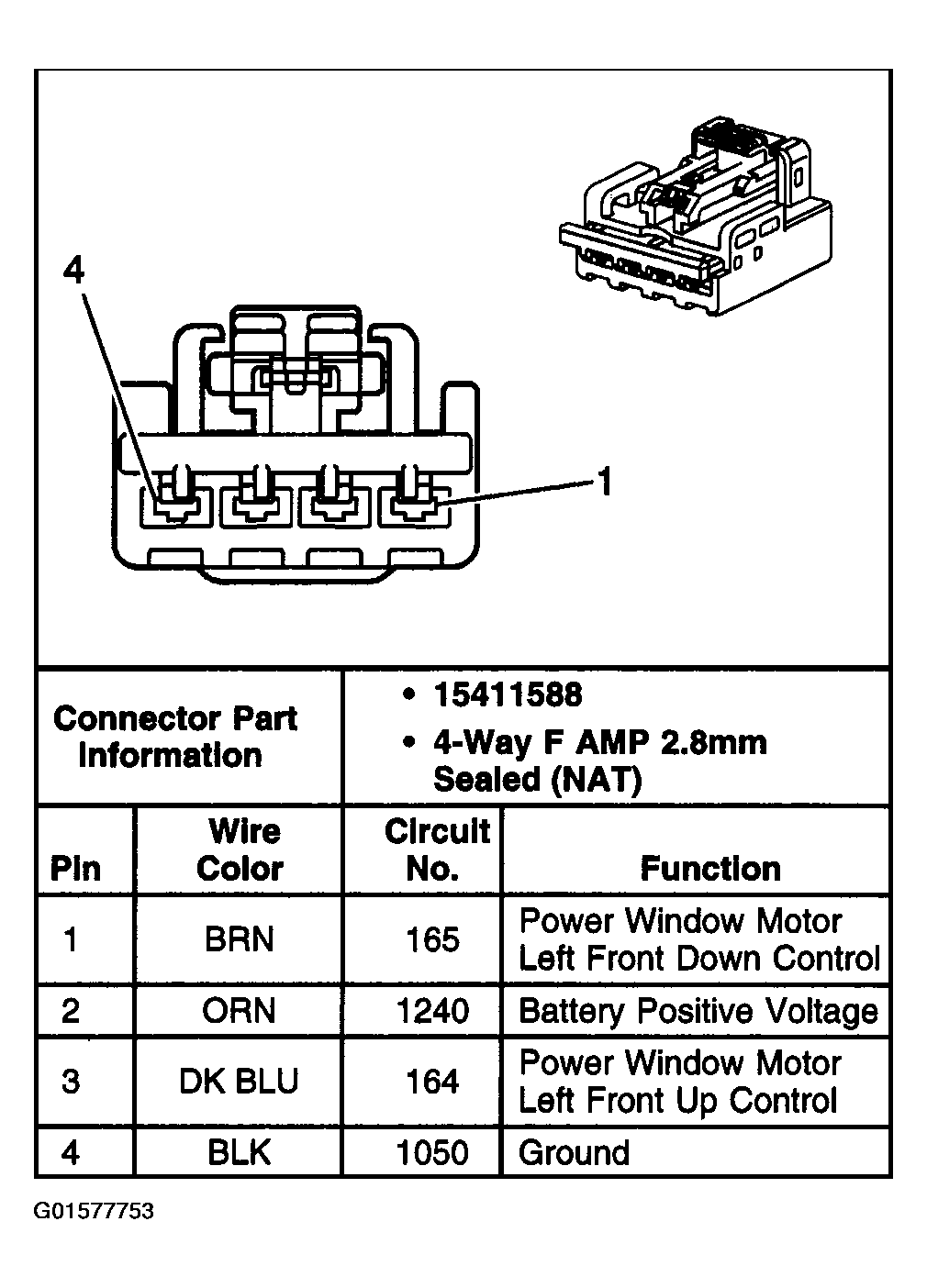

Fig 3: Driver Door Module (DDM) - C1 (Except Base)

G01577753

Courtesy of GENERAL MOTORS CORP.

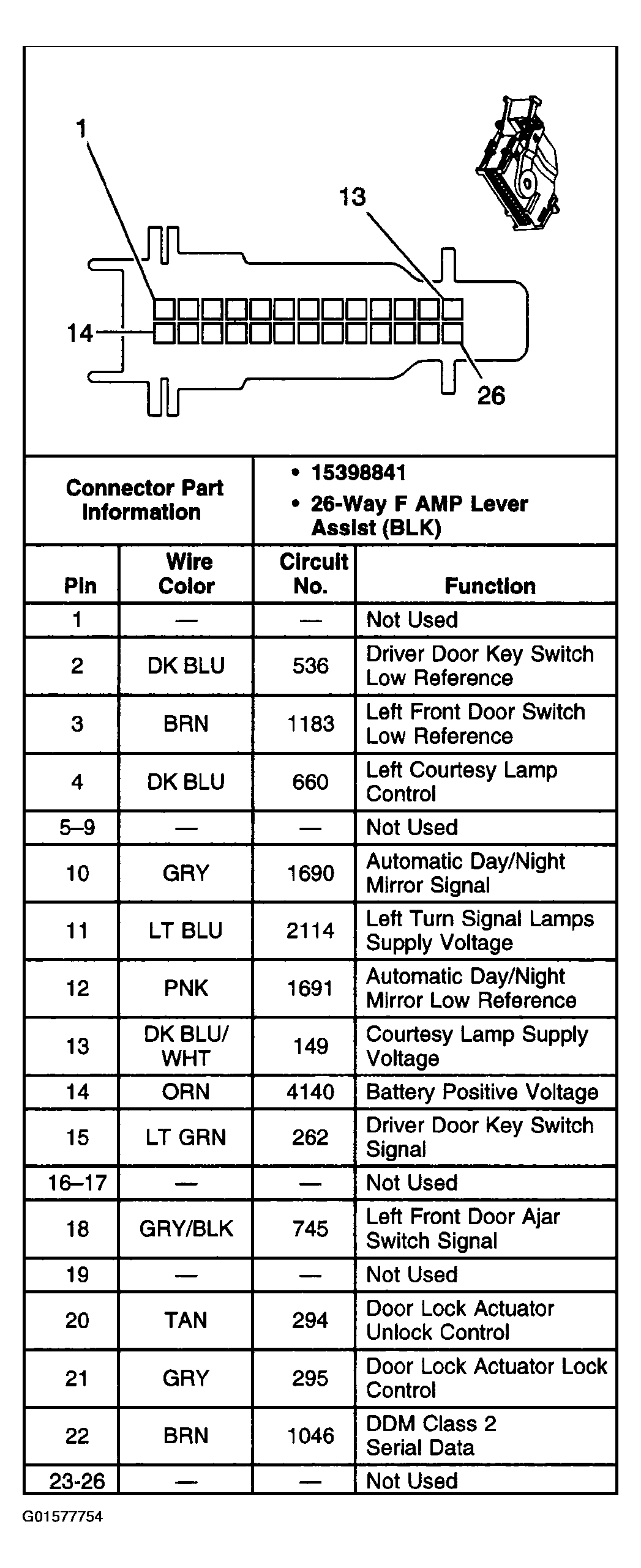

Fig 4: Driver Door Module (DDM) - C2 (Except Base)

G01577754

Courtesy of GENERAL MOTORS CORP.

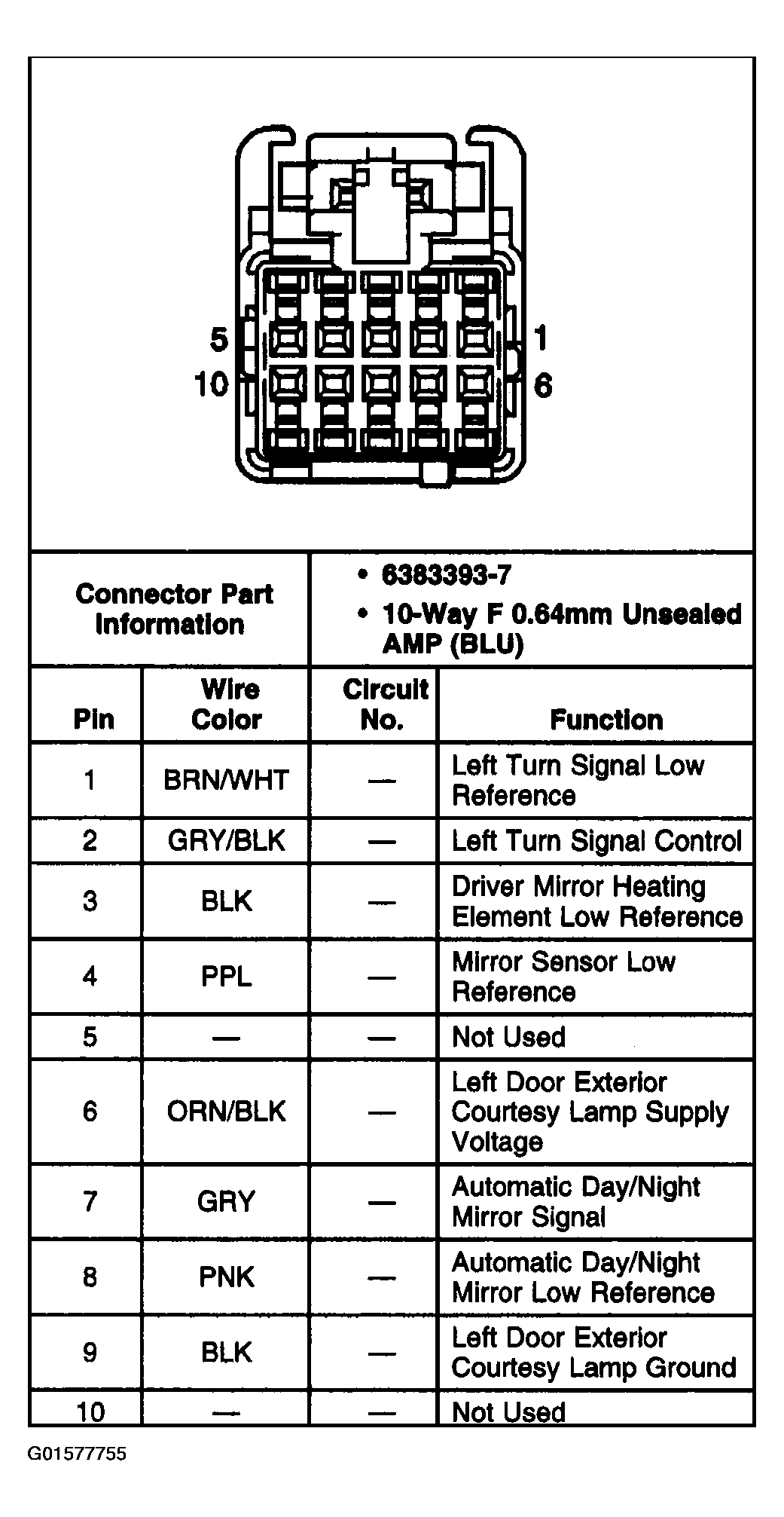

Fig 5: Driver Door Module (DDM) - C3 (Except Base)

G01577755

Courtesy of GENERAL MOTORS CORP.

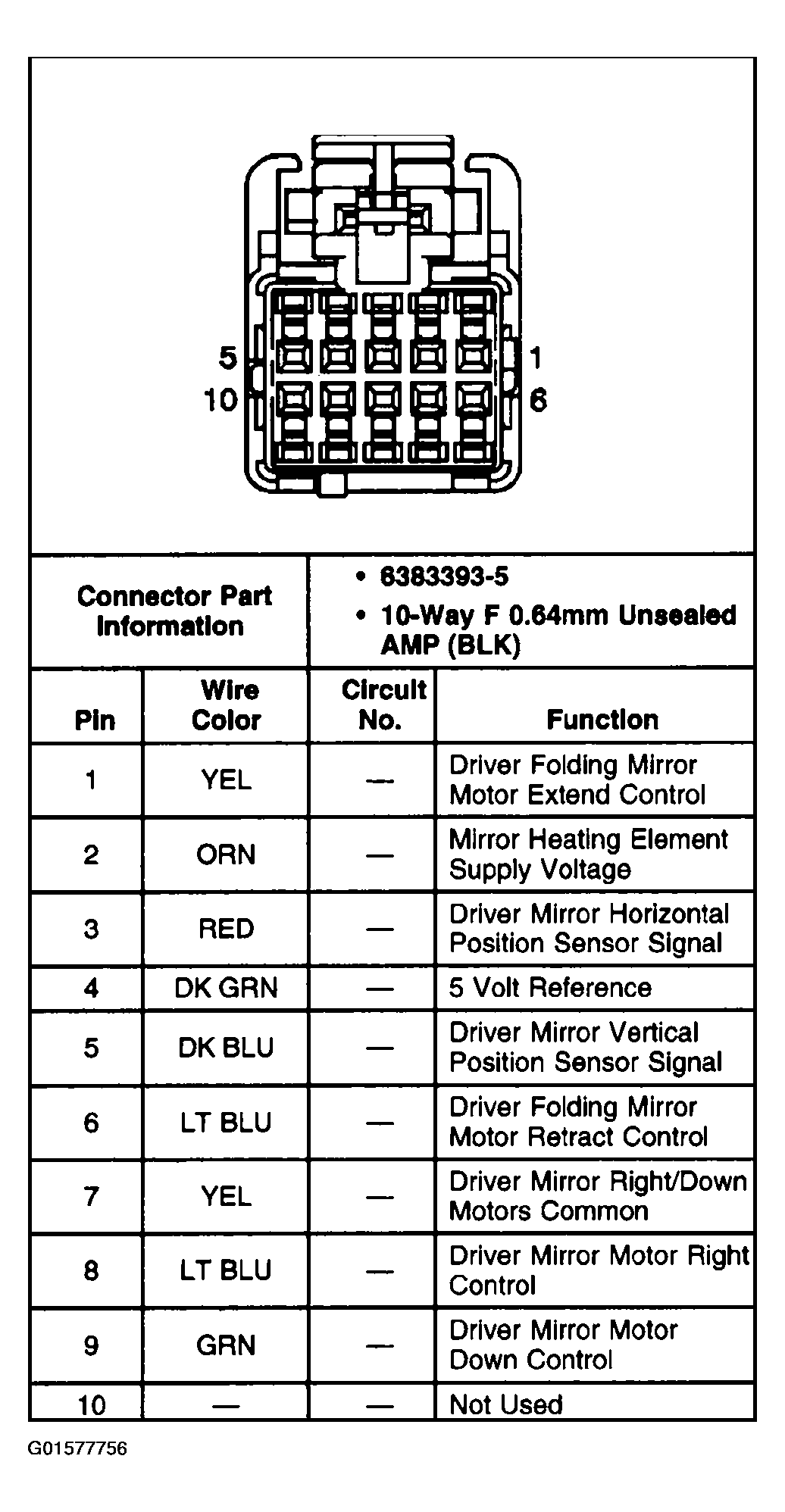

Fig 6: Driver Door Module (DDM) - C4 (Except Base)

G01577756

Courtesy of GENERAL MOTORS CORP.

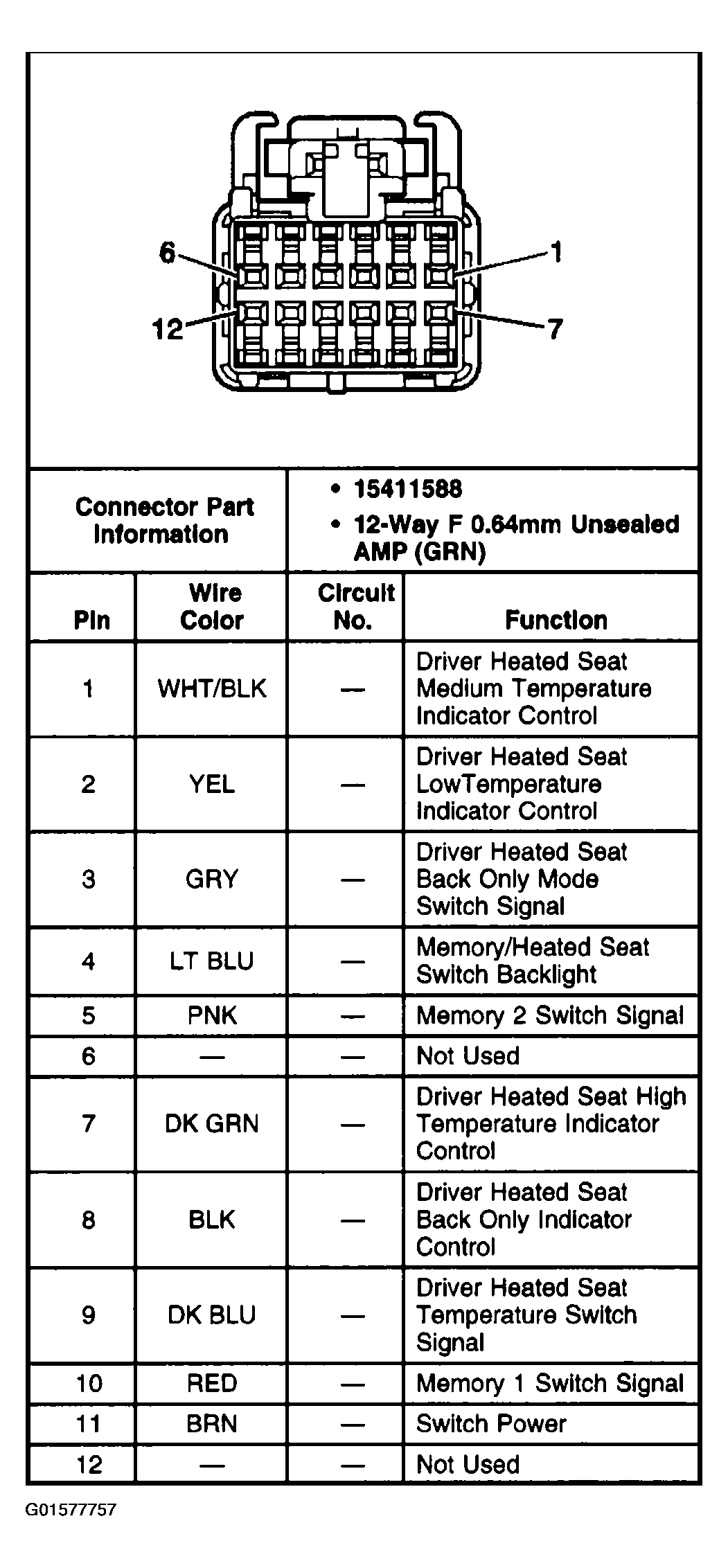

Fig 7: Driver Door Module (DDM) - C5 (Except Base)

G01577757

Courtesy of GENERAL MOTORS CORP.

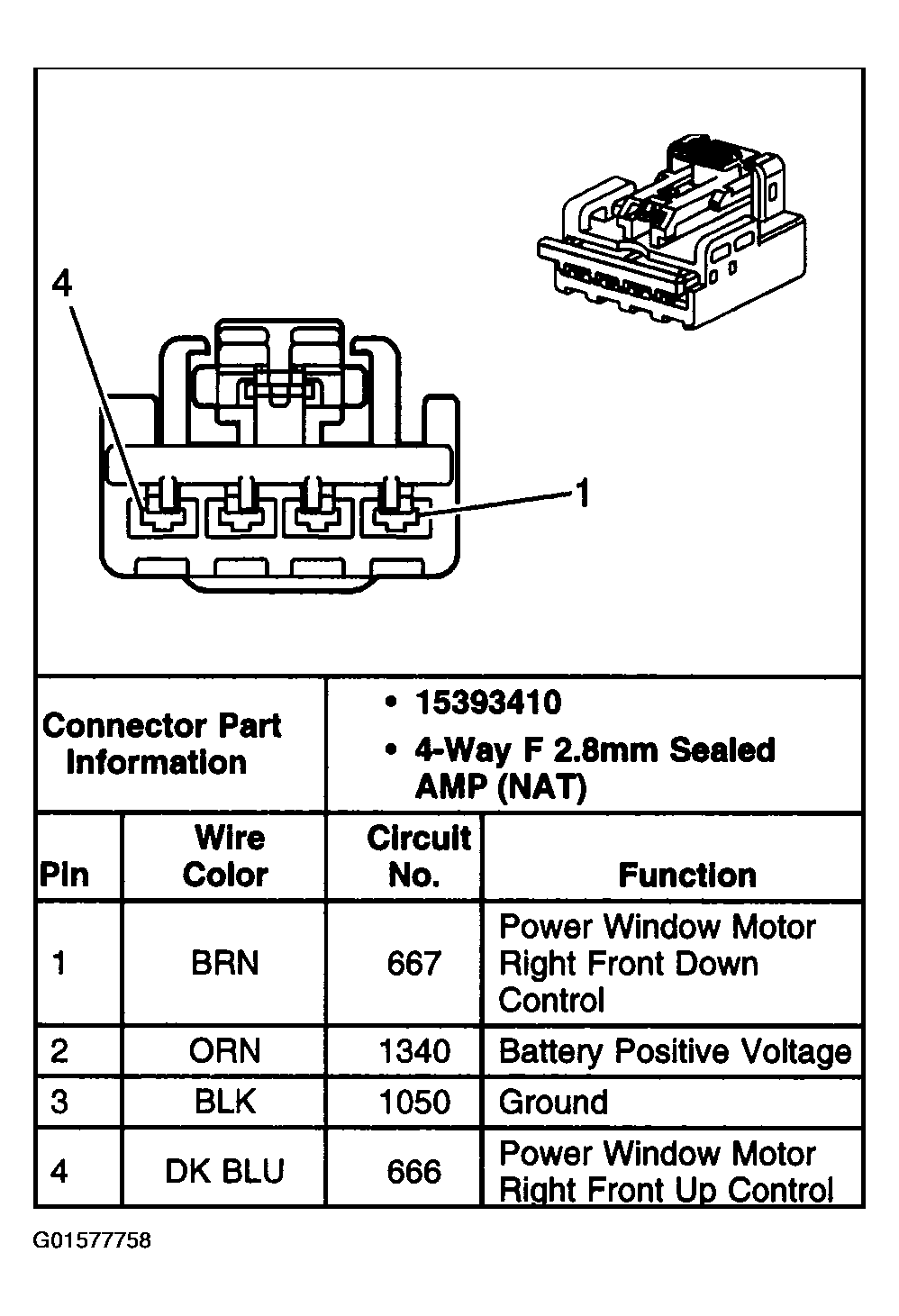

Fig 8: Front Passenger Door Module (FPDM) - C1 (Except Base)

G01577758

Courtesy of GENERAL MOTORS CORP.

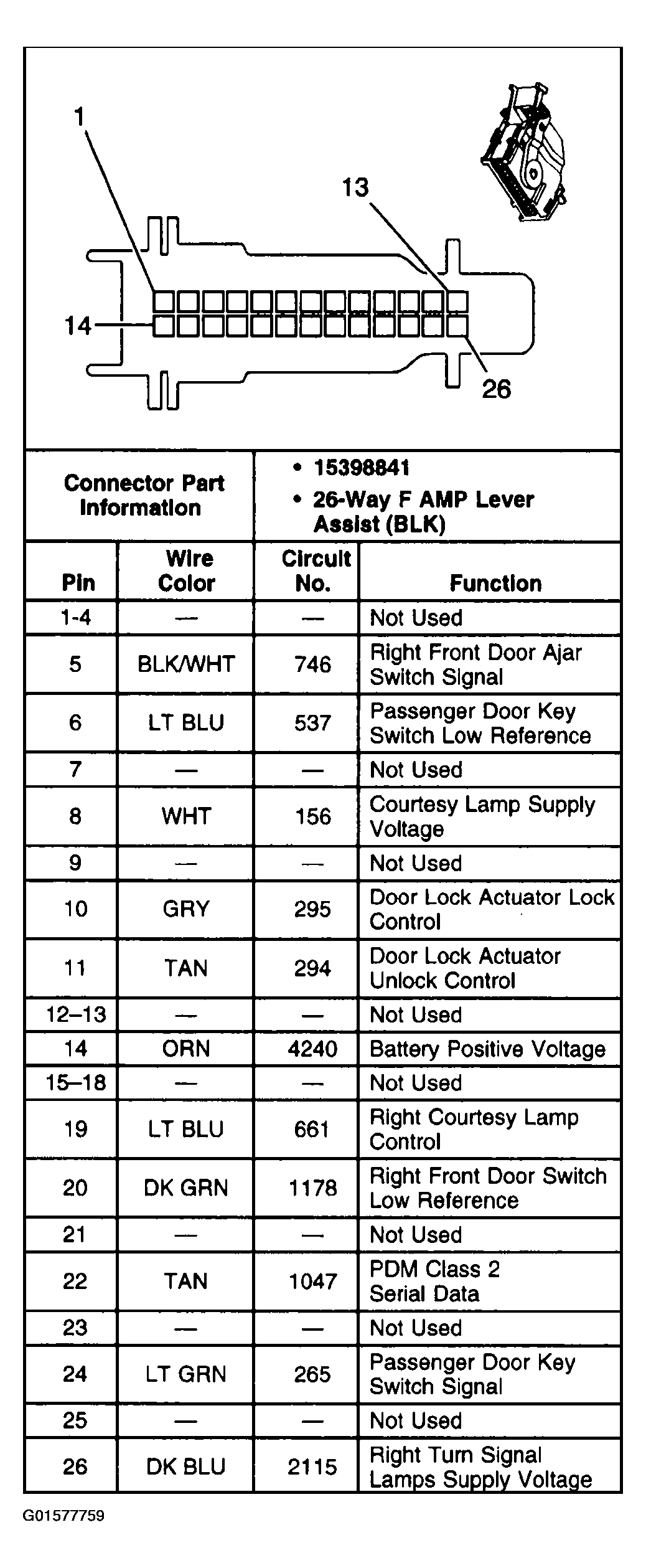

Fig 9: Front Passenger Door Module (FPDM) - C2 (Except Base)

G01577759

Courtesy of GENERAL MOTORS CORP.

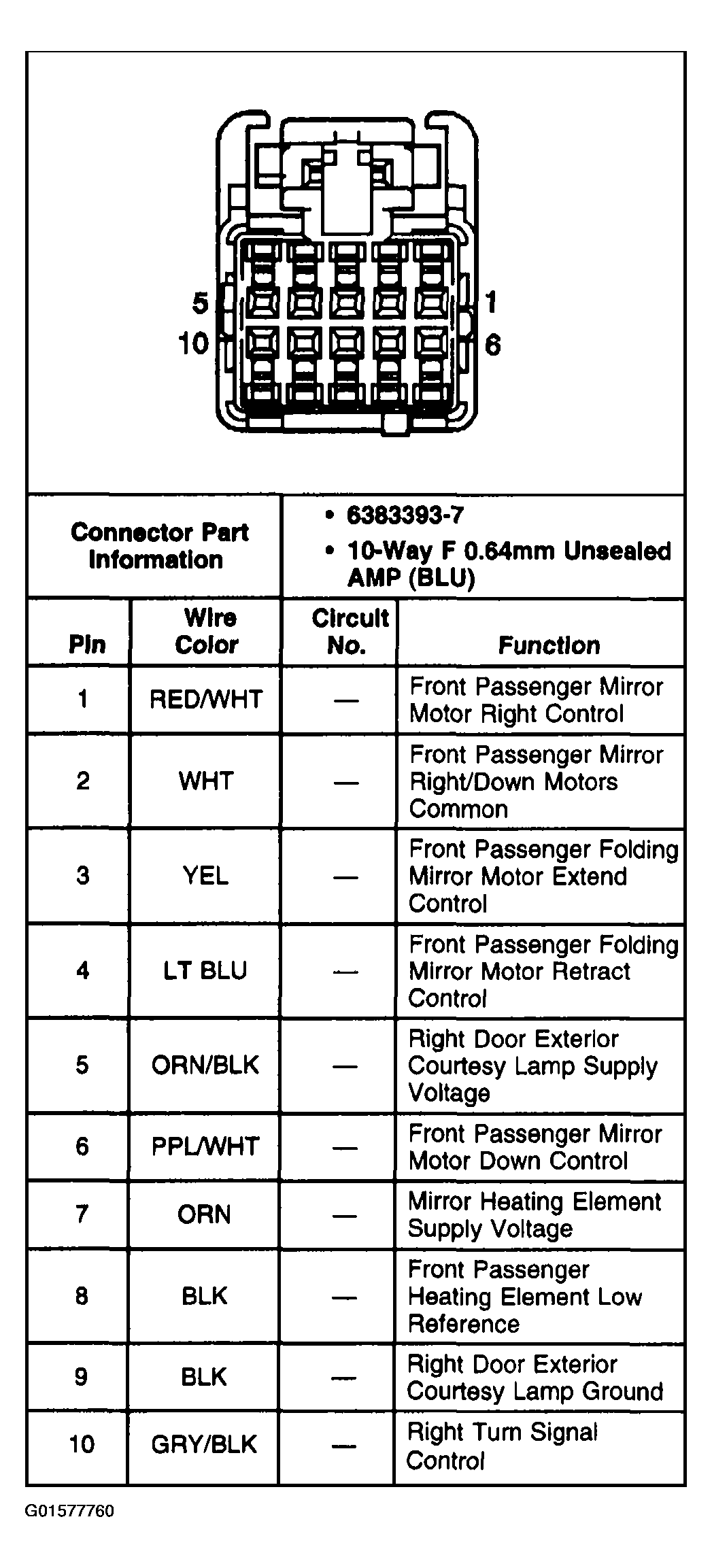

Fig 10: Front Passenger Door Module (FPDM) - C3 (Except Base)

G01577760

Courtesy of GENERAL MOTORS CORP.

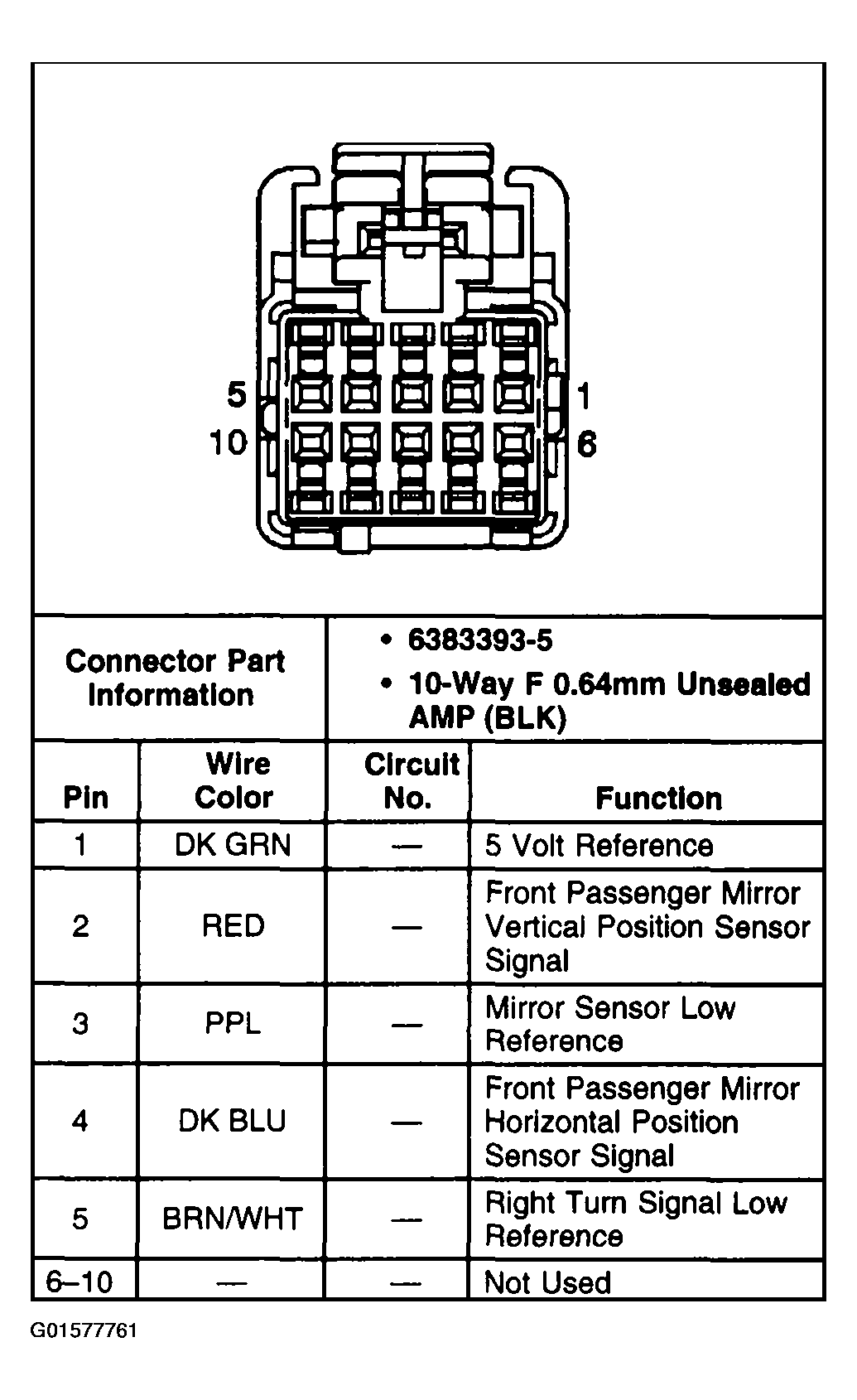

Fig 11: Front Passenger Door Module (FPDM) - C4 (Except Base)

G01577761

Courtesy of GENERAL MOTORS CORP.

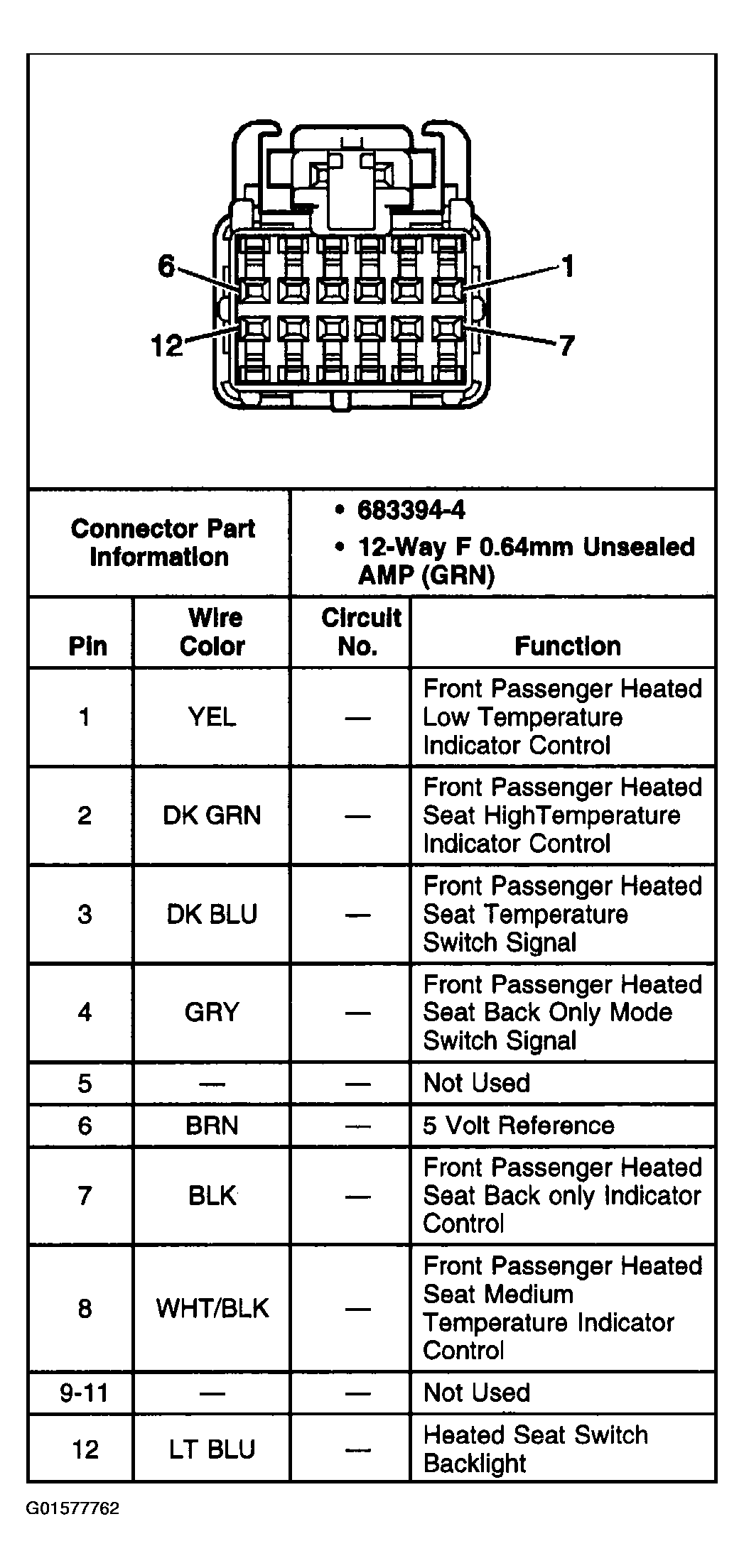

Fig 12: Front Passenger Door Module (FPDM) - C5 (Except Base)

G01577762

Courtesy of GENERAL MOTORS CORP.

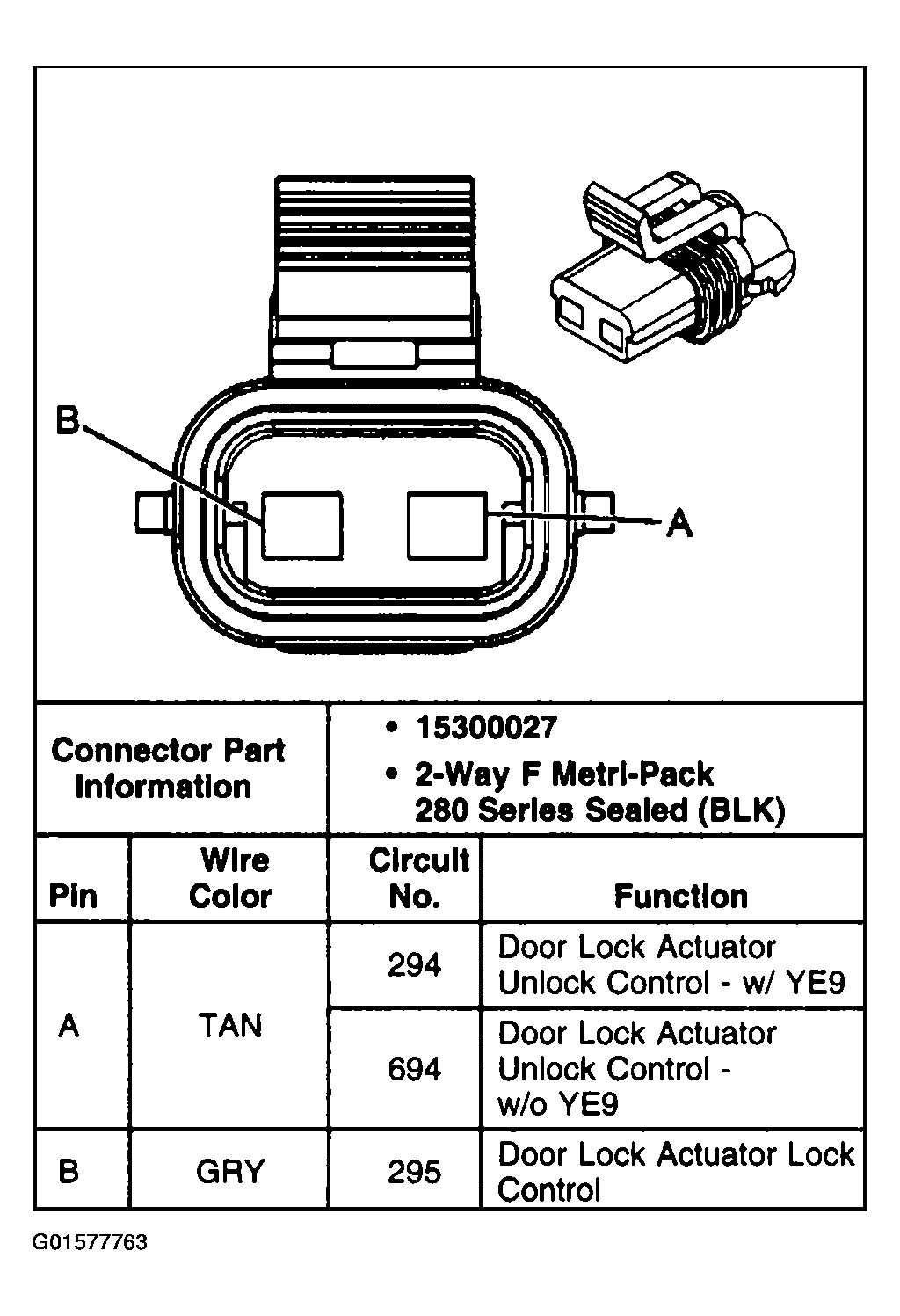

Fig 13: Mini Wedge (Door Jamb Switch) - Driver C1

G01577763

Courtesy of GENERAL MOTORS CORP.

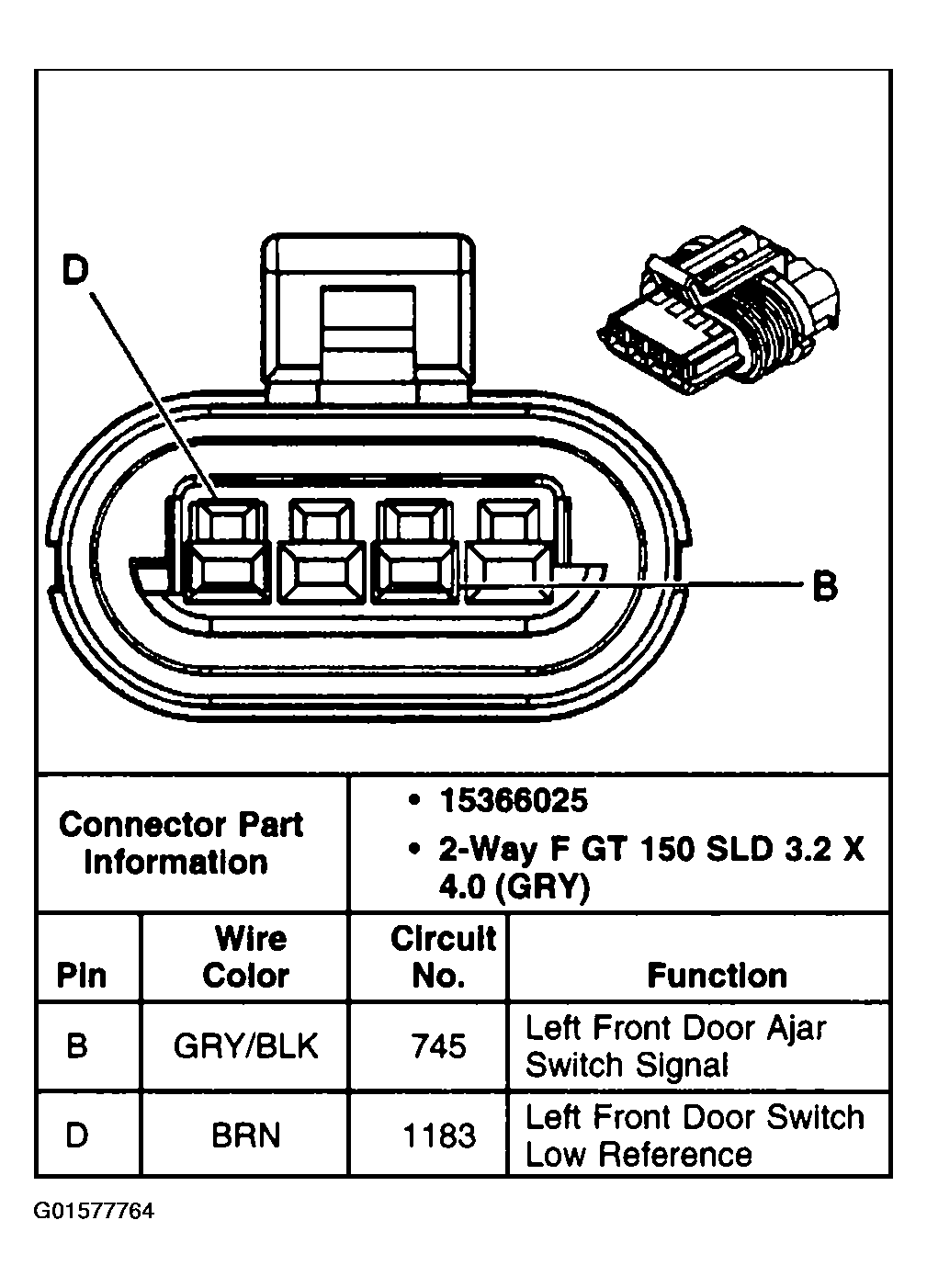

Fig 14: Mini Wedge (Door Jamb Switch) - Driver C2

G01577764

Courtesy of GENERAL MOTORS CORP.

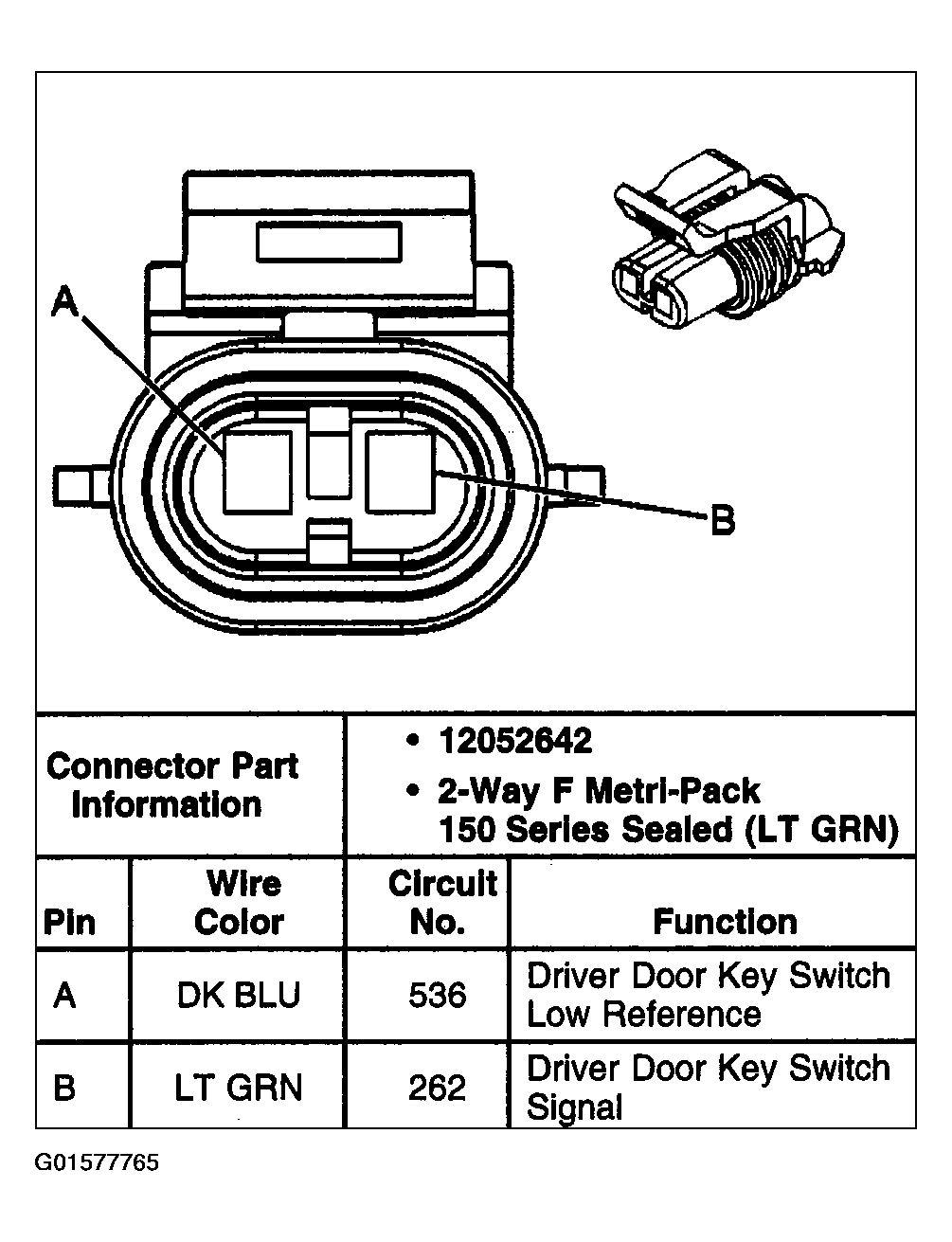

Fig 15: Mini Wedge (Door Jamb Switch) - Driver C3

G01577765

Courtesy of GENERAL MOTORS CORP.

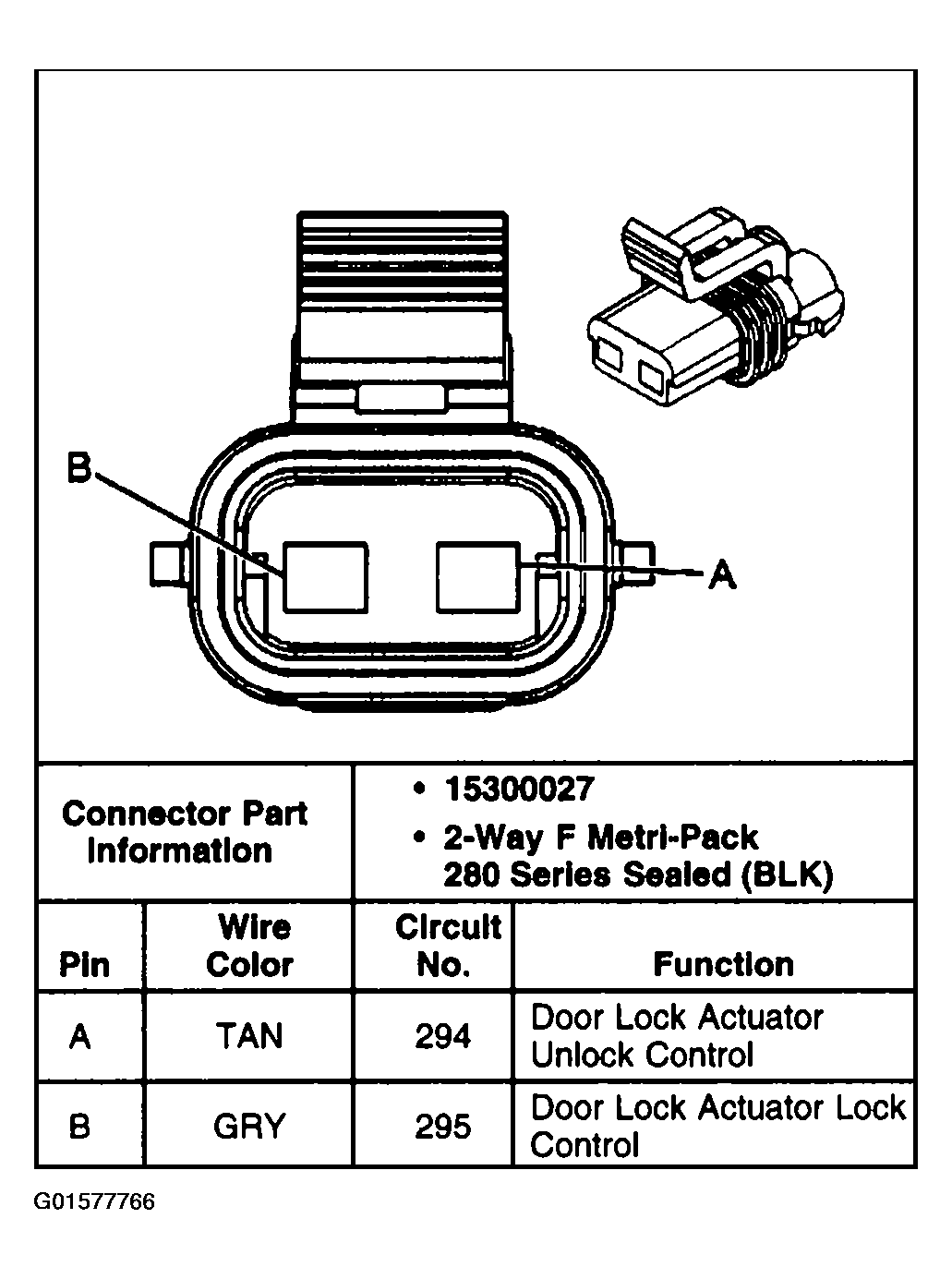

Fig 16: Mini Wedge (Door Jamb Switch) - Front Passenger C1

G01577766

Courtesy of GENERAL MOTORS CORP.

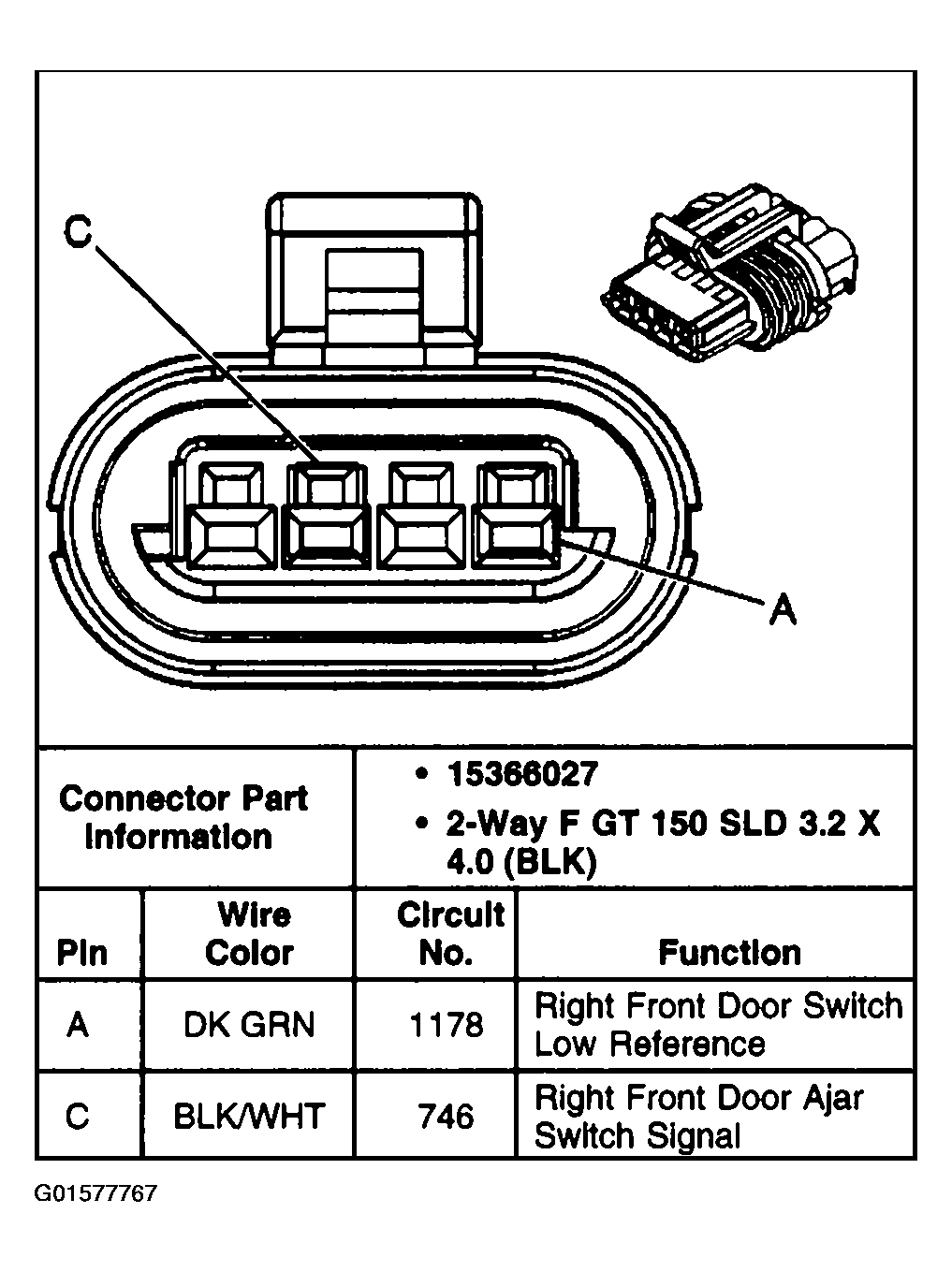

Fig 17: Mini Wedge (Door Jamb Switch) - Front Passenger C2

G01577767

Courtesy of GENERAL MOTORS CORP.

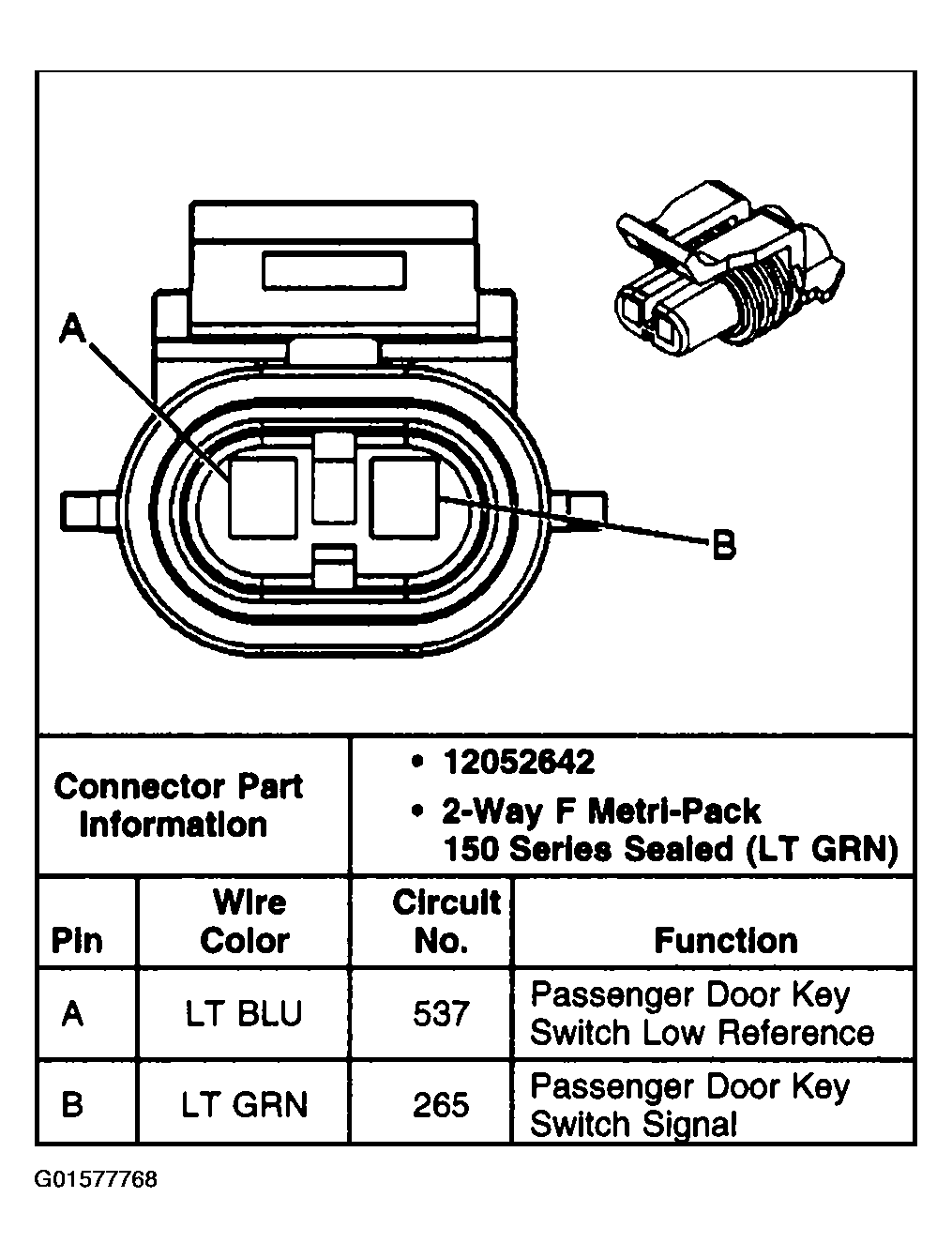

Fig 18: Mini Wedge (Door Jamb Switch) - Front Passenger C3

G01577768

Courtesy of GENERAL MOTORS CORP.

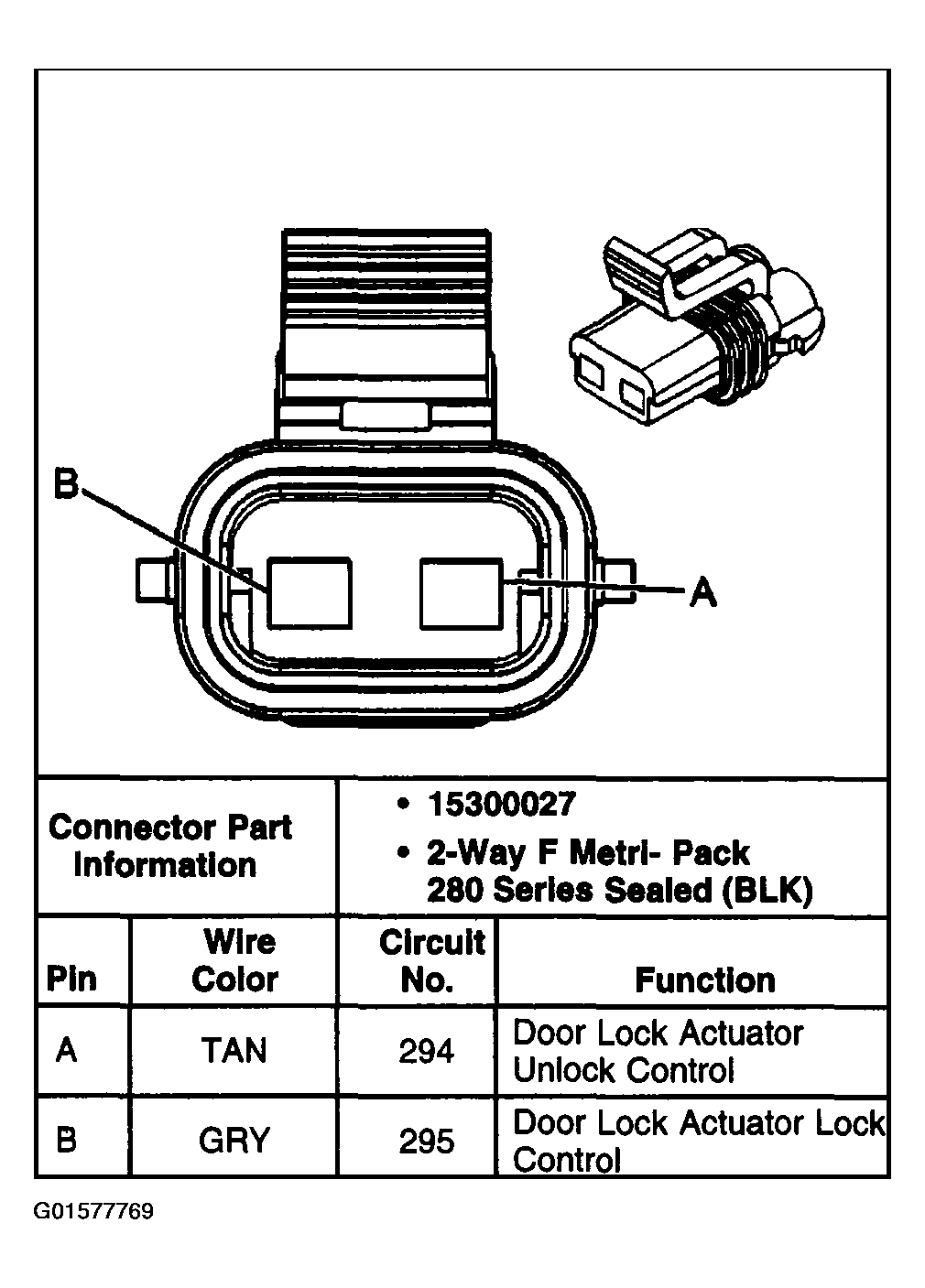

Fig 19: Mini Wedge (Door Jamb Switch) - LR C1 (Crew Cab Only)

G01577769

Courtesy of GENERAL MOTORS CORP.

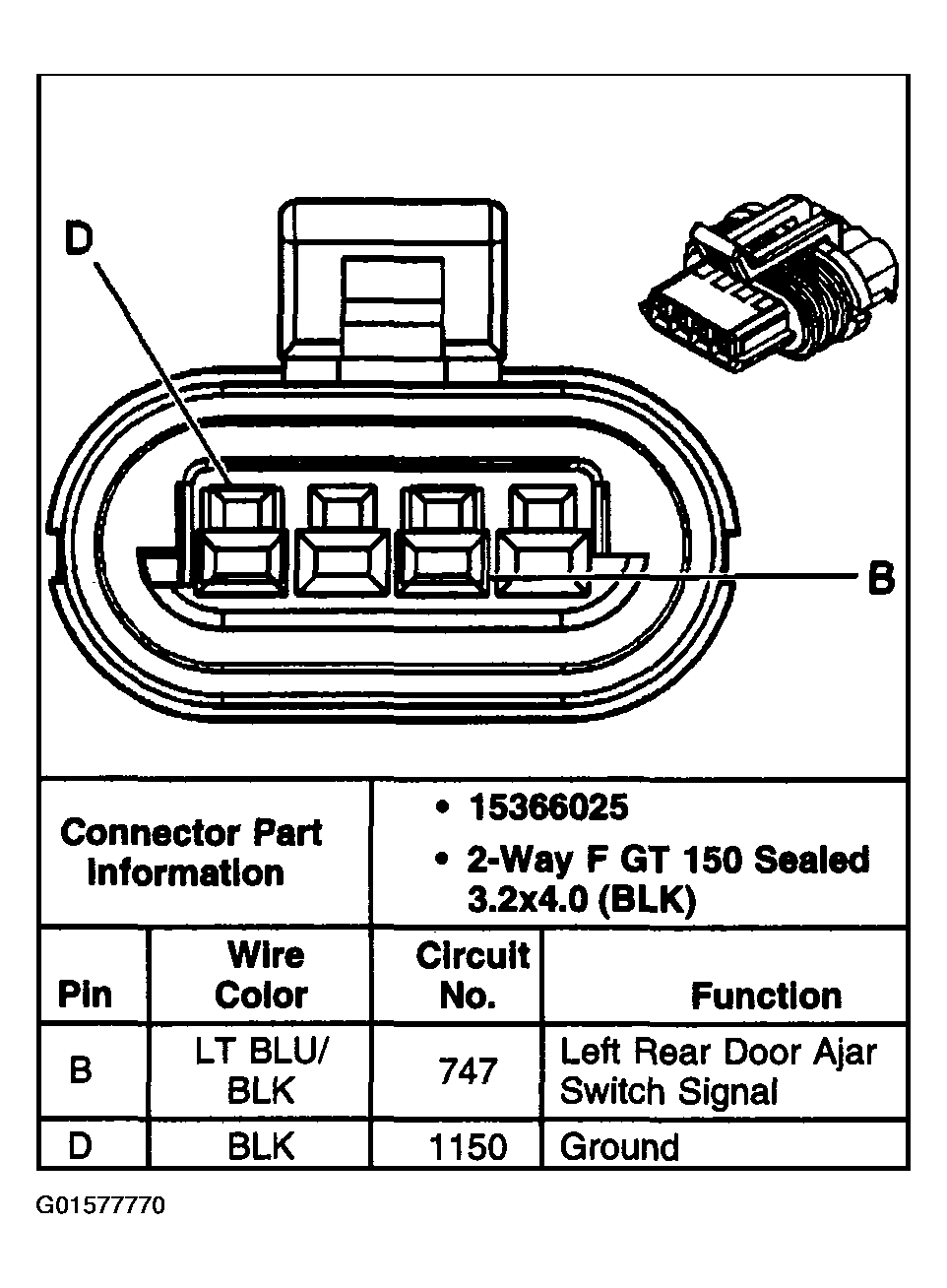

Fig 20: Mini Wedge (Door Jamb Switch) - LR C2 (Crew Cab Only)

G01577770

Courtesy of GENERAL MOTORS CORP.

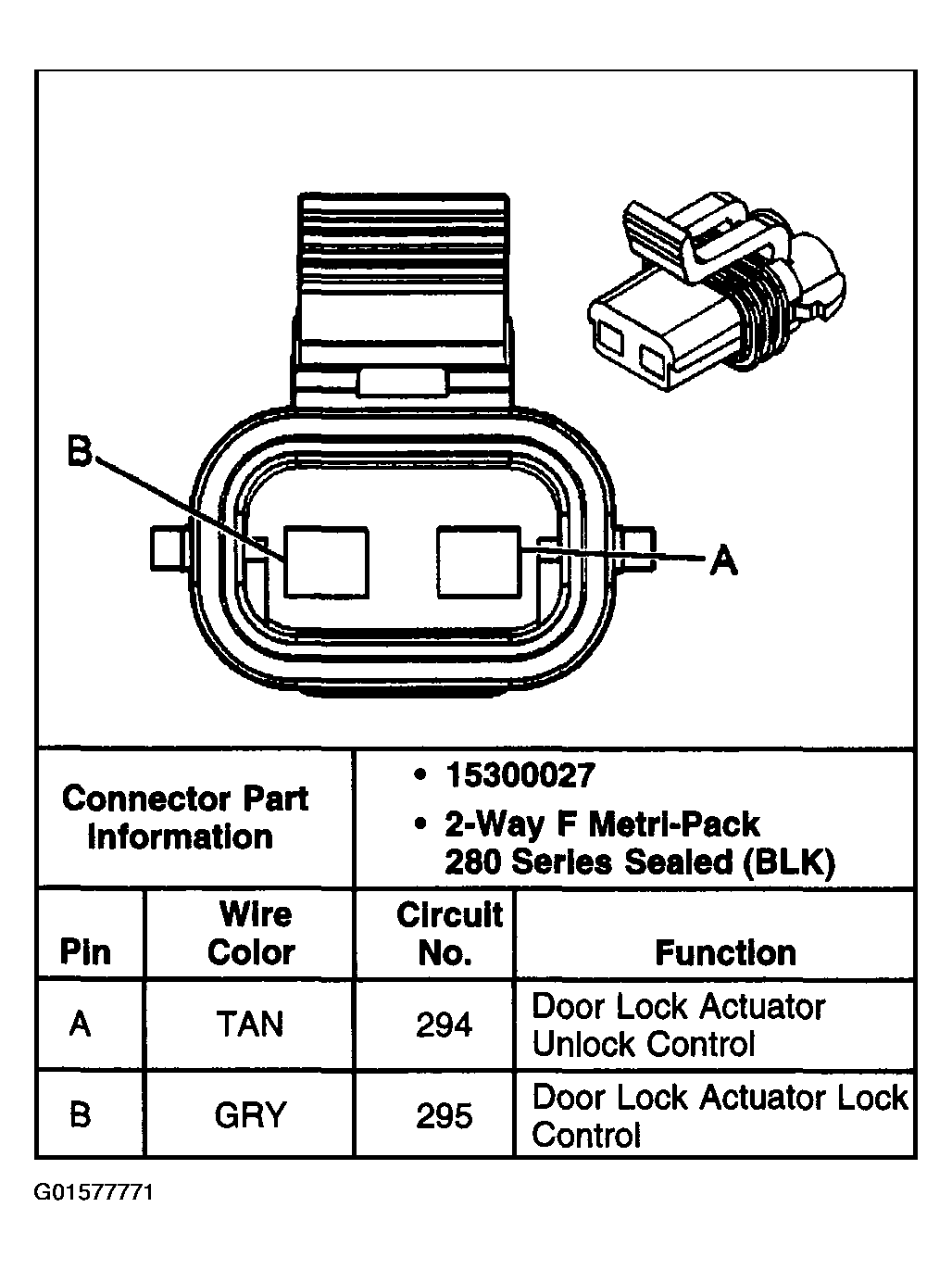

Fig 21: Mini Wedge (Door Jamb Switch) - RR C1 (Crew Cab Only)

G01577771

Courtesy of GENERAL MOTORS CORP.

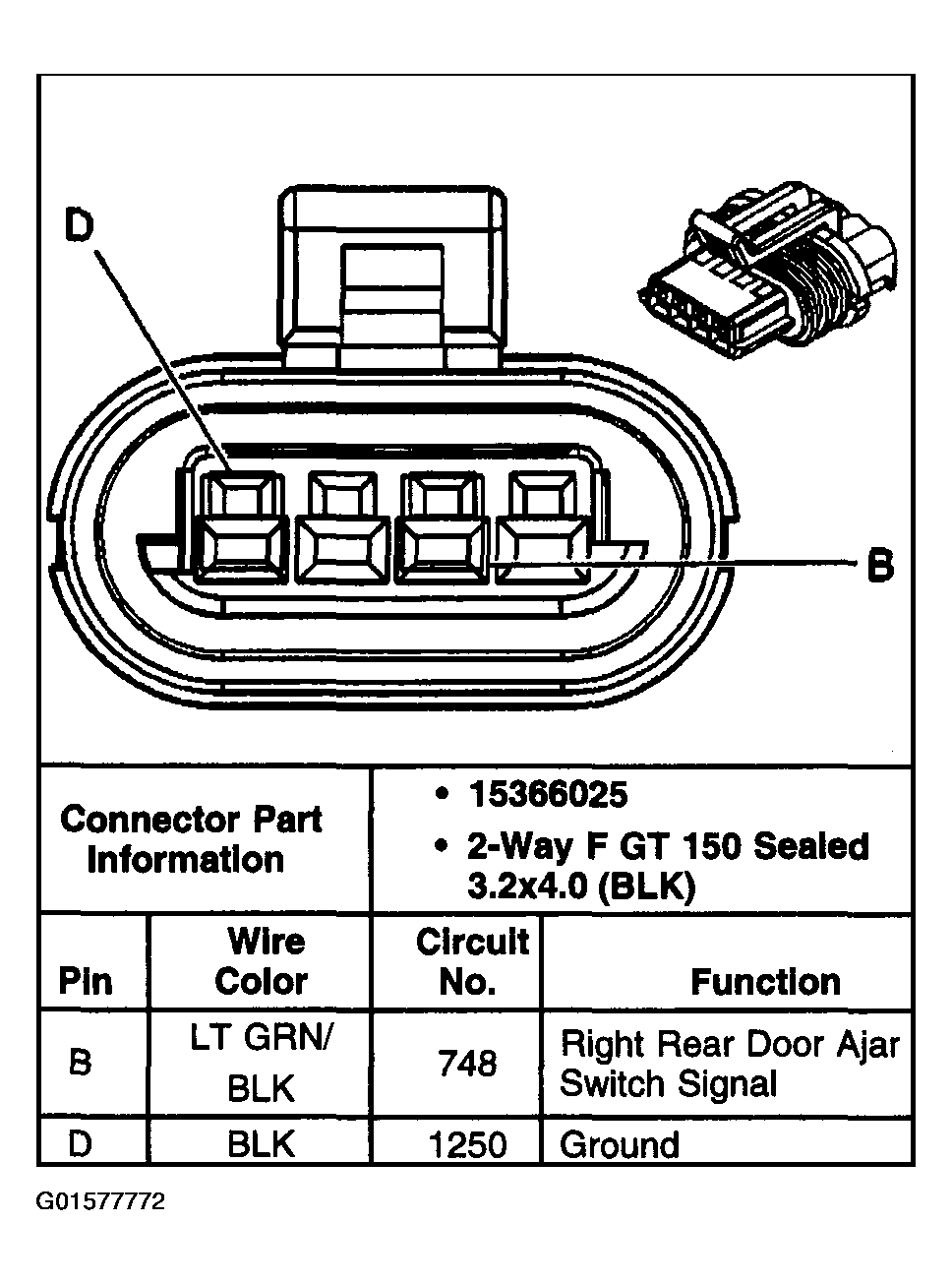

Fig 22: Mini Wedge (Door Jamb Switch) - RR C2 (Crew Cab Only)

G01577772

Courtesy of GENERAL MOTORS CORP.

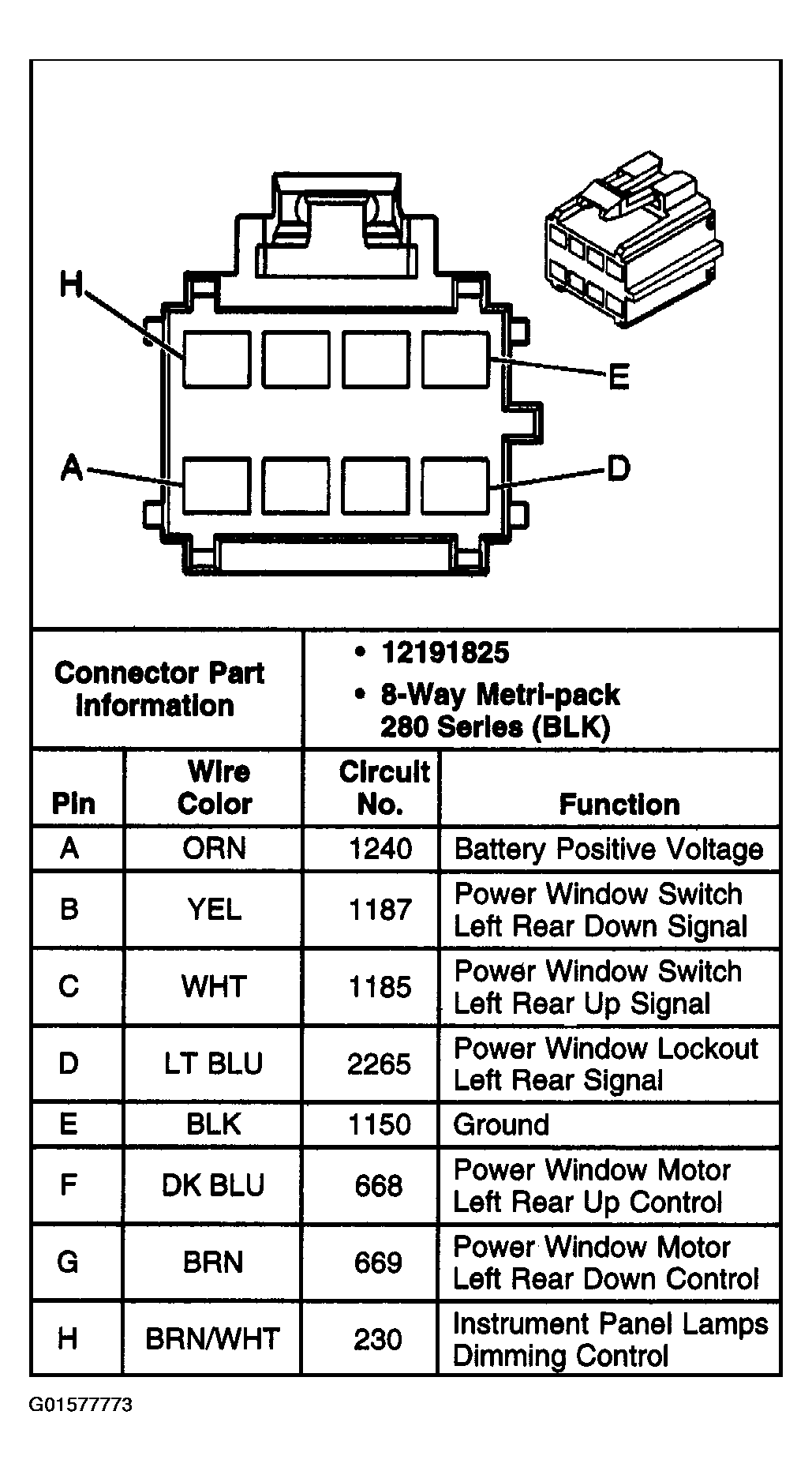

Fig 23: Window Switch - LR (Crew Cab Only)

G01577773

Courtesy of GENERAL MOTORS CORP.

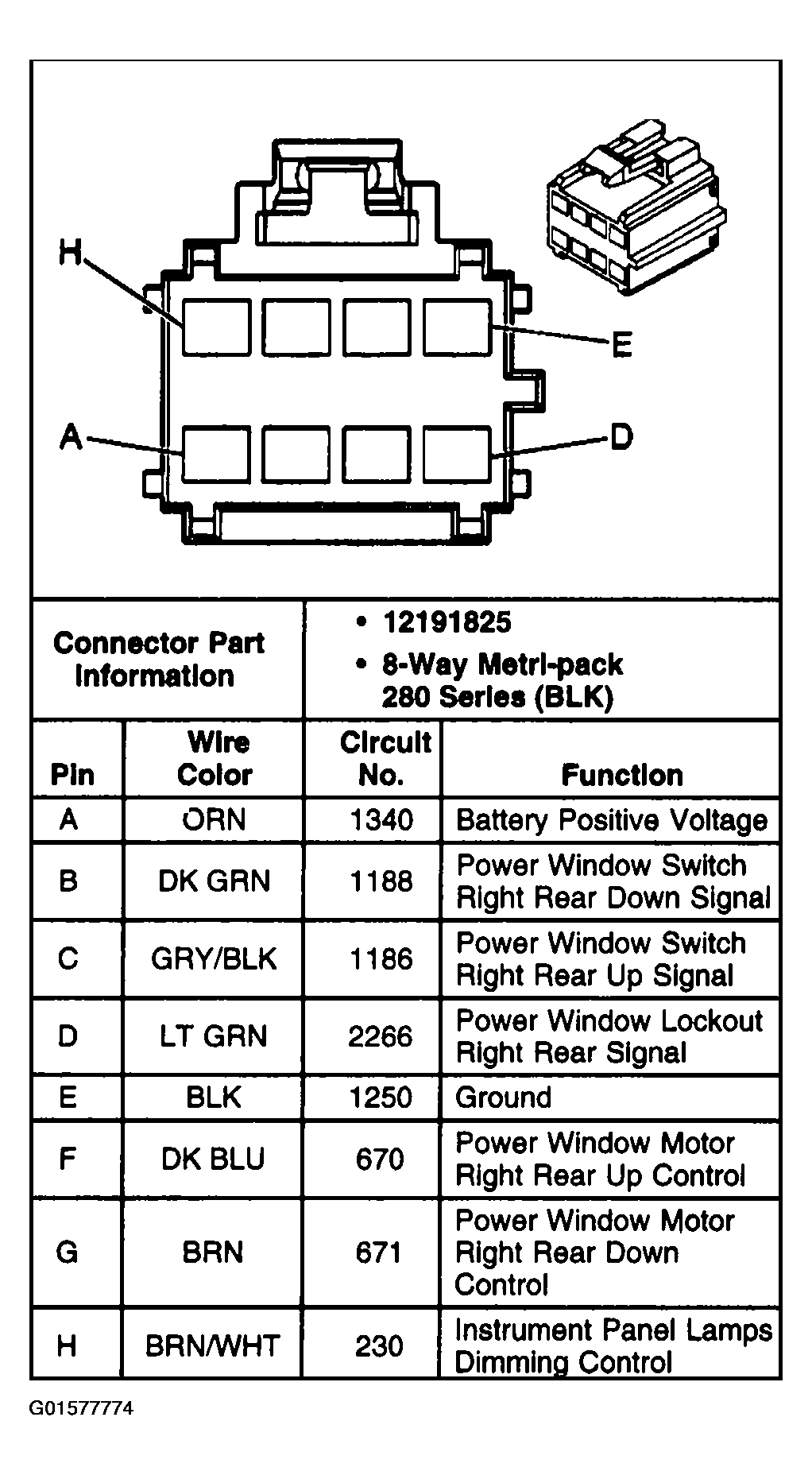

Fig 24: Window Switch - RR (Crew Cab Only)

G01577774

Courtesy of GENERAL MOTORS CORP.

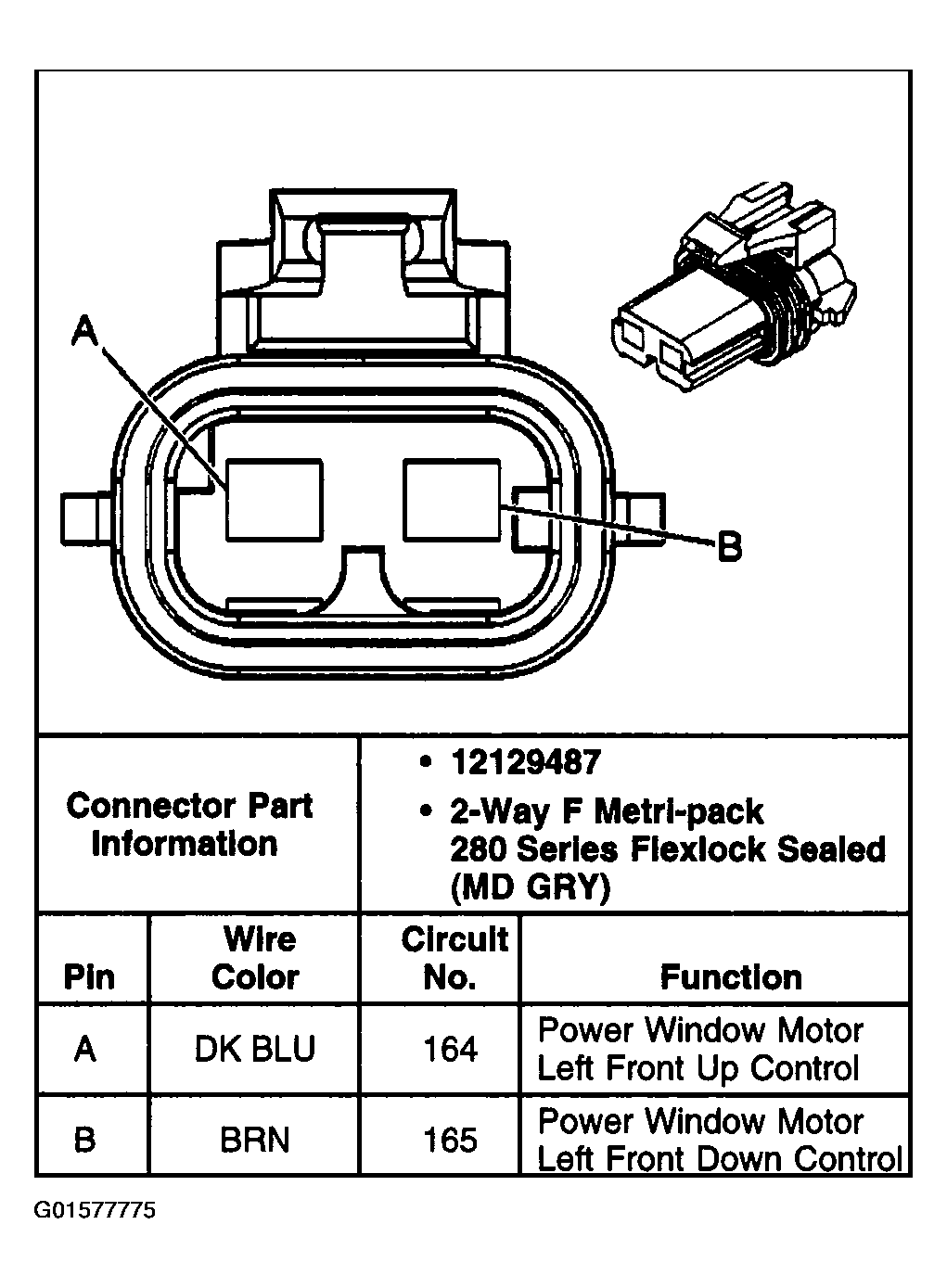

Fig 25: Window Motor - Driver

G01577775

Courtesy of GENERAL MOTORS CORP.

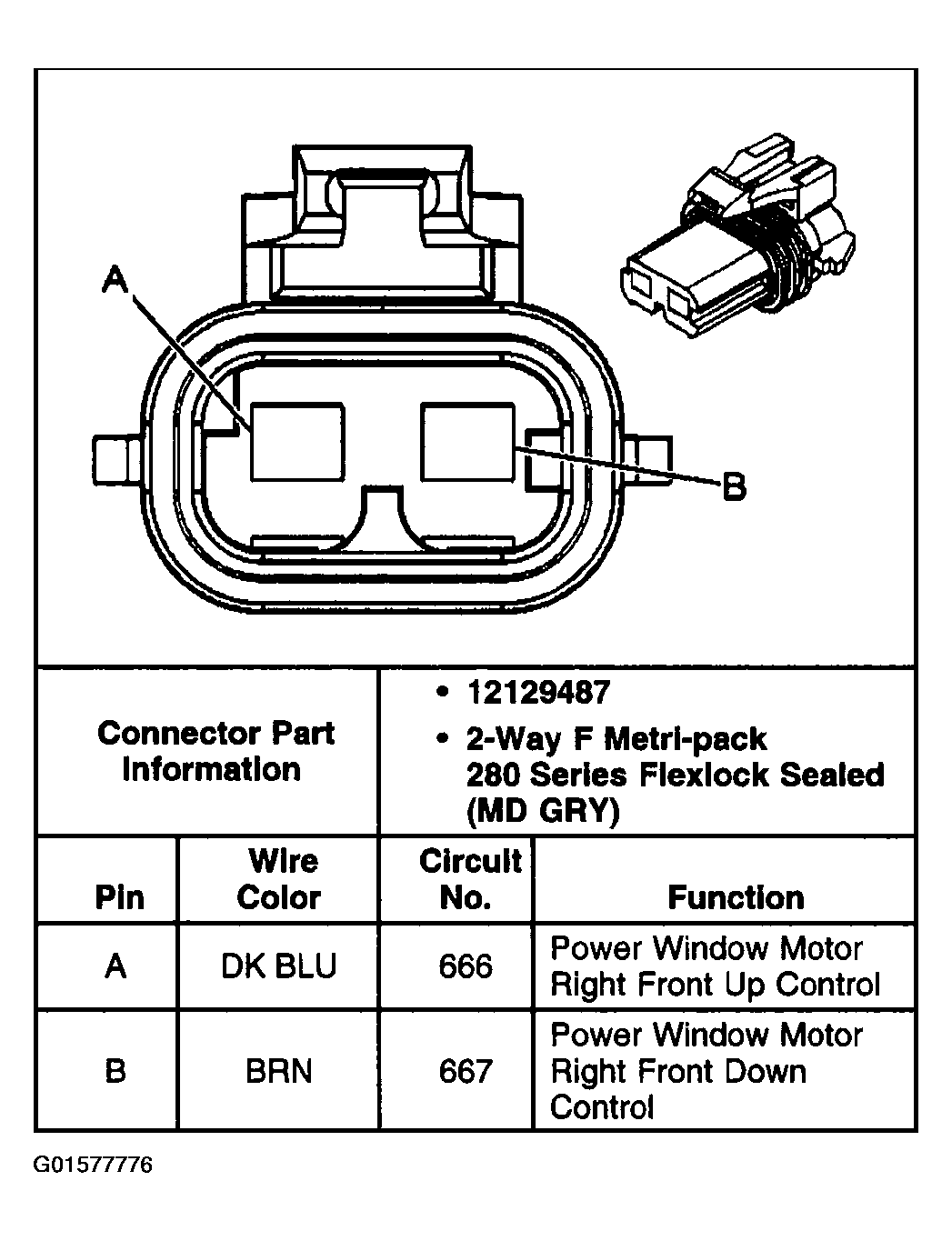

Fig 26: Window Motor - Front Passenger

G01577776

Courtesy of GENERAL MOTORS CORP.

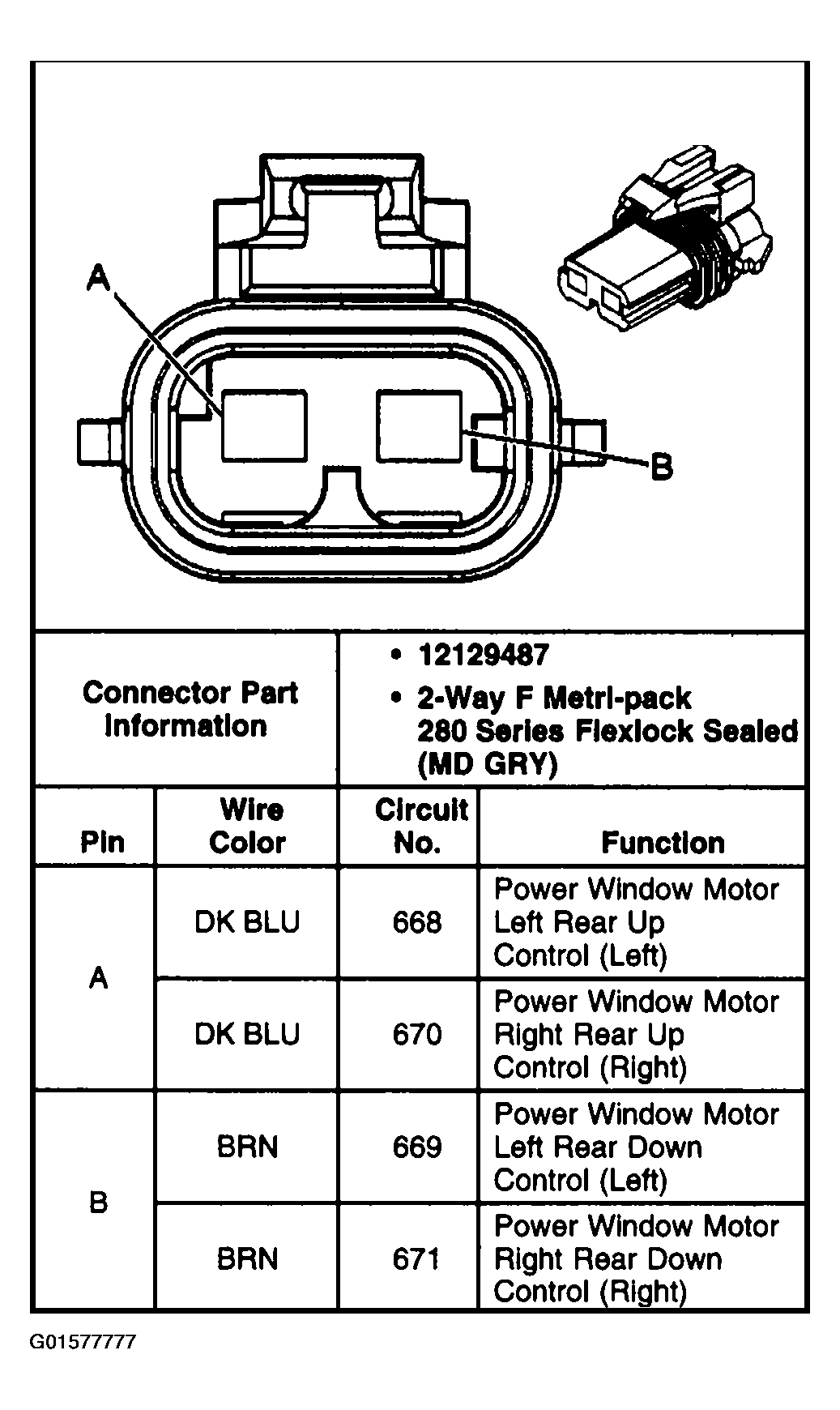

Fig 27: Window Motor - LR/RR (Crew Cab Only)

G01577777

Courtesy of GENERAL MOTORS CORP.
