Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
In order to avoid personal injury or vehicle damages when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

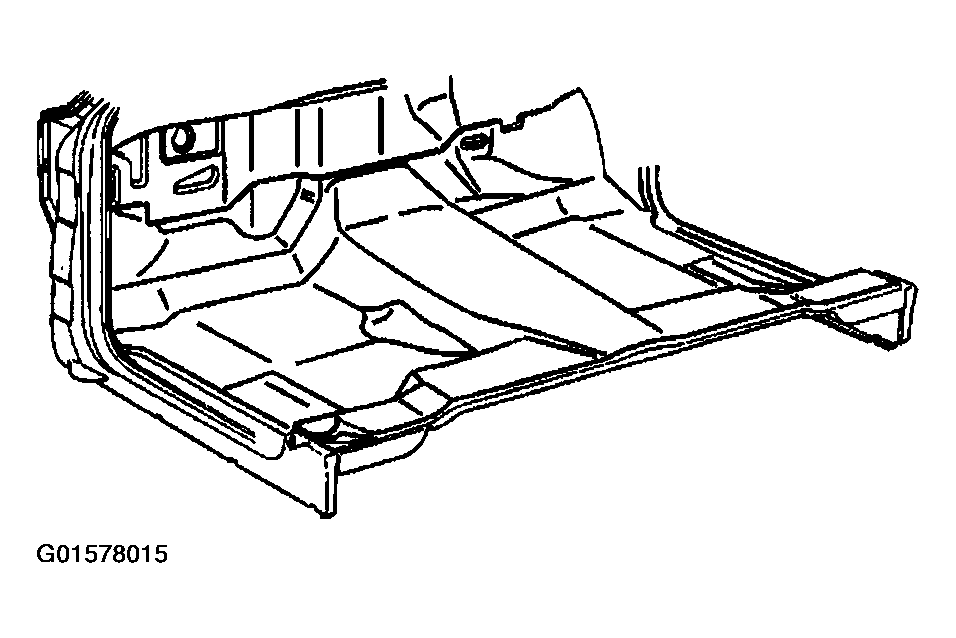

- Install the carpet to the vehicle.
- Install the lower bolt to the I/P support post. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
- Install the rear quarter trim panel. Refer to Trim Panel Replacement-Rear Quarter (Regular Cab) or Trim Panel Replacement-Rear Quarter (Extended Cab) or Trim Panel Replacement-Rear Quarter (Crew Cab) .
- Install the jack assembly.
- Install the rear seat if removed. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .
- Install the shift lever and the boot, if equipped. Refer to one of the following procedures in Manual Transmission:
- For NV 3500, refer to CONTROL LEVER AND/OR BOOT REPLACEMENT .
- For NV 4500, refer to CONTROL LEVER AND/OR BOOT REPLACEMENT .
- For ZF S6 650, refer to CONTROL LEVER AND/OR BOOT REPLACEMENT .
- Install the center seat, if equipped. Refer to SEAT REPLACEMENT-CENTER .
- Install the floor storage console. Refer to CONSOLE REPLACEMENT (EXCEPT PRO) or CONSOLE REPLACEMENT (PRO) .
- Install the front seats. Refer to SEAT REPLACEMENT-FRONT BUCKET .
- Install the door sill plates. Refer to Door Sill Plate Replacement-Front or Door Sill Plate Replacement-Rear .
- Install the hinge pillar trim panel. Refer to Trim Panel Replacement-Hinge Pillar .
