Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

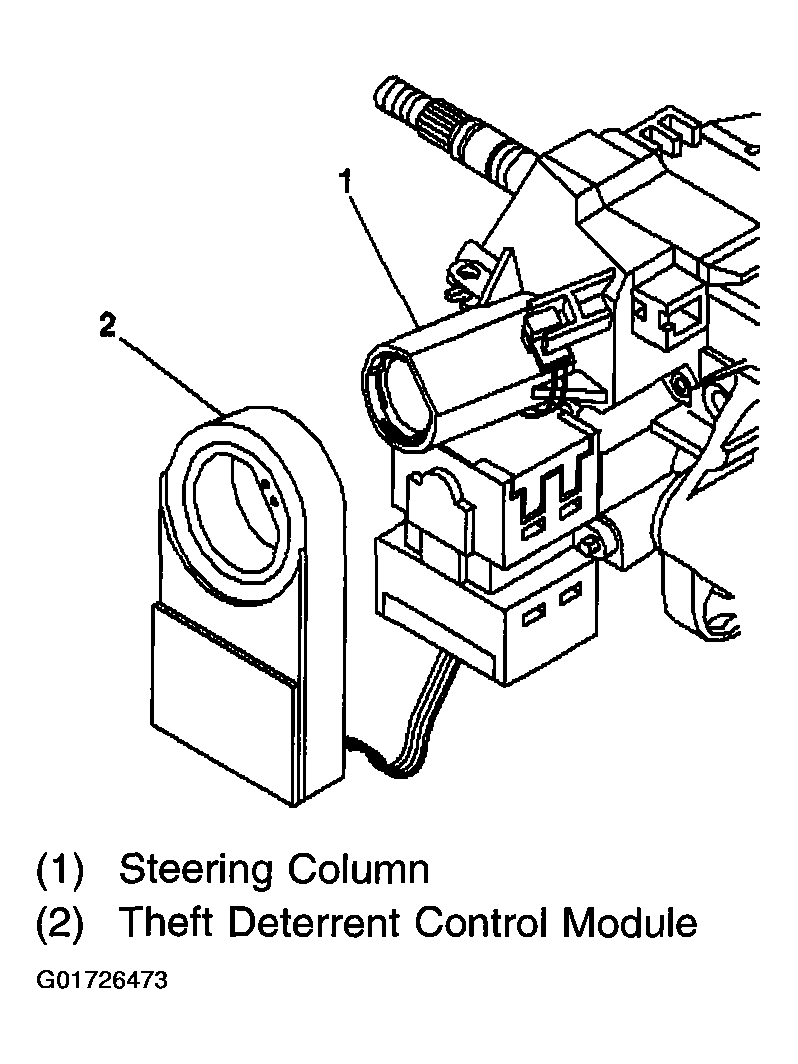

Fig 1: Theft Deterrent Control Module Component Views
G01726473Courtesy of GENERAL MOTORS CORP.

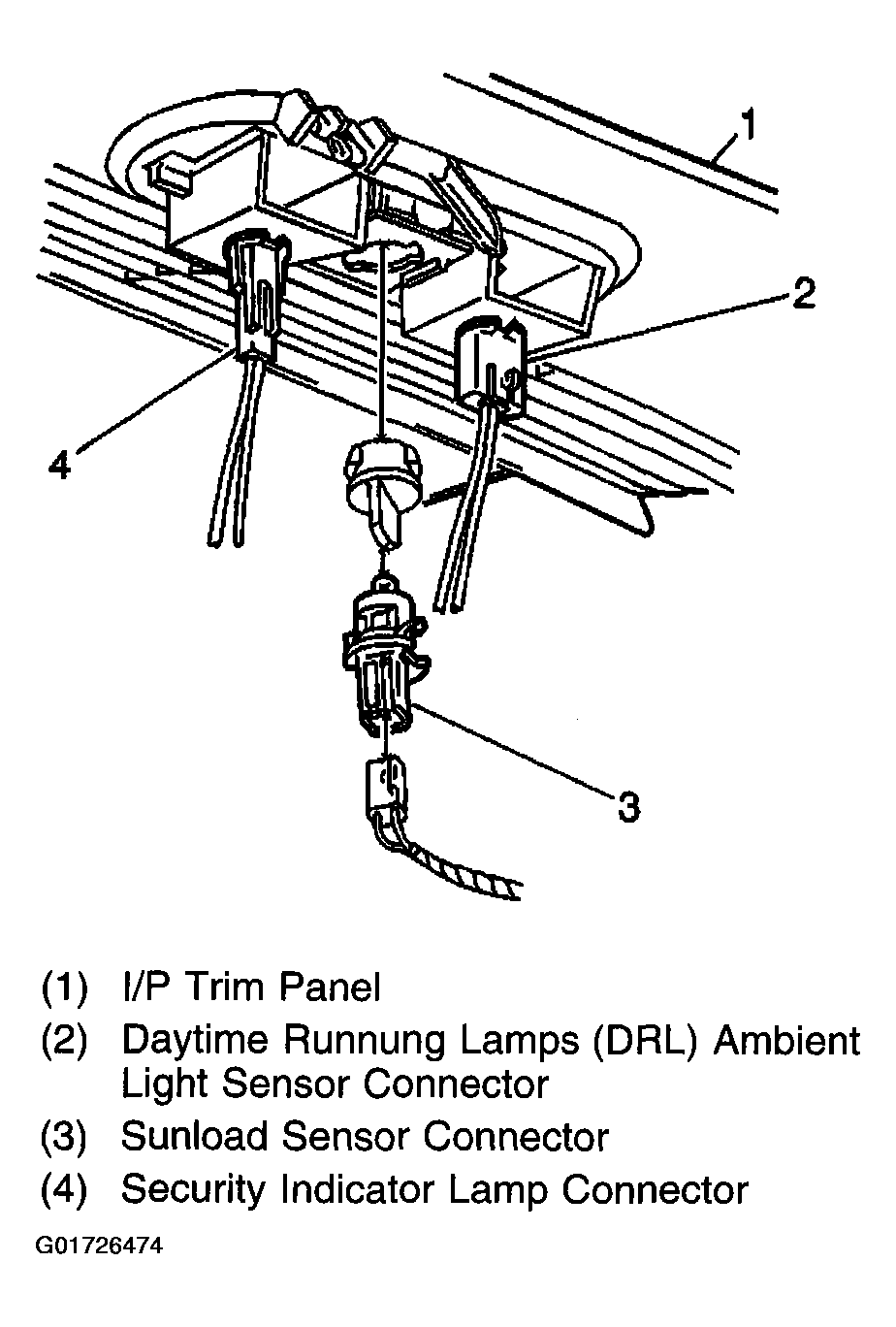

Fig 2: I/P Trim Panel Component Views
G01726474Courtesy of GENERAL MOTORS CORP.
