Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp (3) to the instrument panel upper trim:
    1. 2.1. Insert the lamp.
    2. 2.2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK) and TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) in Instrument Panel, Gages, and Console.

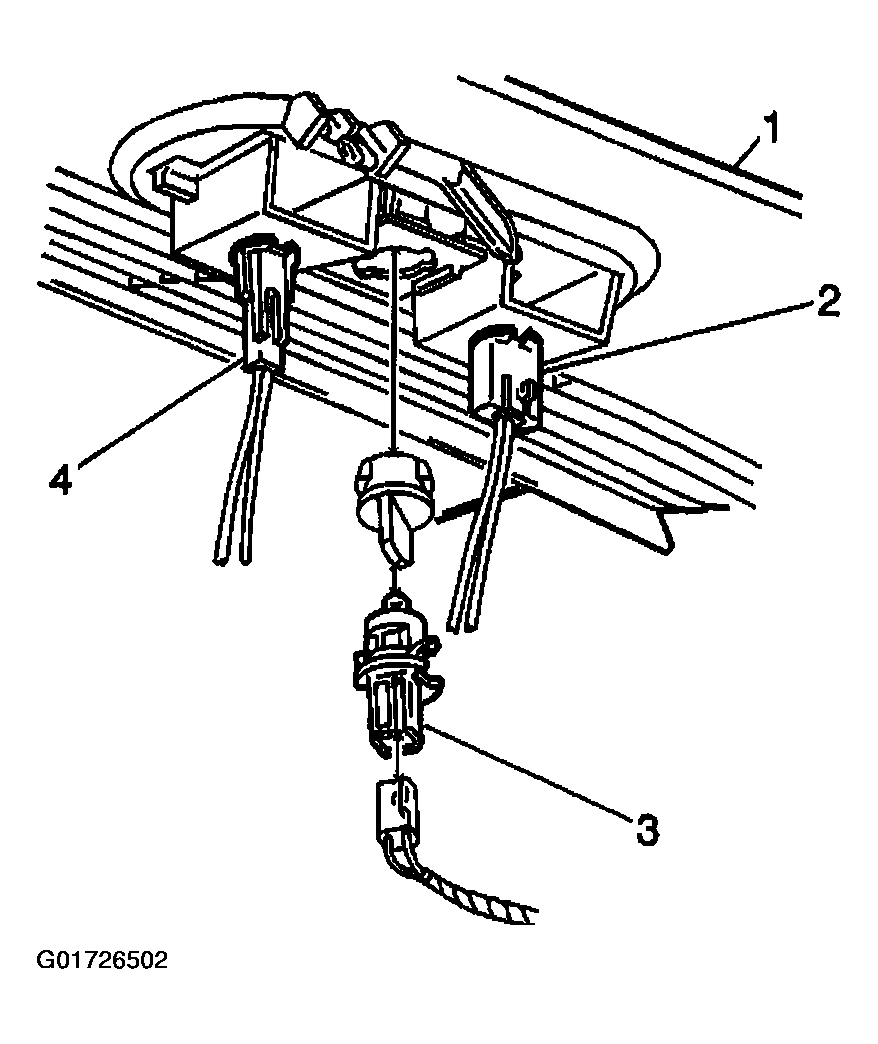

    Fig 1: View Of Security Indicator Lamp
    G01726502Courtesy of GENERAL MOTORS CORP.
