Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the theft deterrent module (2), onto the lock cylinder housing (1).
  2. Install the theft deterrent wiring harness to the steering column harness.
  3. Connect the electrical connector.
  4. Replace the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON in Steering Wheel And Column.
  5. Enable the SIR system. Refer to DISABLING SYSTEM for Aztek or DISABLING SYSTEM for Rendezvous.
  6. Program the new theft control module. Refer to Programming Theft Deterrent System Components

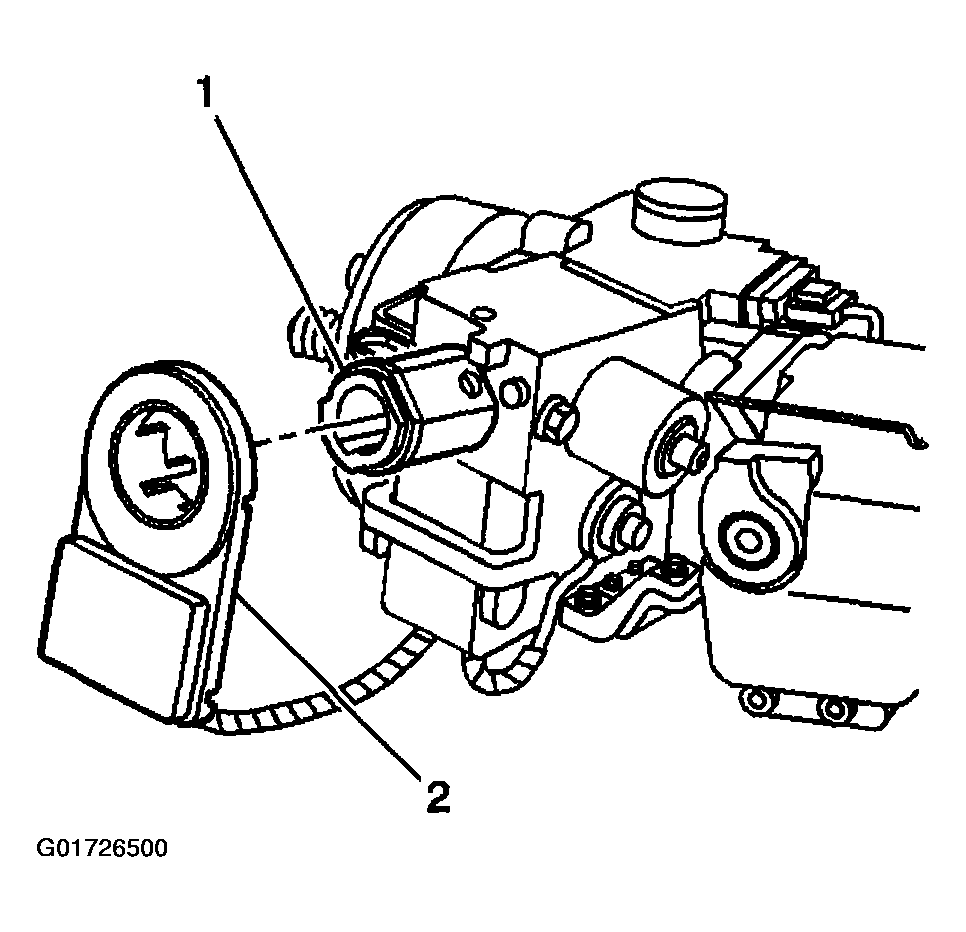

    Fig 1: View Of Theft Deterrent Module And Lock Cylinder Housing
    G01726500Courtesy of GENERAL MOTORS CORP.
