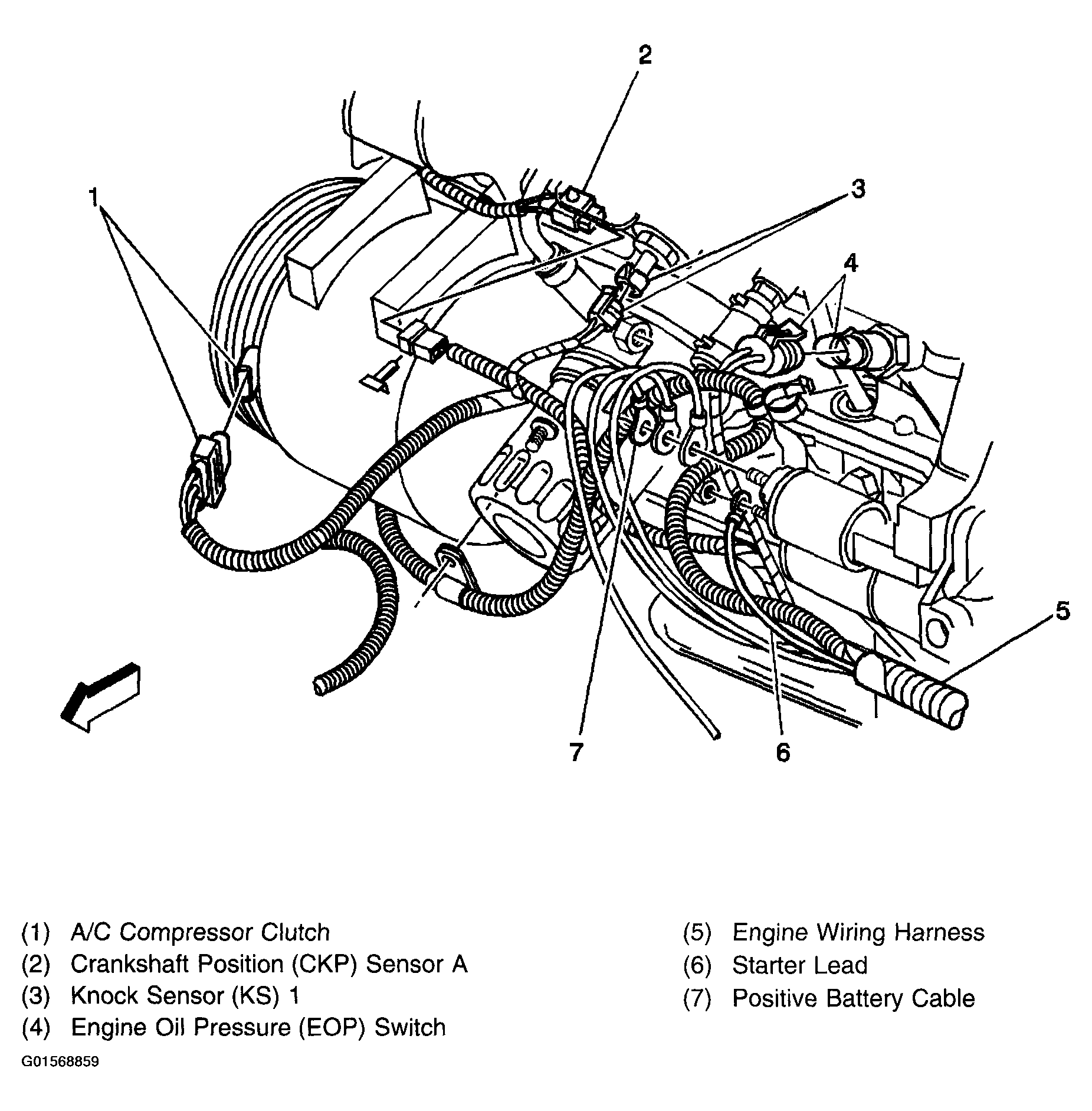

Fig 1: Lower Left Side Of Engine Component View (LG8)
Courtesy of GENERAL MOTORS CORP.

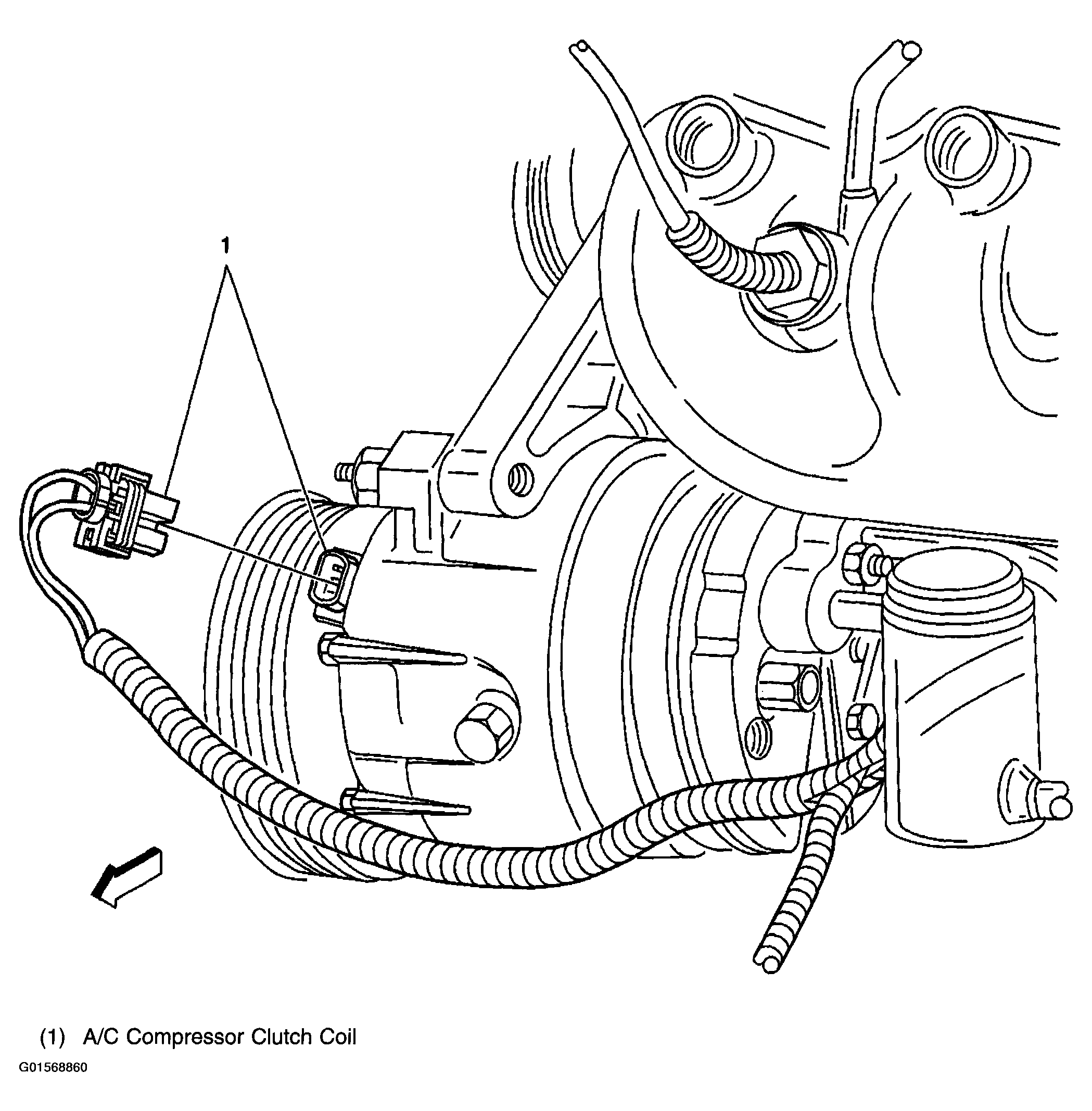

Fig 2: Lower Left Side Of Engine Component View (L36/L67)
Courtesy of GENERAL MOTORS CORP.

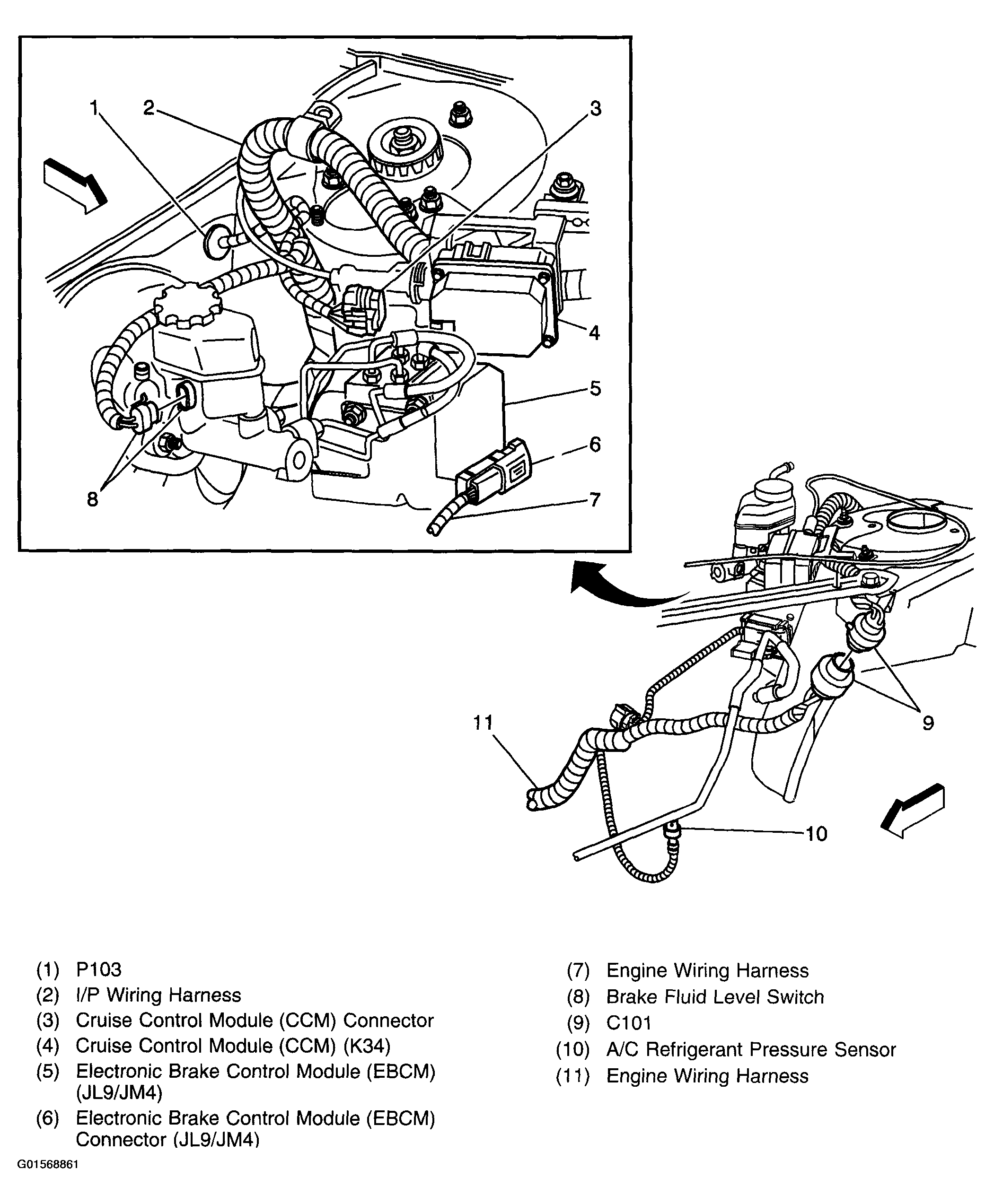

Fig 3: LR Of Engine Compartment Component View
Courtesy of GENERAL MOTORS CORP.

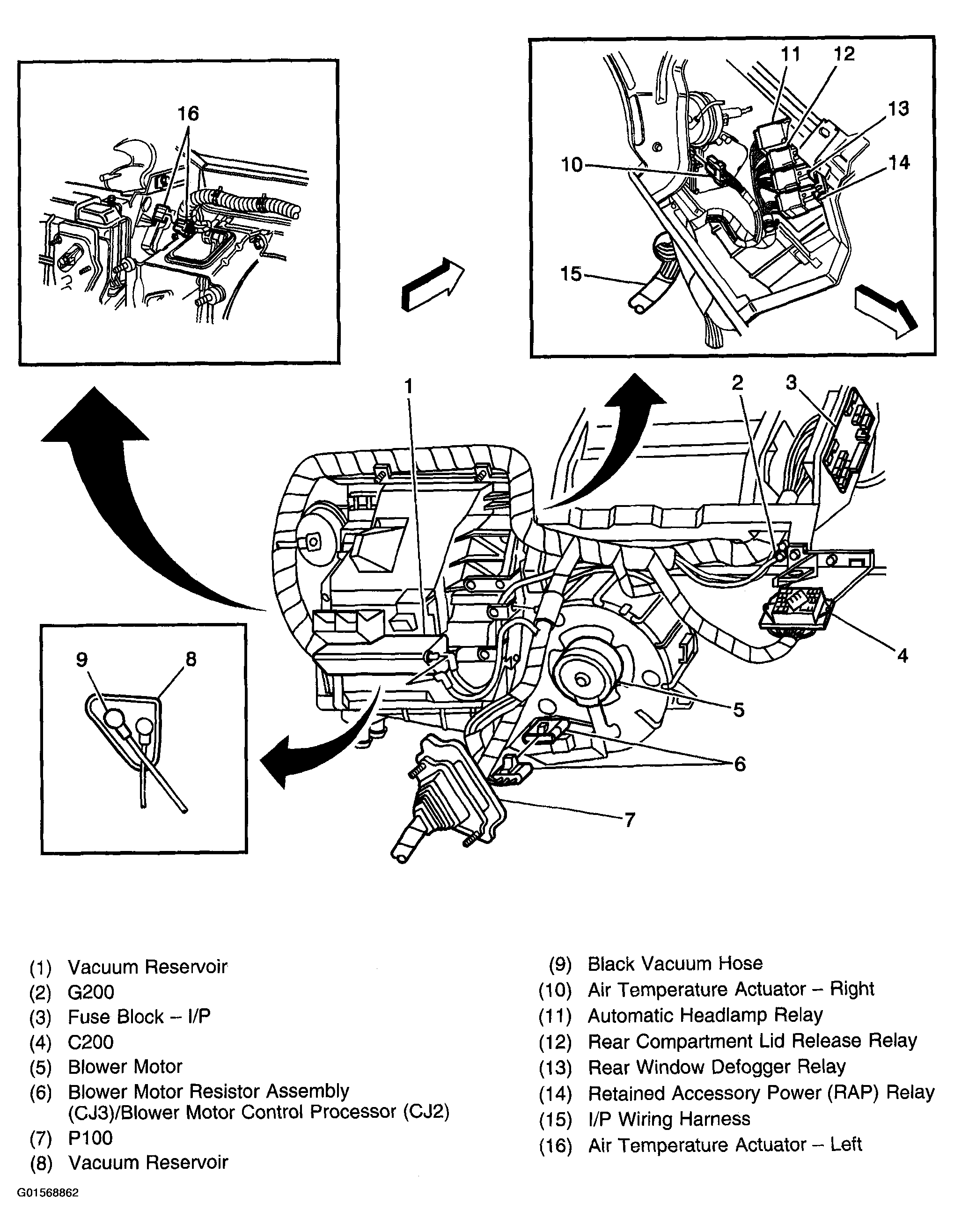

Fig 4: Behind Right Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.

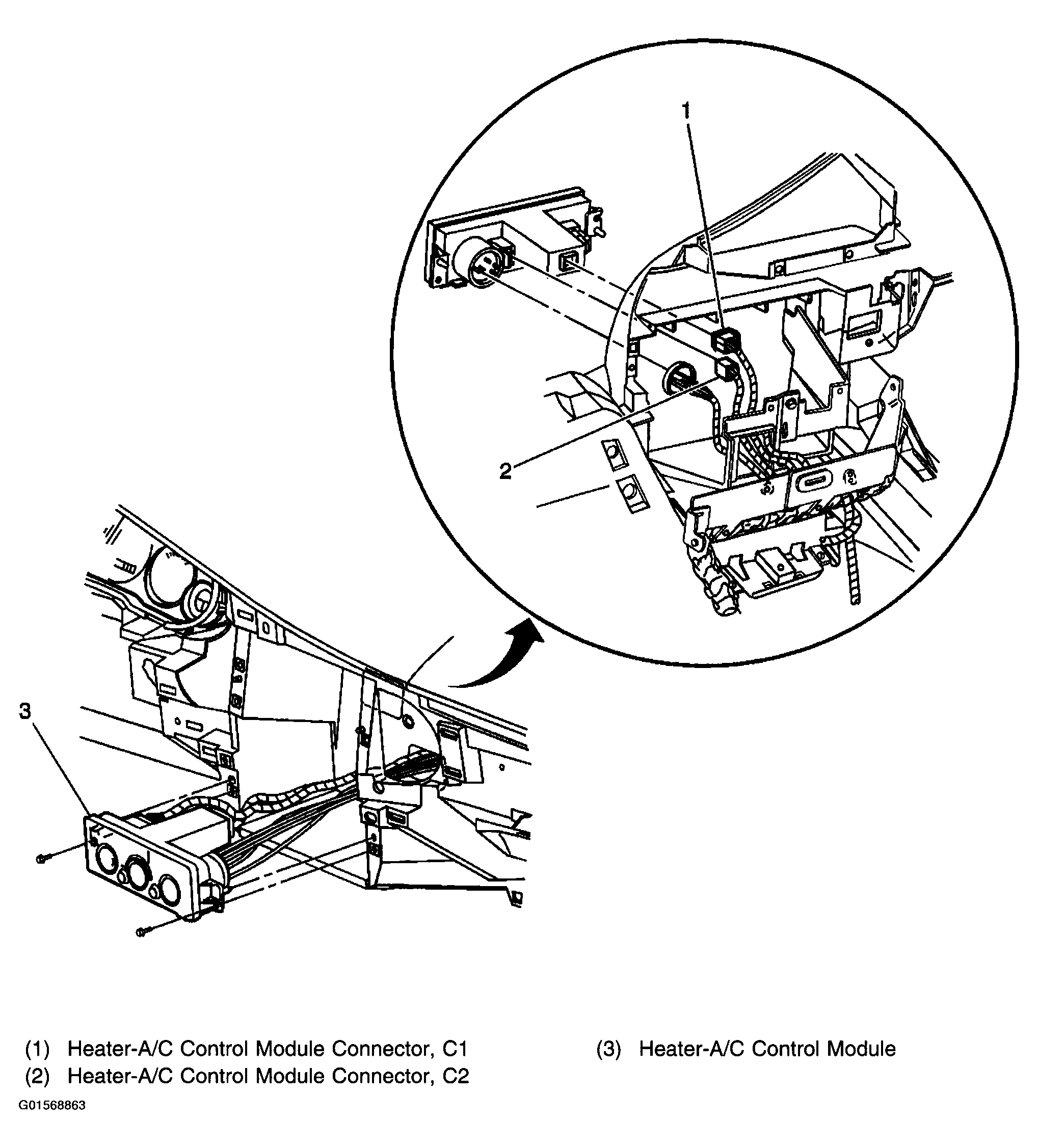

Fig 5: Lower Center Of Instrument Panel Component View (CJ3)
