Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) in Instrument Panel, Gages, and Console.
  2. Remove the retaining screws from the HVAC control assembly.
  3. Pull the HVAC control assembly out from the I/P.

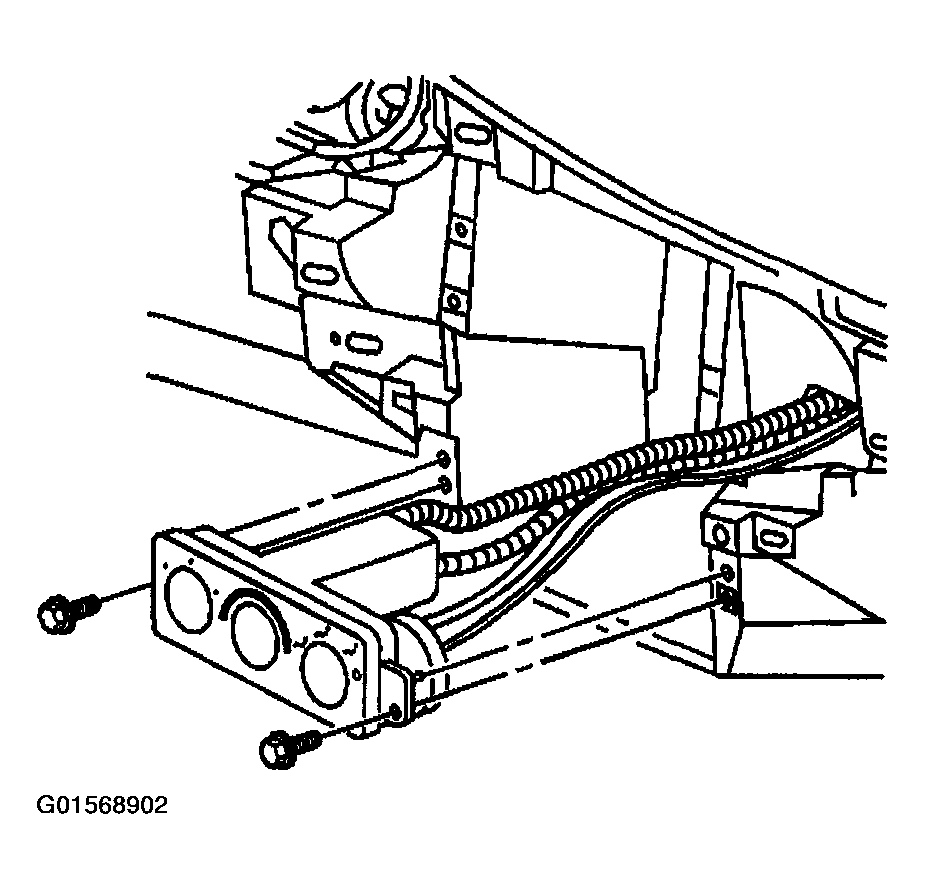

    Fig 1: Removing HVAC Control Assembly From I/P
    G01568902Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors and the vacuum harness from the HVAC control assembly.
  5. Remove the HVAC control assembly.

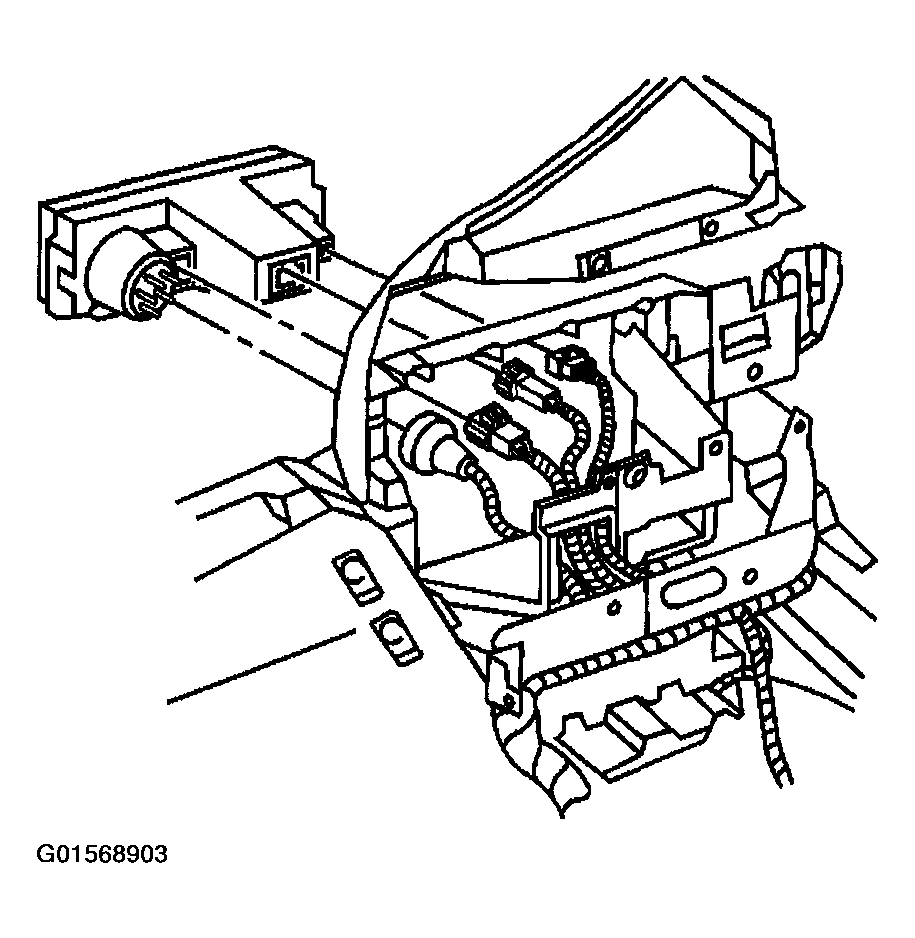

    Fig 2: Disconnecting Electrical Connectors And Vacuum Harness From HVAC Control Assembly
    G01568903Courtesy of GENERAL MOTORS CORP.
