Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the I/P compartment lamp switch.

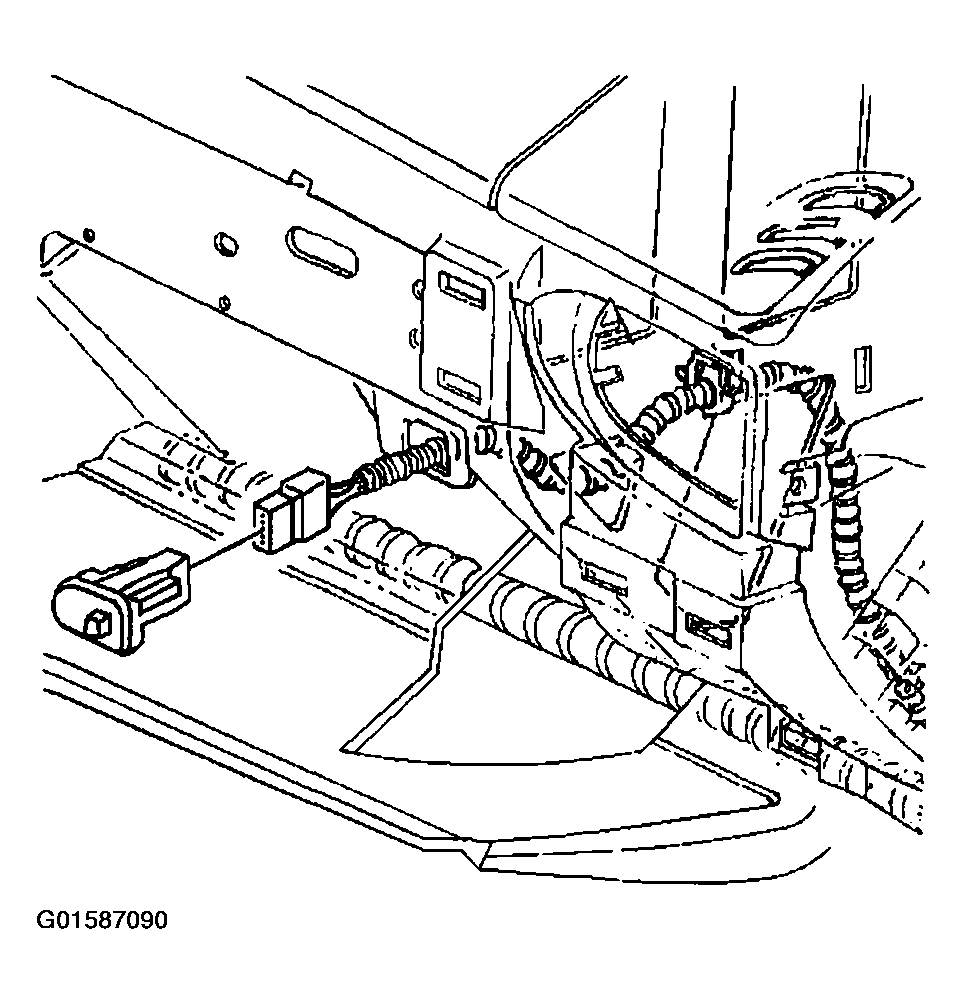

Fig 1: Connecting I/P Compartment Lamp Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Position the I/P compartment lamp switch to the opening. Press the switch into the opening.
Close the I/P compartment door.
