Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine splash shield to the lower flange of the engine compartment side rail.

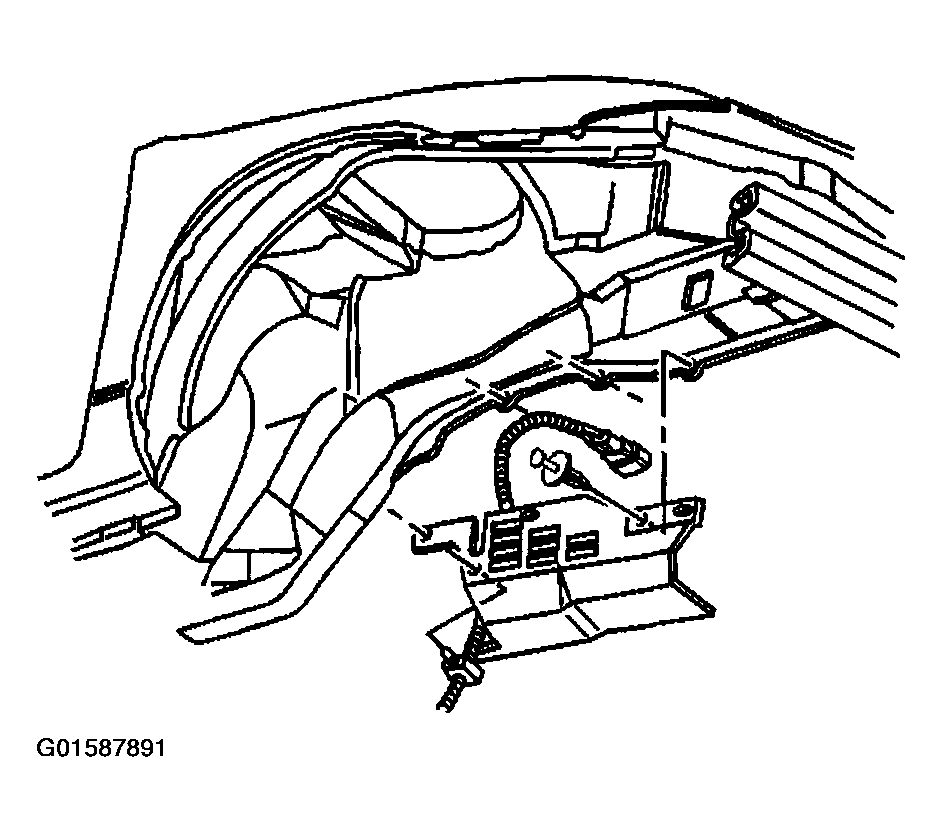

    2. Fig 1: Installing Engine Splash Shield To Lower Flange Of Engine Compartment Side Rail
    G01587891Courtesy of GENERAL MOTORS CORP.
  2. Route the ABS lead through the slot in the engine splash shield.
  3. Align the holes in the engine splash shield to holes in the outboard side engine compartment side rail.

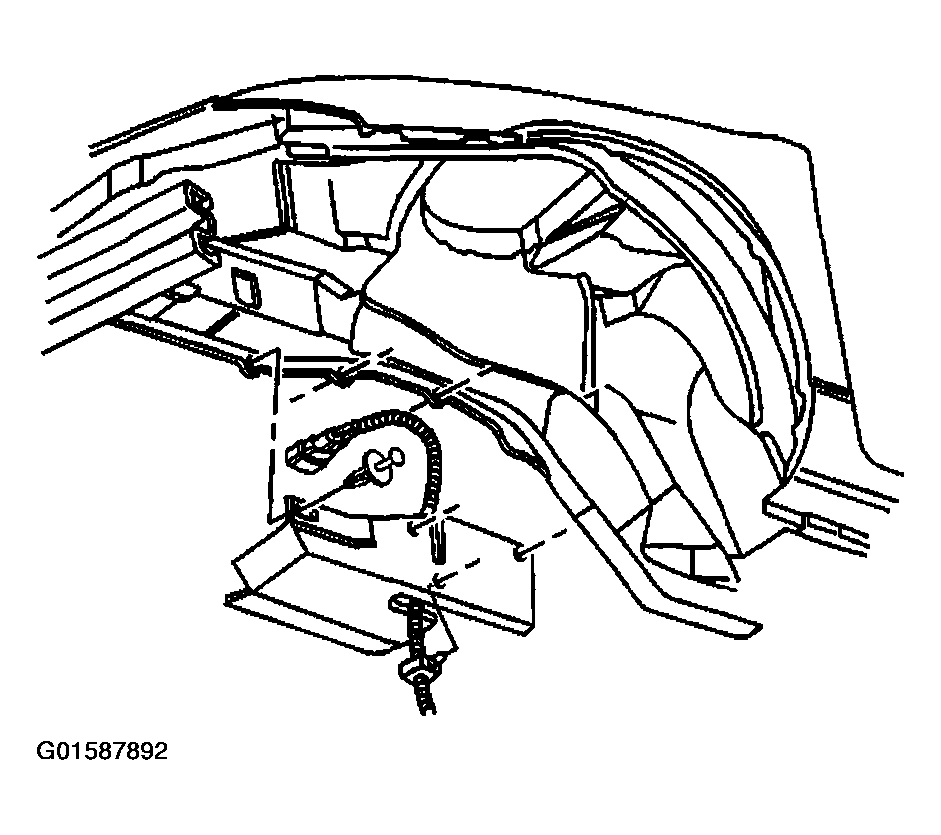

    4. Fig 2: Installing Push-In Retainers To Engine Splash Shield
    G01587892Courtesy of GENERAL MOTORS CORP.
  4. Install the push-in retainers to the engine splash shield.
