WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: I/P Switch Assembly C2 Connector End Views
Courtesy of GENERAL MOTORS CORP.

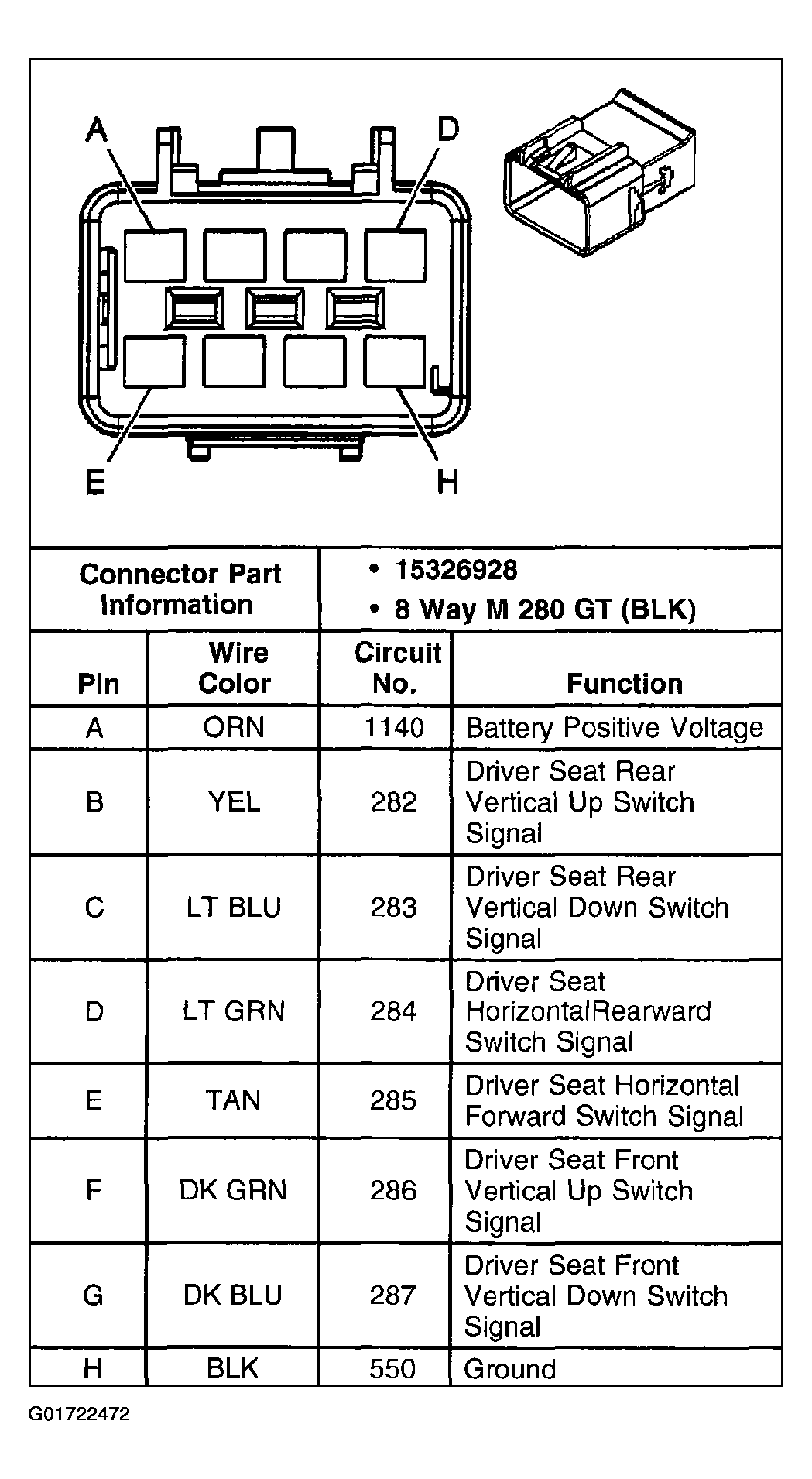

Fig 2: Memory Seat and Mirror Module C1 (A43) Connector End Views
Courtesy of GENERAL MOTORS CORP.

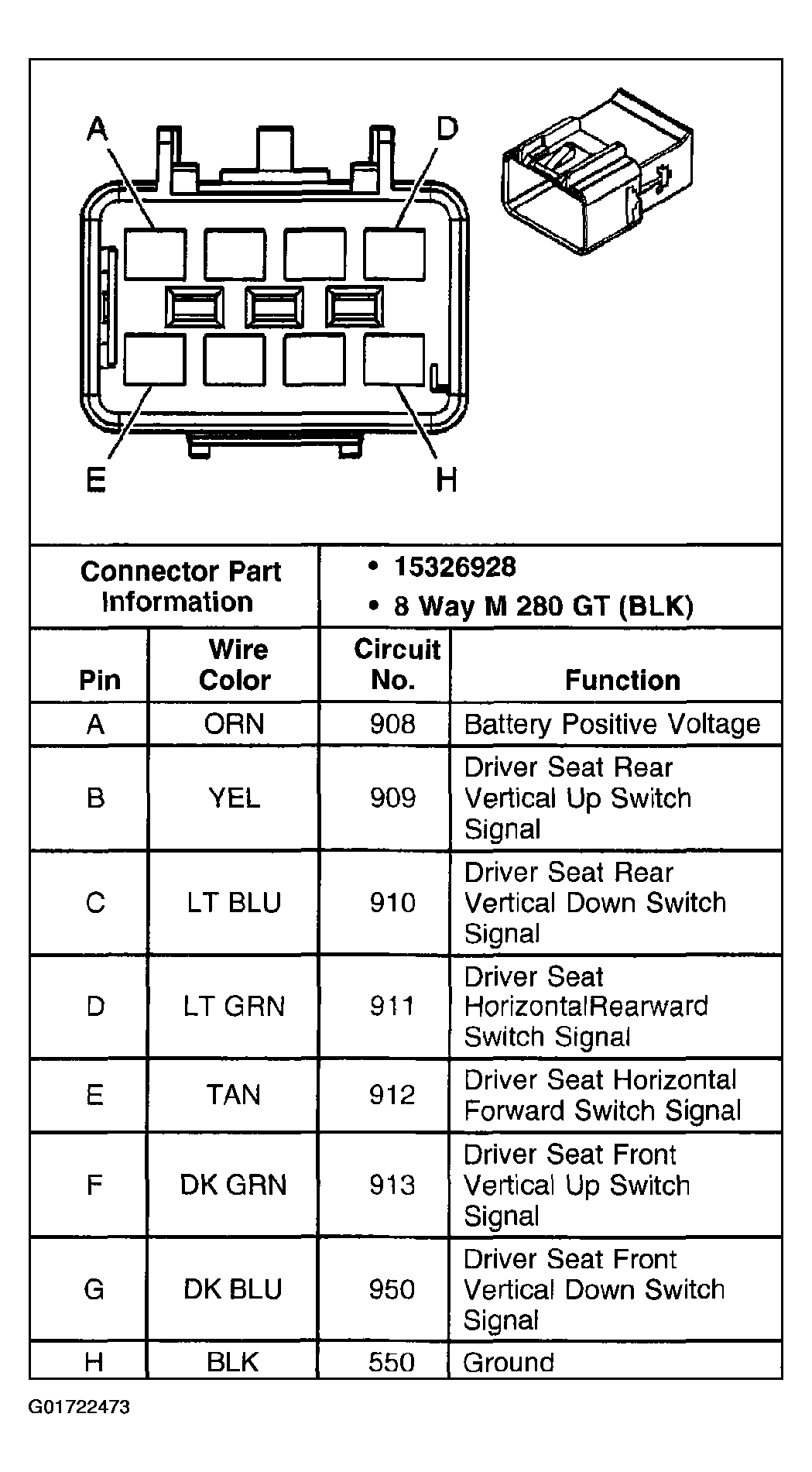

Fig 3: Memory Seat and Mirror Module C2 (A43) Connector End Views
Courtesy of GENERAL MOTORS CORP.

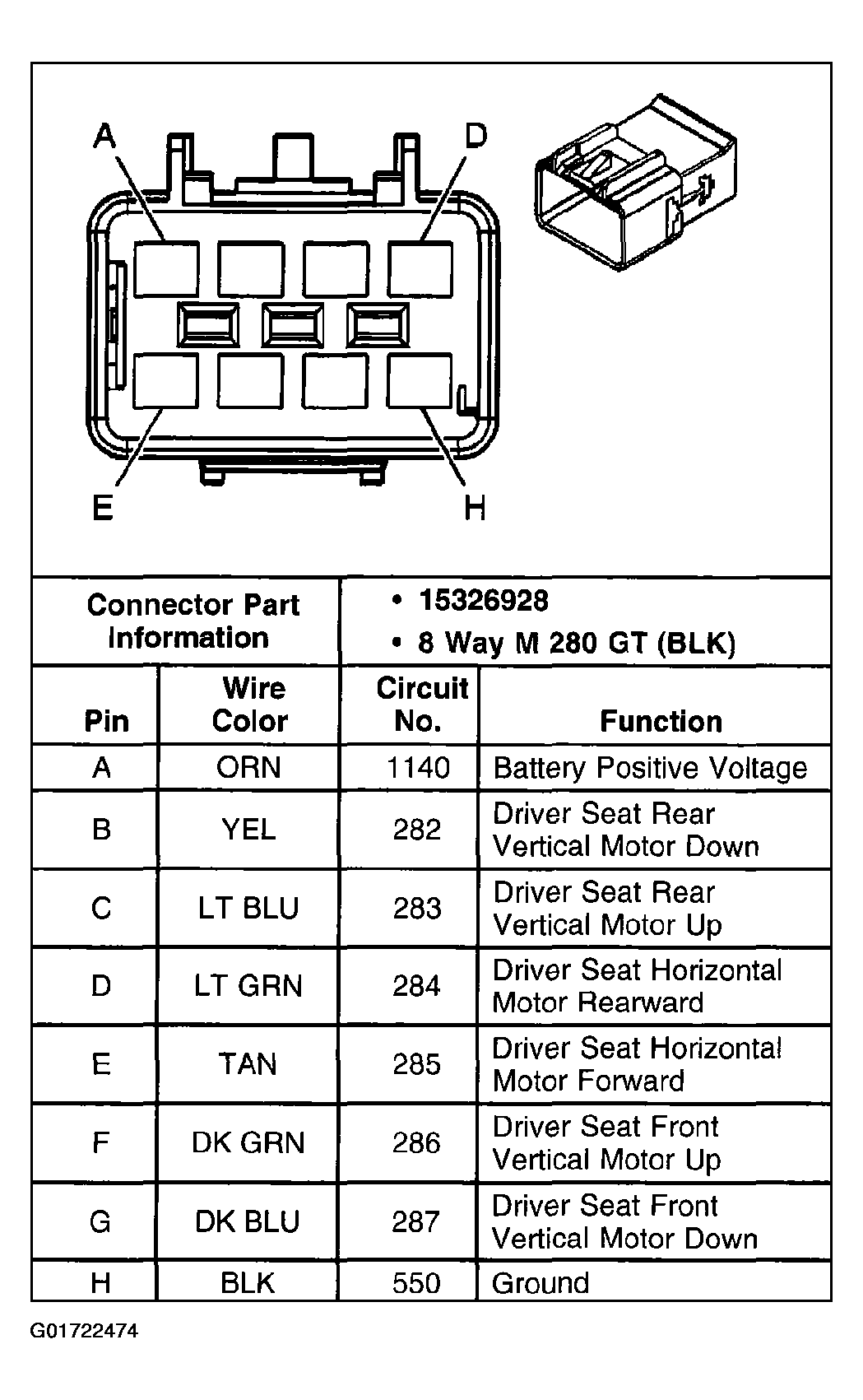

Fig 4: Memory Seat and Mirror Module C3 (A43) Connector End Views
Courtesy of GENERAL MOTORS CORP.
Fig 5: Memory Seat and Mirror Module C4 (A43) Connector End Views
Courtesy of GENERAL MOTORS CORP.

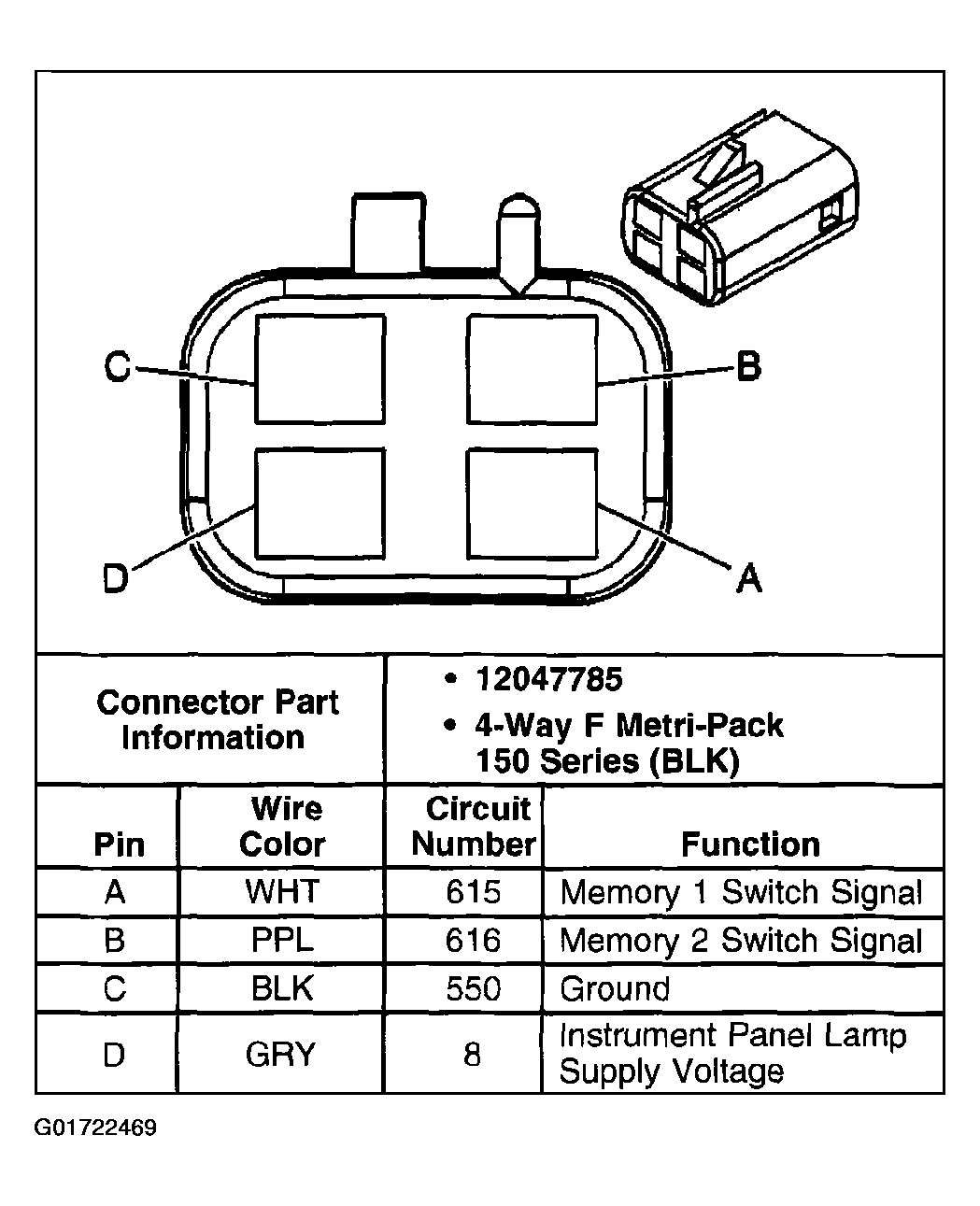

Fig 6: Memory Seat and Mirror Switch (A43) Connector End Views
Courtesy of GENERAL MOTORS CORP.

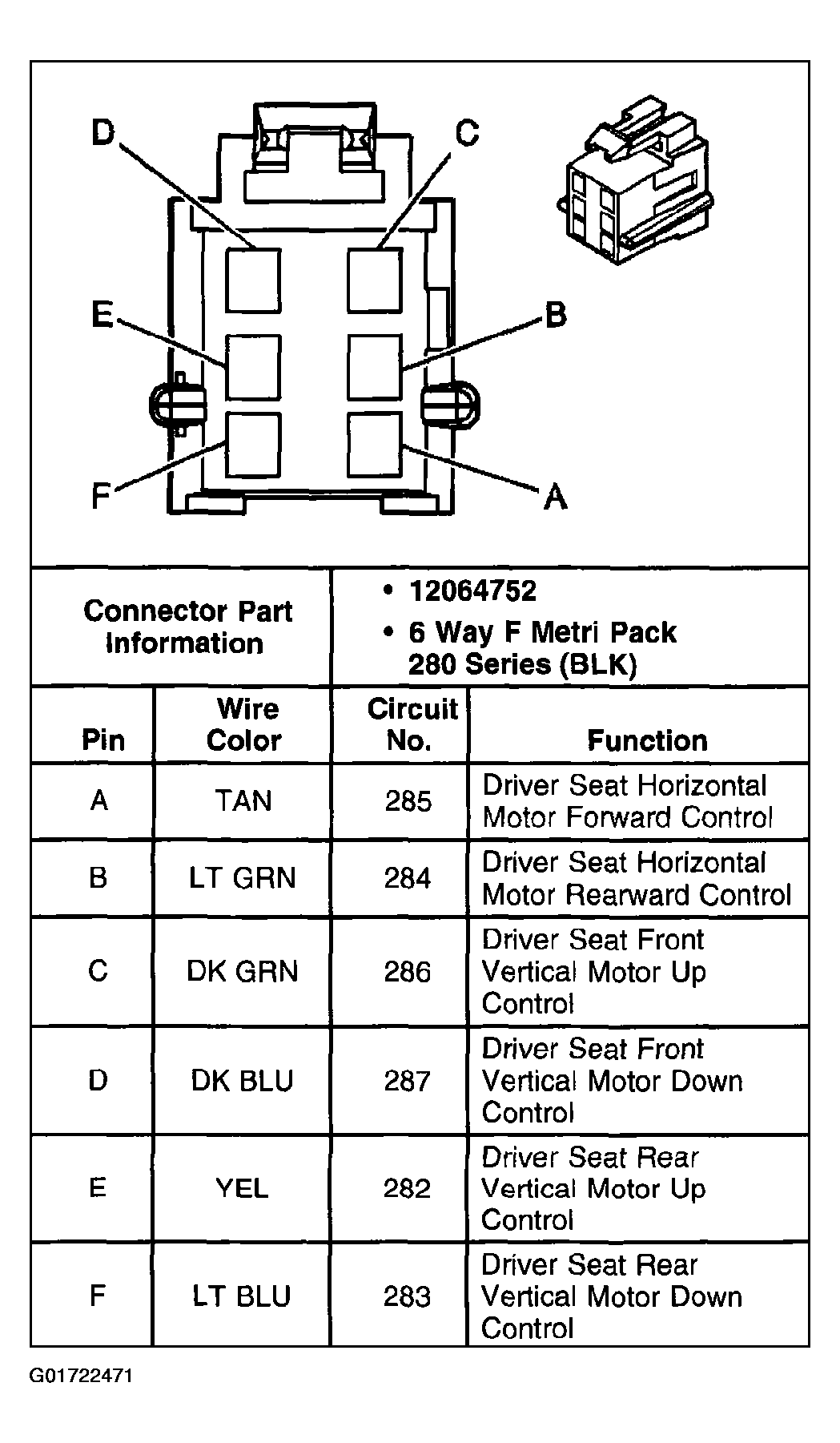

Fig 7: Seat Adjuster Motor Assembly - Driver Connector End Views
Courtesy of GENERAL MOTORS CORP.
Fig 8: Seat Adjuster Motor Assembly - Front Passenger Connector End Views
