Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

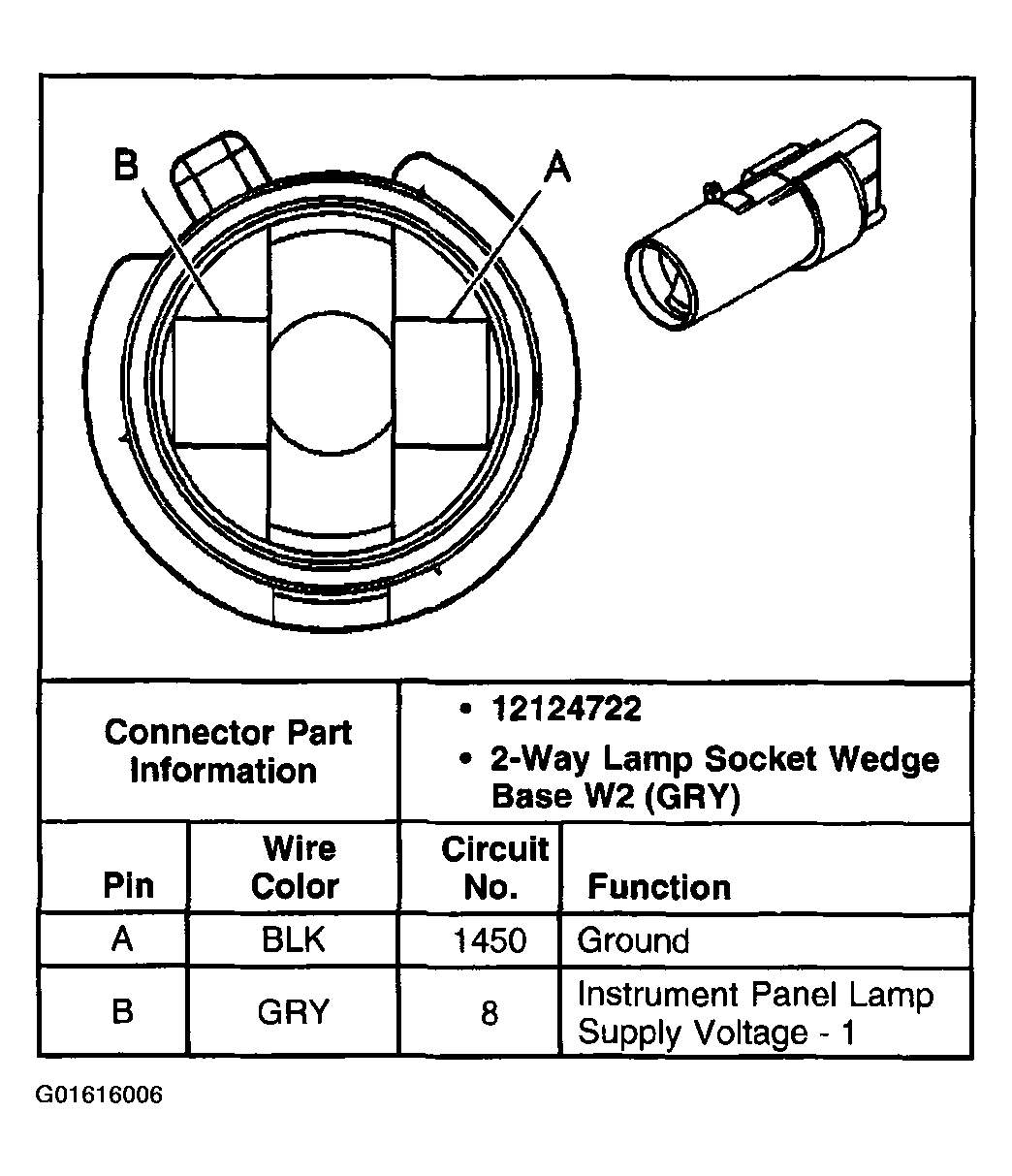

Fig 1: Ashtray Lamp

G01616006

Courtesy of GENERAL MOTORS CORP.

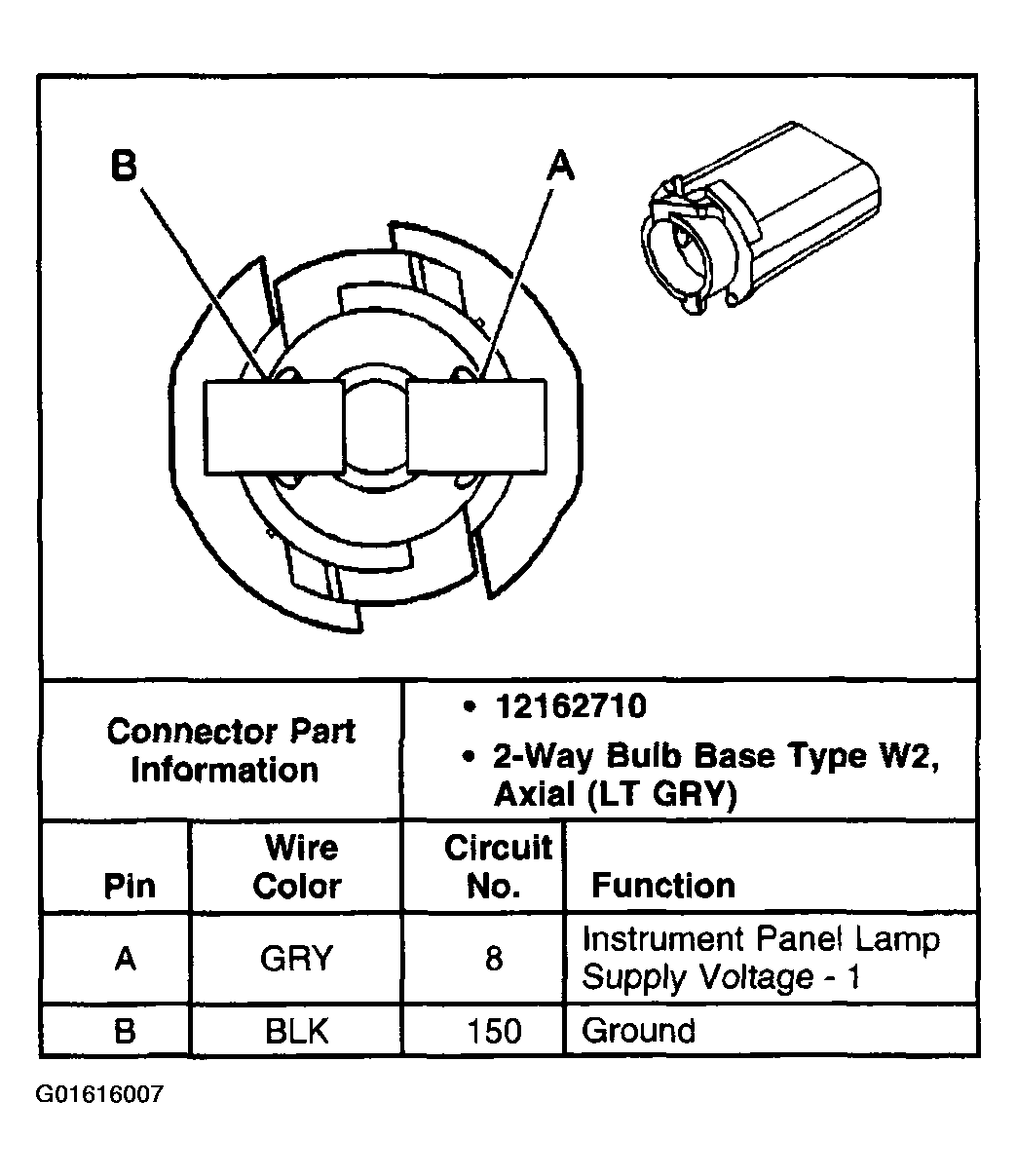

Fig 2: Automatic Transaxle Shift Lever Position Indicator

G01616007

Courtesy of GENERAL MOTORS CORP.

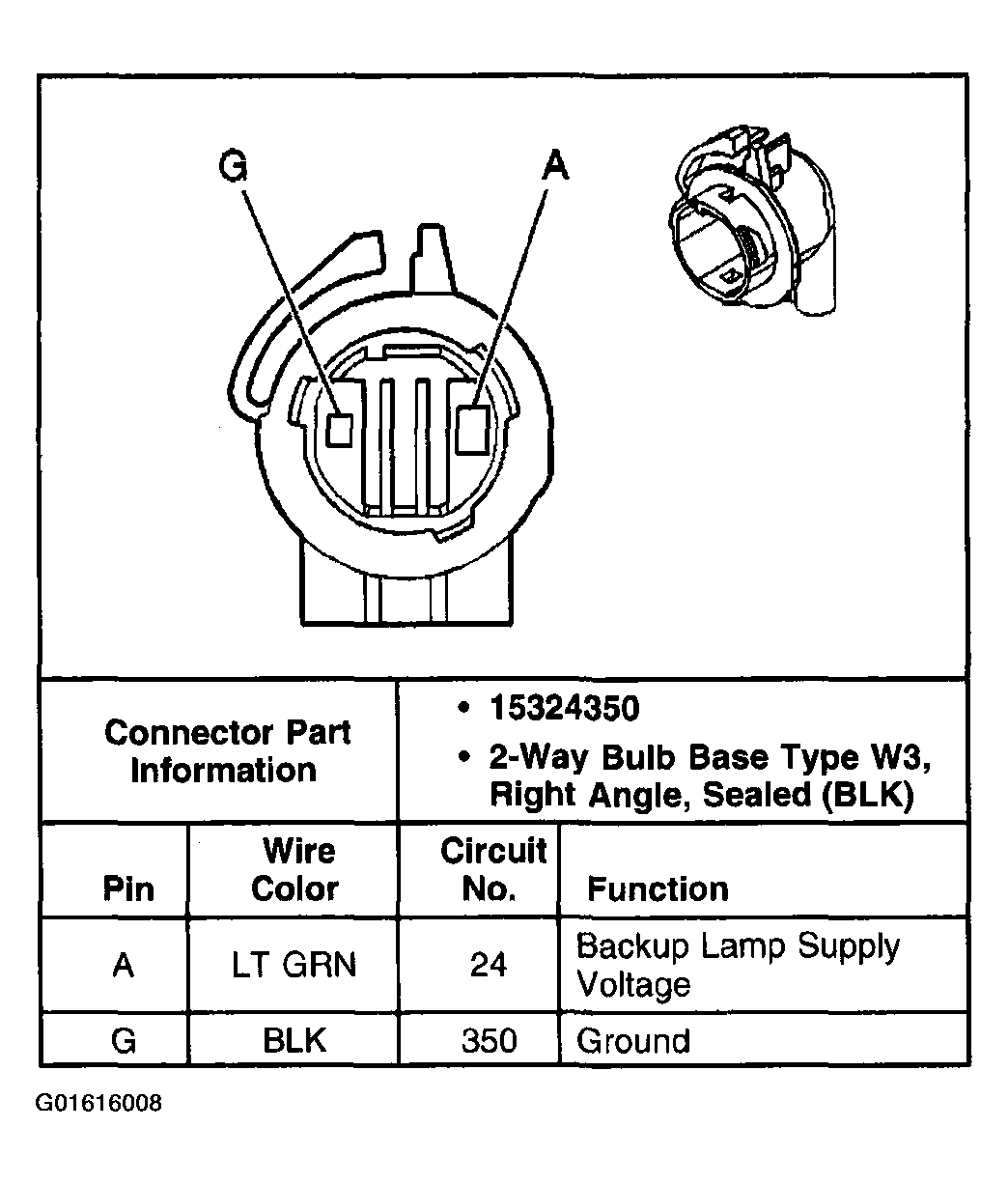

Fig 3: Backup Lamp - Left

G01616008

Courtesy of GENERAL MOTORS CORP.

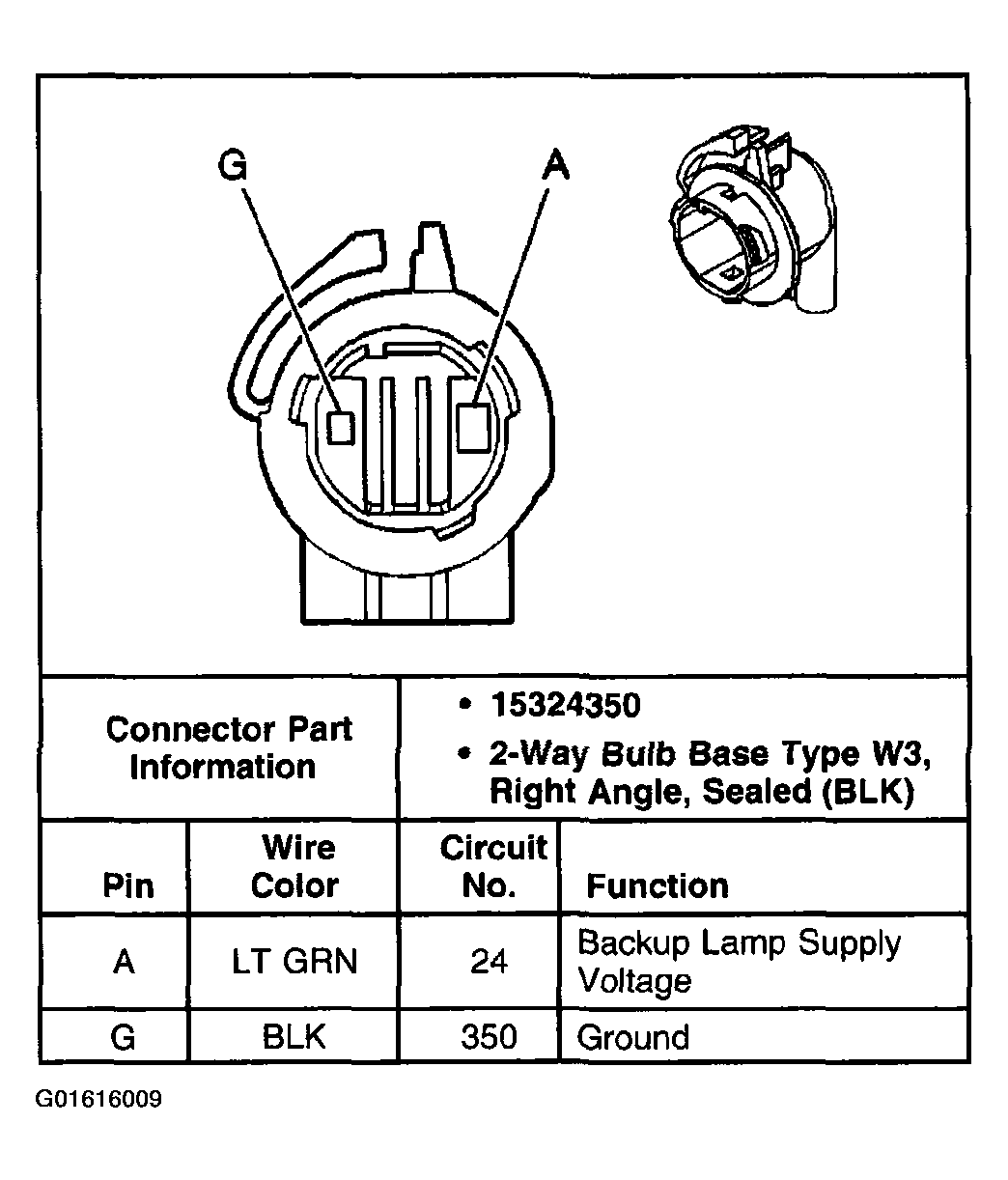

Fig 4: Backup Lamp - Right

G01616009

Courtesy of GENERAL MOTORS CORP.

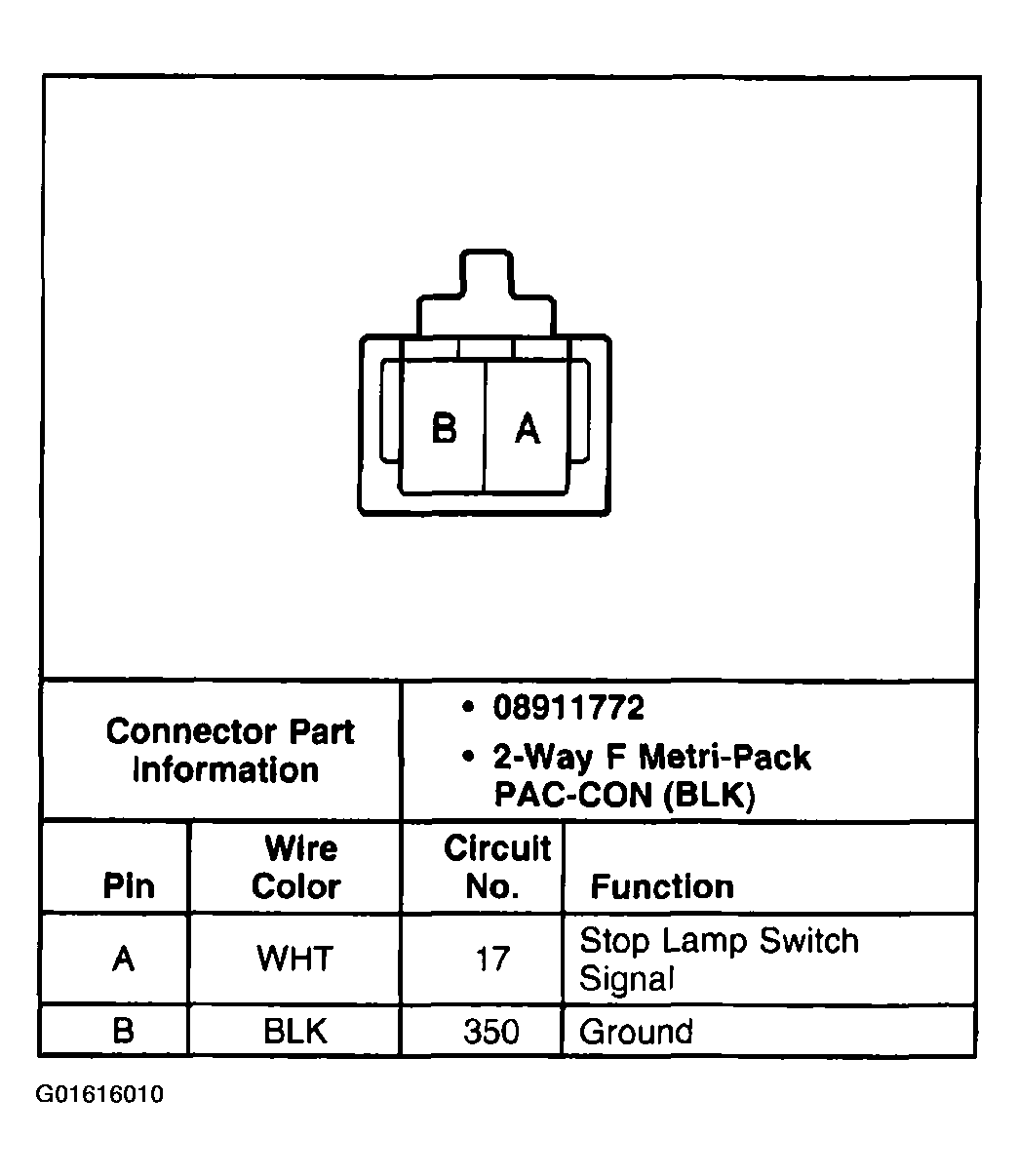

Fig 5: Center High Mounted Stoplamp (CHMSL)

G01616010

Courtesy of GENERAL MOTORS CORP.

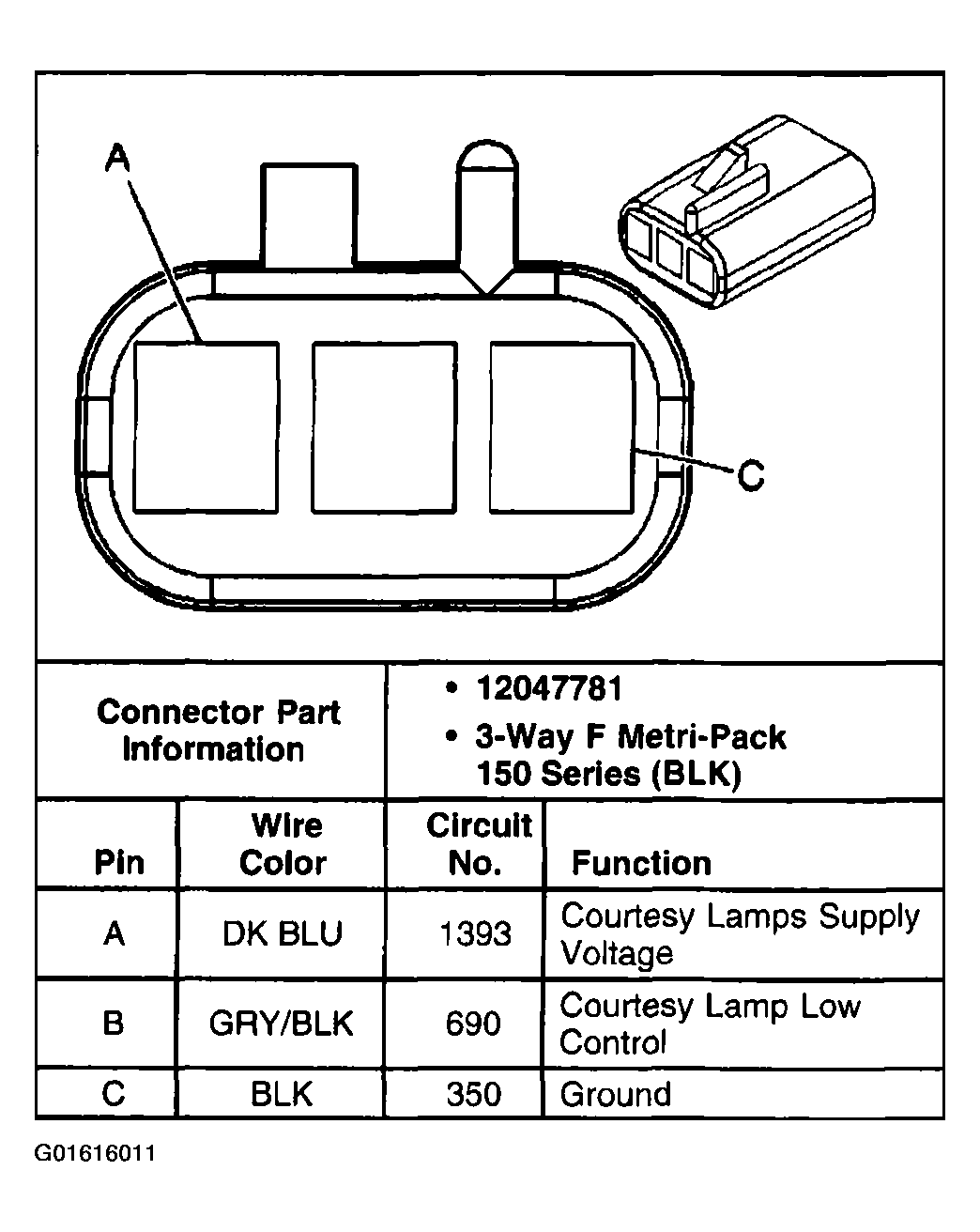

Fig 6: Courtesy/Reading Lamps - Front

G01616011

Courtesy of GENERAL MOTORS CORP.

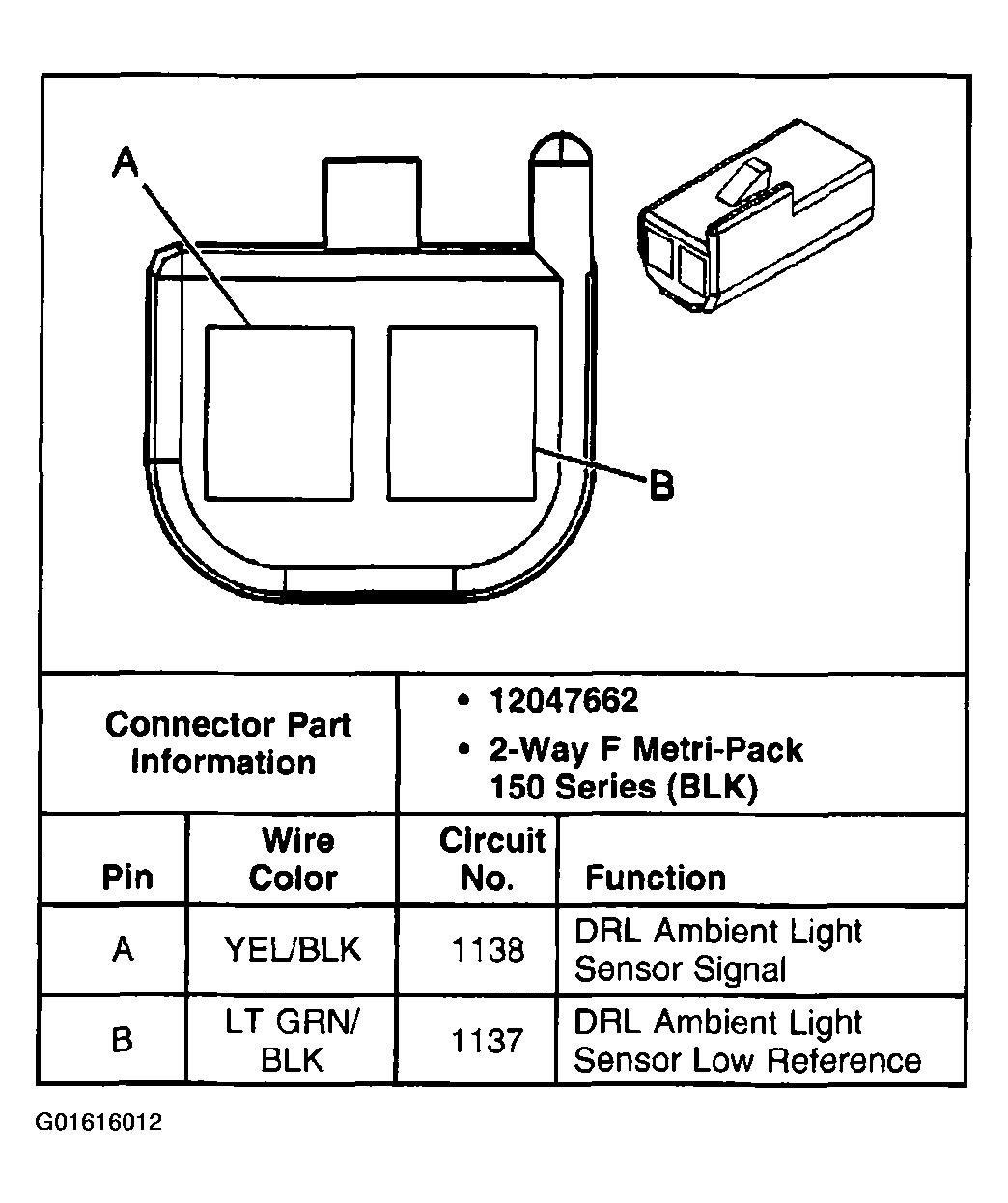

Fig 7: Daytime Running Lamp (DRL) Ambient Light Sensor

G01616012

Courtesy of GENERAL MOTORS CORP.

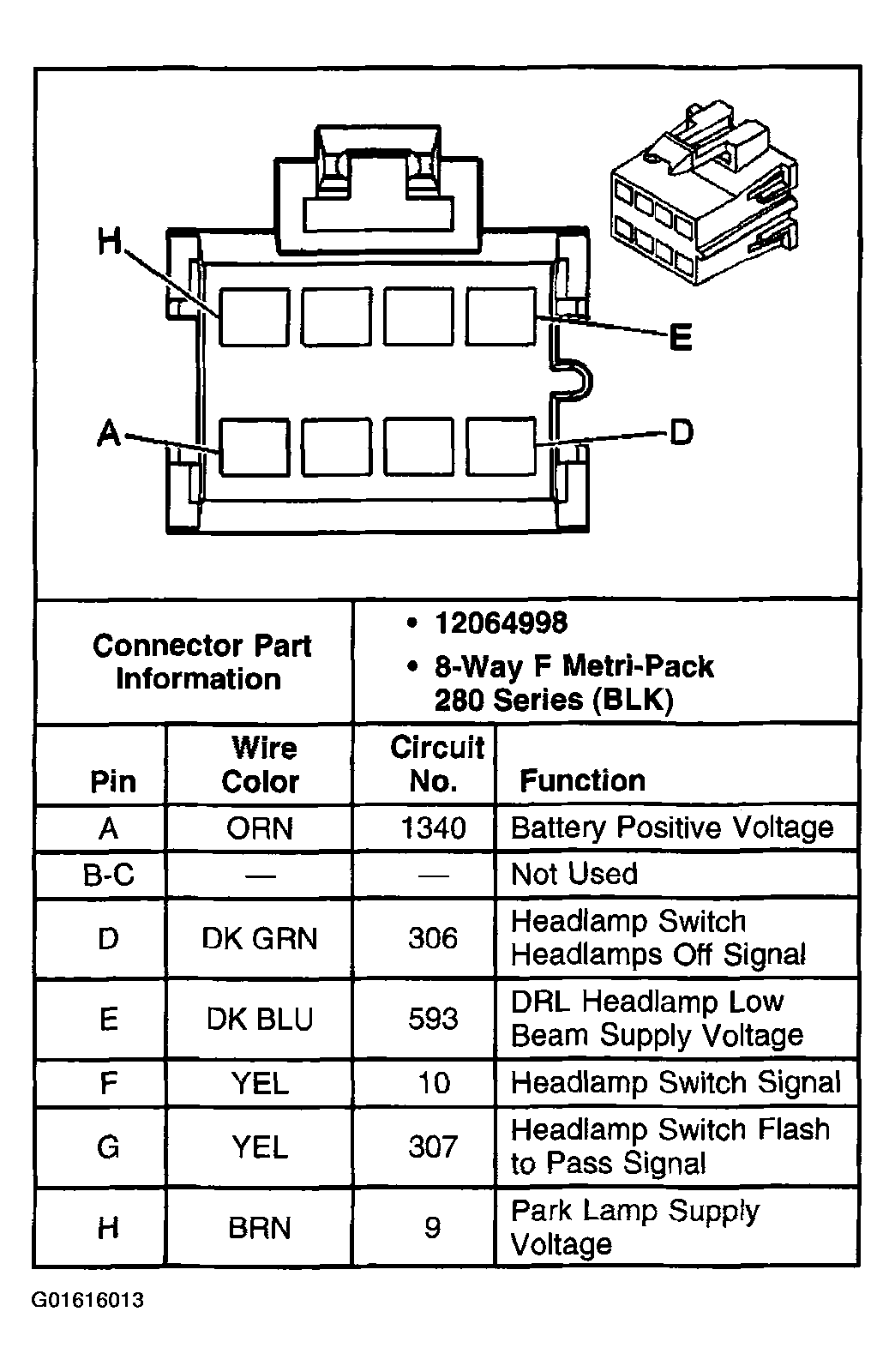

Fig 8: Daytime Running Lamps (DRL) Control Module, C1

G01616013

Courtesy of GENERAL MOTORS CORP.

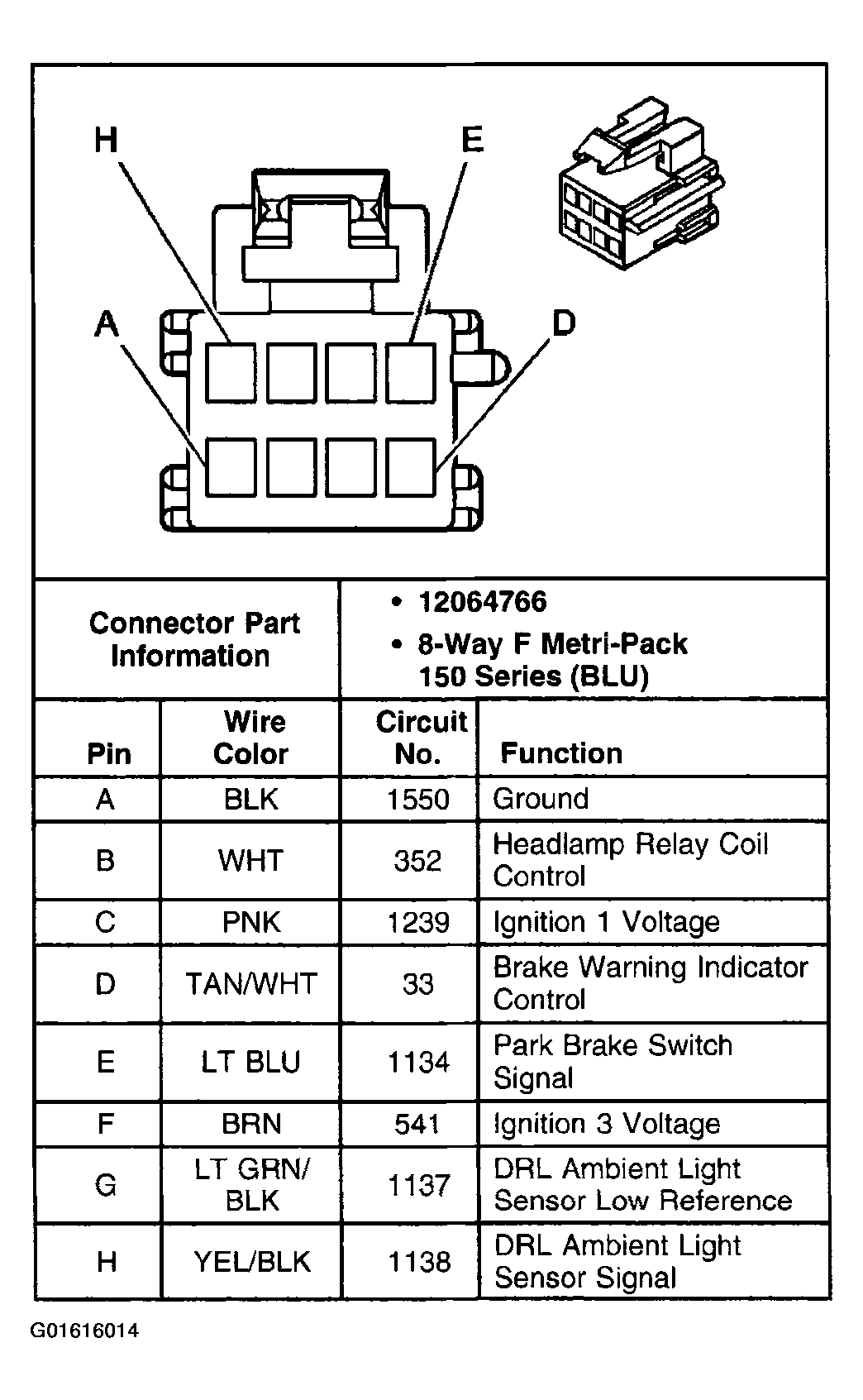

Fig 9: Daytime Running Lamp (DRL) Control Module, C2

G01616014

Courtesy of GENERAL MOTORS CORP.

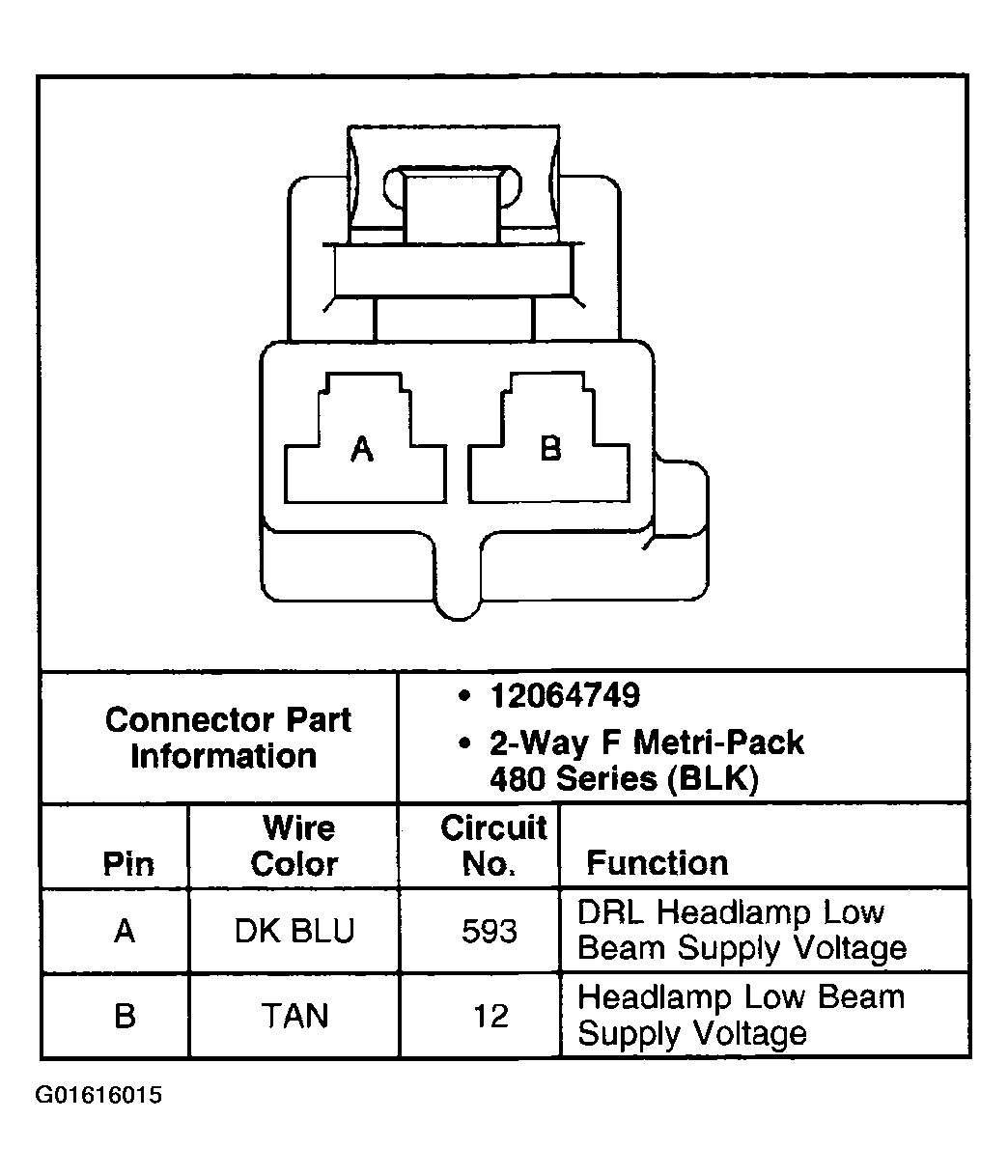

Fig 10: Daytime Running Lamps (DRL) Diode

G01616015

Courtesy of GENERAL MOTORS CORP.

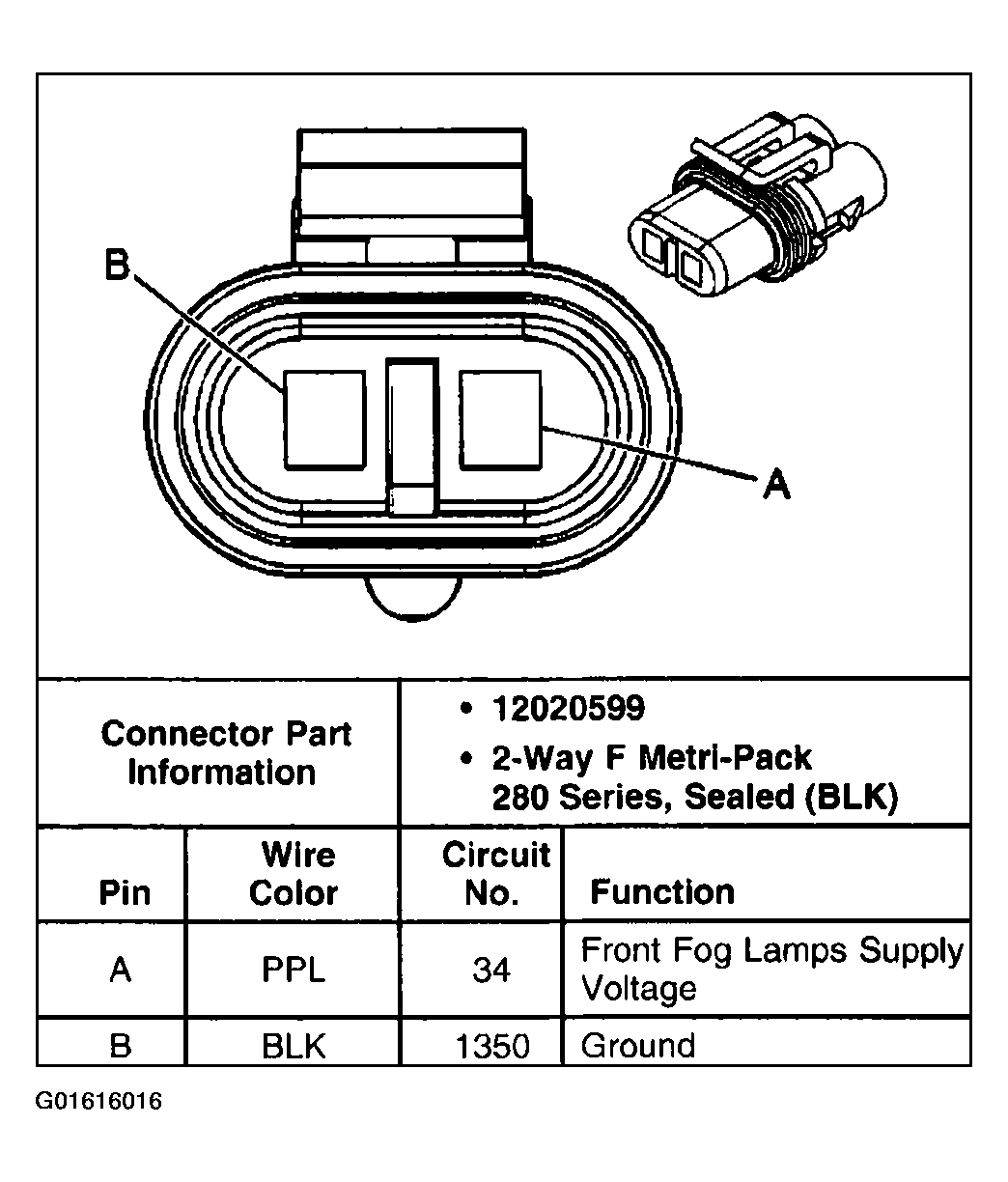

Fig 11: Fog Lamp - LF

G01616016

Courtesy of GENERAL MOTORS CORP.

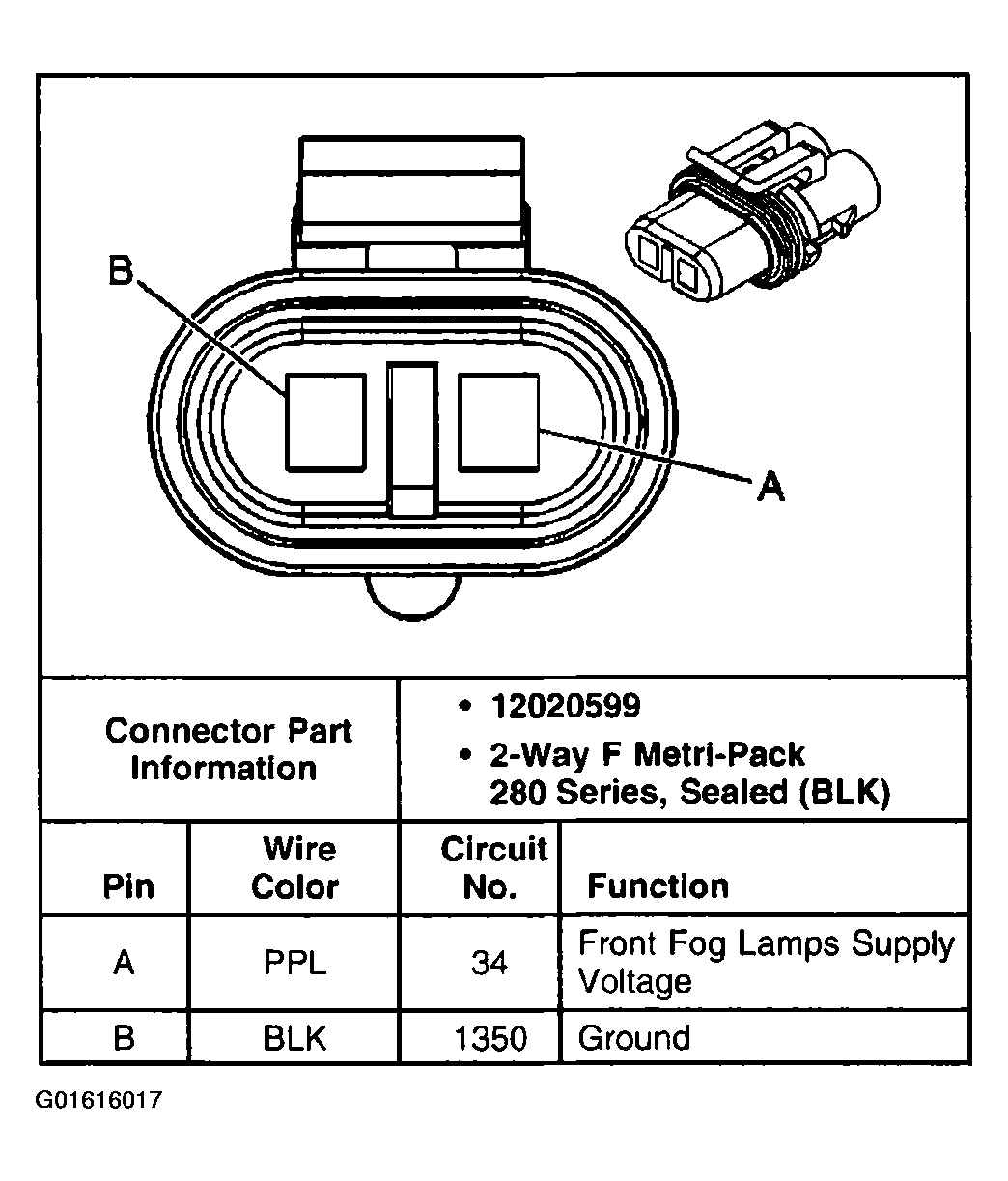

Fig 12: Fog Lamp - RF

G01616017

Courtesy of GENERAL MOTORS CORP.

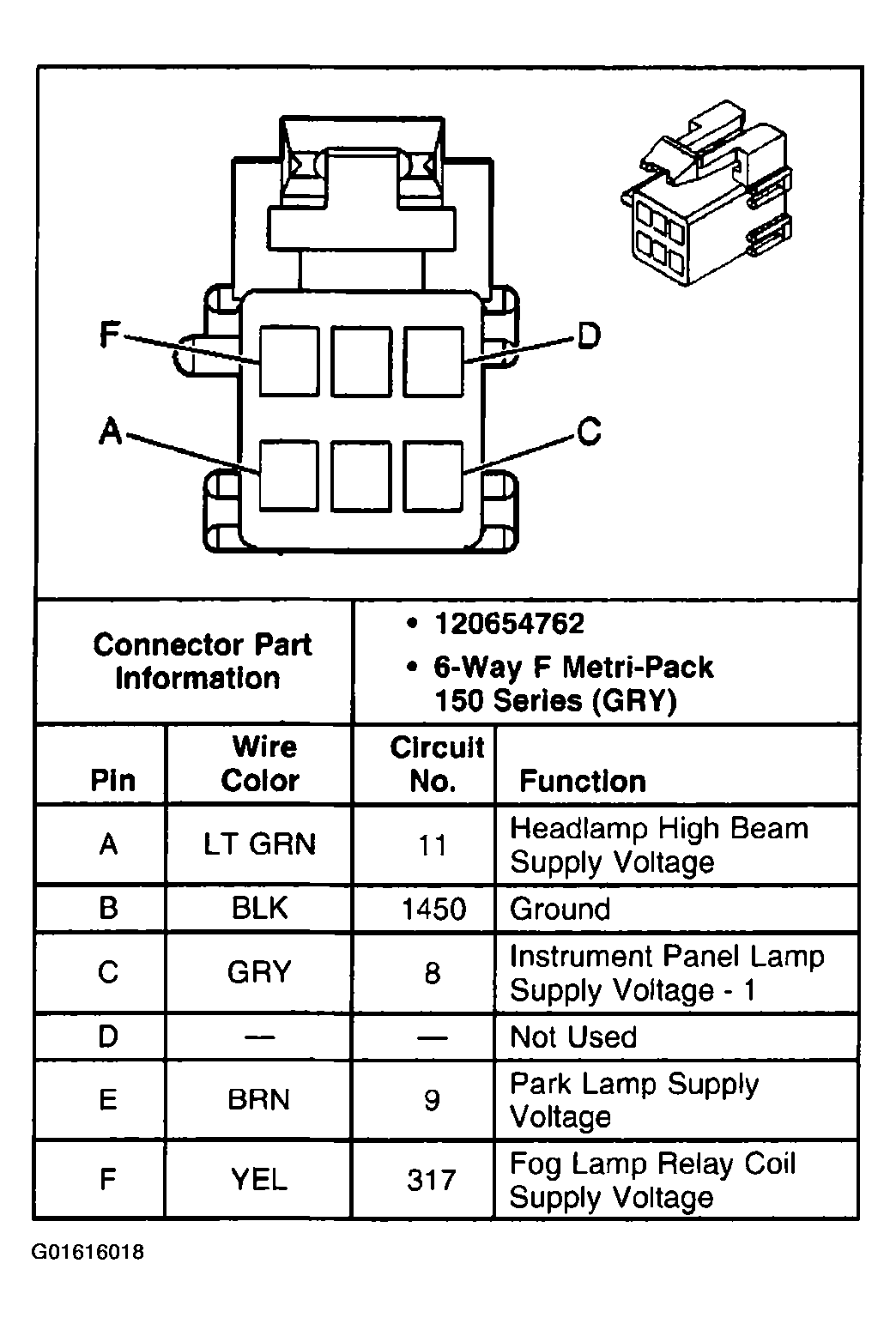

Fig 13: Fog Lamp Switch

G01616018

Courtesy of GENERAL MOTORS CORP.

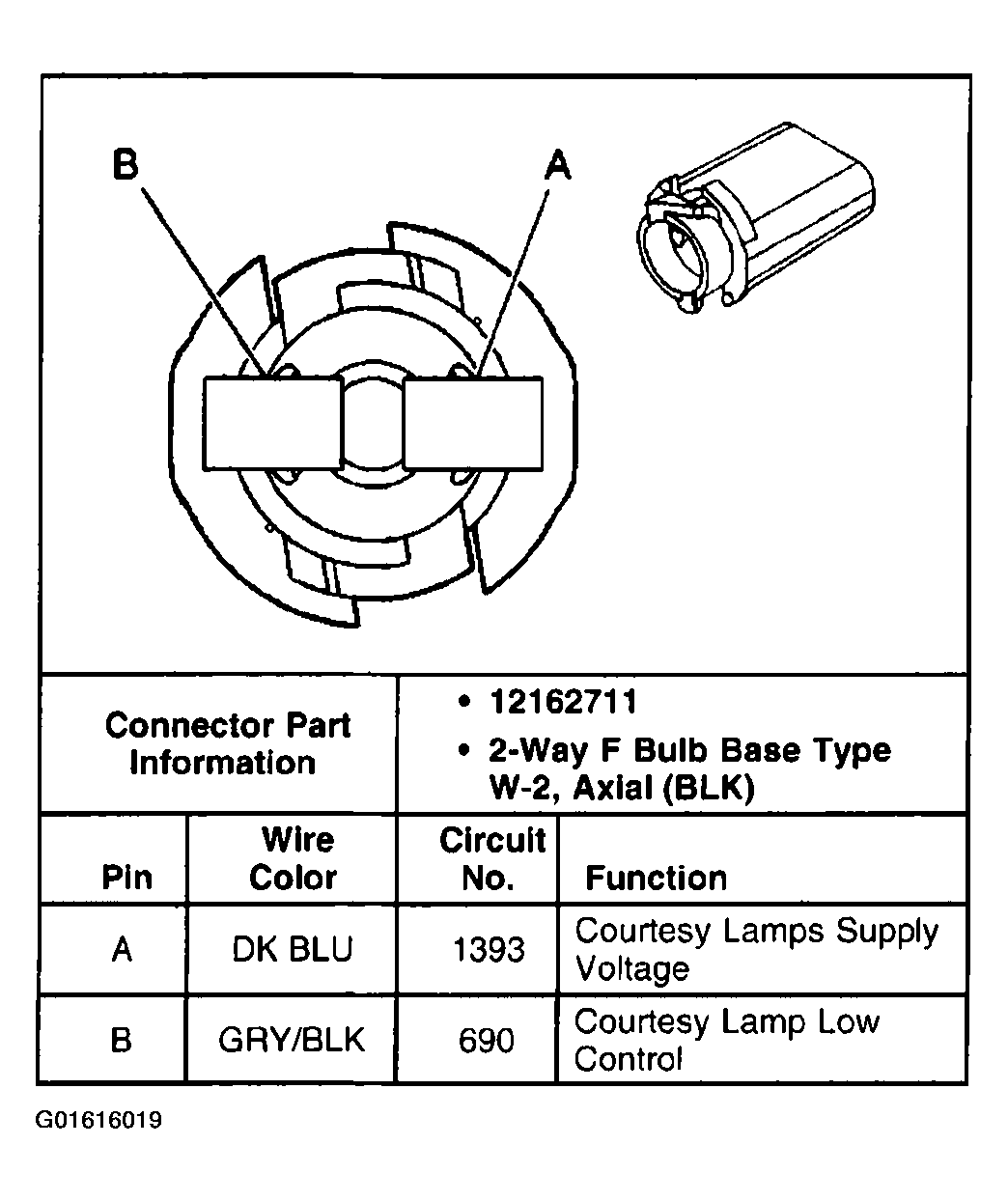

Fig 14: Footwell Courtesy Lamp - Left

G01616019

Courtesy of GENERAL MOTORS CORP.

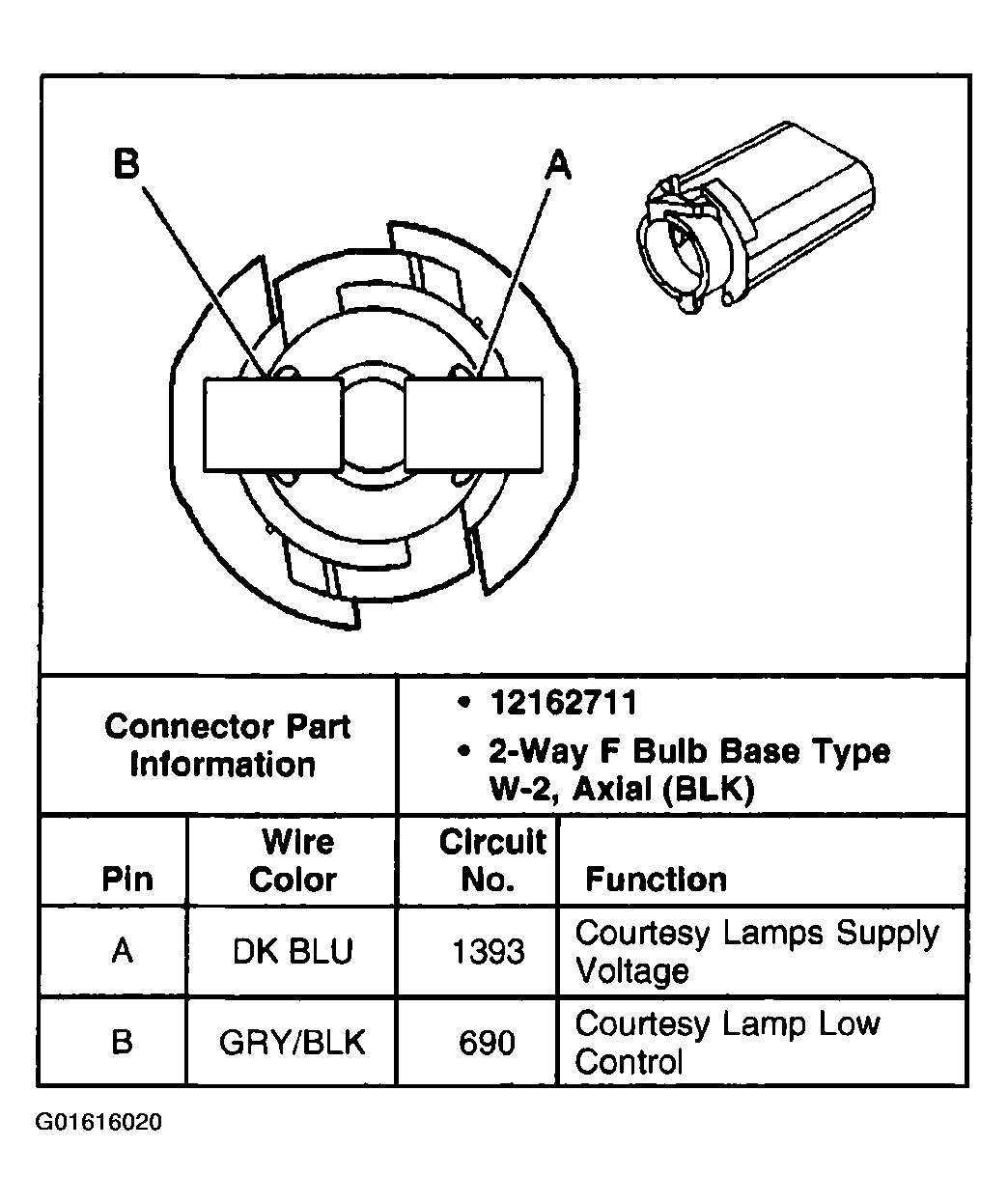

Fig 15: Footwell Courtesy Lamp - Right

G01616020

Courtesy of GENERAL MOTORS CORP.

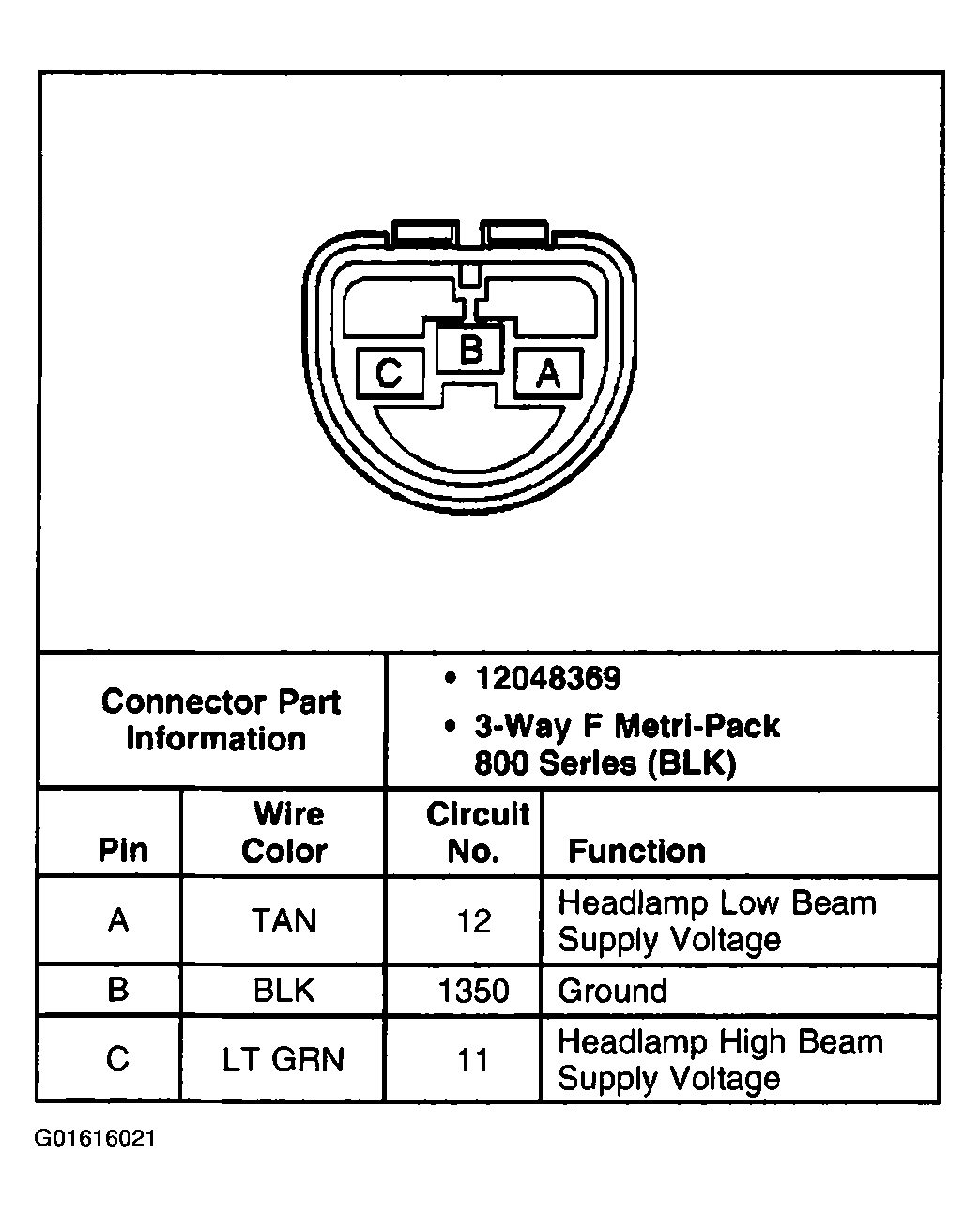

Fig 16: Headlamp - Left

G01616021

Courtesy of GENERAL MOTORS CORP.

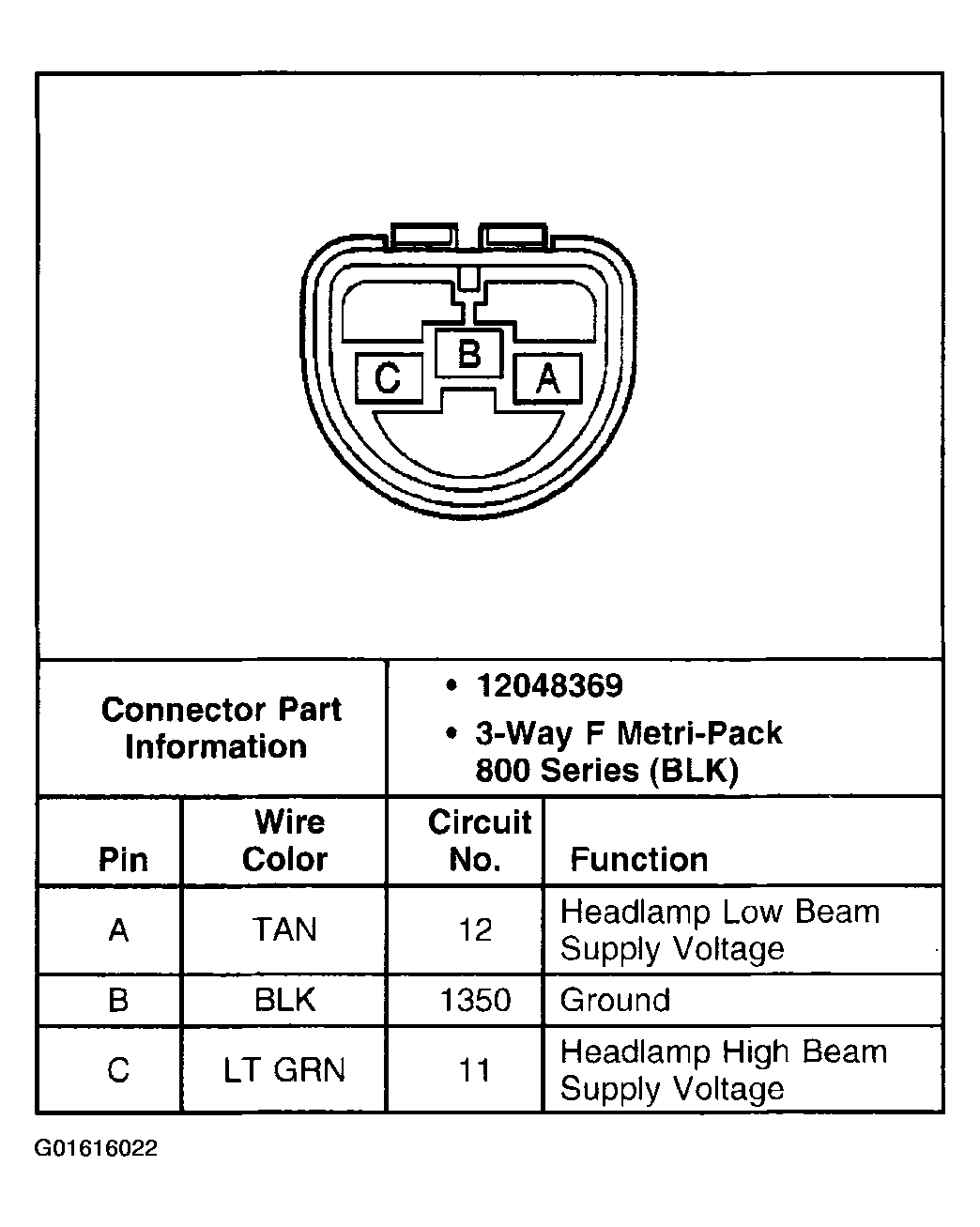

Fig 17: Headlamp - Right

G01616022

Courtesy of GENERAL MOTORS CORP.

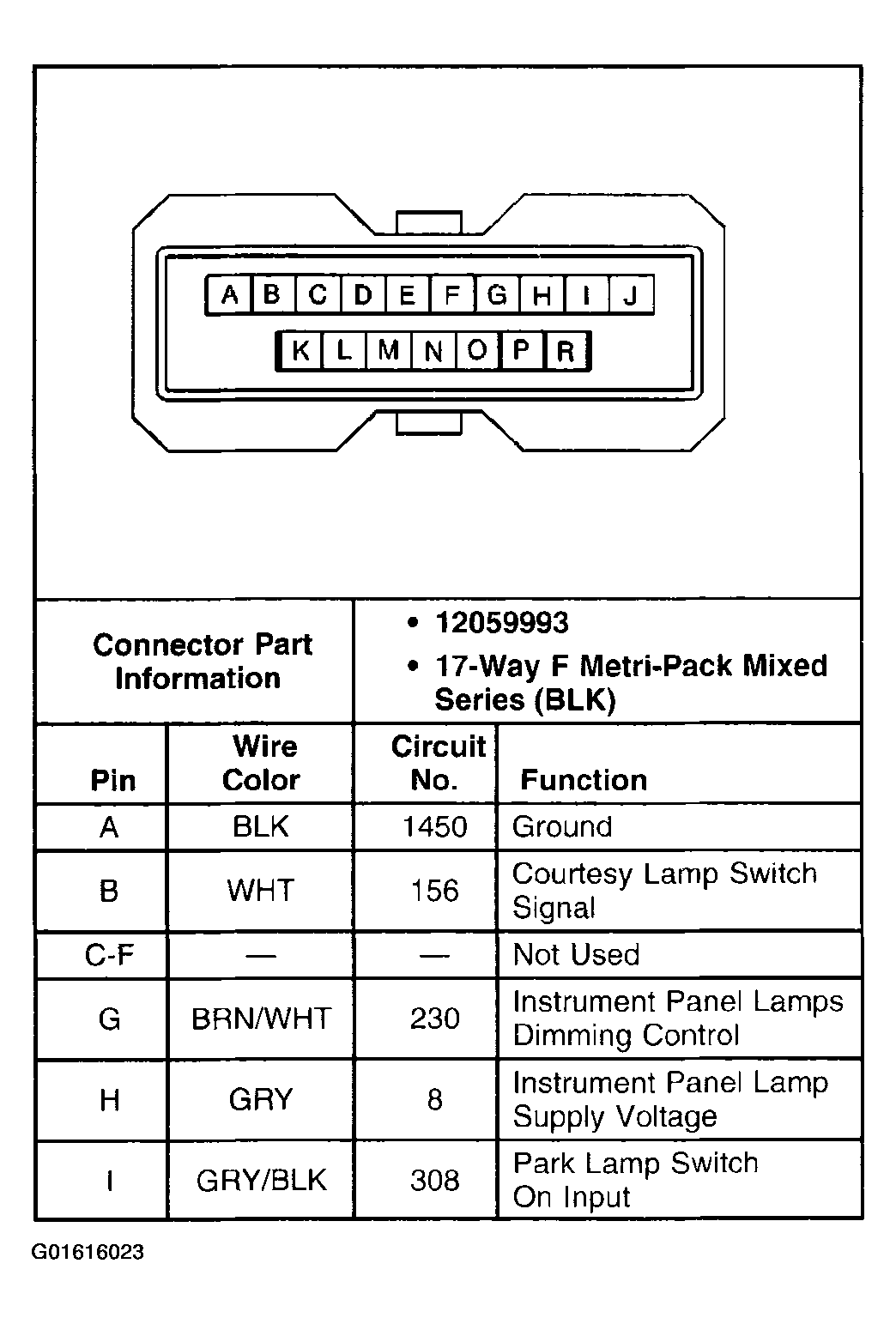

Fig 18: Headlamp Switch (1 Of 2)

G01616023

Courtesy of GENERAL MOTORS CORP.

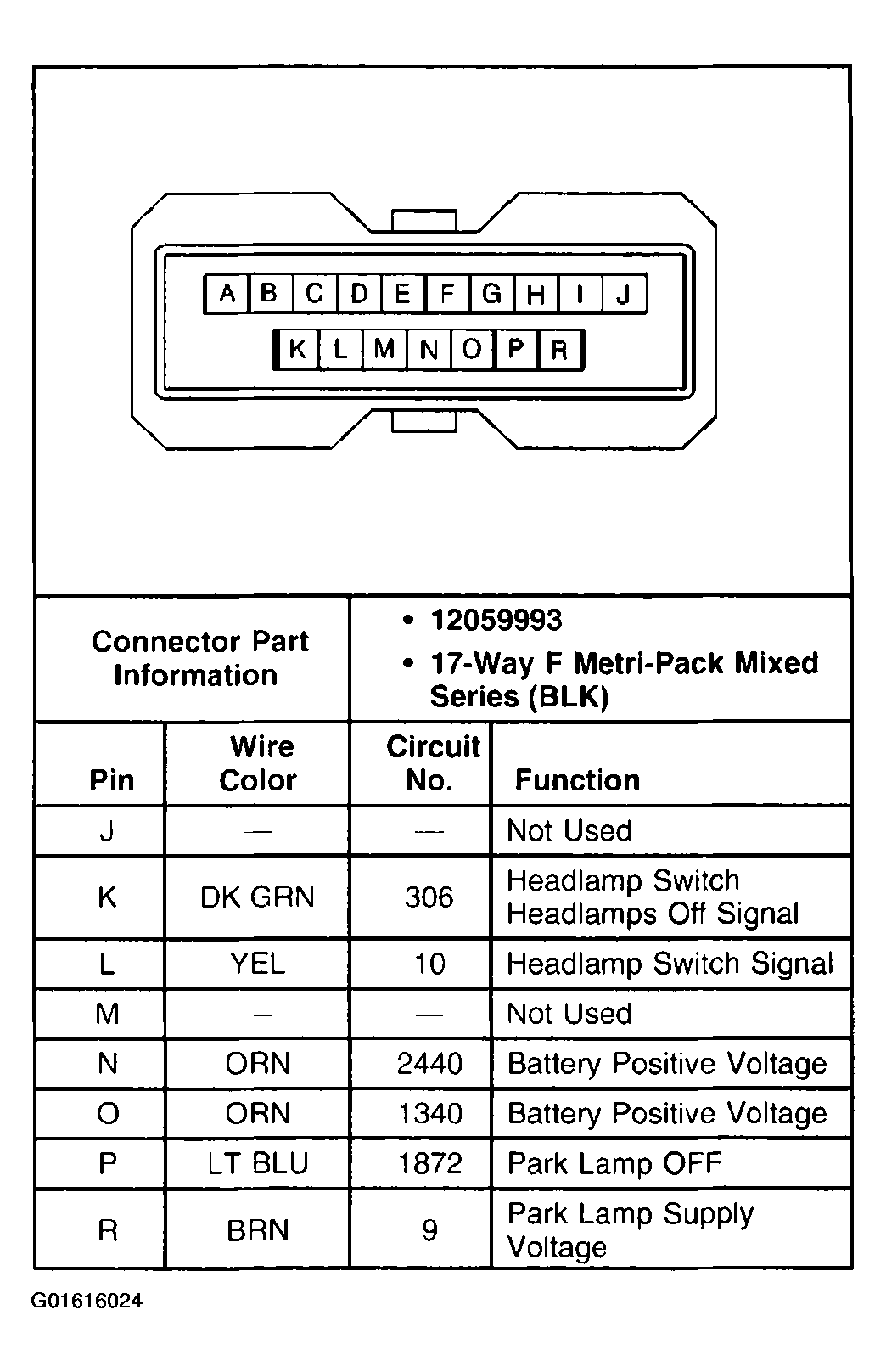

Fig 19: Headlamp Switch (2 Of 2)

G01616024

Courtesy of GENERAL MOTORS CORP.

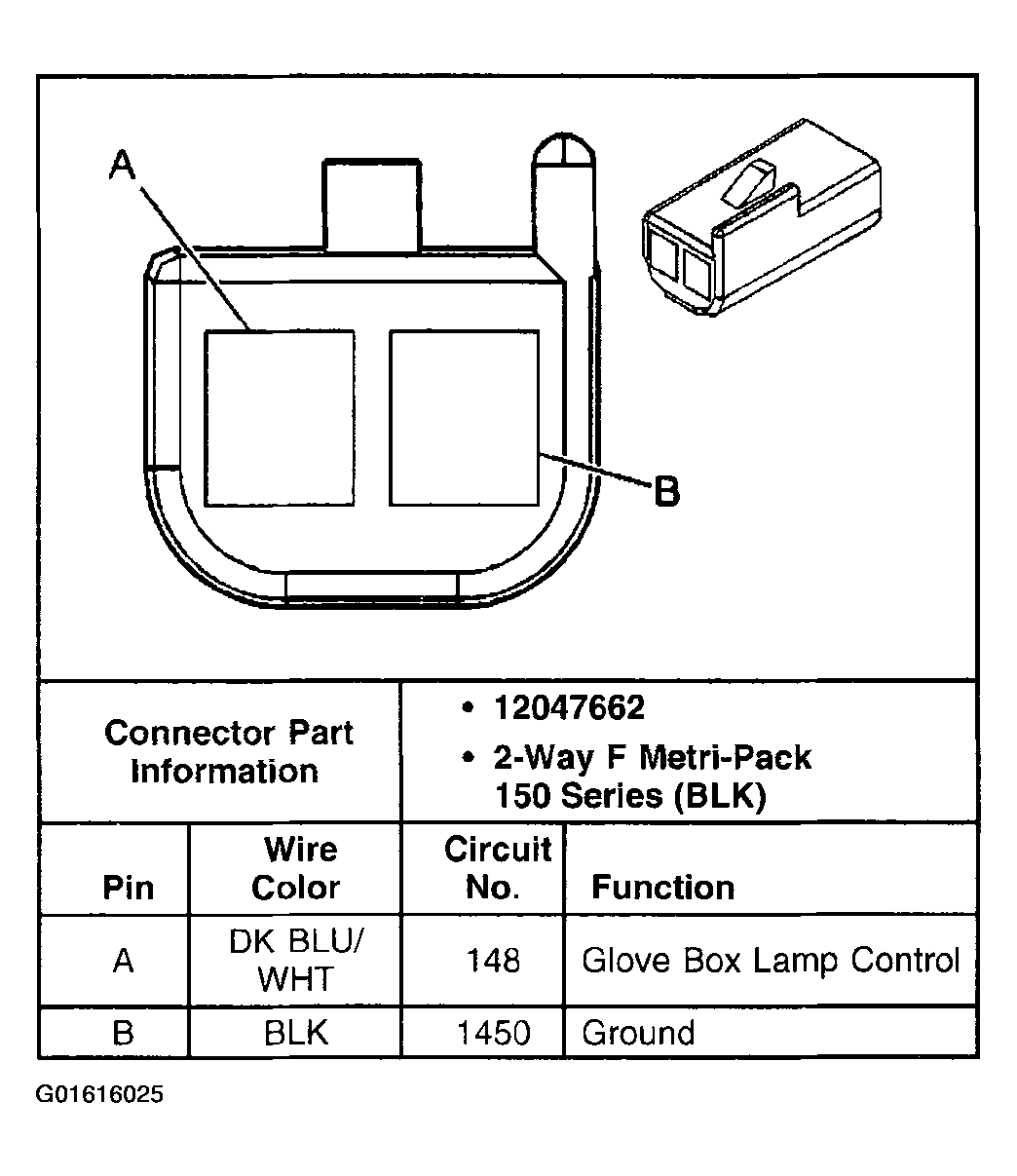

Fig 20: IP Compartment Lamp

G01616025

Courtesy of GENERAL MOTORS CORP.

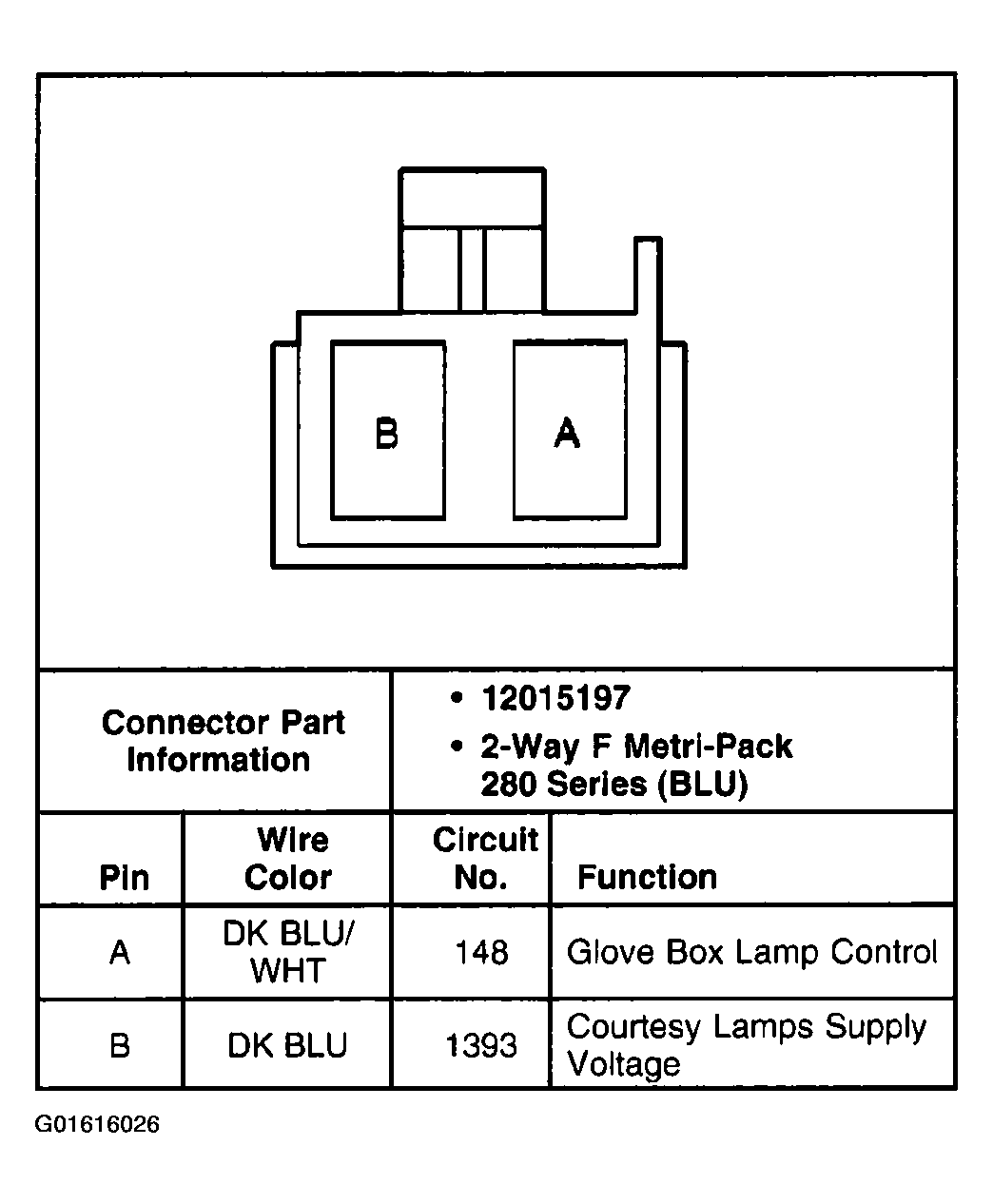

Fig 21: IP Compartment Lamp Switch

G01616026

Courtesy of GENERAL MOTORS CORP.

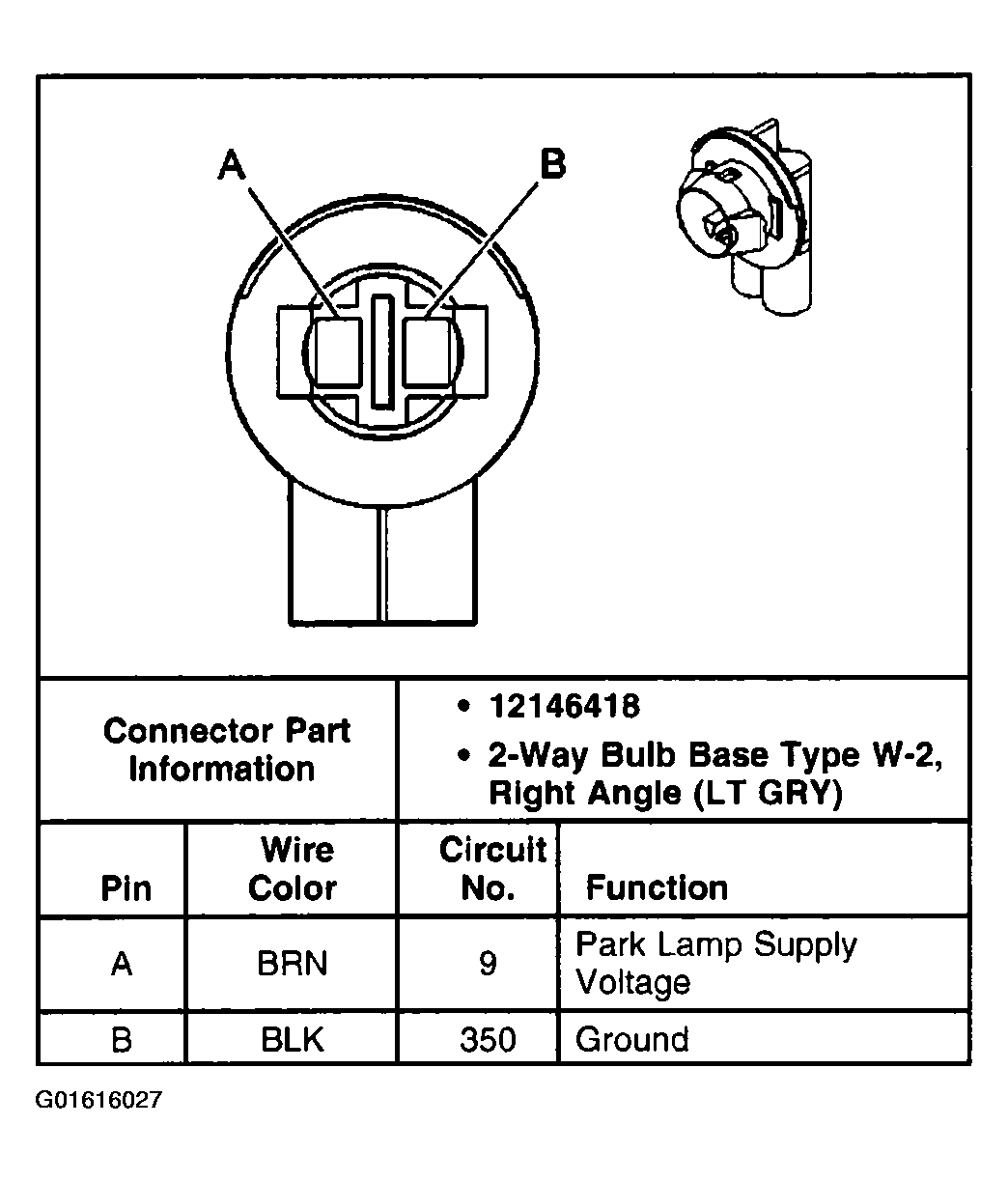

Fig 22: License Lamp

G01616027

Courtesy of GENERAL MOTORS CORP.

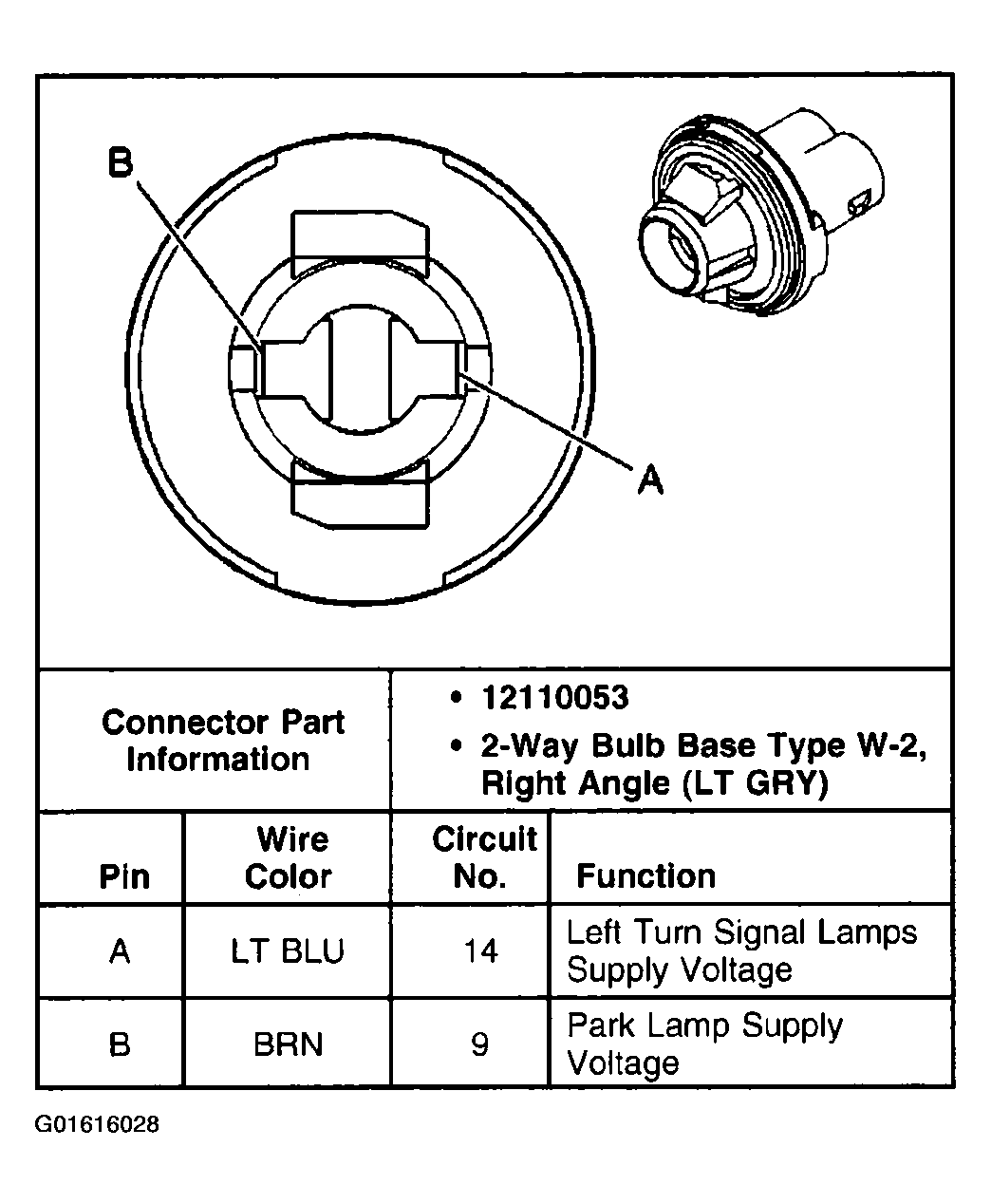

Fig 23: Marker Lamp - LF

G01616028

Courtesy of GENERAL MOTORS CORP.

Fig 24: Marker Lamp - LR

G01616029

Courtesy of GENERAL MOTORS CORP.

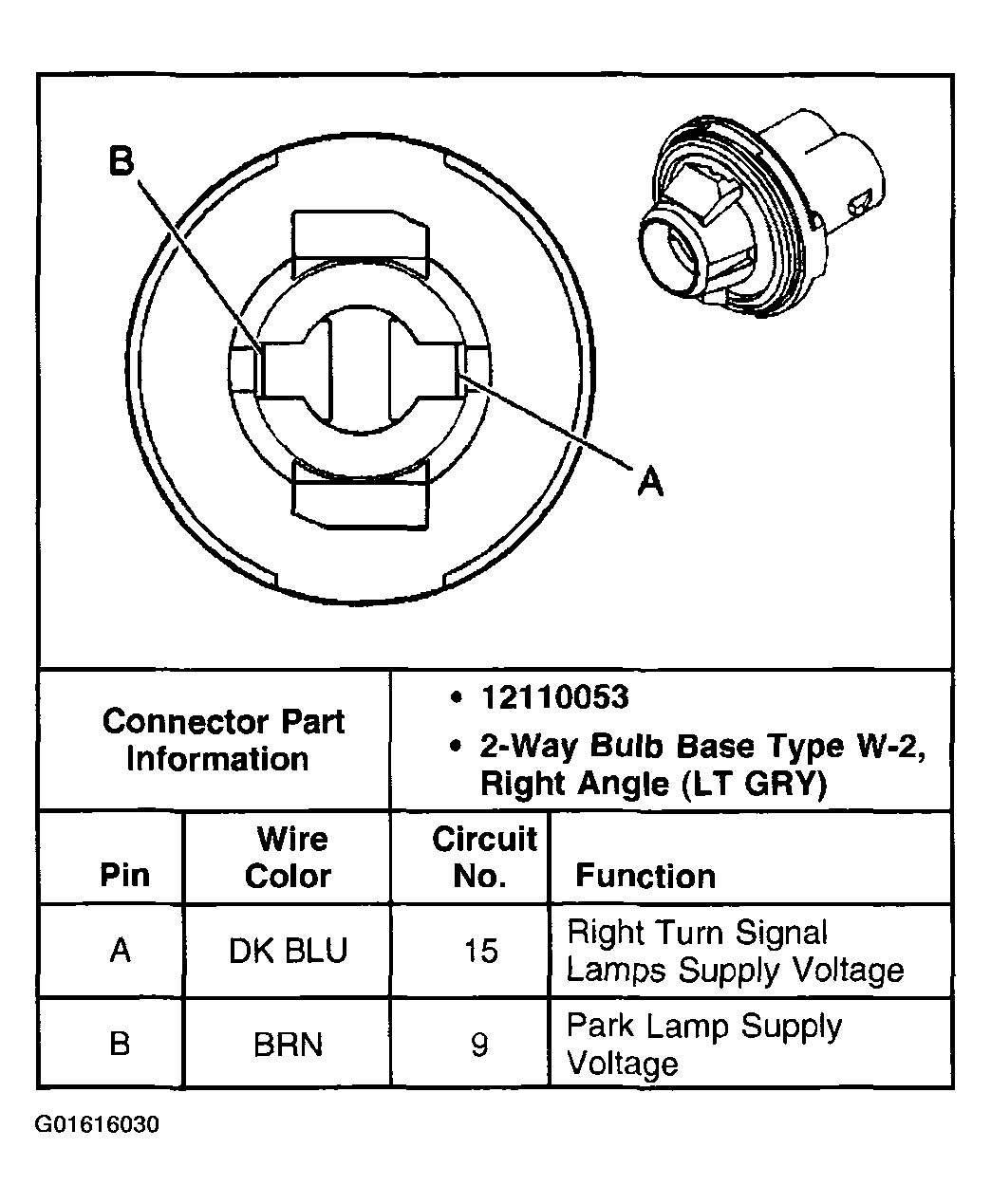

Fig 25: Marker Lamp - RF

G01616030

Courtesy of GENERAL MOTORS CORP.

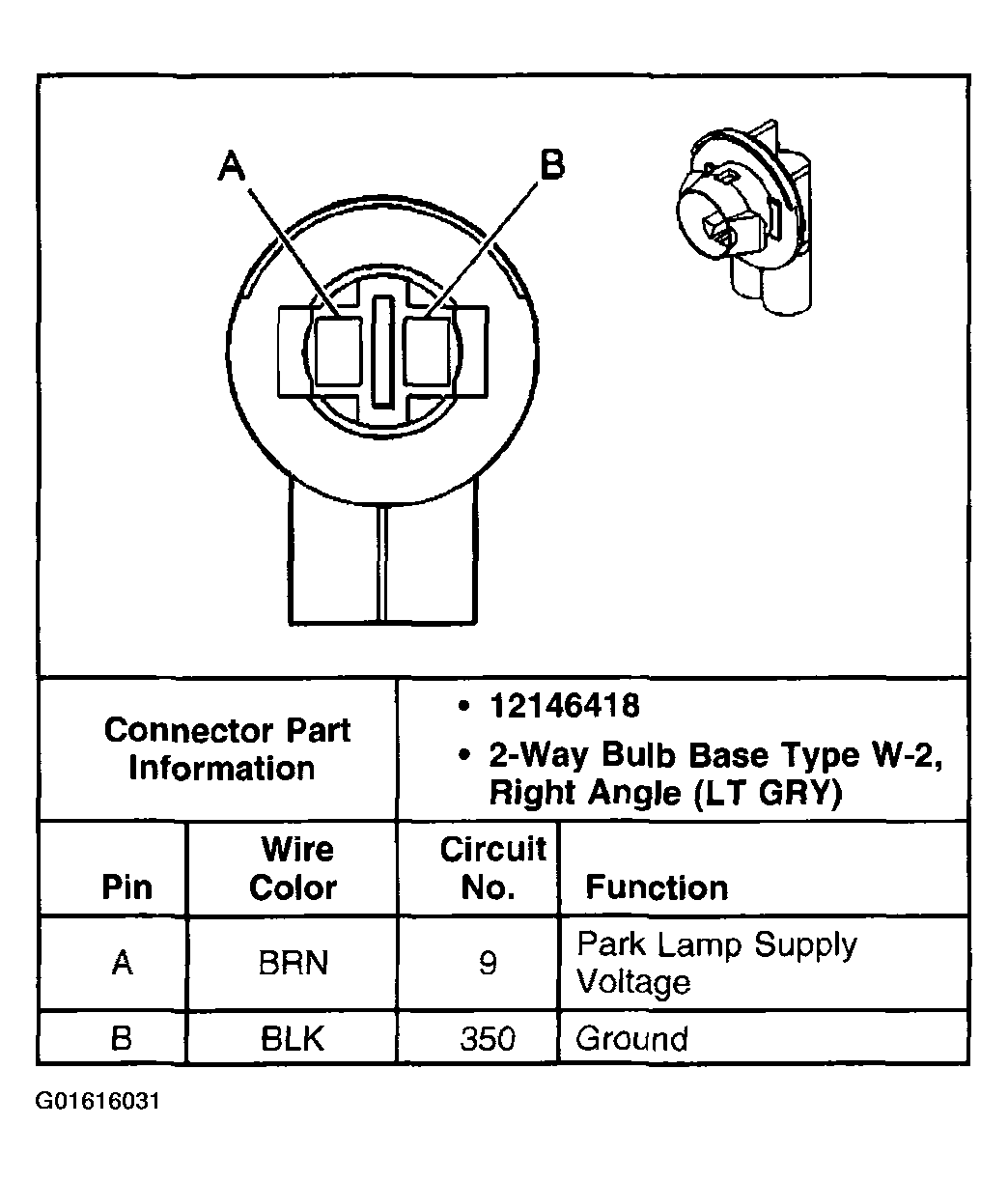

Fig 26: Marker Lamp - RR

G01616031

Courtesy of GENERAL MOTORS CORP.

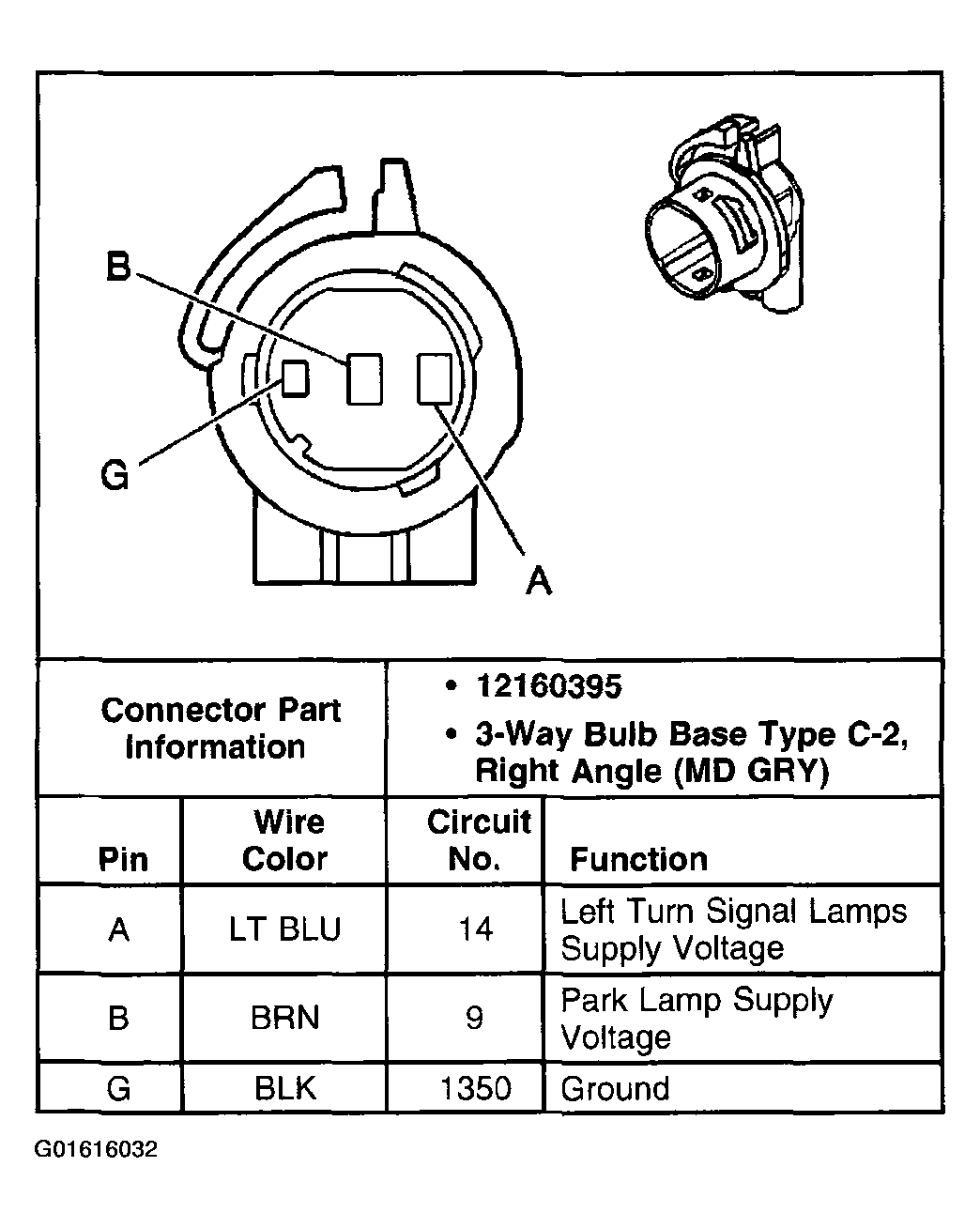

Fig 27: Park/Turn Signal Lamp - LF

G01616032

Courtesy of GENERAL MOTORS CORP.

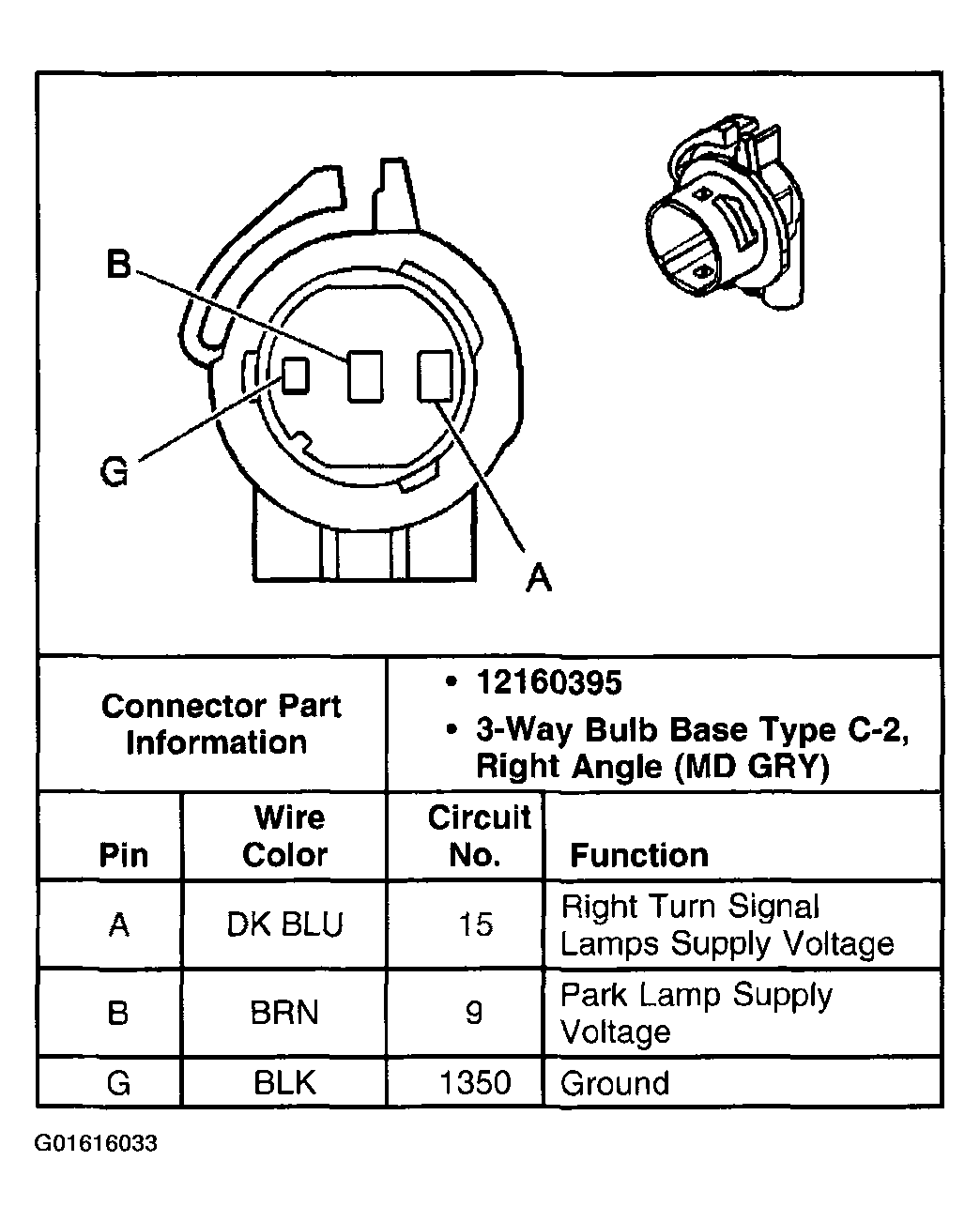

Fig 28: Park/Turn Signal Lamp - RF

G01616033

Courtesy of GENERAL MOTORS CORP.

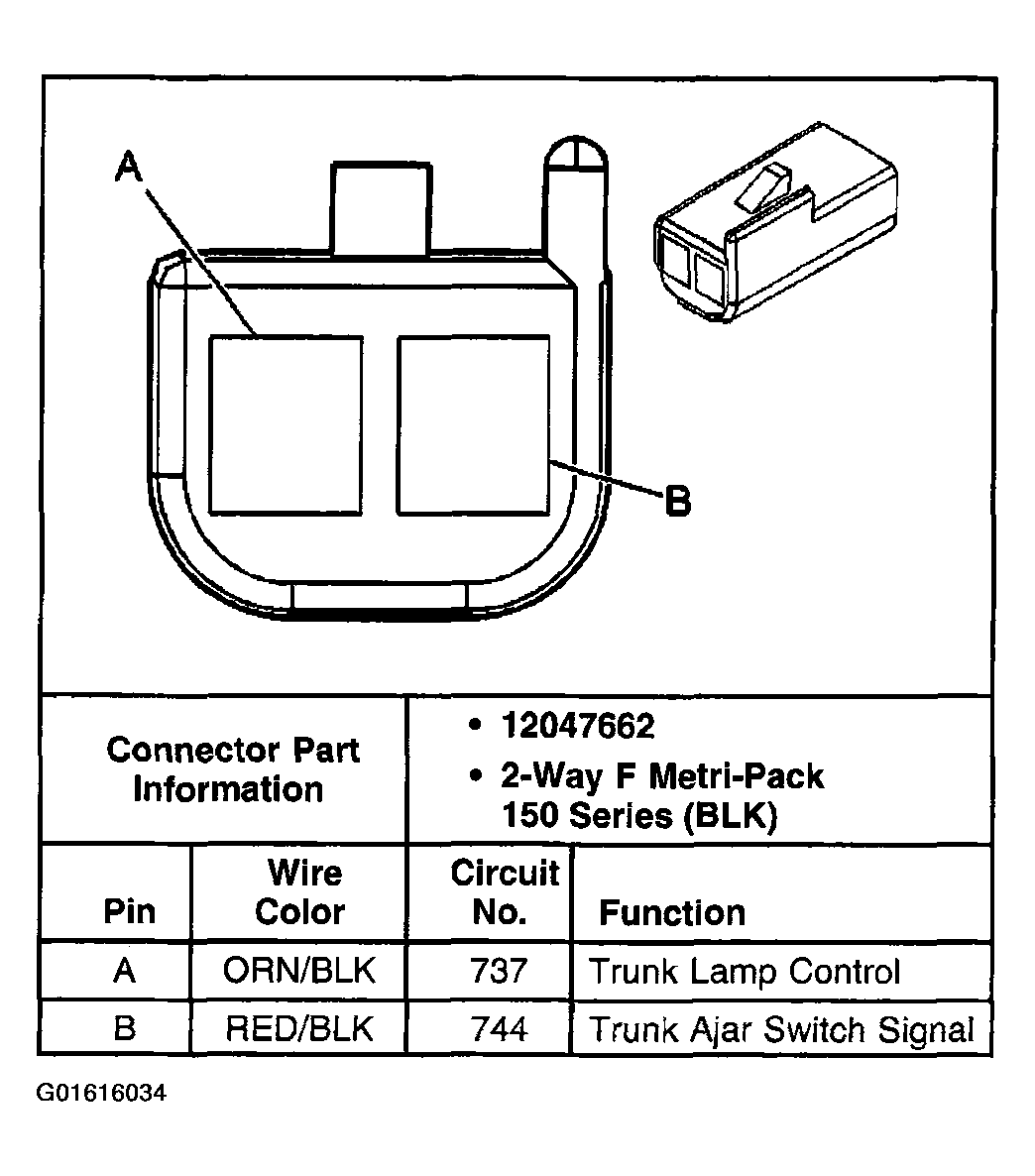

Fig 29: Rear Compartment Courtesy Lamp

G01616034

Courtesy of GENERAL MOTORS CORP.

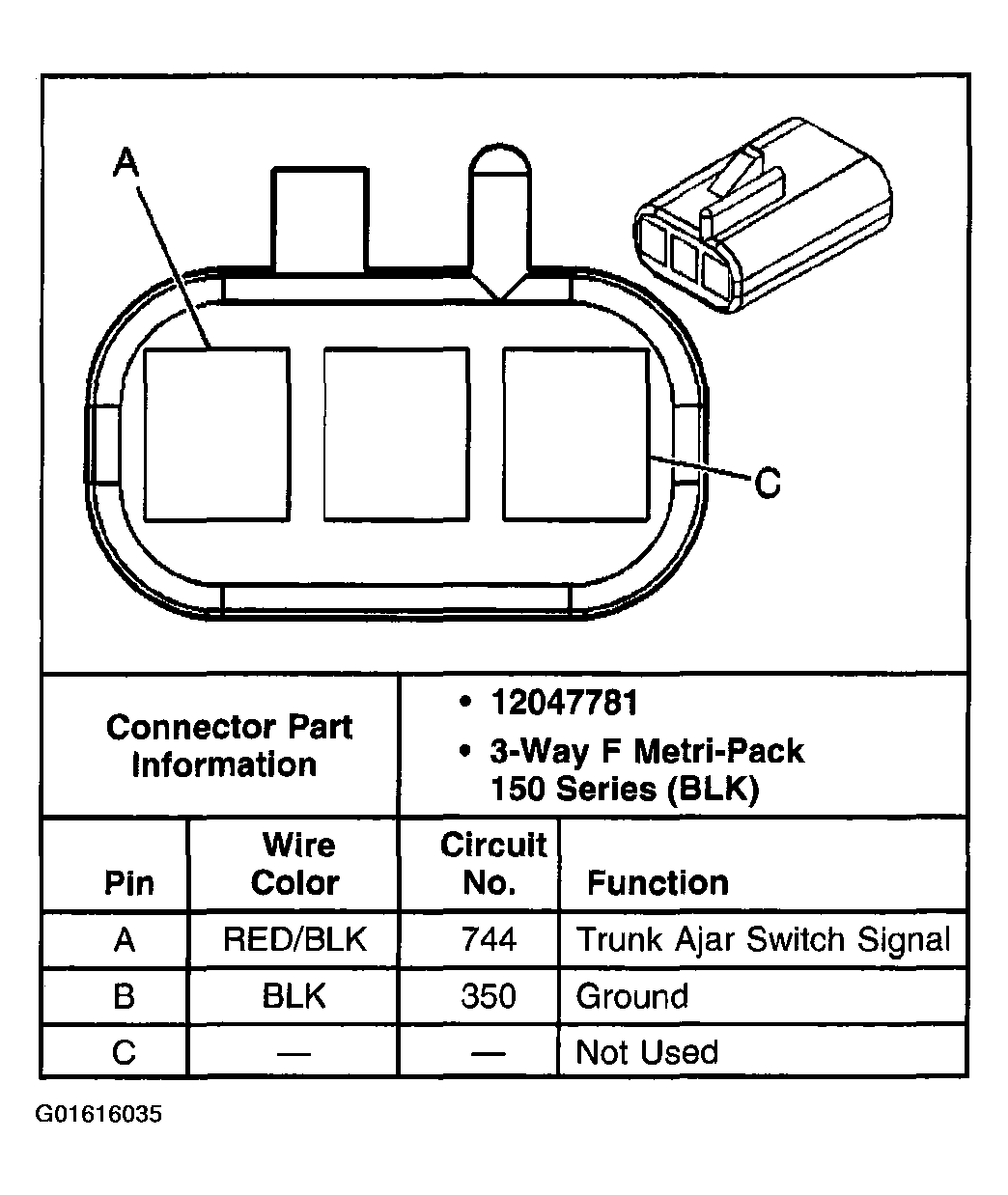

Fig 30: Rear Compartment Courtesy Lamp Switch

G01616035

Courtesy of GENERAL MOTORS CORP.

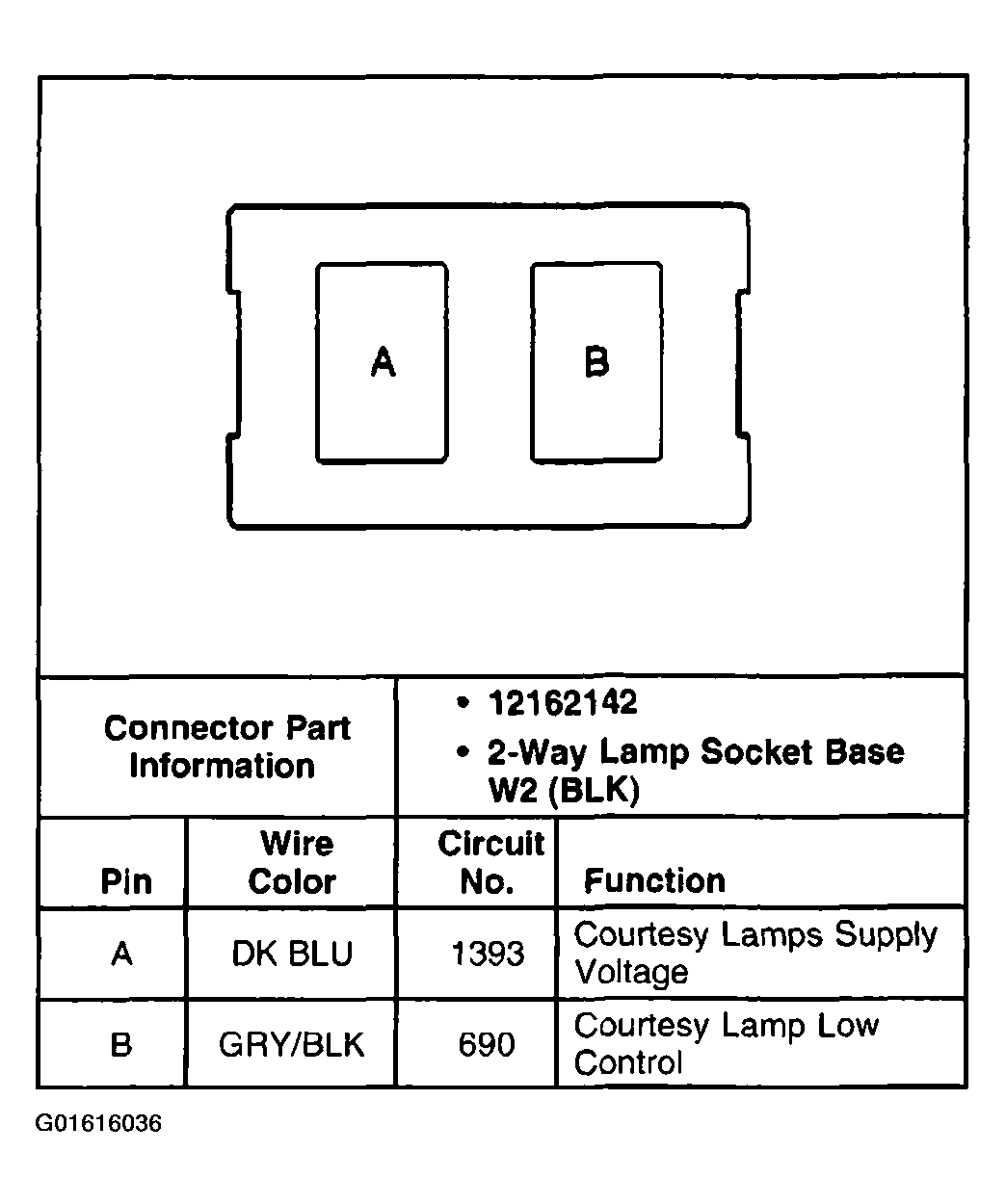

Fig 31: Roof Rail Courtesy Lamp - Left (w/o RPO TR9)

G01616036

Courtesy of GENERAL MOTORS CORP.

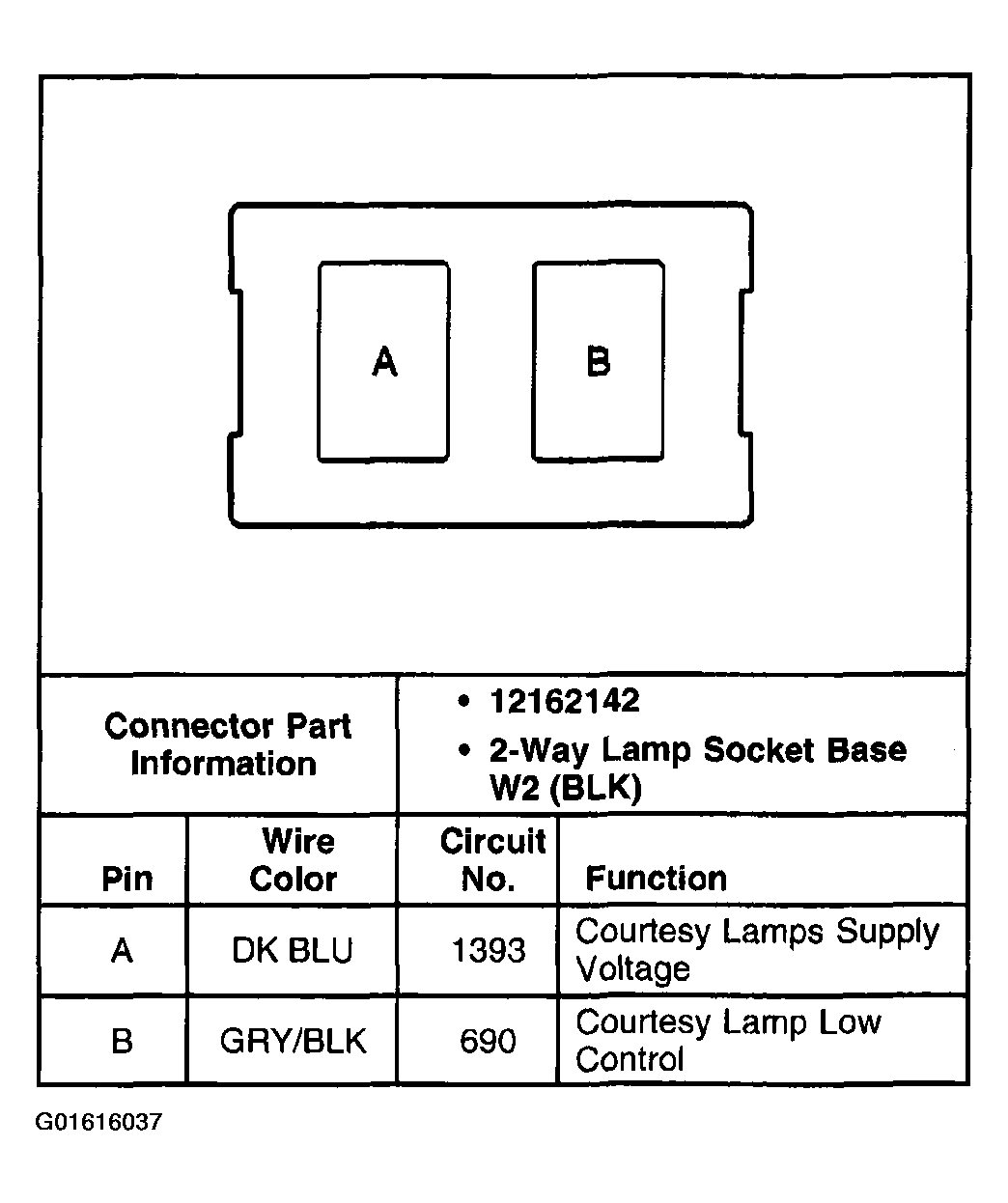

Fig 32: Roof Rail Courtesy Lamp - Right (w/o RPO TR9)

G01616037

Courtesy of GENERAL MOTORS CORP.

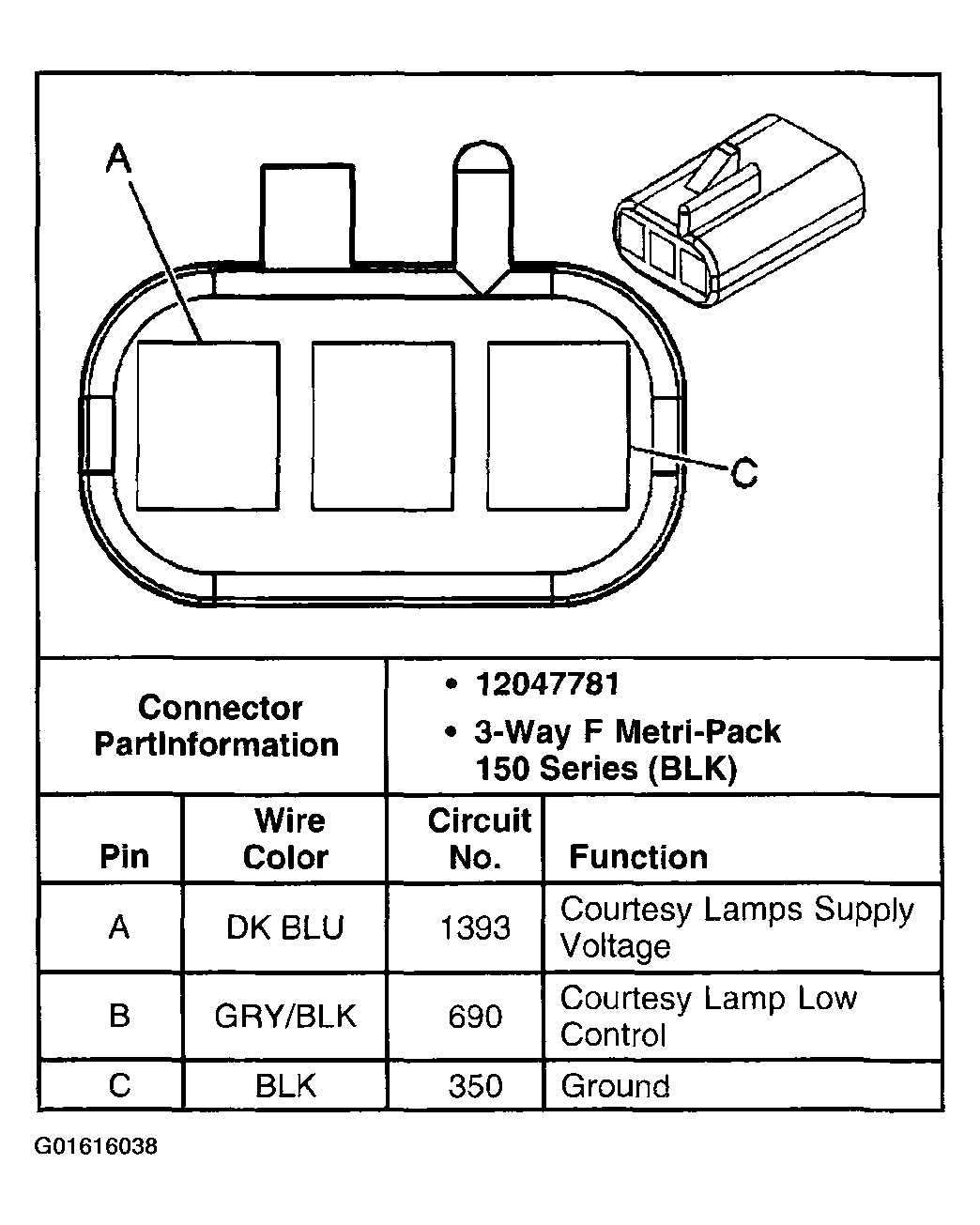

Fig 33: Roof Rail Courtesy/Reading Lamp - Left (w/RPO TR9)

G01616038

Courtesy of GENERAL MOTORS CORP.

Fig 34: Roof Rail Courtesy/Reading Lamp - Right (w/RPO TR9)

G01616039

Courtesy of GENERAL MOTORS CORP.

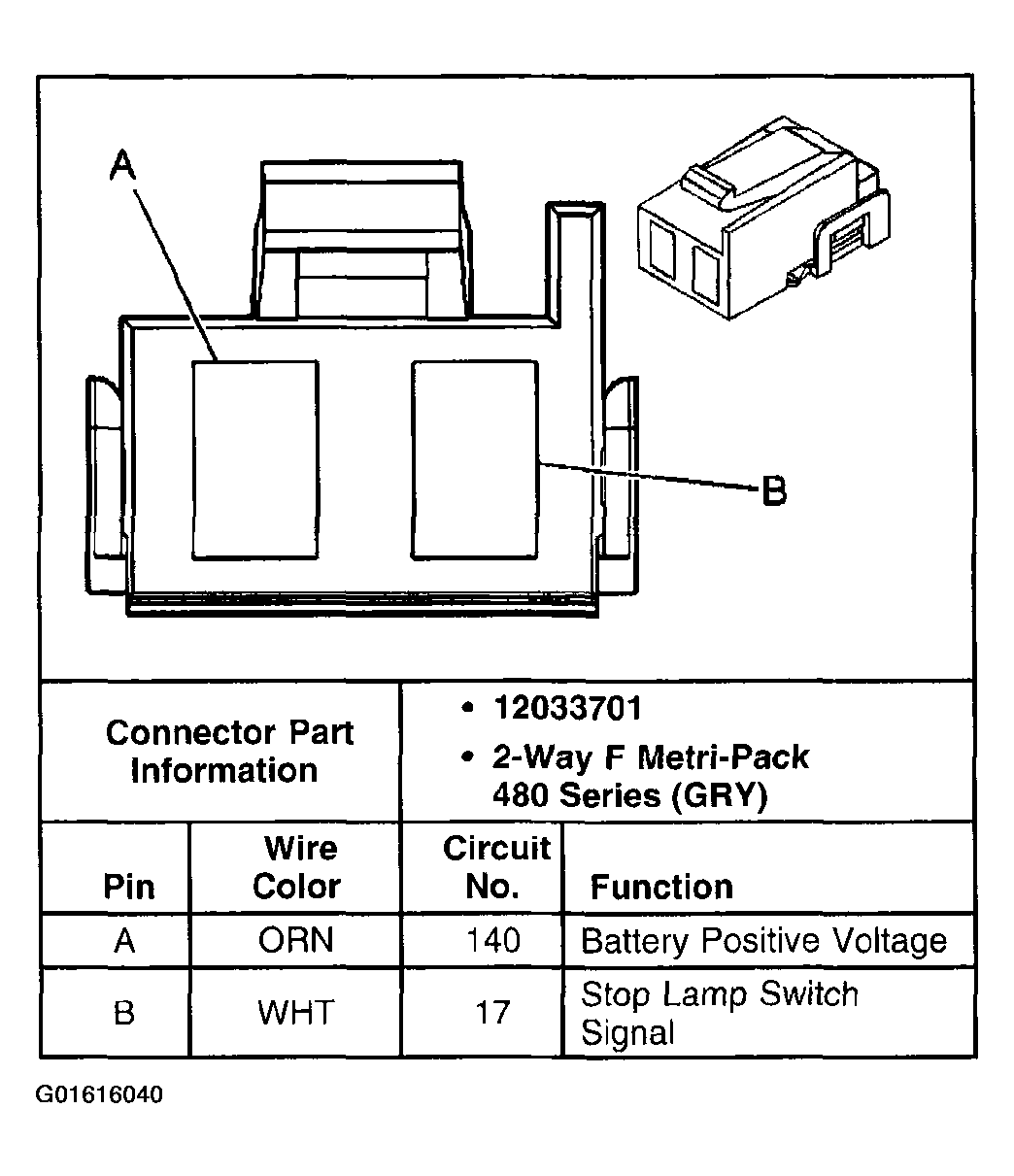

Fig 35: Stoplamp Switch, C1

G01616040

Courtesy of GENERAL MOTORS CORP.

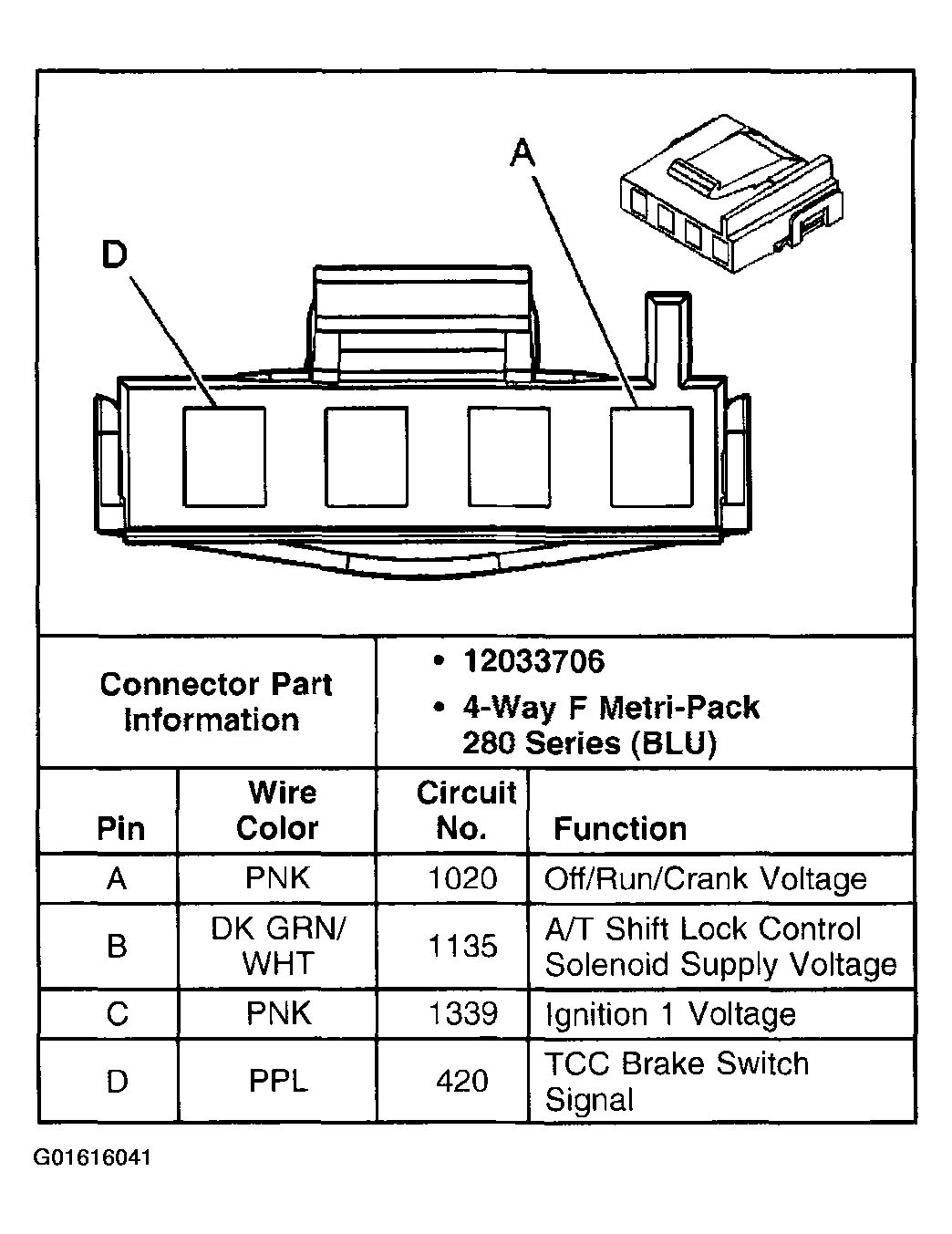

Fig 36: Stoplamp Switch, C2

G01616041

Courtesy of GENERAL MOTORS CORP.

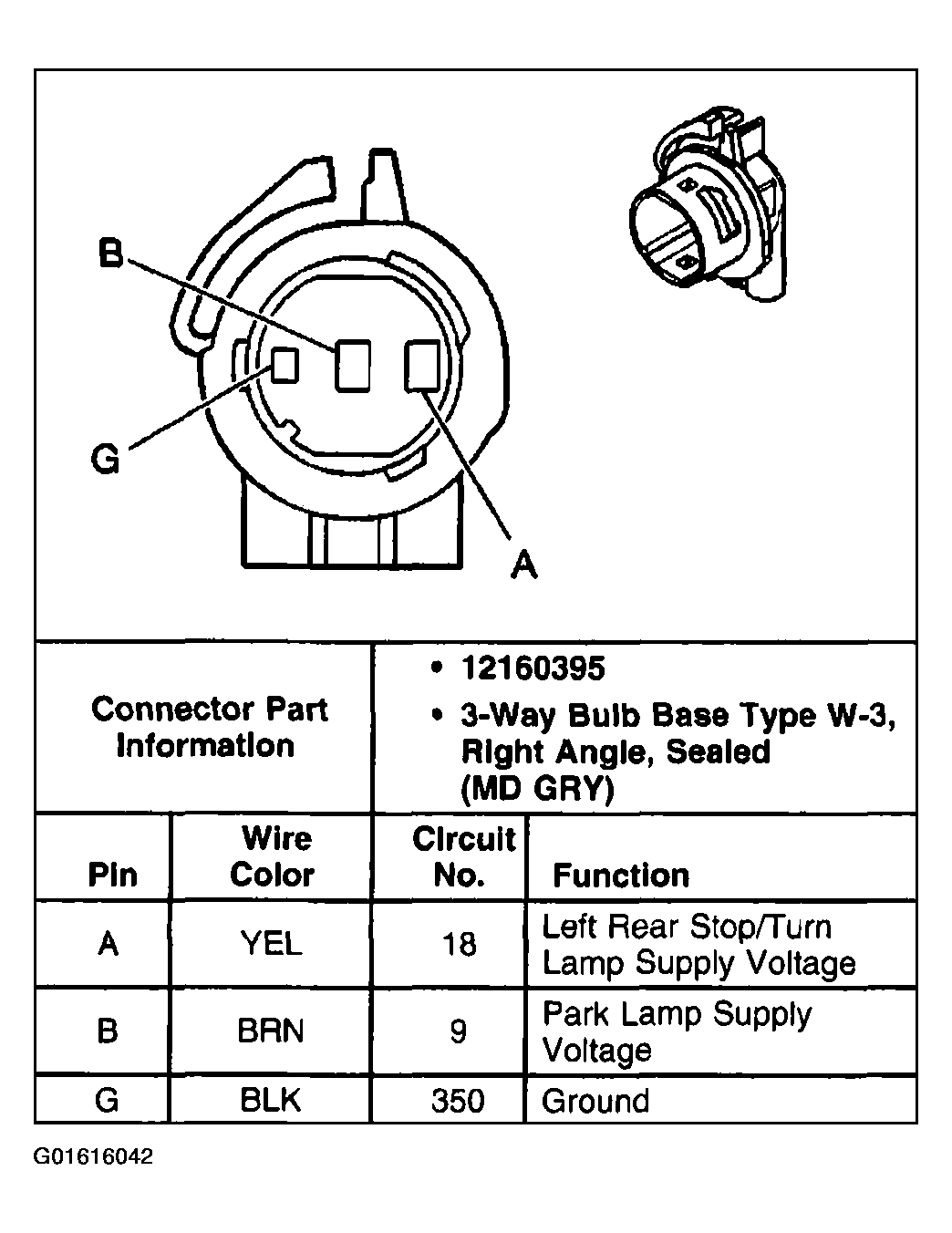

Fig 37: Tail/Stop and Turn Signal Lamp - Left

G01616042

Courtesy of GENERAL MOTORS CORP.

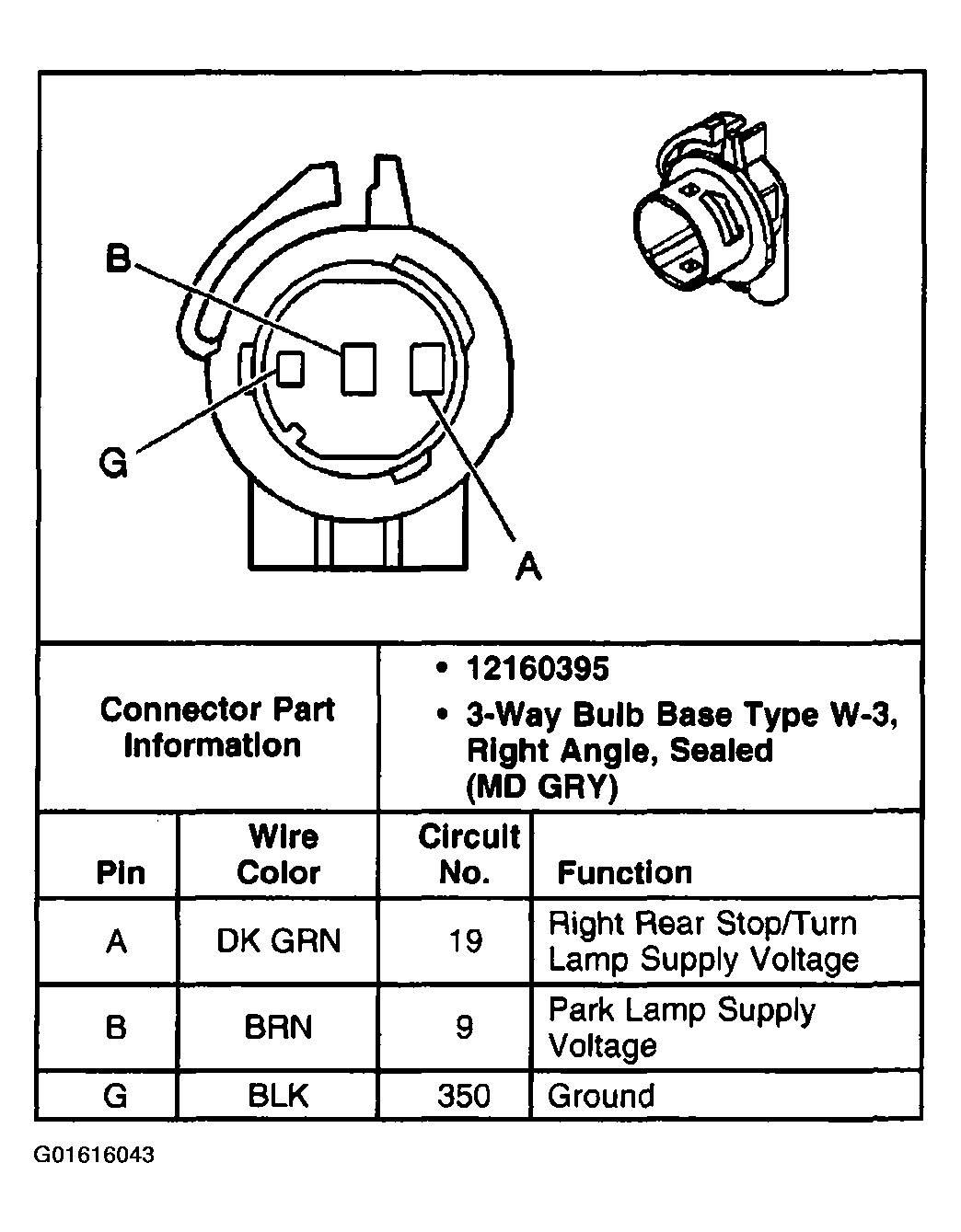

Fig 38: Tail/Stop and Turn Signal lamp - Right

G01616043

Courtesy of GENERAL MOTORS CORP.

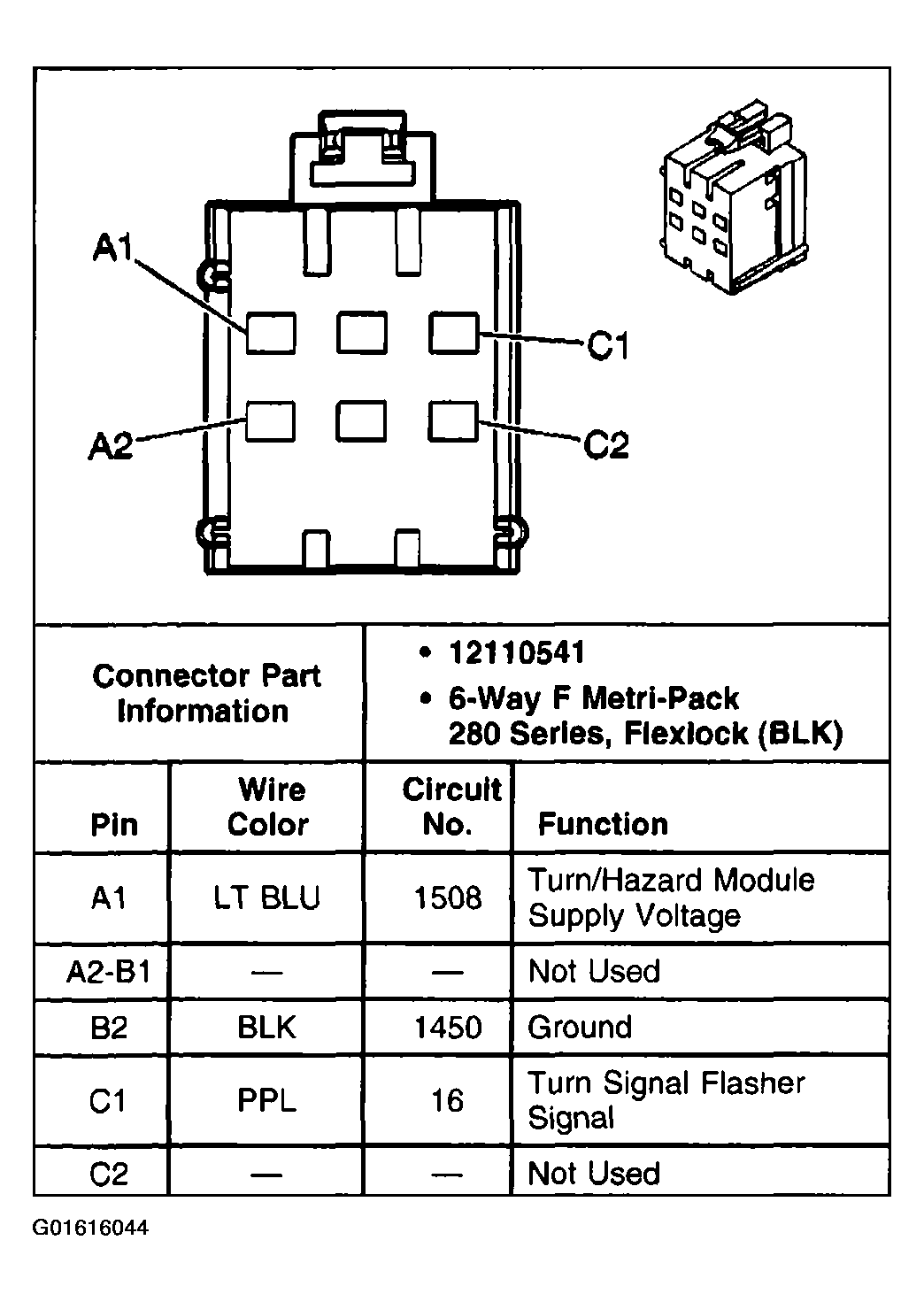

Fig 39: Turn Signal/Hazard Flasher Module

G01616044

Courtesy of GENERAL MOTORS CORP.

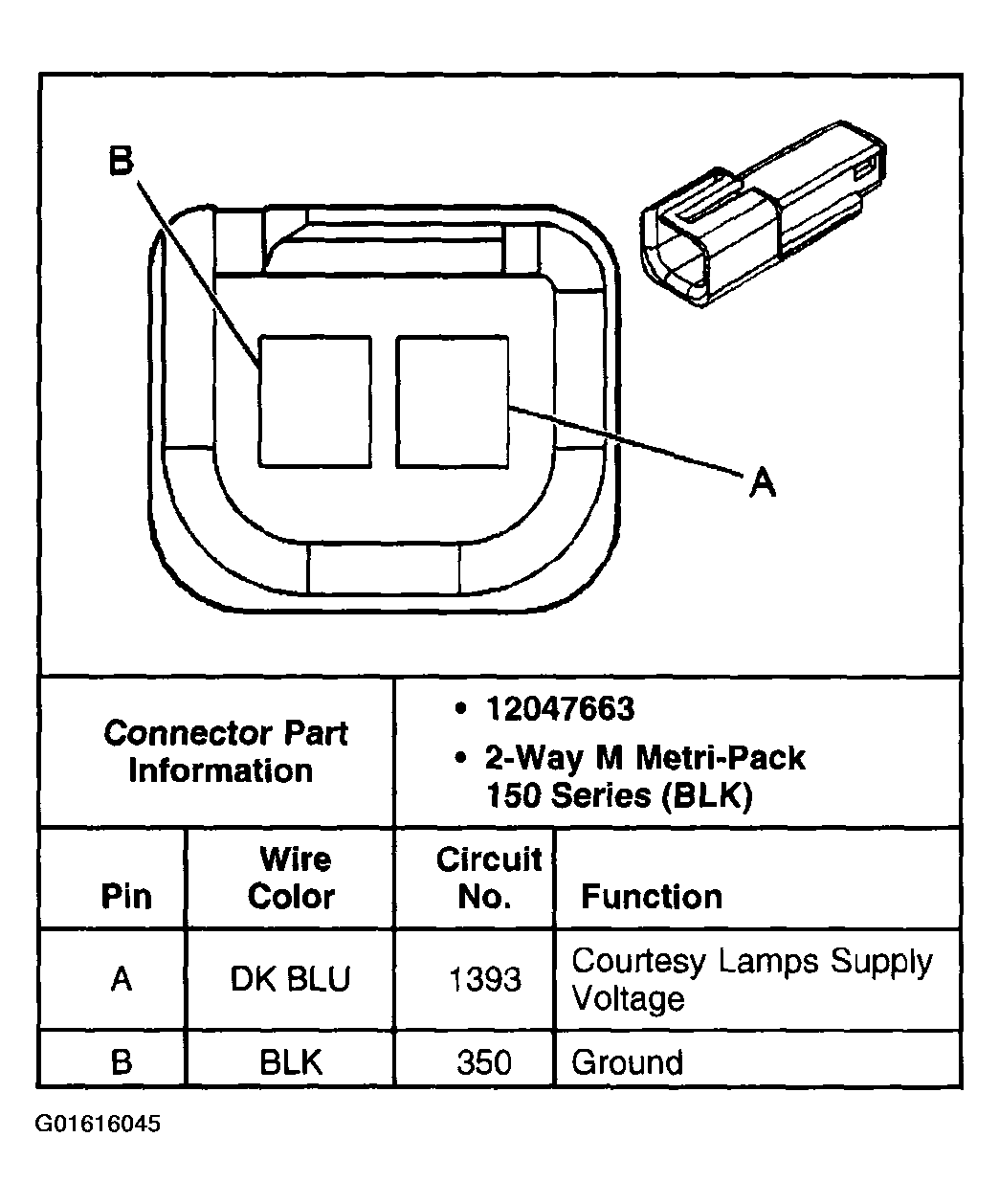

Fig 40: Vanity Mirror Lamp - Left

G01616045

Courtesy of GENERAL MOTORS CORP.

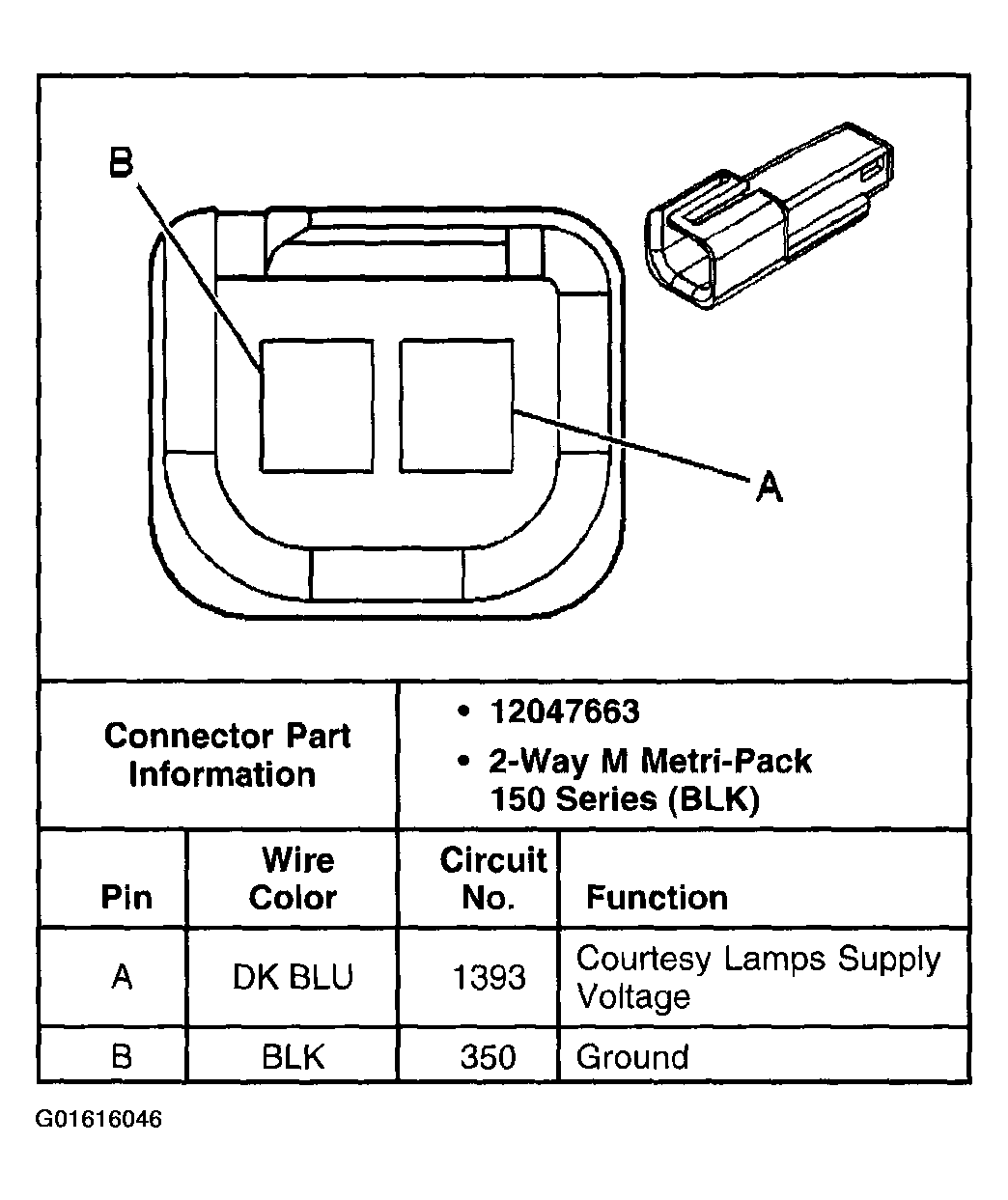

Fig 41: Vanity Mirror Lamp - Right

G01616046

Courtesy of GENERAL MOTORS CORP.
