Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp bezel by using a small flat-bladed tool to release the 2 rear retaining tabs.

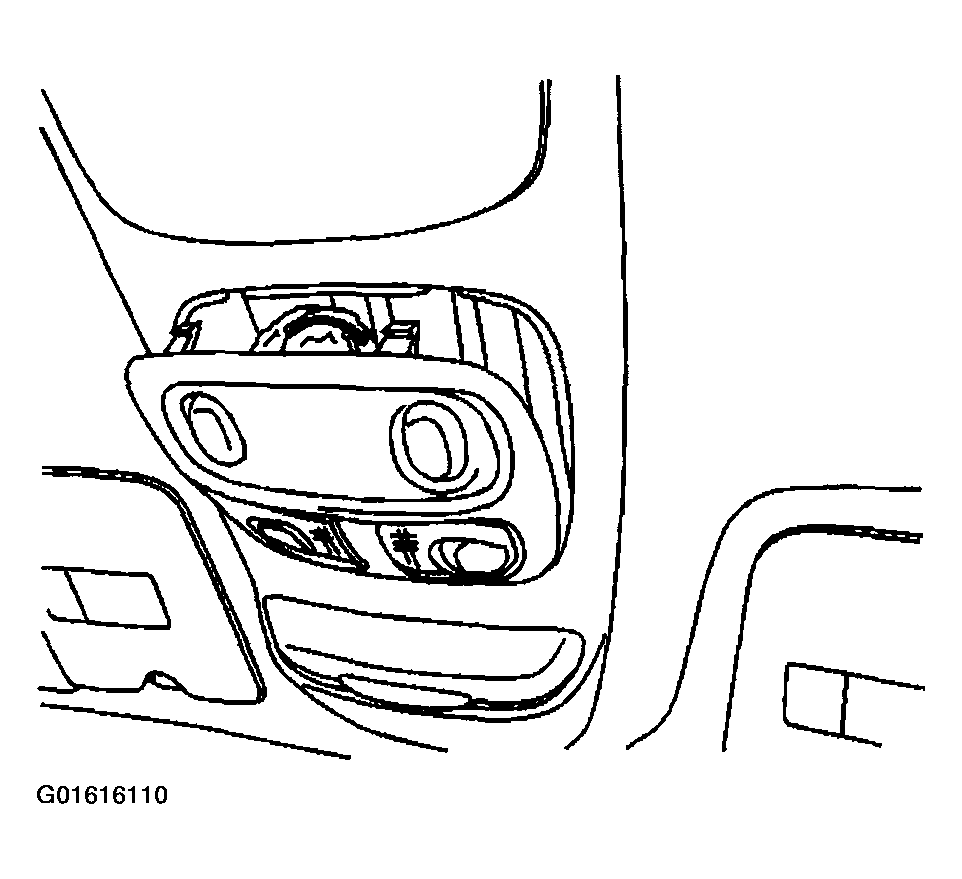

Fig 1: Overhead Console Lamp Bezel
Courtesy of GENERAL MOTORS CORP.
Lower the rear edge of the bezel, releasing the forward locating tab.

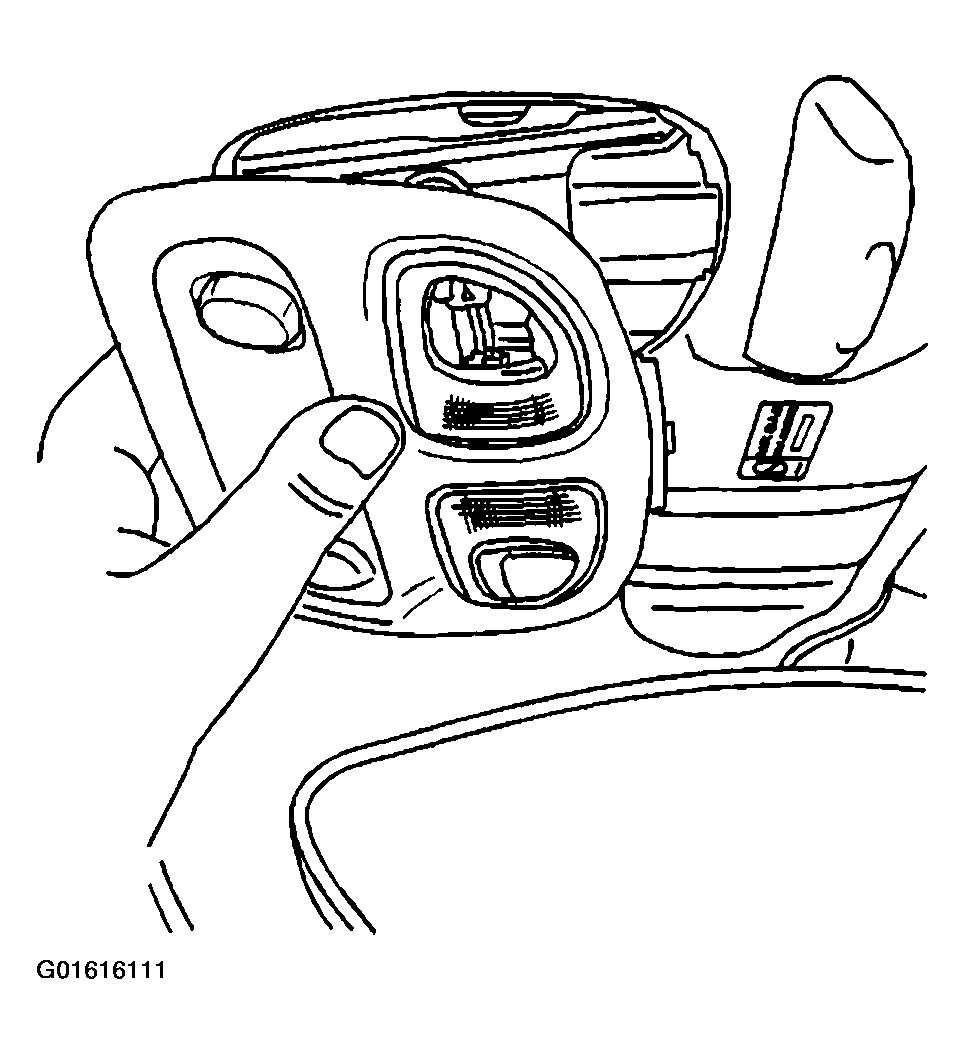

Fig 2: Releasing Overhead Console Lamp Bezel Forward Locating Tab
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the overhead console lamp.

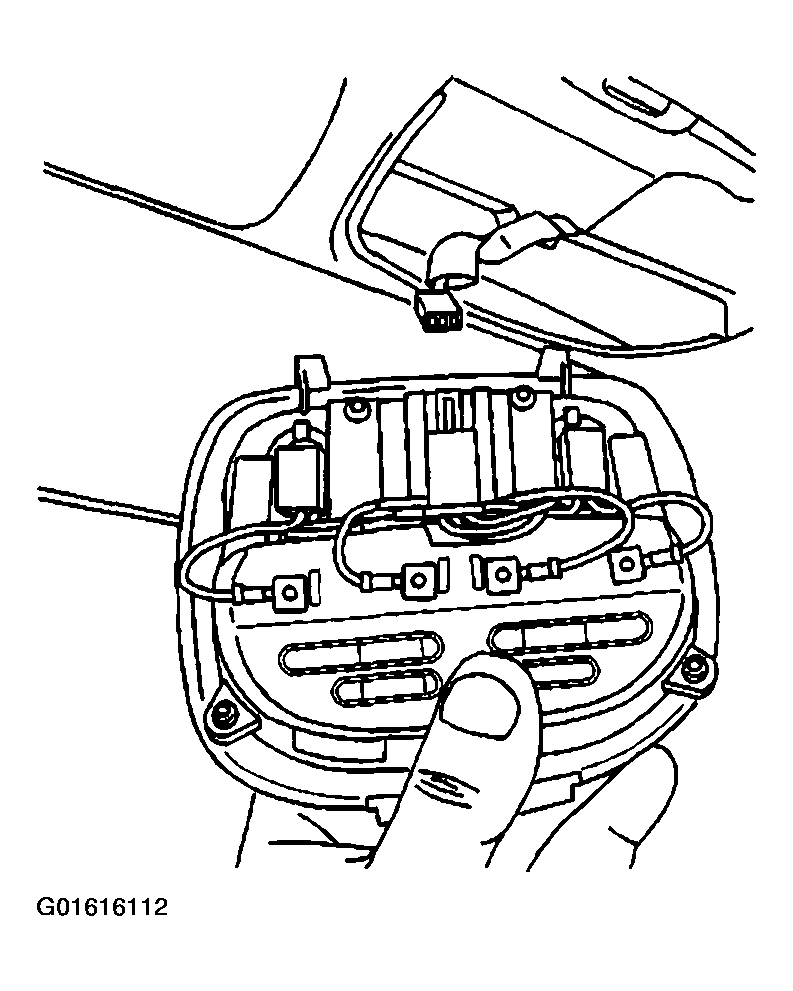

Fig 3: Disconnecting Electrical Connector From Overhead Console Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the lamp housing screws.

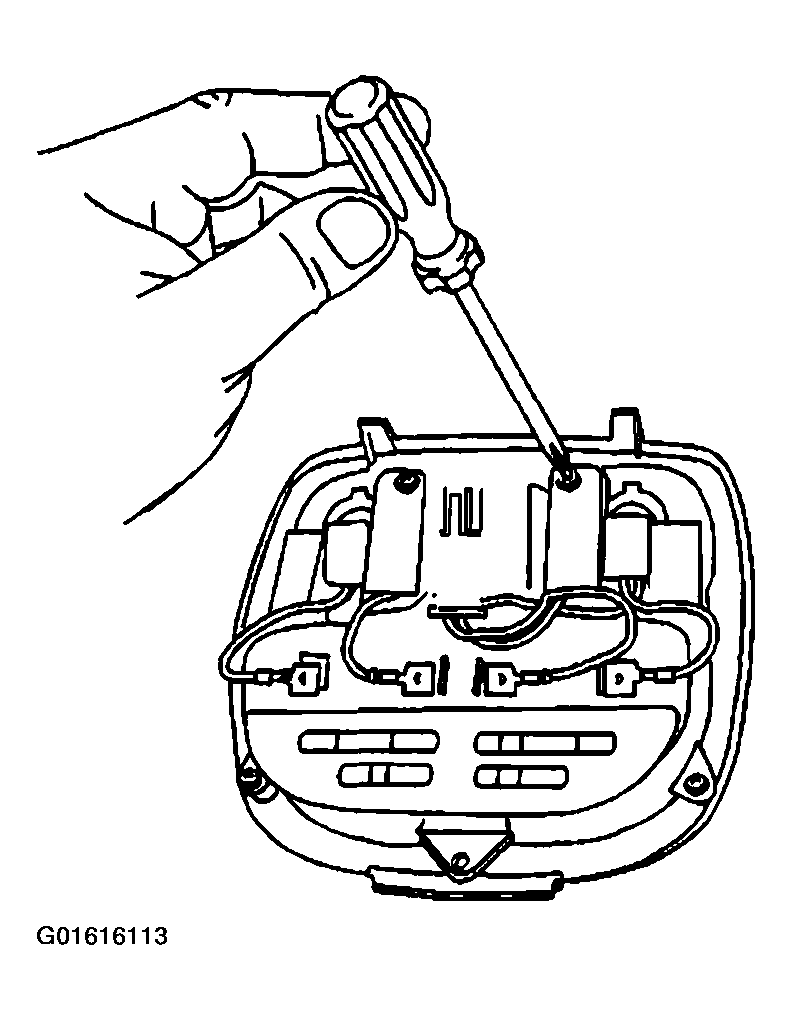

Fig 4: Removing Lamp Housing Screws
Courtesy of GENERAL MOTORS CORP.
Remove the bezel and the lens from the overhead console lamp housing.

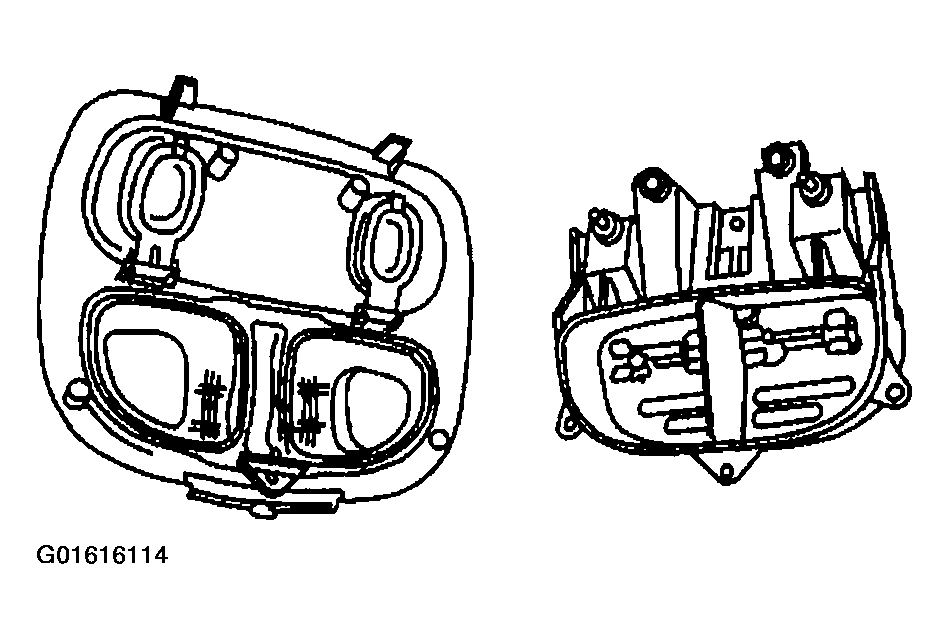

Fig 5: Removing Bezel & Lens From Lamp Housing
Courtesy of GENERAL MOTORS CORP.
Remove the bulb(s) from the socket(s) using a small flat-bladed tool.

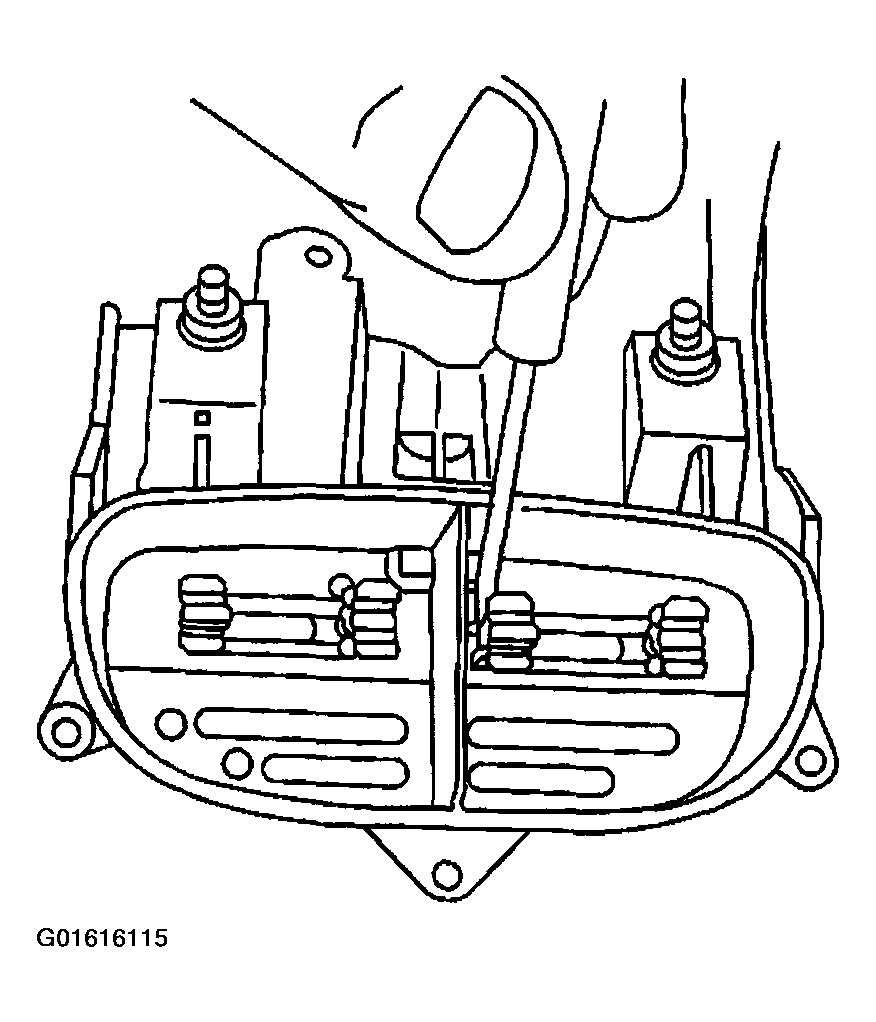

Fig 6: Removing Bulbs
Courtesy of GENERAL MOTORS CORP.
