Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

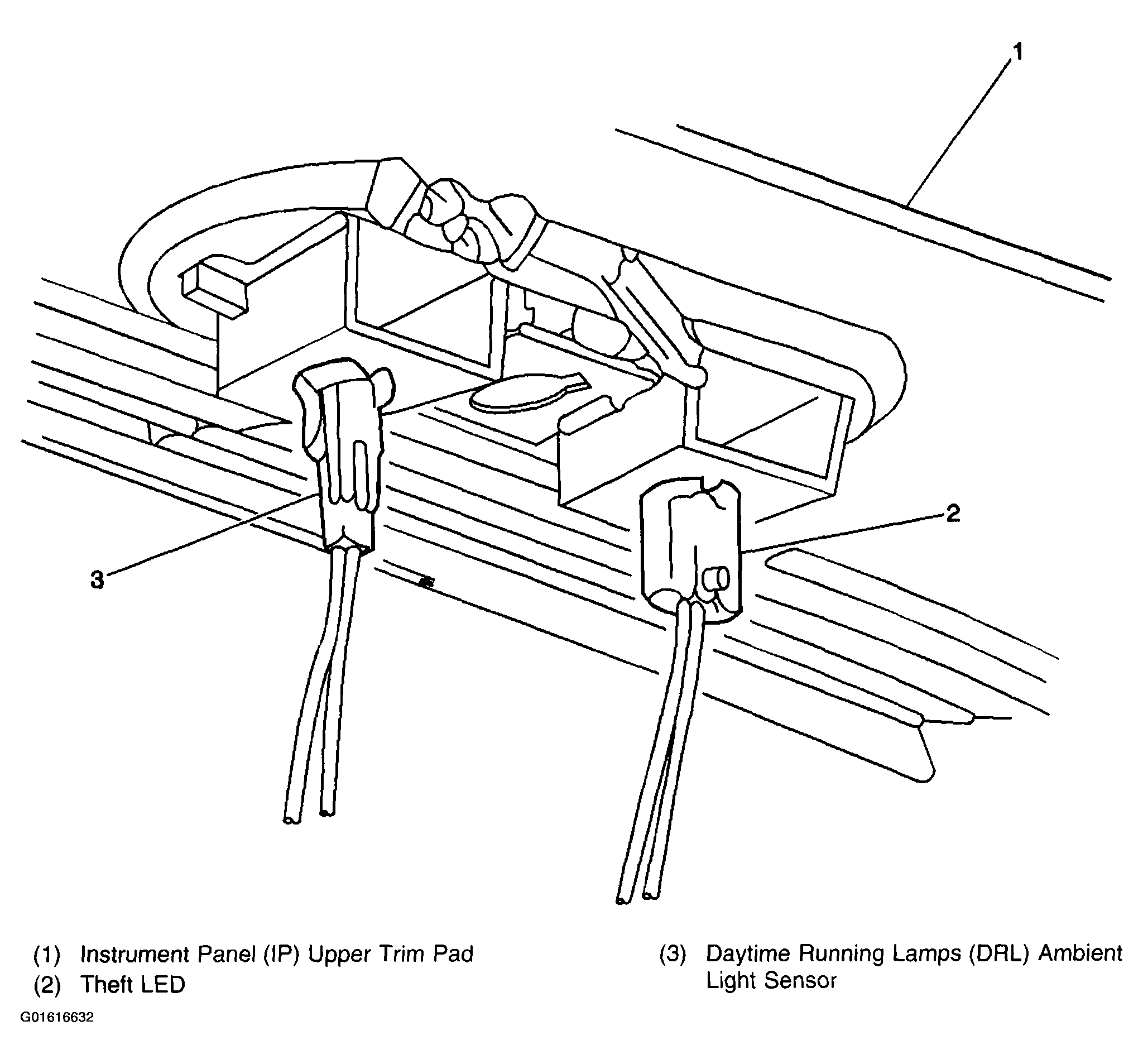

Fig 1: Top Center Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

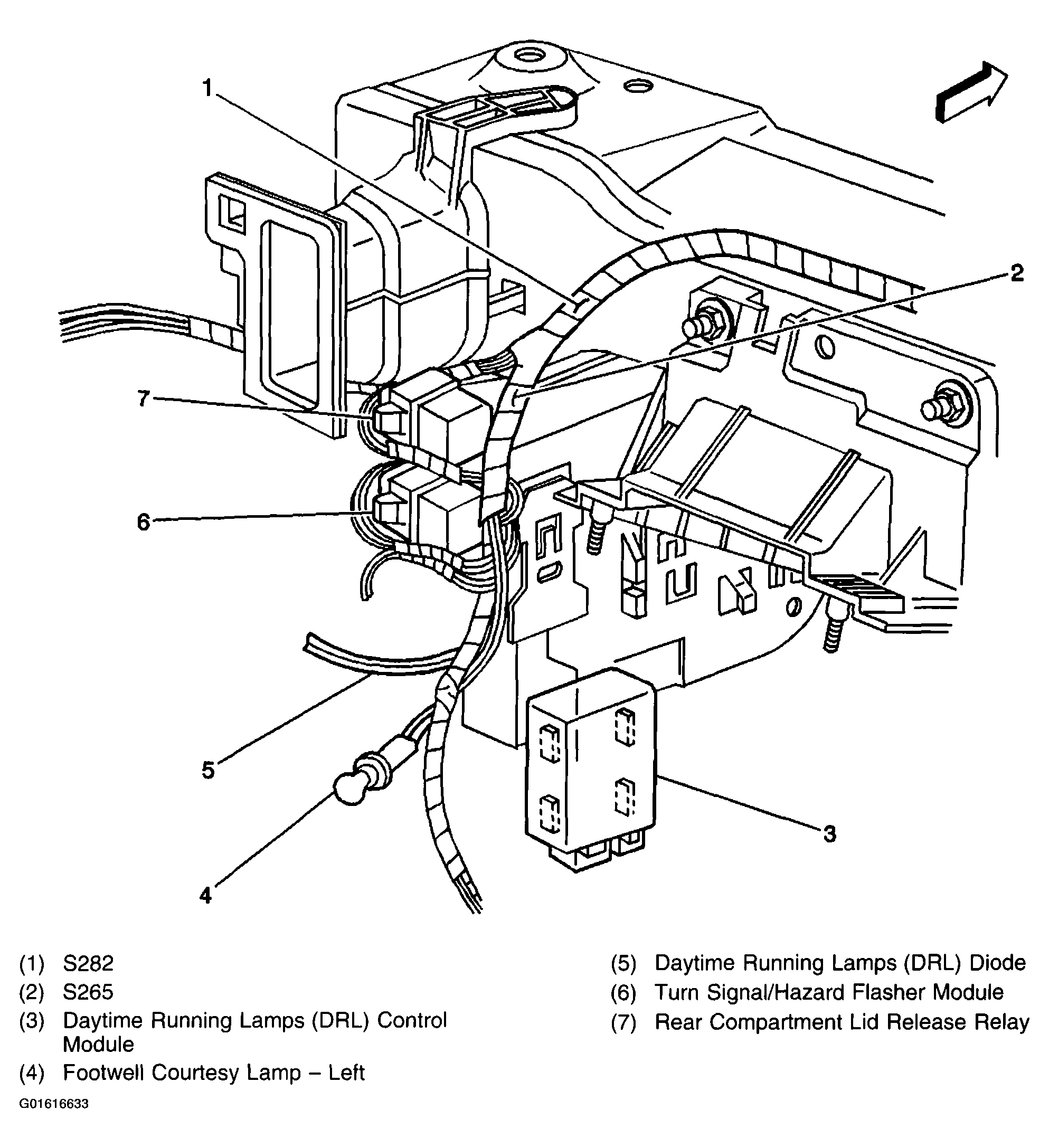

Fig 2: Below LH Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

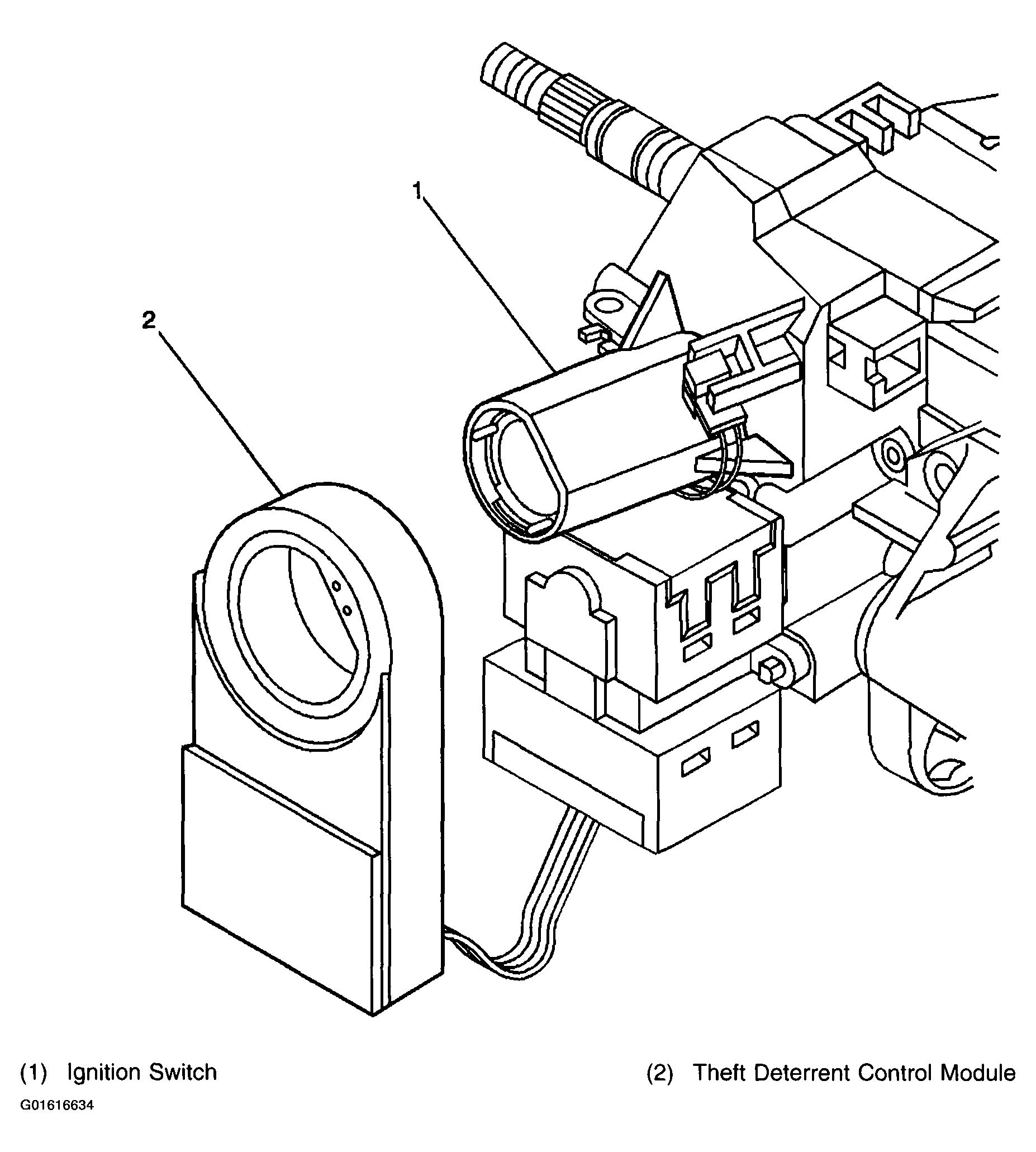

Fig 3: Steering Column (Theft Deterrent)

Courtesy of GENERAL MOTORS CORP.

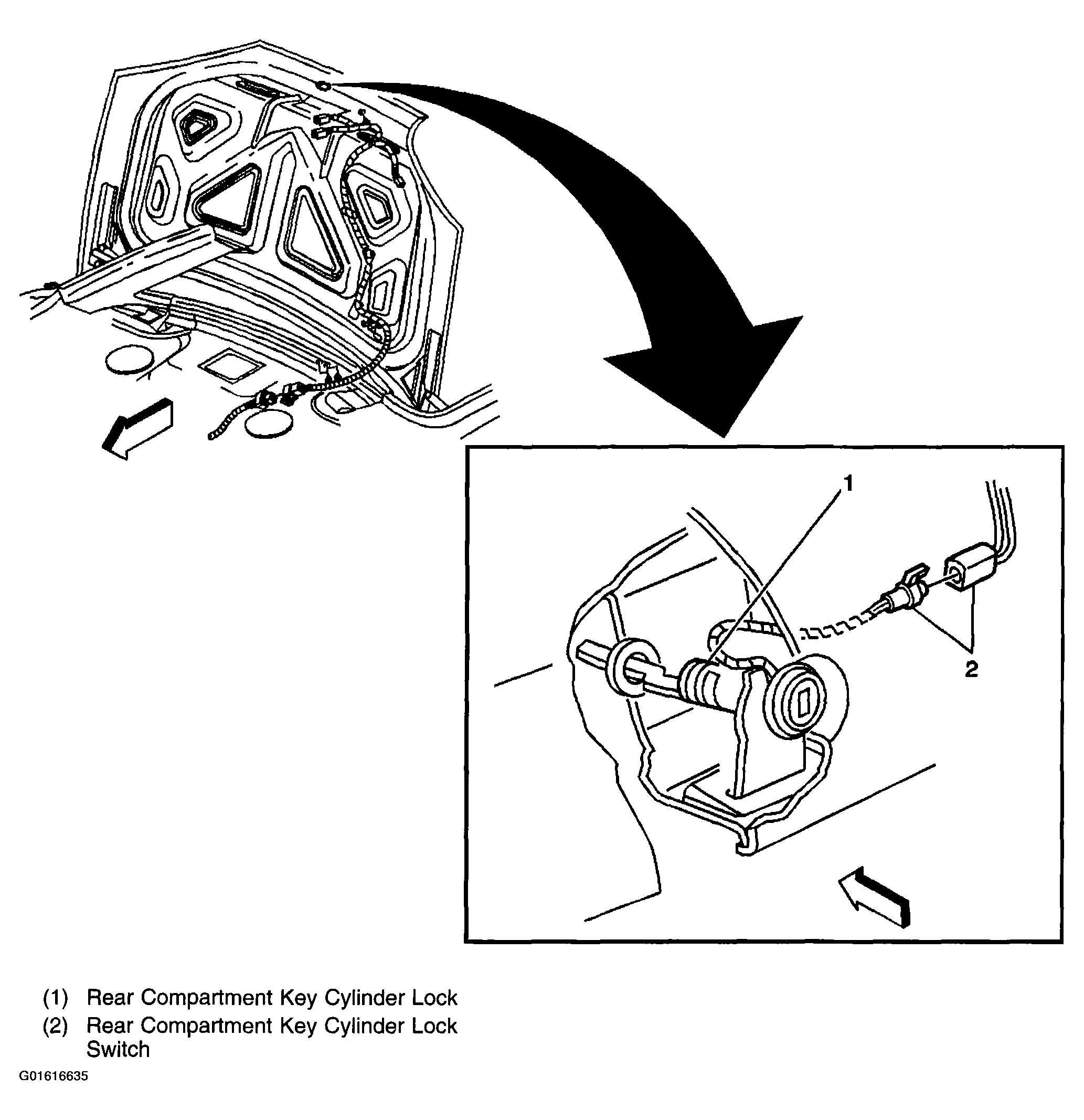

Fig 4: Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.
