Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Push the theft deterrent module (2), onto the lock cylinder housing (1).
Install the theft deterrent wiring harness to the steering column harness.
Connect the electrical connector.
Replace the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON VEHICLE .
Enable the SIR system. Refer to ACTIVATING SYSTEM .
Program the new theft control module. Refer to Programming Theft Deterrent System Components .

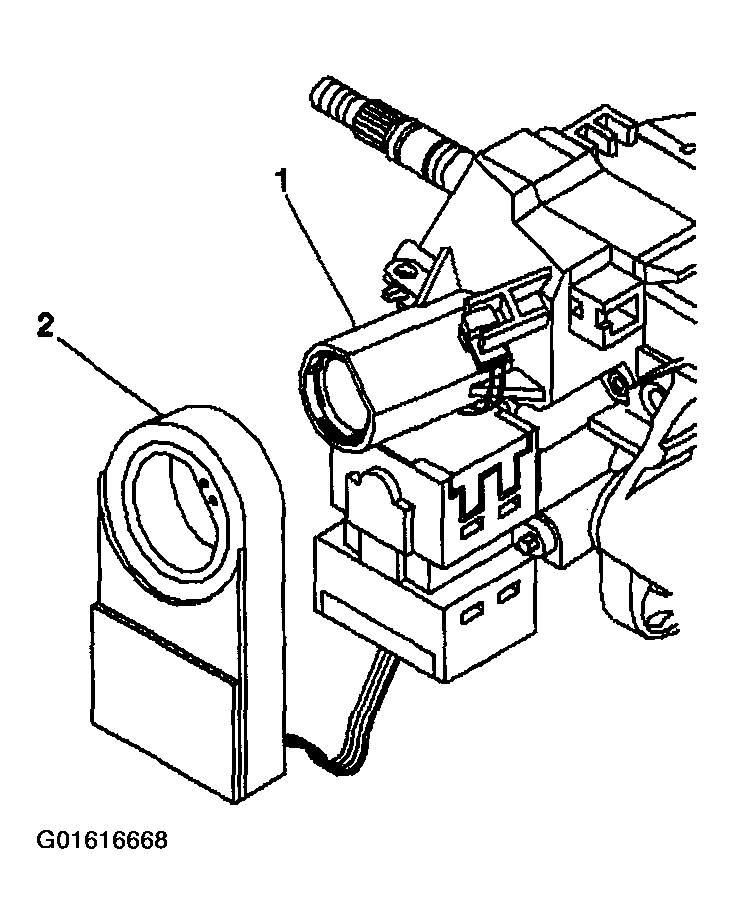

Fig 1: Theft Deterrent Module
Courtesy of GENERAL MOTORS CORP.
