Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR. Refer to DISABLING SYSTEM .
  2. Remove the trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON VEHICLE .
  3. Remove the theft deterrent module wiring harness from the steering column harness.
  4. Disconnect the electrical connector.
  5. Pull the theft deterrent module (2) away from the lock cylinder housing (1).

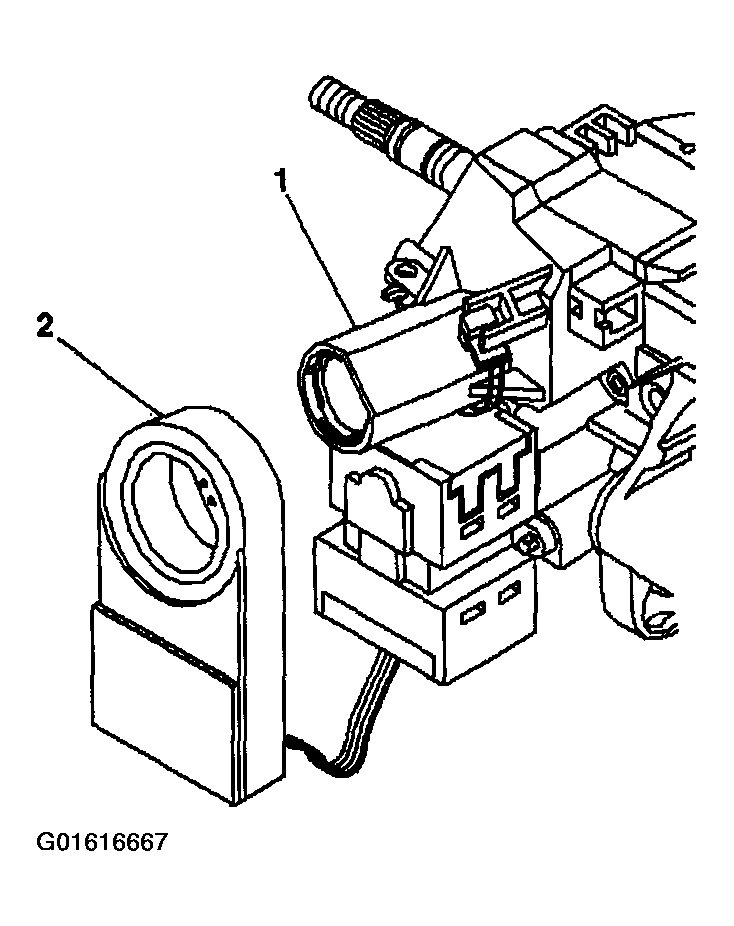

    Fig 1: Theft Deterrent Module
    G01616667Courtesy of GENERAL MOTORS CORP.
