Differential Carrier Assembly Disassembled View

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

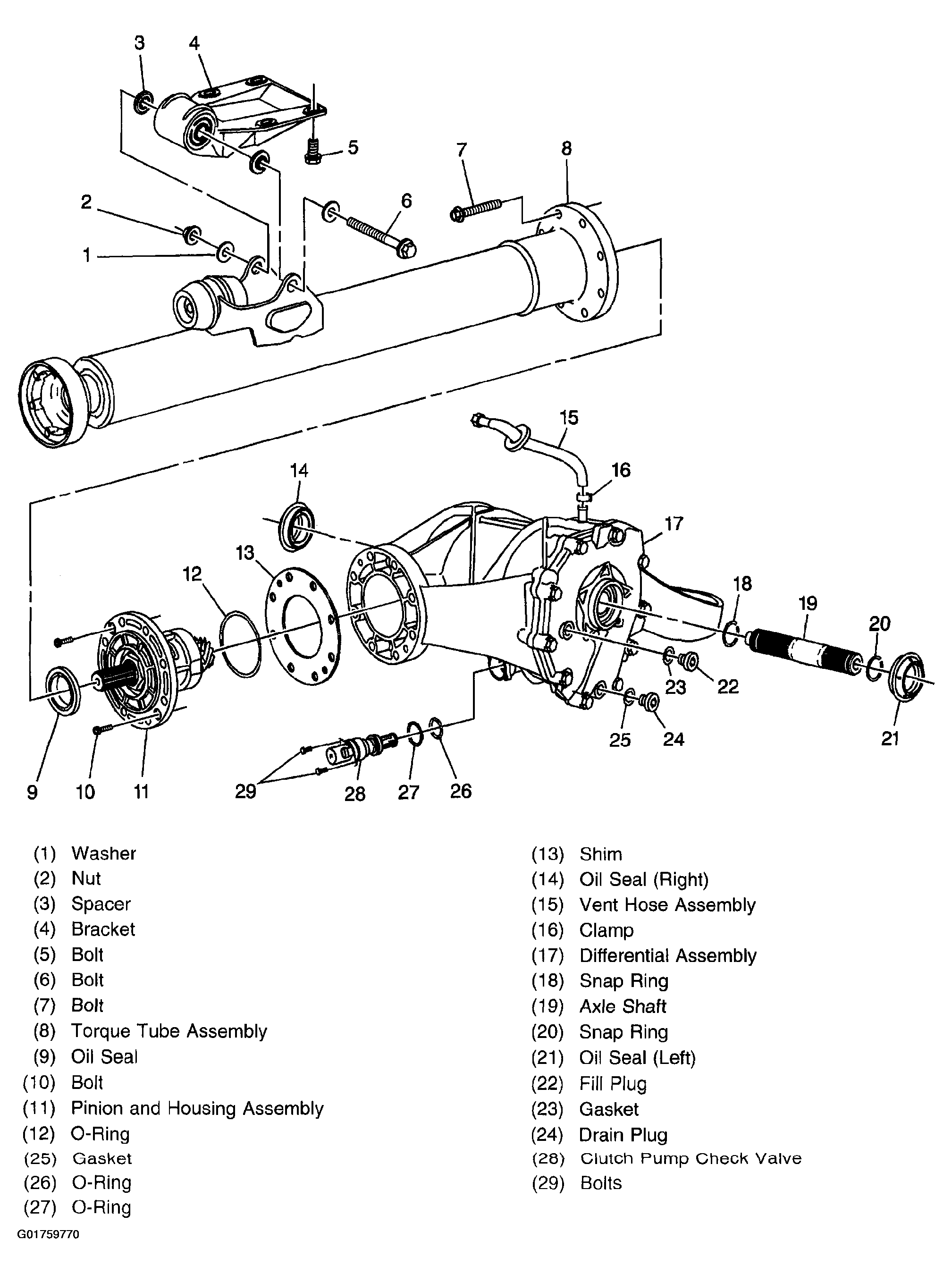

Fig 1: Differential Assembly
G01759770Courtesy of GENERAL MOTORS CORP.
