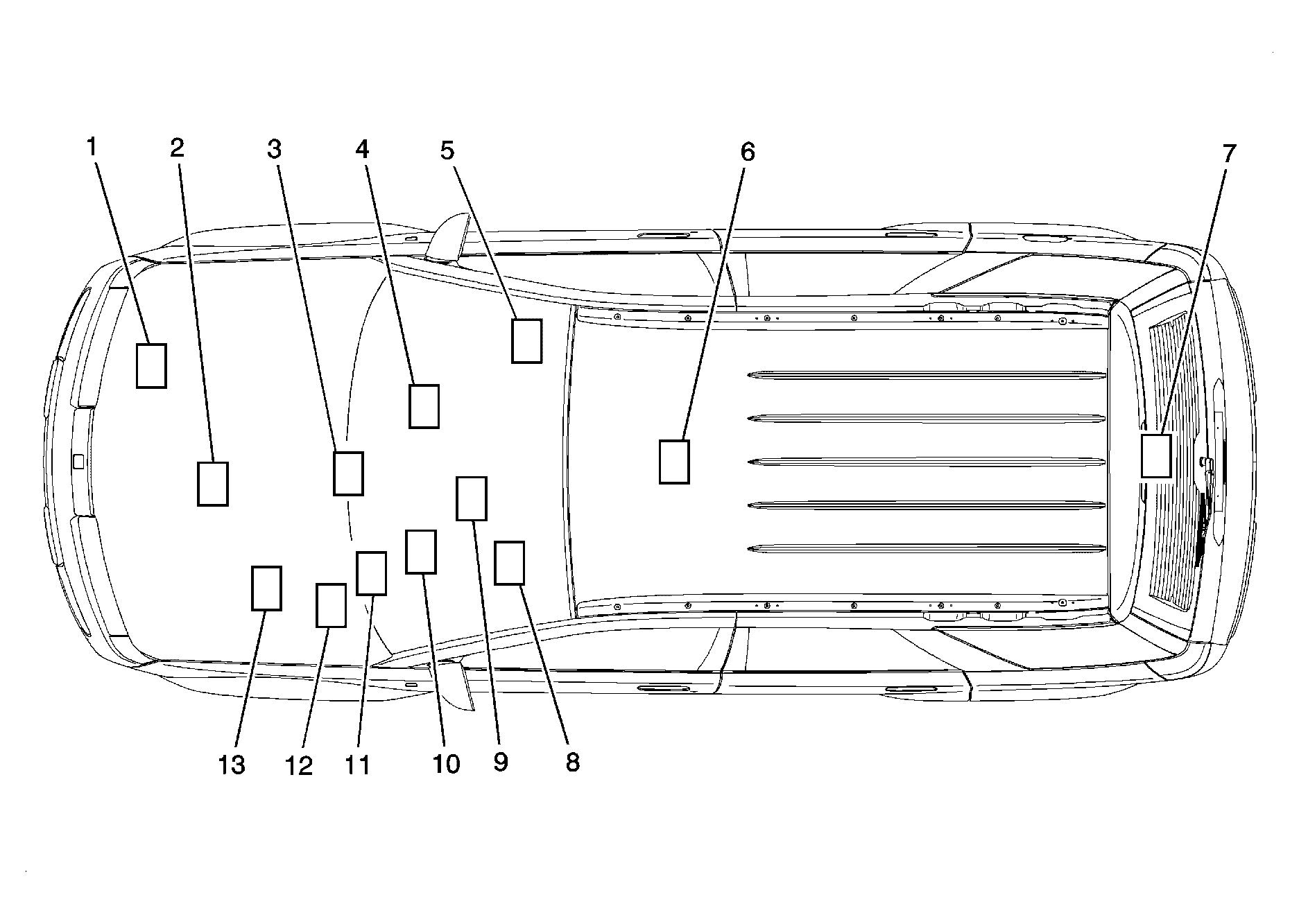

Data Link Communications Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Engine Control Module (ECM) - L61 |
| 2 | Engine Control Module (ECM) - L81 |
| 3 | Power Steering Control Module (PSCM) |
| 4 | Body Control Module (BCM), Radio |
| 5 | Door Lock Switch and Actuator - Front Passenger, Rest Similar |
| 6 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 7 | Liftgate Lock Actuator/Ajar Switch |
| 8 | Data Link Connector (DLC) |
| 9 | Vehicle Communication Interface Module (VCIM) |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Passlock Sensor |
| 12 | Transmission Control Module (TCM) |
| 13 | Electronic Brake Control Module (EBCM) |
