Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Position the express module to the sunroof module.
Connect the electrical connectors to the ends of the express module.

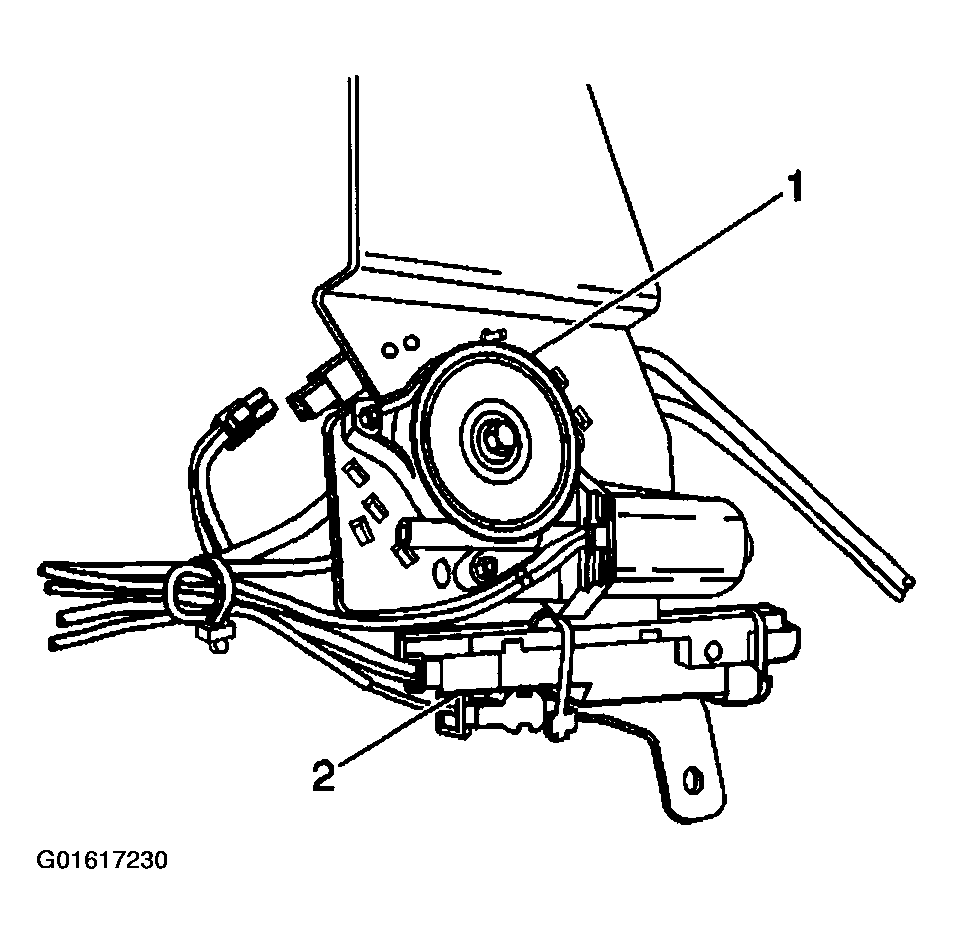

Fig 1: Power Sunroof Express Module
Courtesy of GENERAL MOTORS CORP.
Install the express module to the sunroof module by sliding it to the right to engage the retainers.

Fig 2: Power Sunroof Express Module Retainers
Courtesy of GENERAL MOTORS CORP.
Install the nylon tie straps at both ends of the express module (2).
Check the operation of the sunroof module to all positions.
Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

Fig 3: Nylon Tie Straps
Courtesy of GENERAL MOTORS CORP.
