Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
Remove the nylon tie straps located from both ends of the express module (2).

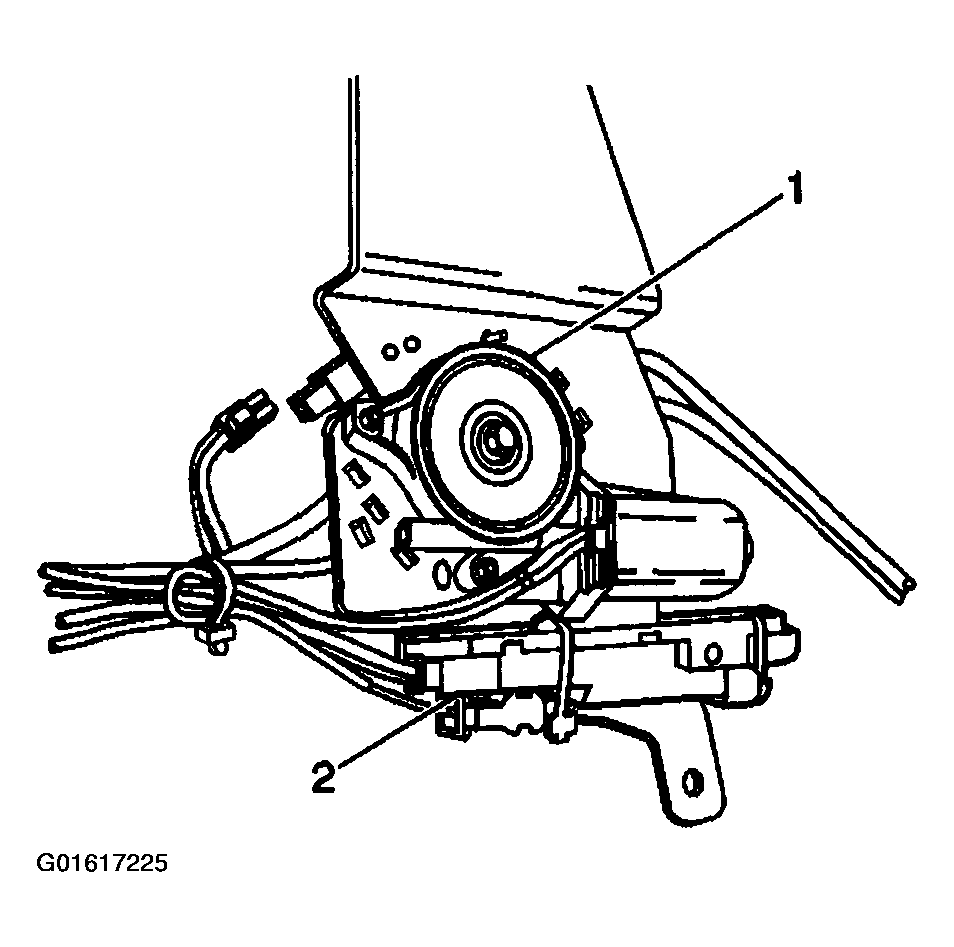

Fig 1: Nylon Tie Straps
Courtesy of GENERAL MOTORS CORP.
Release the express module retainers from the metal bracket by sliding the express module toward the left side of the vehicle.

Fig 2: Power Sunroof Express Module Retainers
Courtesy of GENERAL MOTORS CORP.
Remove the express module from the sunroof module.
Disconnect the electrical connectors from the express module.
Remove the express module from the vehicle.

Fig 3: Power Sunroof Express Module
Courtesy of GENERAL MOTORS CORP.
