Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Make sure the O-ring (1) is installed.

Install the rear wheel position sensor (2) to the steering gear.
Important: Be careful to maintain the position of the replacement sensor.
Remove the pin retaining the position of the new sensor and immediately install the sensor to the steering gear.
NOTE: Refer to FASTENER NOTICE .
Install the rear wheel position sensor retaining bolts. Apply LOCTITE 242 blue.
Tighten

Tighten the bolts to 4 N.m (35 lb in).
Install the rear wheel position sensor cover (4).

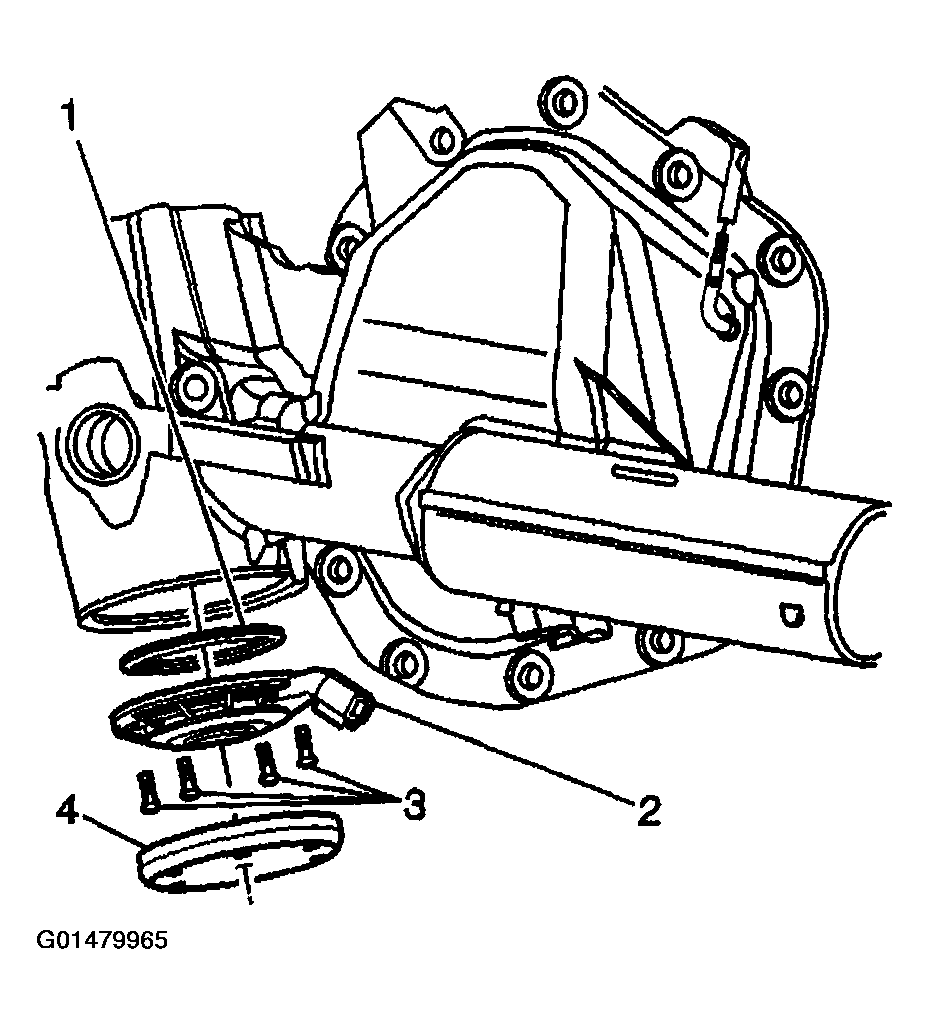

Fig 1: Rear Wheel Position Sensor Cover, Retaining Bolts & Sensor
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (1).

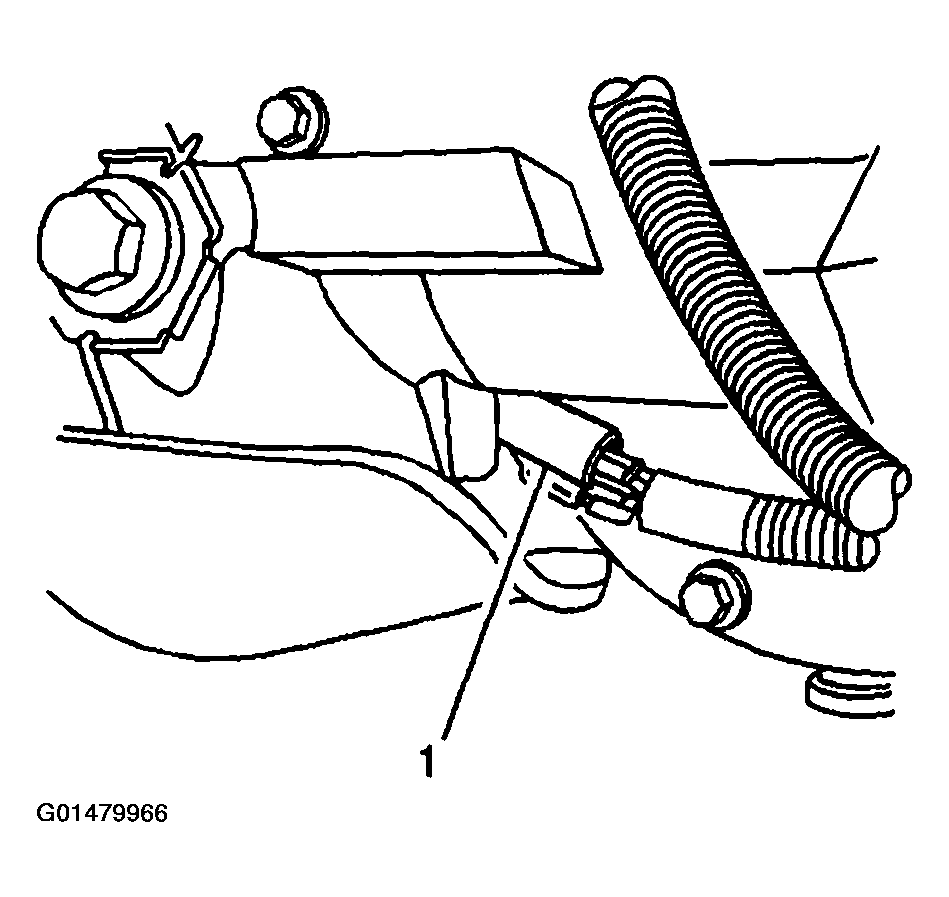

Fig 2: Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the steering gear protection shield (1) and retaining bolts (3).
Tighten

Tighten the steering gear protection shield retaining bolts to 180 N.m (132 lb ft).
Lower the vehicle.
Perform a four wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) .

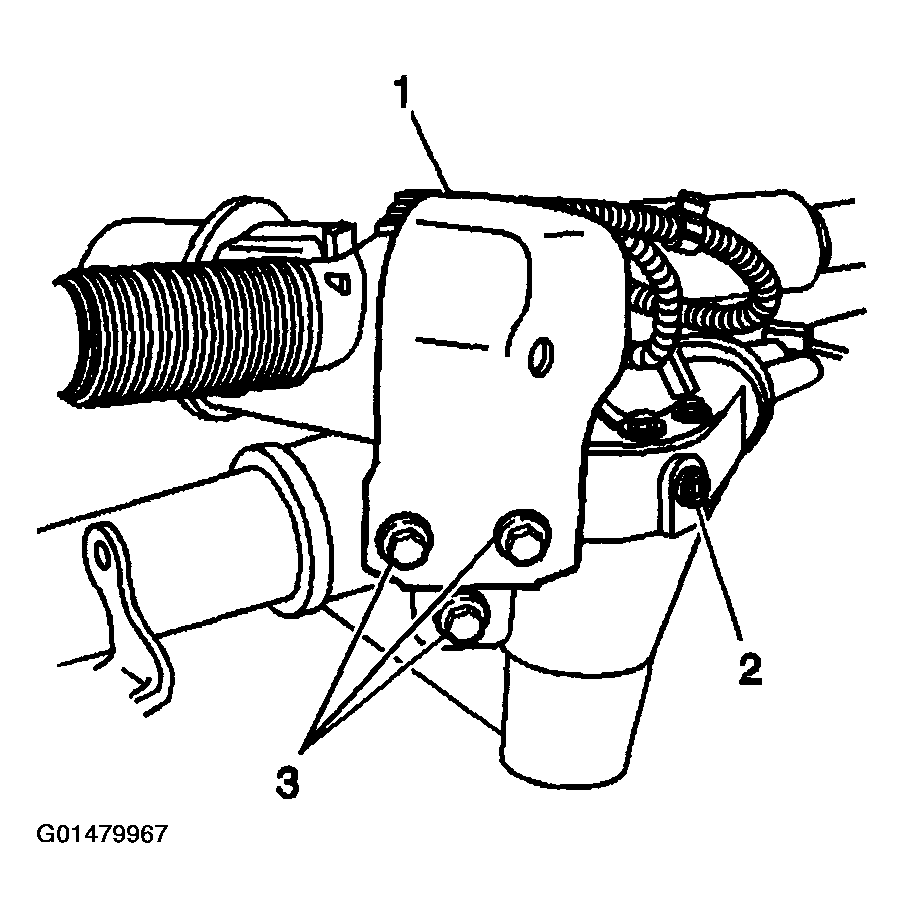

Fig 3: Steering Gear Protection Shield & Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
