Inflatable Restraint Roof Rail Module - Left (w/ASF)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

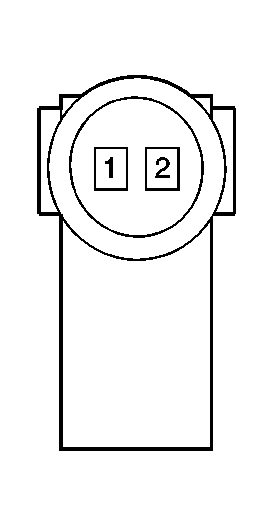

Fig 1: Inflatable Restraint Roof Rail Module - Left (w/ASF) Connector End Views
GM1593399Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Roof Rail Module - Left (w/ASF) Connector Parts Information

Connector Part Information
  • OEM: 1642628-1
  • Service: See Catalog
  • Description: 2-Way M 280 Series (YE)
Inflatable Restraint Roof Rail Module - Left (w/ASF) Connector Terminal Identification

Pin Wire Color Circuit Number Function
A BN 2137 Side Impact Module - LF - High Control
B YE/BK 2138 Side Impact Module - LF - High Control
