Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

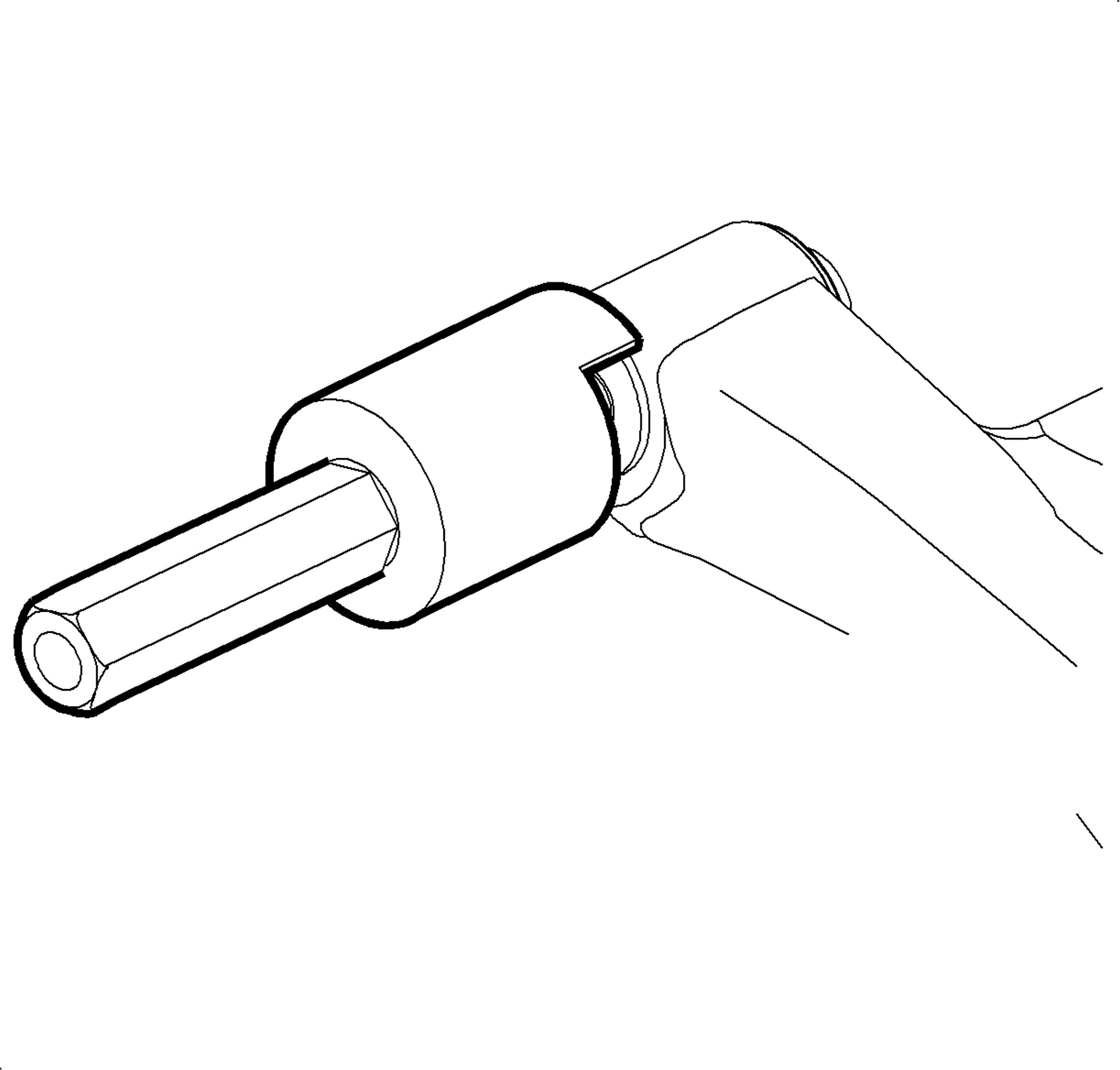

    Fig 1: Front Control Arm Bushing
    GM932904Courtesy of GENERAL MOTORS CORP.
  1. Use the J 44971  to press in the front control arm bushing. See Special Tools .
  2. Install he lower control arm. Refer to Lower Control Arm Replacement .
  3. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Lower the vehicle.
