Horn Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

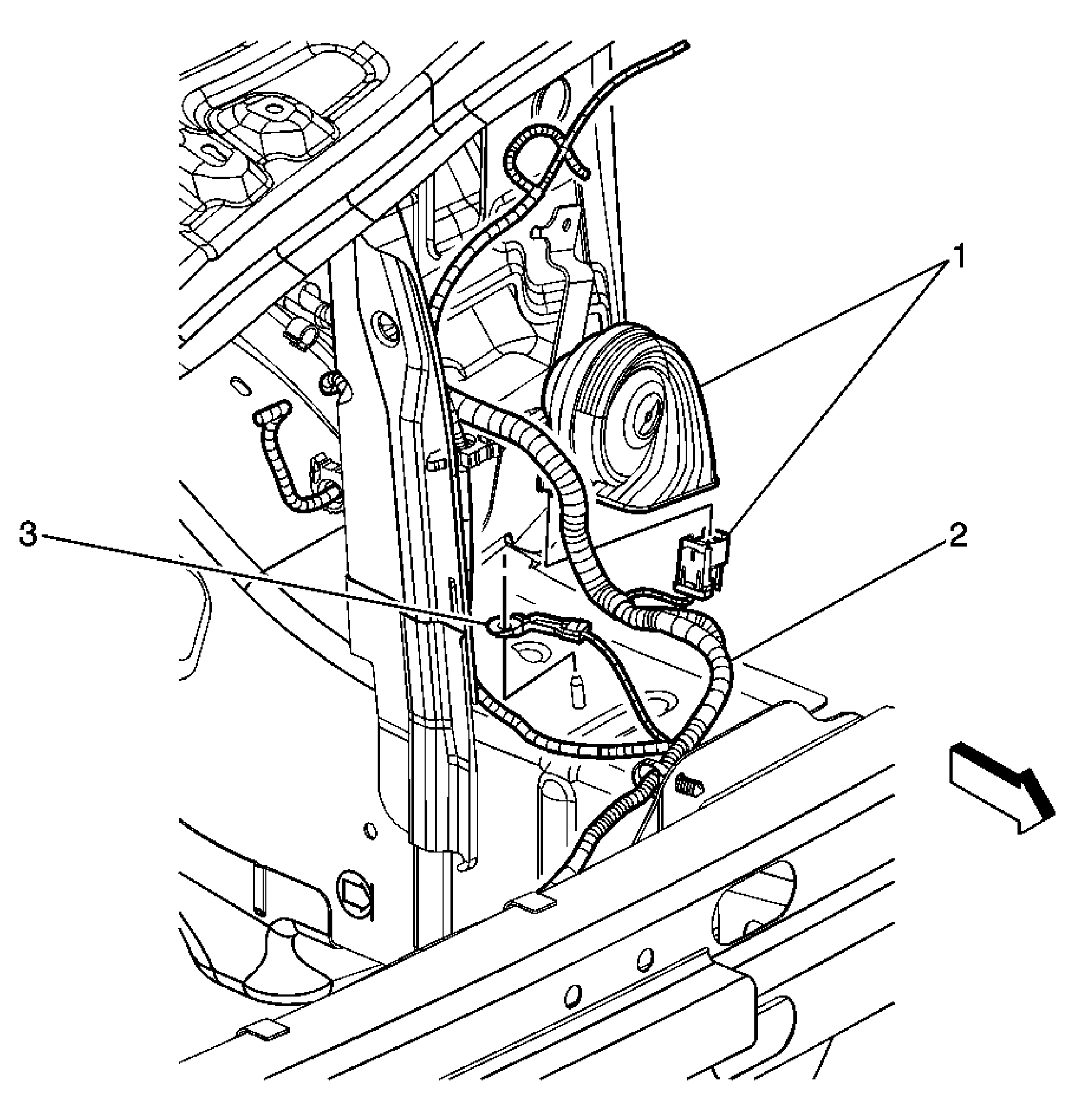

Fig 1: Horn Location
GM1653144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn
2 Forward Lamp Harness
3 G101
Fig 2: Steering Wheel Components (3-Spoke)
GM1692464Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left
2 Steering Wheel Controls - Right
3 Horn Switch
