Installation Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

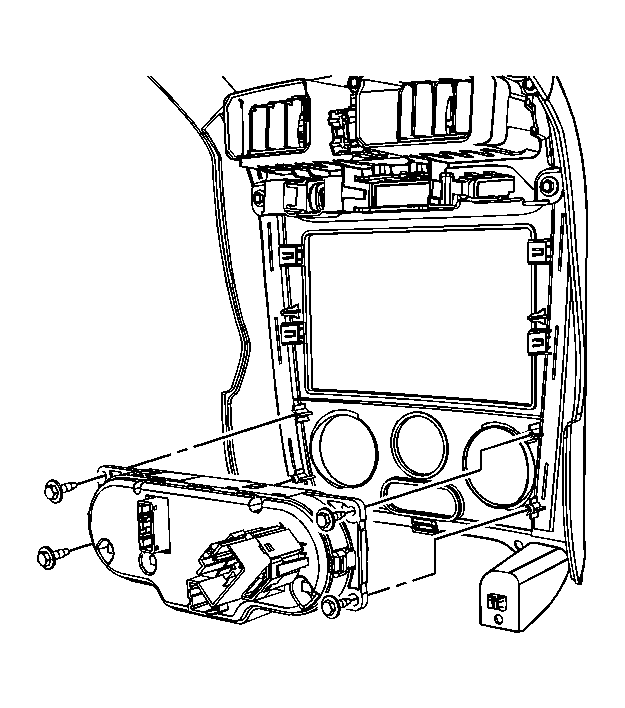

- Install the HVAC control module to the center trim bezel.
- Install the HVAC control module screws to the center trim bezel.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
- Connect the electrical connectors to the HVAC control module.
- Connect the remaining electrical connectors to the center trim bezel.
- Install the center trim bezel to the I/P. Refer to Instrument Panel Accessory Bezel Replacement .
- Install the I/P storage compartment. Refer to Instrument Panel Storage Compartment Replacement .
- Install the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .
- Calibrate the mode door by simultaneously pushing the A/C and RECIRC buttons on the HVAC control module 3 times each, within 2 seconds of initial push.
- The A/C and RECIRC button LED's will flash while this calibration is taking place.
- The calibration will take anywhere between 10-30 seconds depending on battery voltage.
- The LED's will quit flashing when the calibration is complete.
- Cycle the ignition and verify proper operation.
- Refer to Control Module References for programming and setup information.
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
Any time an HVAC module mode actuator or the HVAC control module is replaced, the HVAC control module must be calibrated to ensure proper air distribution.
