Dome Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

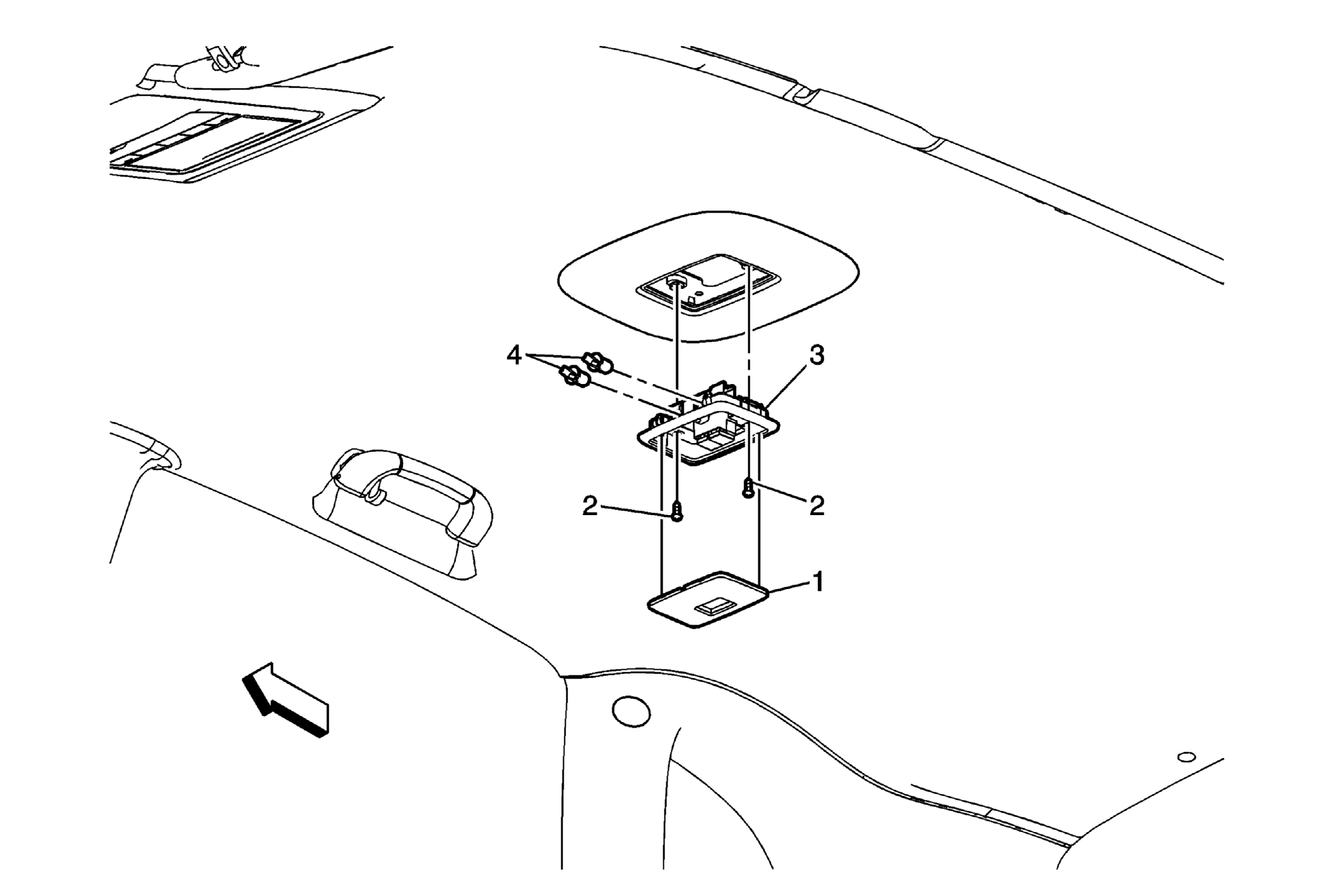

| Callout | Component Name |
|---|---|
| 1 | Dome Lamp Lens Procedure: Carefully use a plastic flat-bladed tool to remove the lens from the dome lamp assembly. |
| 2 | Dome Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Dome Lamp Assembly Procedure: Disconnect the electrical connection. |
| 4 | Reading Lamp Bulb (Qty: 2) |
