Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

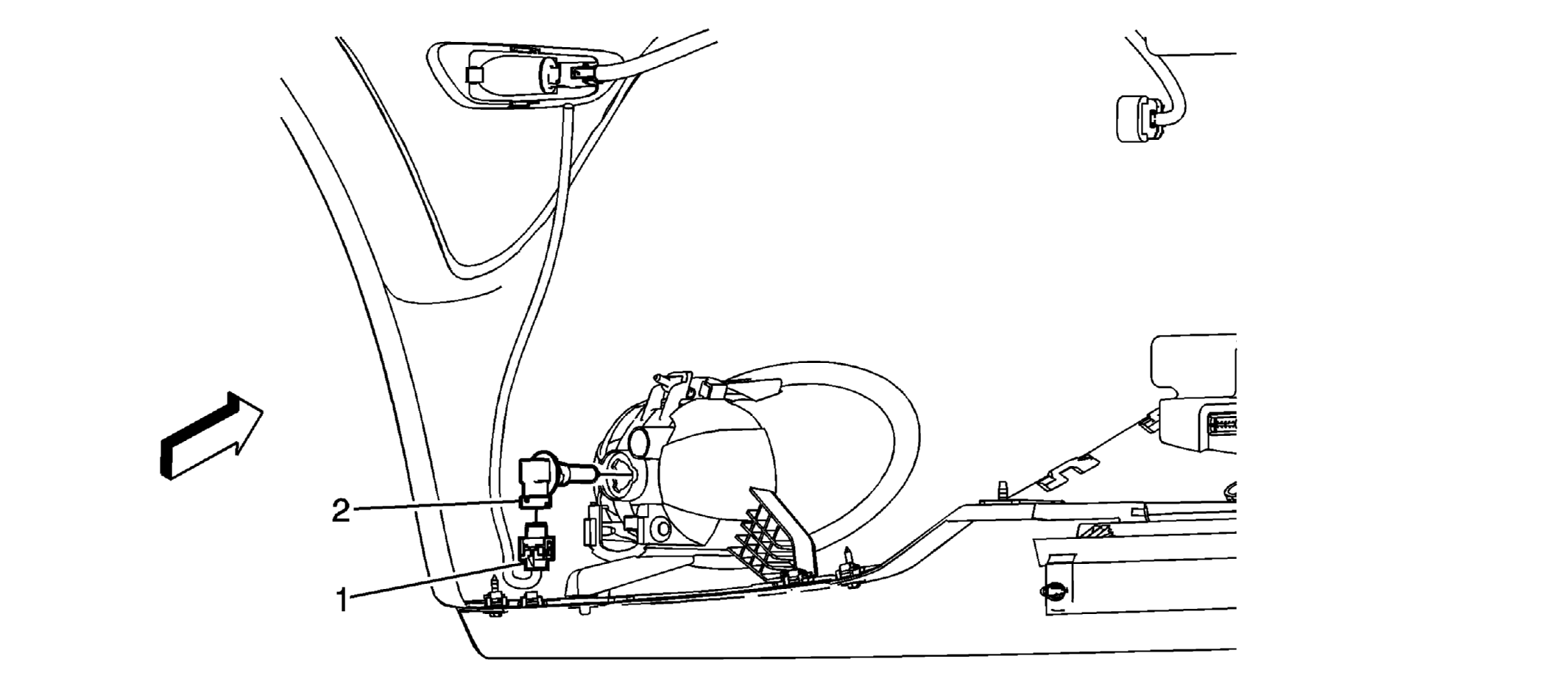

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Fog Lamp Assembly Electrical Connector
2	Front Fog Lamp Assembly Bulb Rotate and remove the bulb socket assembly from the fog lamp housing.
