Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

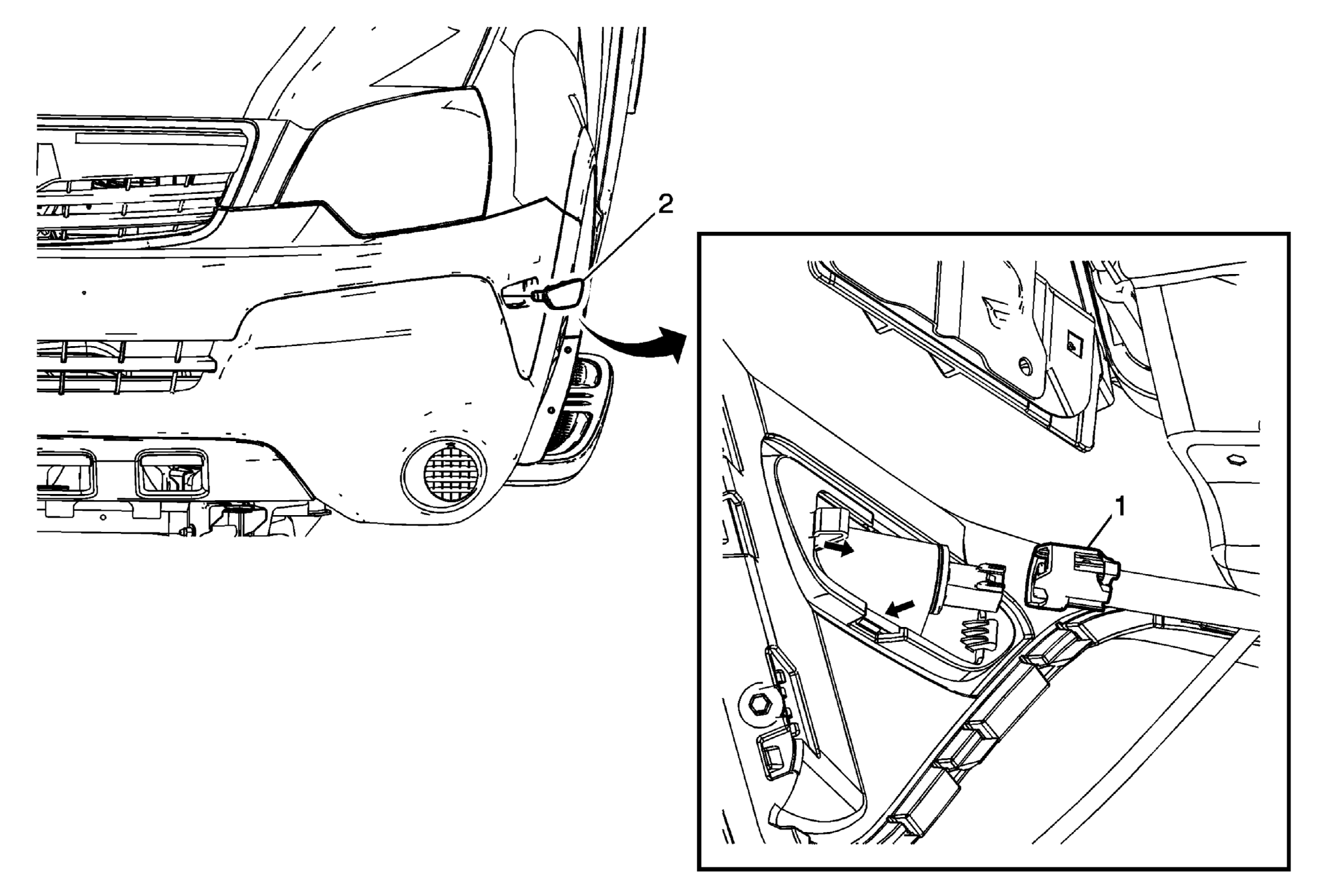

Fig 1: Front Side Marker Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Forward Lamp Harness Electrical Connector Tip: Disconnect the electrical connector from the lamp socket.
2	Front Side Marker Lamp Assembly Procedure Squeeze the rearward lamp assembly tab forward. Push outward from the rear edge of the lamp. Pull the lamp rearward to remove from the upper bumper fascia.

Callout

Component Name

Preliminary Procedure:
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Forward Lamp Harness Electrical Connector
Tip: Disconnect the electrical connector from the lamp socket.

Front Side Marker Lamp Assembly

Procedure

Squeeze the rearward lamp assembly tab forward.
Push outward from the rear edge of the lamp.
Pull the lamp rearward to remove from the upper bumper fascia.
