Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

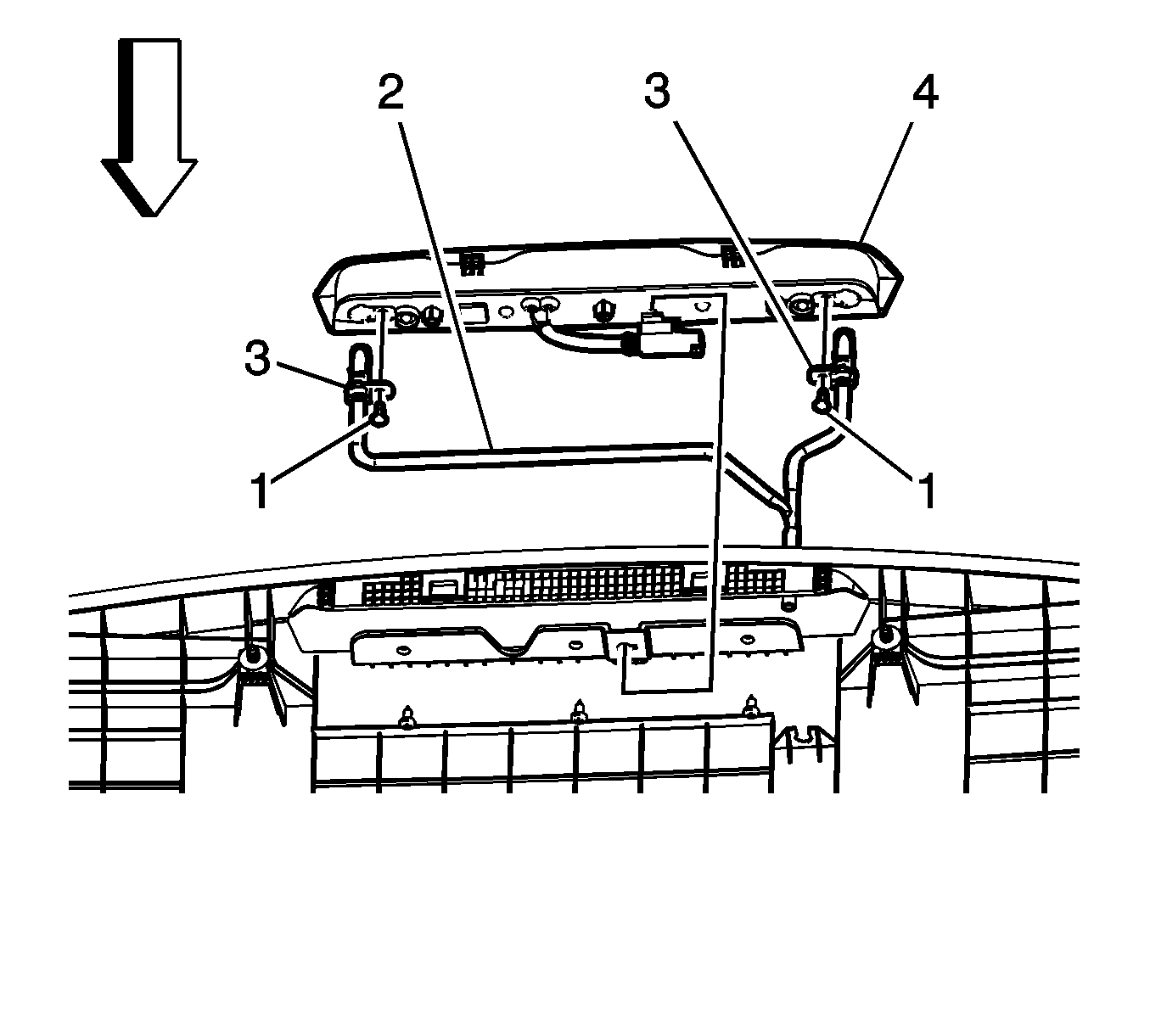

    Fig 1: Washer Nozzle Screws
    GM1872833Courtesy of GENERAL MOTORS CORP.
  1. Install the washer nozzles (3) into the rear high mounted stop lamp assembly (4).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the rear window washer nozzle screws (1). Tighten the screws to 2 N.m (18 lb in).

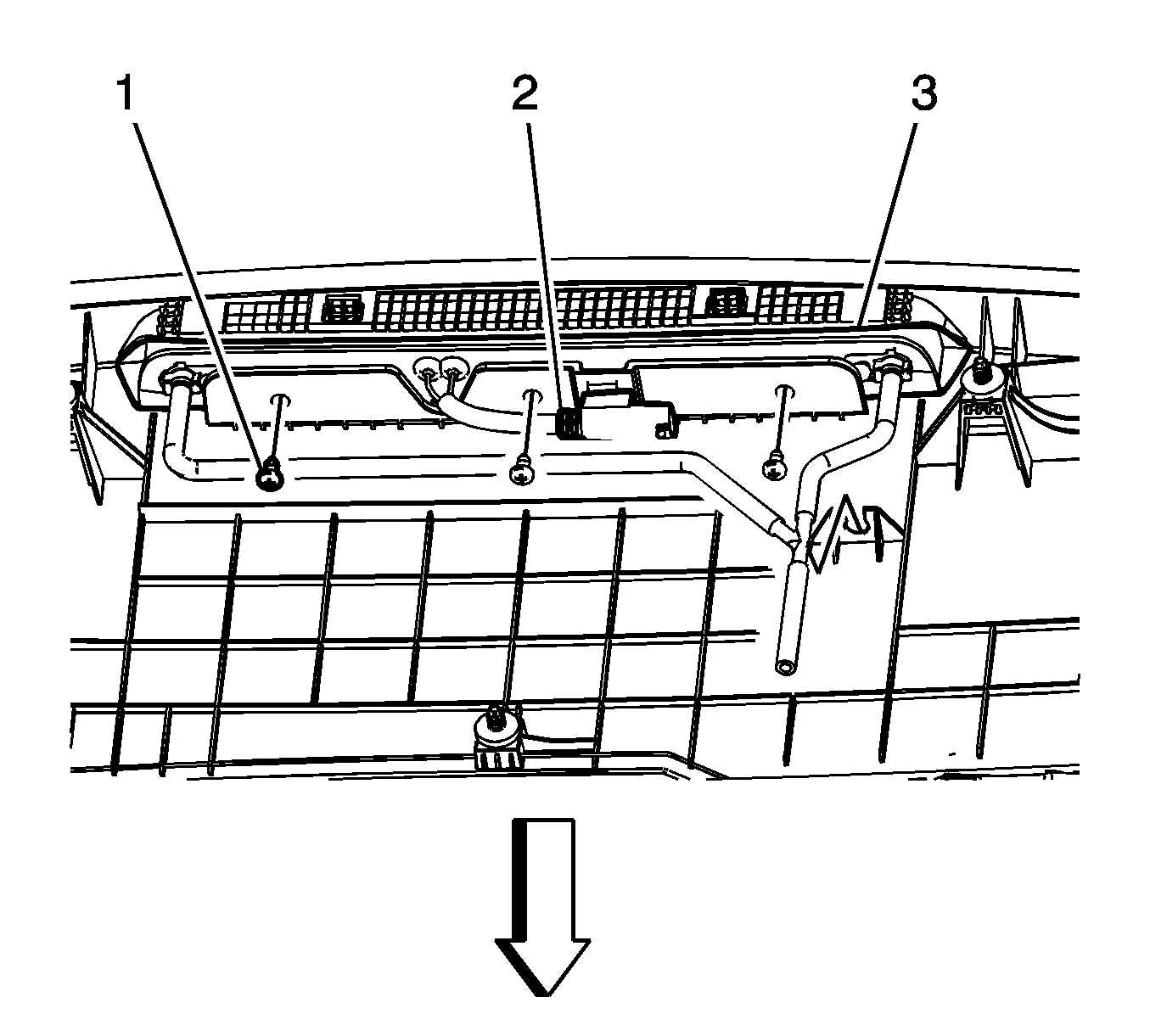

    3. Fig 2: High Mounted Stop Lamp Screws
    GM1872832Courtesy of GENERAL MOTORS CORP.
  3. Position the high mounted stop lamp (3) to the rear spoiler bracket.
  4. Install the screws (1) to secure the high mounted stop lamp (3) to the rear spoiler bracket. Tighten the screws 2 N.m (18 lb in).
  5. Position and secure the high mounted stop lamp electrical connector (2) to the spoiler bracket.
  6. Secure the washer hose to the spoiler.
  7. Install the rear spoiler to the vehicle. Refer to Rear Spoiler Replacement .
